AWS AWS2000 Manuel utilisateur

Your best soluon for all your power needs

www.australianwindandsolar.com

AUSTRALIAN WIND AND SOLAR

AWS2000 WIND TURBINE

INSTRUCTION MANUAL

AWS2000 Wind Turbine Page

Table of Contents

1. Geng started

2. Safety instrucon

3. Installaon sing

4. Specicaons

5. Part name

6. Assembling module

6.1 Verify the following upon purchase

6.2 Assembly procedure

6.3 Aaching to pole

7. Connecng the system

7.1 Before connecng

7.2 Length of the extension cable that leads to the wind genera-

tor to the baery

7.3 D.P.D.T. (Double pole double throw) blade switch

7.4 Connecng the wind generator output cable extension

7.5 Connecon example

7.6 Connecng the system

8. Explanaon operaons

9. Consideraons when choosing peripheral materials/device

9.1 Baeries

9.2 Mounng tower

9.3 Cable diameter size

9.4 Inverters

9.5 Grounding

10. Site elevaon

11. Maintaining the generator system

12. Troubleshoong

13. Warranty informaon

1.Geng Started

☼

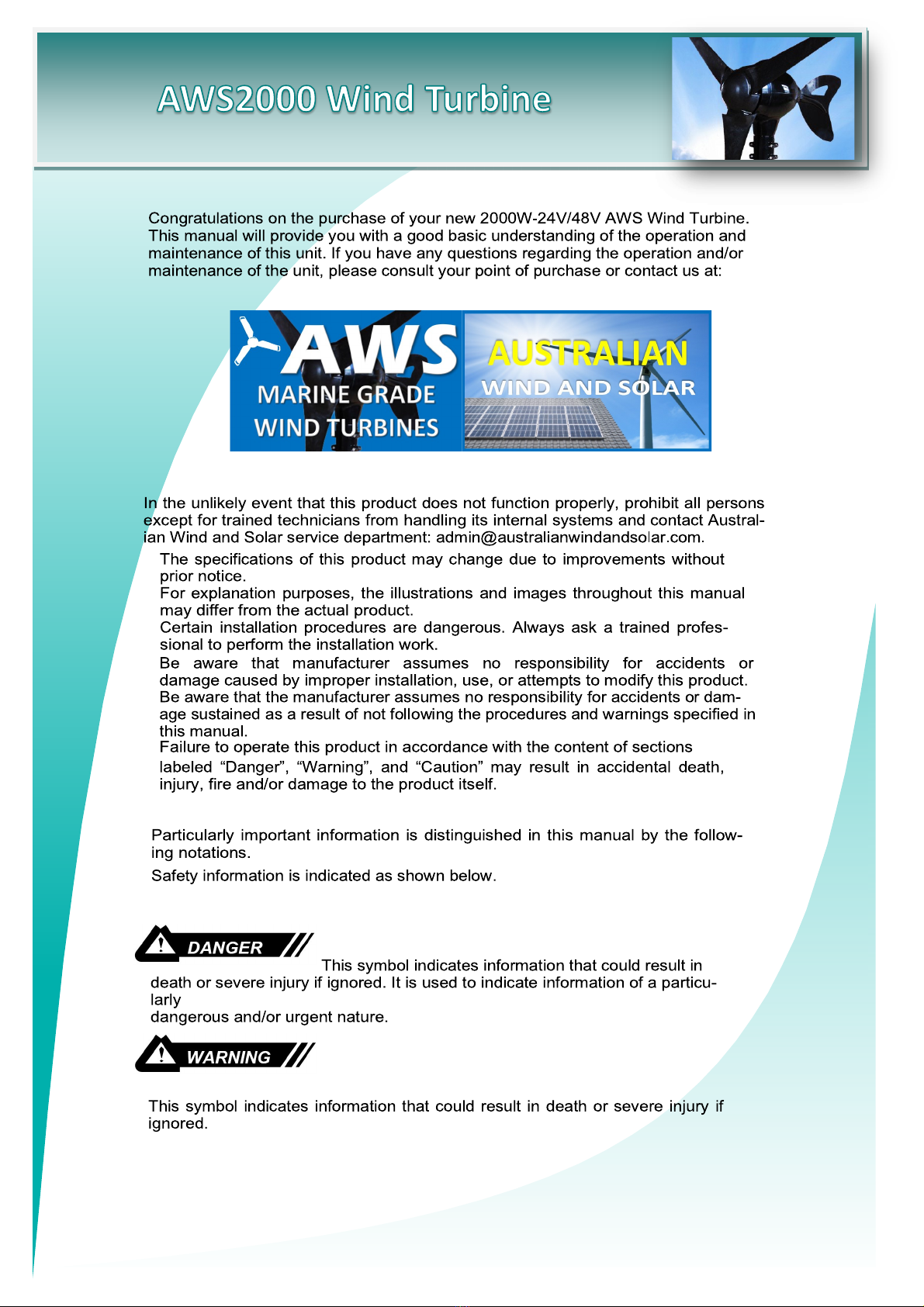

2.Safety instrucon

Be aware that failure to use the product in the manner indicated by

may, depending on circumstances, also have severe consequences. All of the symbols

described above indicate important safety information. Obey all safety information when

using this product.

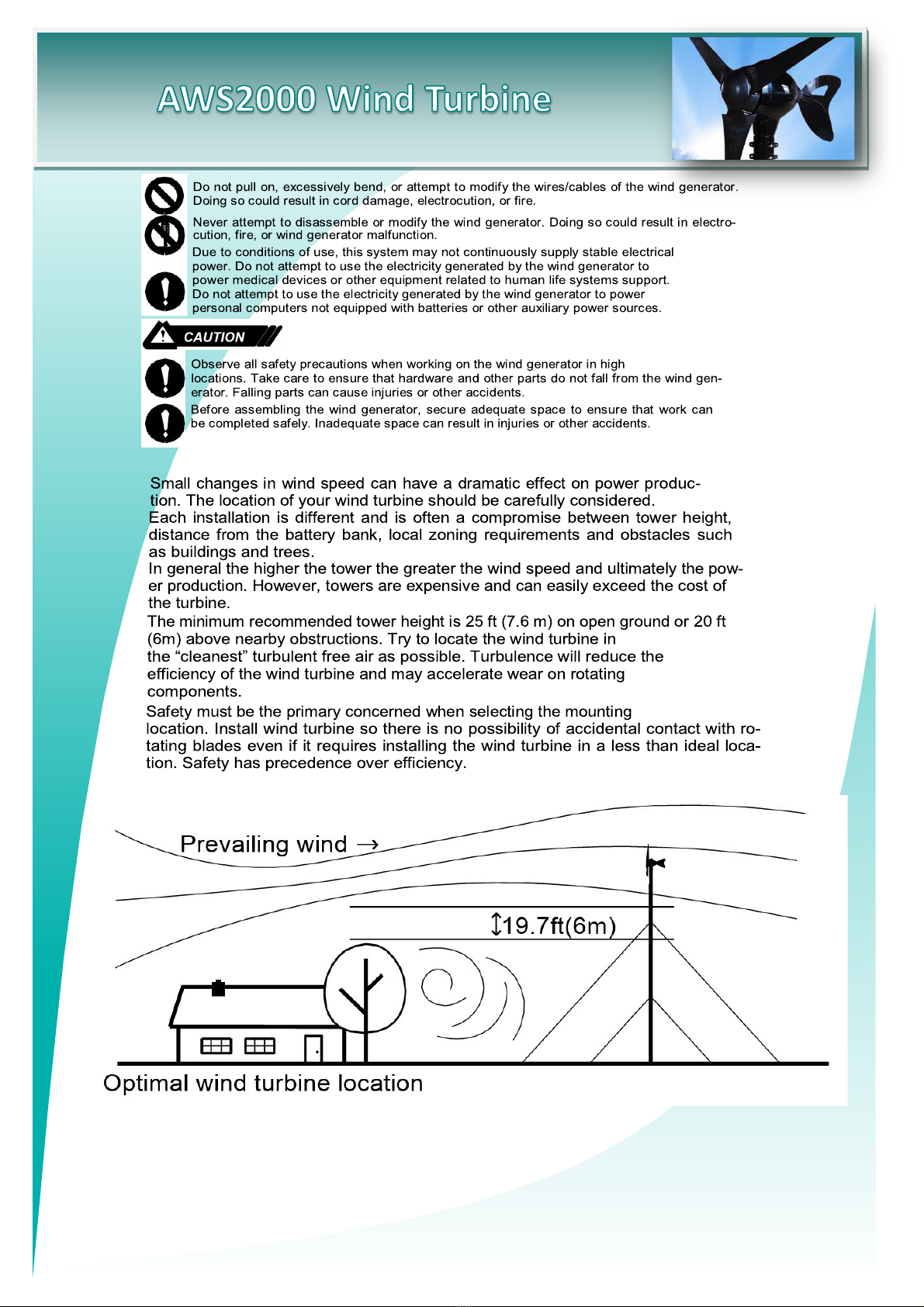

3.Installaon sing

Wind Turbine Type Horizontal axis, up-wind

UPC Code 839290007075

Rotor Diameter 1776mm (69.9”)

Weight 18kg (38lbs)

Mount Diameter 48.6mm (1-15/16”)

Number of Blades 3

Blade Material Carbon-bre

Blade Mass (per piece) 532g

Body Material Aluminum die cast

Product Finish Teon-based paint

Generator Synchronous-type, three phase power generator with neodymium iron boron mag-

nets

Controller Built-in

Yaw Control Free yaw (360 degrees)

Direcon Control Swing-tail

Over Wind Control Stall control (600rpm mode)

Start-up Wind Speed 3m/s (11KPH, 6.7MPH)

Cut-out Wind Speed 20m/s (72KPH, 45MPH)

Survival Wind Speed 49.2m/s (177KPH, 110MPH)

Rated Power 1KW (12.5m/s, 45KPH, 28MPH)

Rated Rotor Speed 1000rpm

Maximum Power 2kW (20m/s, 72KPH, 45MPH)

Maximum Rotor Speed 1000rpm, (20m/s, 72KPH, 45MPH)

Output Voltage DC25V or DC50V

Braking System Regenerave electromagnec braking system

Communicaon System Remote monitor (oponal accessory)

Recommended System O-grid: deep cycle lead acid baery, 420Ah or more

6. Assembling module

6.1 Verify the following upon purchase

Tail Unit

The body Unit and the tail is packed in

the same box.

Optional parts:

Remote Monitor System

7.Connecting the System

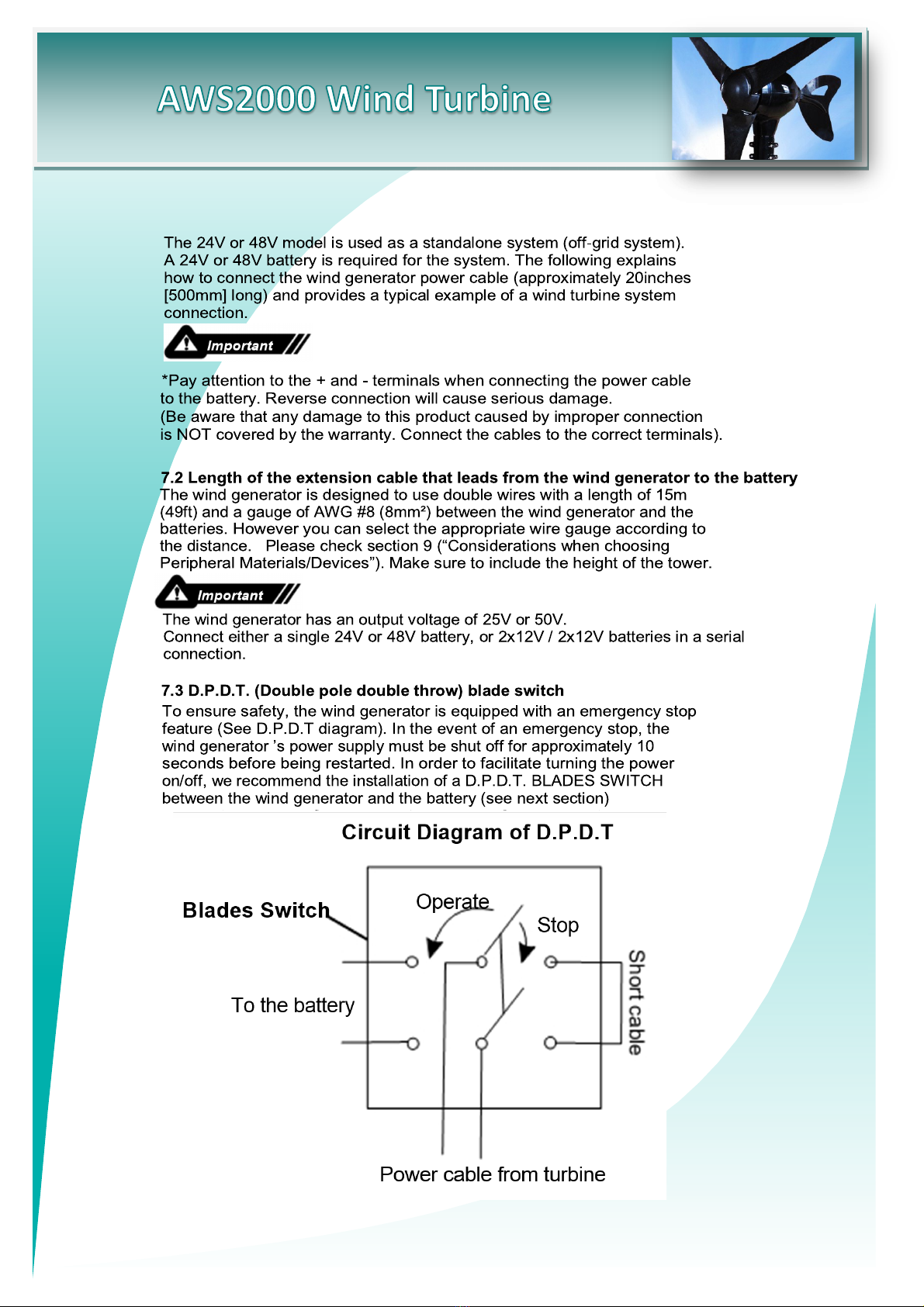

7.1 Before connecting
