Award AFEIND151 Manuel utilisateur
OPERATING AND INSTALLATION
INSTRUCTIONS OF INDUCTION
FREESTANDING
OVEN
YE66I5002E19D2
AFEIND151
Dear Customer,
We take offering quality products more than your expectation as
a goal, offers you the products produced in modern facilities
carefully and particularly tested for quality.
This manual is prepared in order to help you to use your
appliance that is manufactured by the most recent technology,
with confidence and maximum efficiency.
Before using your appliance, carefully read this guide that
includes the basic information for right and safe installation,
maintenance and use and contact to the nearest Authorized
Service for mounting of your product.
CONTENTS :
1. PRESENTATION AND SIZES OF PRODUCT
2. WARNINGS
3. INSTALLATION AND PREPARATIONS FOR USE
4. USE OF YOUR OVEN
5. CLEANING AND MAINTENANCE
6.
7. SERVICE AND TRANSPORT
USE OF YOUR WARMER DRAWER
MODEL SIZE(cm)
60 x 60 x 85

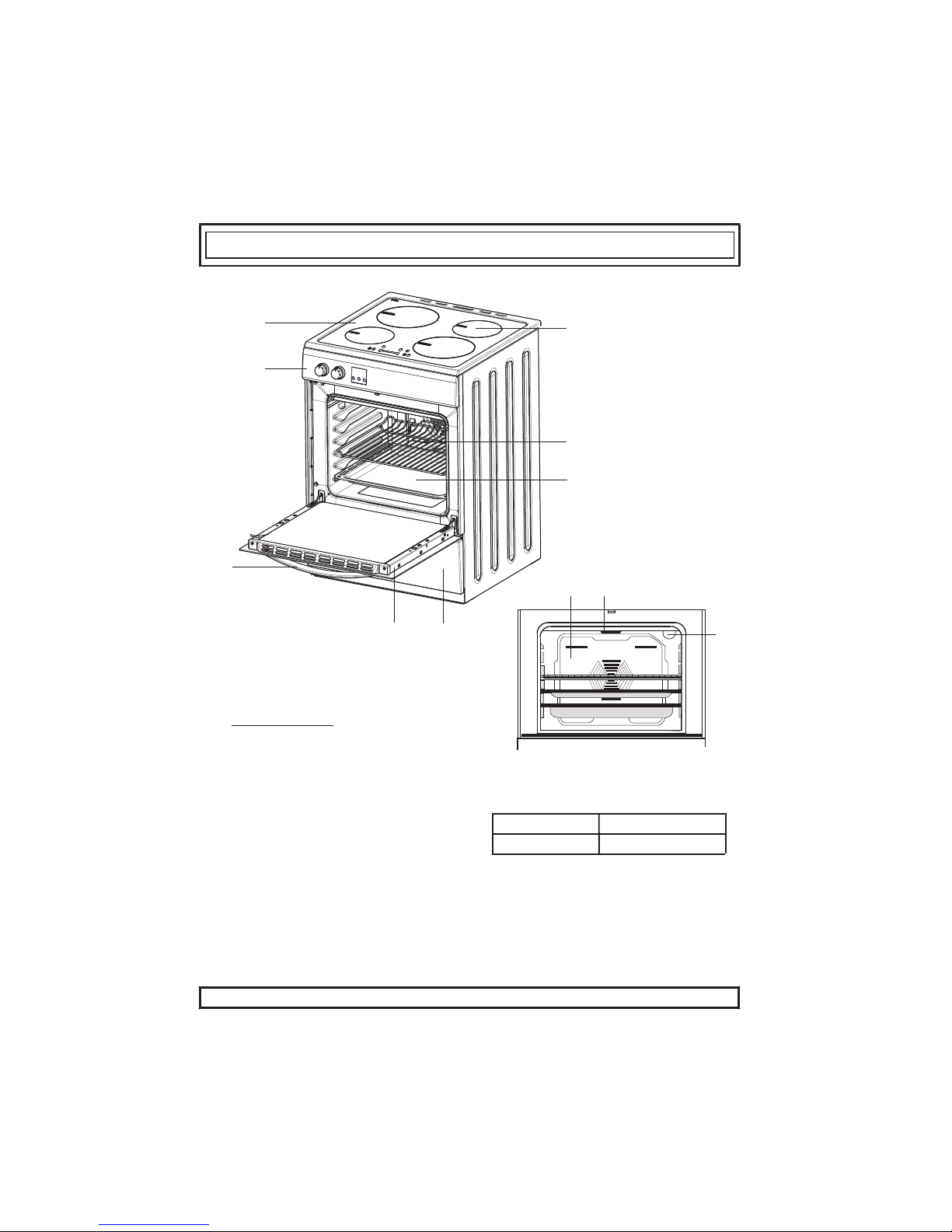

PART 1 : PRESENTATION AND SIZES OF PRODUCT
Part of List:
1-Cooktop
2-Control panel
3-Oven Door Handle
4-Drawer cover
5-Oven Door
6-Oven Tray
7-Wire Grid
8-Front Resistance
9-Fan Store
10-Oven Lamp
11-Induction zone
4
5
6
7
11
8
10
9
1
2
3
YE66I
PART 2 : WARNINGS
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE,
AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.
THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY
NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY ATTENTION TO
THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE OPERATING MANUAL.
General Safety Warnings
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
- WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
- WARNING: Unattended cooking on a hob with
fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but
switch off the appliance and then cover flame e.g.
with a lid or a fire blanket.
- WARNING: Danger of fire: do not store items on
the cooking surfaces.
- WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock.
- For induction hobs, metallic objects such as
knives, forks, spoons and lids should not be
placed on the hob surface since they can get hot.
- For induction hobs, after use, switch off the hob
element by its control and do not rely on the pan
detector.
- For hobs incorporating a lid, any spillage should
be removed from the lid before opening. And also
the hob surface should be allowed to cool before
closing the lid.
- The appliance is not intended to be operated by
means of an external timer or separate remote-
control system.
- WARNING: In order to prevent tipping of the
appliance, the stabilizing brackets must be
installed.(For detail information please read the
anti-tilting kit set guide.)
- During use, the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
- During use, handles held for short periods in
normal use can get hot.
- Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass and
other surface since they can scratch the
surface, which may result in shattering of the
glass or damage to the surface.
- Do not use steam cleaners for cleaning the
appliance.
- WARNING: Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
- CAUTION: Accessible parts may be hot when
the cooking or grilling is in use. Young children
should be kept away.
• Your appliance is produced in accordance with all applicable local and international standards and
regulations.
• Maintenance and repair work must be made only by authorized service technicians. Installation and
repair work that is carried out by unauthorized technicians may endanger you. It is dangerous to alter
or modify the specifications of the appliance in any way.
• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure
or electricity voltage and frequency) and the requirements of the appliance are compatible. The
requirements for this appliance are stated on the label.
• CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic
household use only and should not be used for any other purpose or in any other application, such
as for non-domestic use or in a commercial environment or room heating.
• Do not try to lift or move the appliance by pulling the door handle.
• All possible security measures have been taken to ensure your safety. Since the glass may break,
you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with
accessories.
• Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly qualified persons in order to
prevent a hazard.
• While the oven door is open, do not let children climb on the door or sit on it.
Installation Warnings
• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorized technician and put into use. The producer is not
responsible for any damage that might be caused by defective placement and installation by
unauthorized people.
• When you unpack the appliance, make sure that it is not damaged during transportation. In case of
any defect; do not use the appliance and contact a qualified service agent immediately. As the
materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children,
they should be collected and removed immediately.
• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow
etc.
• The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min
100°C.
During usage
• When you first run your oven a certain smell will emanate from the insulation materials and the
heater elements. For this reason, before using your oven, run it empty at maximum temperature for
45 minutes. At the same time you need to properly ventilate the environment in which the product is
installed.
• During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step
back to avoid the hot steam coming out of the oven. There may be a risk of burns.
• Do not put flammable or combustible materials, in or near the appliance when it is operating.
• Always use oven gloves to remove and replace food in the oven.
• Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on condition of
extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or
frypan with its cover in order to choke the flame that has occured in this case and turn the cooker off.
• Always position pans over the centre of the cooking zone, and turn the handles to a safe position
so they cannot be knocked or grabbed.
• If you will not use the appliance for a long time, plug it off. Keep the main control switch off. Also
when you do not use the appliance, keep the gas valve off.
• Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.
• The trays incline when pulled out. Be careful not to let hot liquid spill over.
• When the door or drawer of the oven is open, do not leave anything on it. You may unbalance
your appliance or break the cover.
• Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper, cloth...etc) into
the drawer. This includes cookware with plastic accessories (e.g. handles).
• Do not hang towels, dishcloths or clothes from the appliance or its handles.
During cleaning and maintenance
• Always turn the appliance off before operations such as cleaning or maintenance. You can do it
after plugging the appliance off or turning the main switches off.
• Do not remove the control knobs to clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU
ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED
SERVICE AGENTS IN CASE OF NEED.
3. 1 INSTALLATION OF OVEN
There are some factors that must be paid attention to while installing your oven.
Surely pay attention to our below suggestions in order to be able to prevent any
problems and/or dangerous situations that may occur later.
It can be placed close to other furniture on condition that in the area where the oven
is set up, the furniture’s height must not exceed the height of the cooker panel.
Pay attention not to place it near the refrigerator, there must be no flammable or
in flammable materials such as curtain, waterproof cloth etc. that will begin to burn
quickly, while selecting place for oven.
It is required there must be at least 2 cm blank space between the back cover of
oven and wall for air circulation.
The furniture close to oven must be manufactured resistant to heat more than
50 C° of the room temperature.
If the kitchen furniture are higher than the pan which the oven’s cookers are on,
it must be at least 11 cm away from the oven’s side.
The minimum heights from the oven’s pan and wall cupboards and paddle boxes
with fan over the oven, are shown as below. Thus, the paddle box must be at
minimum 650 mm height from the cooker pan.
If there is no paddle box, this height must not be less than 700 mm.
This appliance must only be installed directly on the floor and not on a base.
3.INSTALLATION
The appliance is provided for fixed connection to the power supply. The connection
of the appliance to an electrical source must be done by authorized technician.
3.2 ELECTRIC CONNECTION AND SECURITY
During the electric connection, surely follow the instructions below.
The earthing cable must be connected to the terminal. You have to ensure the
cable with insulation to be connected to the power source during the connection of
cable. If there is not any appropriate earthed electric outlet in accordance with
regulations in the place where the appliance will be installed, immediately contact to
our authorized service.
The earthed electric outlet must be close to the appliance. Do not use the
extension cord.
The supply cable must not touch the hot surface of the product.
In case the supply cable is damaged, surely contact to Qualified Service. The
cable must be changed by the authorized service.
The wrong electric connection may damage your appliance. Such damage is not
in guarantee extent.
The appliance is adjusted as appropriate for 220-240 Volts and 380-415V 3N Volts
of electricity. If the network electricity is different than this informed value, immediately
contact our authorized service.
The electric cable must not touch to the hot parts of appliance .The electric cable
must not touch the back part of the appliance. Otherwise the electric cable
of appliance may be damaged, which
may cause short circuit.
The producer firm declares that it has no responsibility against any kind of damages
and losses that emanate from the following security norms.
Provide a means of disconnection from the supply having an air gap contact
separation of at least 3mm in all active (phase) conductors. Such means of disconnection
shall be incorporated in the fixed wiring according to the wiring rules.
For fixed connection, use the H05VV, H05V2V2 or H05RR type supply cord.
For fixed connection, use 3x2,5mm2 or 3x4mm2 sized cable according to appliances
power and terminal box label.
Some appliances can be equipped with special plug (Perilex or Norplug). If it is
necessary, change it with the same specified spare part.
Use 16A/400V 5 pin for perilex plug and 25A/250V for Norplug.
These plugs can be used only in some countries.
the
cable
