AVYCON AVK P2500 Manuel utilisateur

AVK P2500

Quick Start Guide

Please read this instruction carefully for correct use of the product and preserve it for

reference purposes.

Table of Contents

Use Precautions ................................................................................................................................. 1

Warning ....................................................................................................................................................... 1

Caution ........................................................................................................................................................ 1

Mainenence ................................................................................................................................................ 1

Main Functions and Features ......................................................................................................... 2

1 Summary ................................................................................................................................................... 2

2 Feature ..................................................................................................................................................... 2

3 Controller Button Overview .............................................................................................................. 3

Contents and Battery Change ........................................................................................................ 4

1 Products ................................................................................................................................................... 4

2 Battery Change .................................................................................................................................... 4

Hardware Overview .......................................................................................................................... 5

Part Name & Function ....................................................................................................................... 6

Connection .........................................................................................................................................7

RS-485/422 Connection ....................................................................................................................... 7

DVR Connection ....................................................................................................................................... 7

WTX-1200A and DVR Mouse Function Use ..................................................................................... 7

System Conﬁguration ....................................................................................................................... 9

PTZ Control ........................................................................................................................................ 11

1 Power On ................................................................................................................................................. 11

2 LCD Display ............................................................................................................................................ 11

3 Camera ID Setup ..................................................................................................................................11

Controller Control / Setup .............................................................................................................. 12

PTZ Setup ..........................................................................................................................................14

Joystick Calibration ........................................................................................................................ 15

Basic Function Setting and Control .............................................................................................. 16

1 Preset ....................................................................................................................................................... 16

2 Tour .......................................................................................................................................................... 16

3 Pattern .................................................................................................................................................... 17

4 Scan ........................................................................................................................................................ 17

5 Auto Pan ................................................................................................................................................ 17

WTX-1200A Protocol ....................................................................................................................... 18

Speciﬁcation ................................................................................................................................... 20

Drawing ............................................................................................................................................ 21

Use Precautions

To prevent risk or damage on the property must keep the following information, please.

Warning: Violation of the instructions may cause death or injury.

Caution: Violation of the instructions may cause personal injury or property damage.

WARNING

• Before using this product, please be sure to read the user manual.

• Install this product in the stable and right place.

• Do not place conductive material (such as a screwdriver, coin, iron…etc.) nor vessel full of water.

• Use the indicated power only. (DC 12V).

• Do not use this product where ﬂammable substances are used.

• Do not touch electrical parts with wet hands.

• Products used to be a problem, please discontinue.

• When this product is not normally operated, contact the seller or service center.

Never disassemble the equipment.

(Problems caused by the user’s disassembly are not responsible.

CAUTION

This device is recommended for indoor use only.

• Outdoor/Place exposed to rain or moisture should not be used.

• Drop-in water may cause severe damage.

• Do not use in too heavy dust, smoke nor humid environments.

• The device does not leave too hot or cold.

• Always keep the operating temperature between 0'c and 45'c.

• Do not put this unit in direct sunlight.

• (It causes discolor or damage. )

• Do not give this unit a severe shock.

• Unplug the power when thunder, lightning storm.

(May cause ﬁre or damage.)

MAINTENANCE

• When controller body dirt, turn o the power and wipe the surface with a soft cloth.

• Alcohol, benzene, and other chemicals to prevent contact. (The surface is changeable)

*Please note the "Warning" and "Caution“.

"Warning" and "Caution" mean as follows.

Main Functions and Features

1. Summary

This product is a system integrated controller which can control up to 255 units such as speed

dome, DVR, multiplexer, receiver…etc.

It is excellent system compatibility with a variety of protocol implementations.

An array of buttons, user convenience easy connection with other products, and ﬁne control

make this unit a market needful product. This CCTV dedicated controller is very convenient to

use by anyone.

2. Features

• Elegant and ergonomic design.

• One unit can control up to 255 pan/tilt cameras and other equipment.

• Long distance remote control is possible through RS-485/422 communication.

• Low power consumption design (20mA.LED o).

• Joystick pan/tilt speed controlling is possible.

• Menu control, company logo input is possible by adopting an LCD window.

• Easy to control preset, tour, scan, pattern by using a function key.

• The administrator's password can be set.

• Easy connection with DVR and other devices (Interface).

(Protocol modiﬁcations are required).

• Mobile using is possible by using an inner 9V battery.

• S/W Update port (Protocol update).

• USB Mouse function (DVR control).

• Easy to set-ended by built-in signal splitter function. (3ch. Max)

Contents and Battery Change

1. Products

2. Battery Change

User Manaual Communication connector

AVK-P2500

(Controller)

DC12V

Adaptor(optional)

USB cable

DC9V Battery (Purchased separately)

Battery cover

Hardware Overview

1. MOUSE

2. ESC/POWER

3. Numbers

4. PTZ Function Keys

5. LCD Display

6. Joystick

7. Controller Function Keys

8. Camera Focus Control

9. Camera Zoom Control

PTZ’s up, down, left ,right position control and MENU settings.

Enter the numbers or Set up camera ID/PTZ.

Mouse function ON/OFF button

Power on and clear the entered value, or Pre-move is used.

Shows the number entered, system state and running features.

button at the same time,

HOLD: System features pause.

SHIFT/TURBO: When you press the joystick and

F1~ MENU/AUTO : Control various functions(preset, tour, pattern, scan, auto)

of controlled devices.

MENU : Adjust PTZ menu.

the camera helps you to make quick moves.

Optional (special functions, custom functions) functions are

used in.

Adjust Zoom camera’s focus.(Manual mode).

Activate Zoom camera’s Wide/Tele function.

AUX: External inputs are used in.

SET: Adjust camera(pan/tilt)’s menu.

OPEN: IRIS open

CLOSE: IRIS close

NO. Button Function

MOUSE

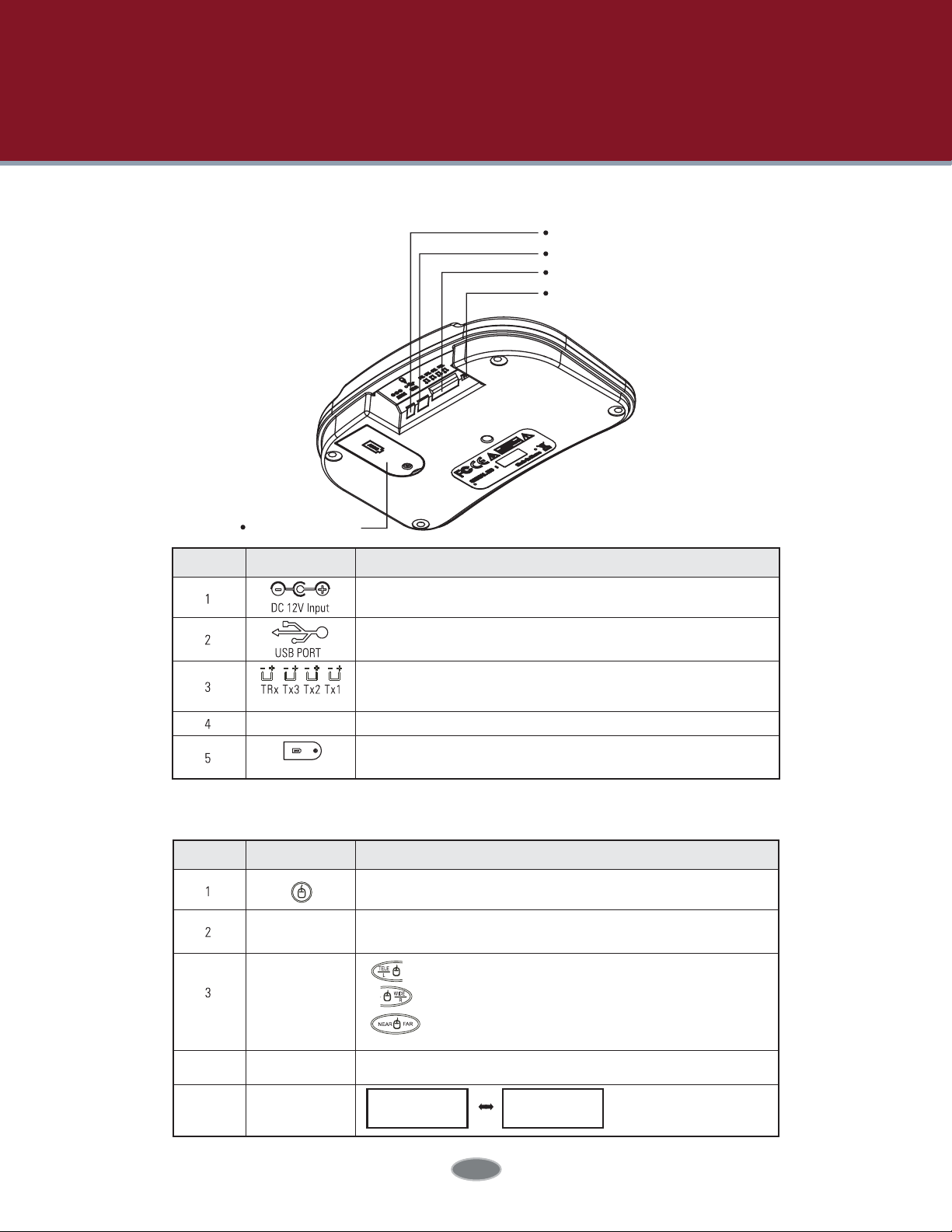

Part Name & Function

1. DC12V Input

2. USB Port

3. RS-485 / RS-422

4. Program Update Port

5. DC9V Battery

Power input (DC 12V, 140mA)

Use Tx1,2 or 3 for RS-485 /RS-422 connection

USB connecting terminal

Program update port

DC9V battery part

FunctionNo.

Program Update Port

RS-485 / RS-422

DC9V Battery

Item

Push a mouse button for 2~3 seconds

Mouse character description will be displayed

Push a mouse button shortly.

= Left button of Computer mouse

=Right button of Computer mouse

=Scroll key of Computer mouse (Middle Key)

(Simultaneously near far key poush and joystick move)

Mouse Function

To use mouse function, USB driver should be installed in advance.

No. Item

Discription

button

Reference Key

DVR Connection

method

Discription ID:001

[WDS PEL-D 2.4K] [DVR WKEY 2.4K]

ID:001

Connection

INTEGRATED Controller WTX-1200A Keyboard can be used to connect & control DVR,

MULTIPLEXER, and other external devices.

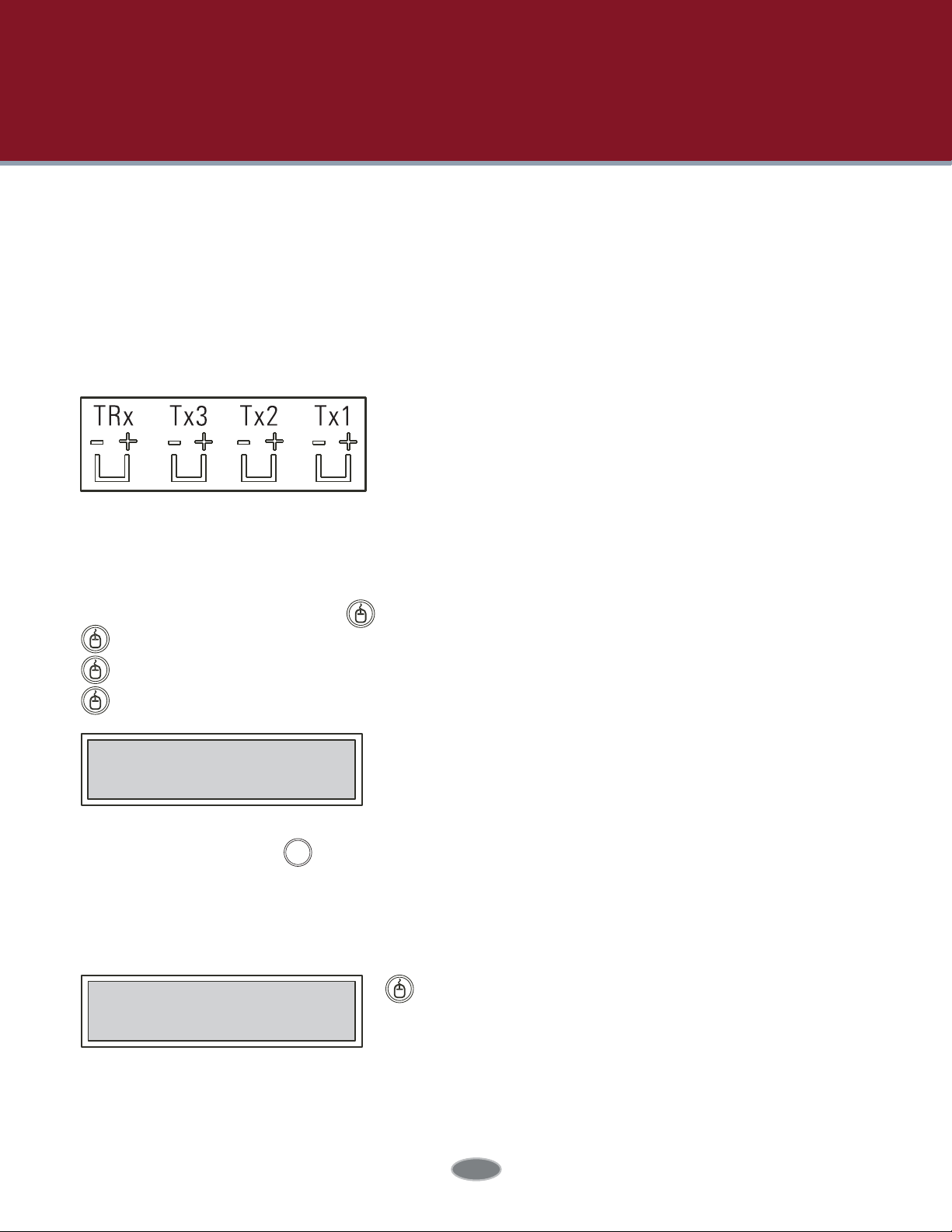

RS-485/422 Connection

The external device’s RS-485/422 port is connected to this Keyboard’s RS-485/422 terminal

block.

When RS-485/422 connection, be careful +, - polarity not

be changed. And check device’s RS-485/422 support is

available or not.

Transfer speed is 9600bps, Control ID is 001. Display ID is

DVR ID.

Press and hold the mouse button to start the feature.

Mouse function will start as phrase (MOUSE) ﬂashing

on the screen.

DVR Connection

Connect the USB cable of this equipment to the DVR.

Press the top of the controller’s button.

If you brieﬂy press: Camera control mode is switched on the keyboard.

If you press and hold: Mouse function is activated through USB Port.

If you brieﬂy press, displays are as follows.

If you want to control other ID DVR, push number key, and ENT then ID will be changed.

(EX. No.3 button + press for 3 seconds)

* Constant value for each button, for each communication (COMMAND) has been set.

WTX-1200A and DVR Mouse Function Use

ID : 001

DVR WKRY 9.6

ID : 001 MOUSE

DVR WKRY 9.6

ENT

1. DVR must be PC compatible. (Device driver required)

2. DVR Power ON

3. WTX-1200A Power ON

4. Mouse speed setting in the main setup (WTX-1200A 2 + )

5. WTX-1200A and DVR connected.

6. If you press and hold button, you can see the phrase (MOUSE) ﬂashing on the screen.

7. Check the mouse pointer on the screen.

8. Mouse function used as joystick control.

USE ‘L’, ‘R’ button of mouse Use mouse-pointer moving

AVK-P2500 Quick Start Guide
