Avtech DGC5445ASE Series Manuel utilisateur
889Z
d5205se_5445ase_V0.9
5MP IR Dome Camera User Manual
Please use this camera with a recorder which supports HD video recording.
Please read the instructions thoroughly before using the product.
C
CA
AU
UT
TI
IO
ON
N
R
RI
IS
SK
K
O
OF
F
E
EL
LE
EC
CT
TR
RI
IC
C
S
SH
HO
OC
CK
K
C
CA
AU
UT
TI
IO
ON
N:
:
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.
Only operate this apparatus from the type of power source indicated on the label.
The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of
such damages.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ROHS Announcement
All lead-free products offered by the company comply with the requirements of the European law on the Restriction
of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly
“lead-free” and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected
separately at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do
not dispose of these products as unsorted municipal waste.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error-free. We reserve the right to revise or
remove any content in this manual at any time.
FEATURES
1. 1/2.5” CMOS Sensor with up to 5MP video output
2. Low light sensitivity
3. Quadbrid video output with TVI, CVI, AHD & CVBS
4. DWDR to increase image recognizability in overexposure and dark areas
5. Day and night 24-hour surveillance with IR effective distance up to 50 meters
6. IP66 for weather-proof application
7. Camera parameters adjustable when used with HD CCTV DVR
PACKAGE CONTENT
IR dome camera User manual Wrench Screws & wall plugs
SPECIFICATIONS*
Model 1 Model 2
Video Mode TVI, CVI, AHD & CVBS** switchable
Pick-up Element 1/2.5 " CMOS image sensor
Number of Pixels 2560 (H) x 1920 (V)
Video Frame Rate 5MP@ 20fps
Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON) 0.1 Lux / F1.4(Wide)~F2.8(Tele),
0 Lux (IR LED ON)
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed AUTO: 1/20 sec ~ 1/20000 sec
Lens f3.6mm / F1.8 motorized f2.8 ~ 12mm / F1.4 ~ F2.8
Lens Angle 96° (Horizontal) / 50° (Vertical) /
116° (Diagonal)
Wide:
113.5° (Horizontal) / 59.3° (Vertical) /
137° (Diagonal)
Tele:
33.4° (Horizontal) / 18.7° (Vertical) /
38.2° (Diagonal)
IR LED 2 units 4 units
IR Effective Distance Up to 50 meters
IR Shift YES
Day & Night Mode YES
Noise Reduction YES
IRIS Mode AES
White Balance AUTO
AGC AUTO
Sharpness Adjustable
Flickerless 50HZ / 60HZ / OFF
BLC Adjustable
DWDR YES
IP Rating IP66
Operating Temperature -20℃~ 40℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 1A
Current Consumption (±10%) 100mA (IR lED OFF);
250mA (IR LED ON) --
Net Weight (kg) 0.32 0.75
Optional Peripherals Junction Box (AVA456-BKT / AVA456-HBKT)
* The specifications are subject to change without notice.
** The camera can’t be accessed to change configurations in the CVBS mode.
DIMENSIONS*
Model 1
Model 2
*Dimensional Tolerance: ± 5mm
INSTALLATION
Step1: Disassemble the camera case into three parts as illustrated in Figure 1.
Part 1 Part 2Base
Figure 1
Step2: Locate where you want to install this camera (wall or ceiling), and drill holes on the wall or ceiling for
securing the bracket and routing the cables (if necessary).
Step3: Attach the bracket to the wall (or ceiling), and make sure the cables are routed and arranged
properly in the bracket, as shown in Figure 2.
Step4: Secure the bracket to the wall (or ceiling), as shown in Figure 3.
Figure 2 Figure 3
Step 5: Slightly adjust the camera lens to where it’s supposed to face, and replace Part 1 and Part 2 back,
as shown in Figure 4 and Figure 5.
Note: Do not install the lens opposite down. (Refer to
Figure 6
).
Figure 4 Figure 5
Step6: Hold the camera lens and Part 1, and rotate only Part 2 clockwise until it’s fastened, as shown in Figure 5.
NOTE: Do not install the lens upside down. (Refer to
Figure6
)
Upside
Downside
Figure 6
Step7: Power on the camera and fine-tune the viewing angle.
For Model 2, please refer to the section, "FOCAL LENGTH & FOCUS ADJUSTMENT".

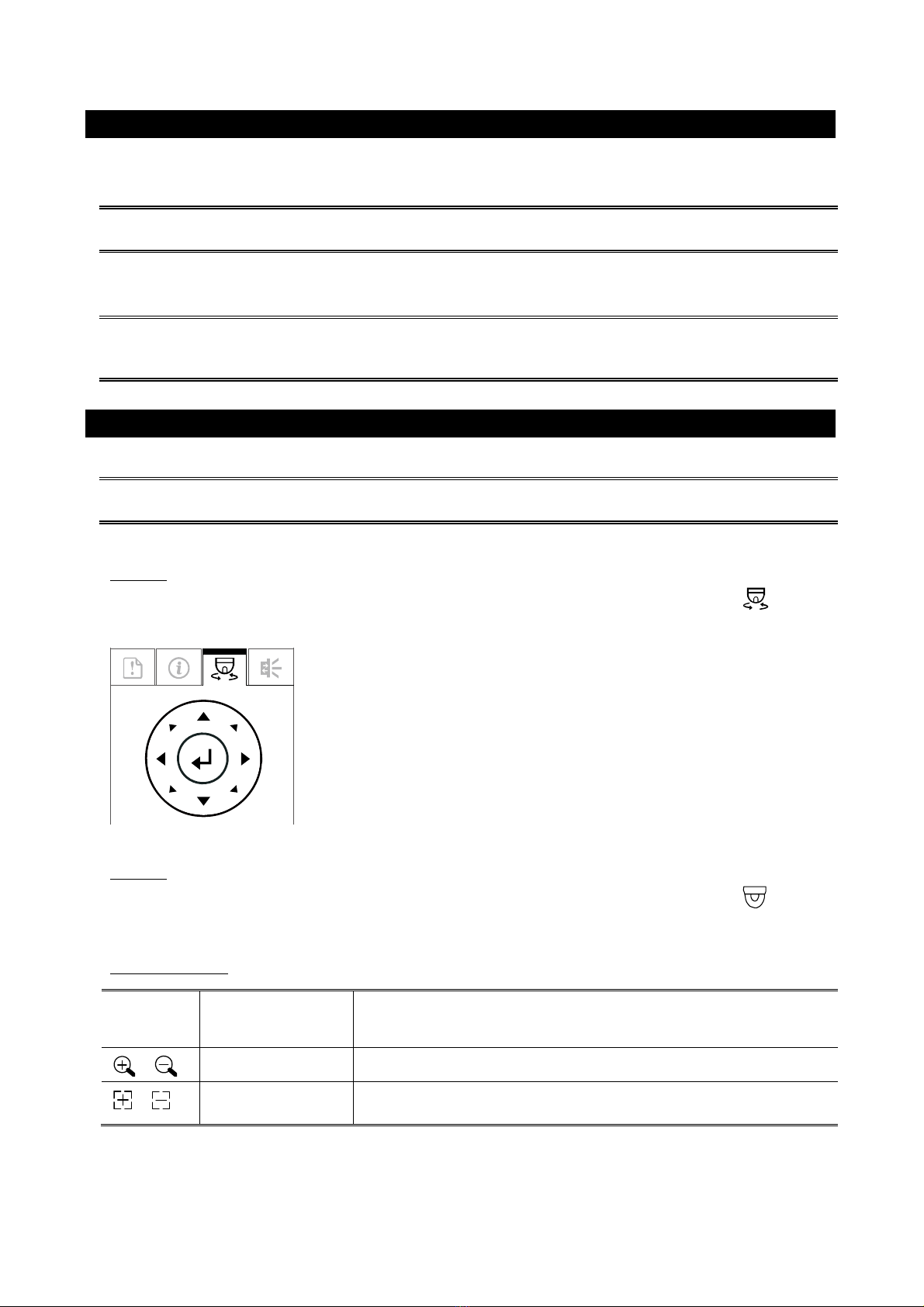

CONNECTION
1. DC12V Input Terminal
Connect the power terminal of the camera to a DC 12V regulated power supply.
Note: Please use the correct power adaptor, DC12V (regulated), to operate this unit. The power tolerance of
this unit is DC12V ± 10%. Over maximum DC 12V power input will damage this unit.
2. Video Output Connector (VIDEO OUT)
Connect the camera video output to the video input of a DVR with 75Ωcoaxial cable.
Note: To ensure the camera has sufficient protection against moisture, an extra waterproof measure, such
as by using an insulating tape, must be used to cover the power and video connectors after
connection.
FOCAL LENGTH & FOCUS ADJUSTMENT
This function is available for Model 2 only.
Note: The access path is taking our HD CCTV recorder as an example. If you’re using other brand’s recorder,
please refer to its own user manual to know how to access the camera parameters.
Based on the recorder type you have, on the live view:
Type 1
Click twice on the channel that this camera is connected to show in full screen, and click on on the
right side to display the PTZ control panel.
Type 2
Click twice on the channel that this camera is connected to show in full screen, and click on on the
bottom left of the channel to show the PTZ control panel.
How to adjust
＋/ －Zoom in / out max Click to zoom in on the image to the largest / zoom out on the image to its
original size.
/ Zoom in / out Click to zoom in / out the image.
/ Focus near / far Click to adjust the focus of the image.
CAMERA PARAMETERS
This camera series has its own configuration menu.
Note: The camera can’t be accessed to change configurations when the video mode is switched to CVBS.
Note: The access path is taking our HD CCTV recorder as an example. If you’re using other brand’s recorder,
please refer to its own user manual to know how to access the camera parameters.
Based on the recorder type you have, on the live view:
Type 1
Click twice on the channel that this camera is connected to show in full screen, and click on on the
right side to display the PTZ control panel.
Then, click on (Enter) on the PTZ control panel to show the configuration menu of this camera, and
use the arrow keypad to choose between each option.
W
hen the camera menu is entered, use keypad to move between and
change those configurations.
▲▼ Move between selections.
◄► Change settings.
Call the camera parameters menu or enter the
currently-selected item.
Type 2
Click twice on the channel that this camera is connected to show in full screen, and click on on the
bottom left of the channel to show the PTZ control panel.
Then, click on (Enter) on the PTZ control panel to show the configuration menu of this camera, and
use the arrow keypad to choose between each option.
/ Move among sub-menus.
/ Change settings.
Call the camera parameters menu or enter the currently-selected item.
MENU REMARK
FORMAT Choose the video resolution and
IPS of this camera in different
video output mode.
VIDEO MODE TVI / AHD / CVI / CVBS
MAIN-MENU AE BRIGHTNESS 1 ~ 10
EXPOSURE MODE GLOBAL
BLC Manually adjust the level of BLC
from 0 ~ 8. The higher the value,
the brighter the whole image.
GAIN HIGH / MIDDLE / LOW
WDR OFF / ON Digital WDR
AWB MODE ATW
MWB Manually adjust the white balance
parameters by modifying R / B gain
parameters.
DAY - NIGHT MODE EXT Use the external light sensor we
added in the camera to detect the
surrounding light condition and
switch to color or B/W mode.
AUTO
COLOR
B/W
VIDEO SETTING CONTRAST 1 ~ 10
SHARPNESS 1 ~ 10
COLOR GAIN 1 ~ 10
NR 1 ~ 10
MIRROR DEFAULT
H Horizontal
V Vertical
HV Horizontal & vertical
RESET
EXIT Exit the menu without saving
SAVE-EXIT Save the changes and exit the
menu.
