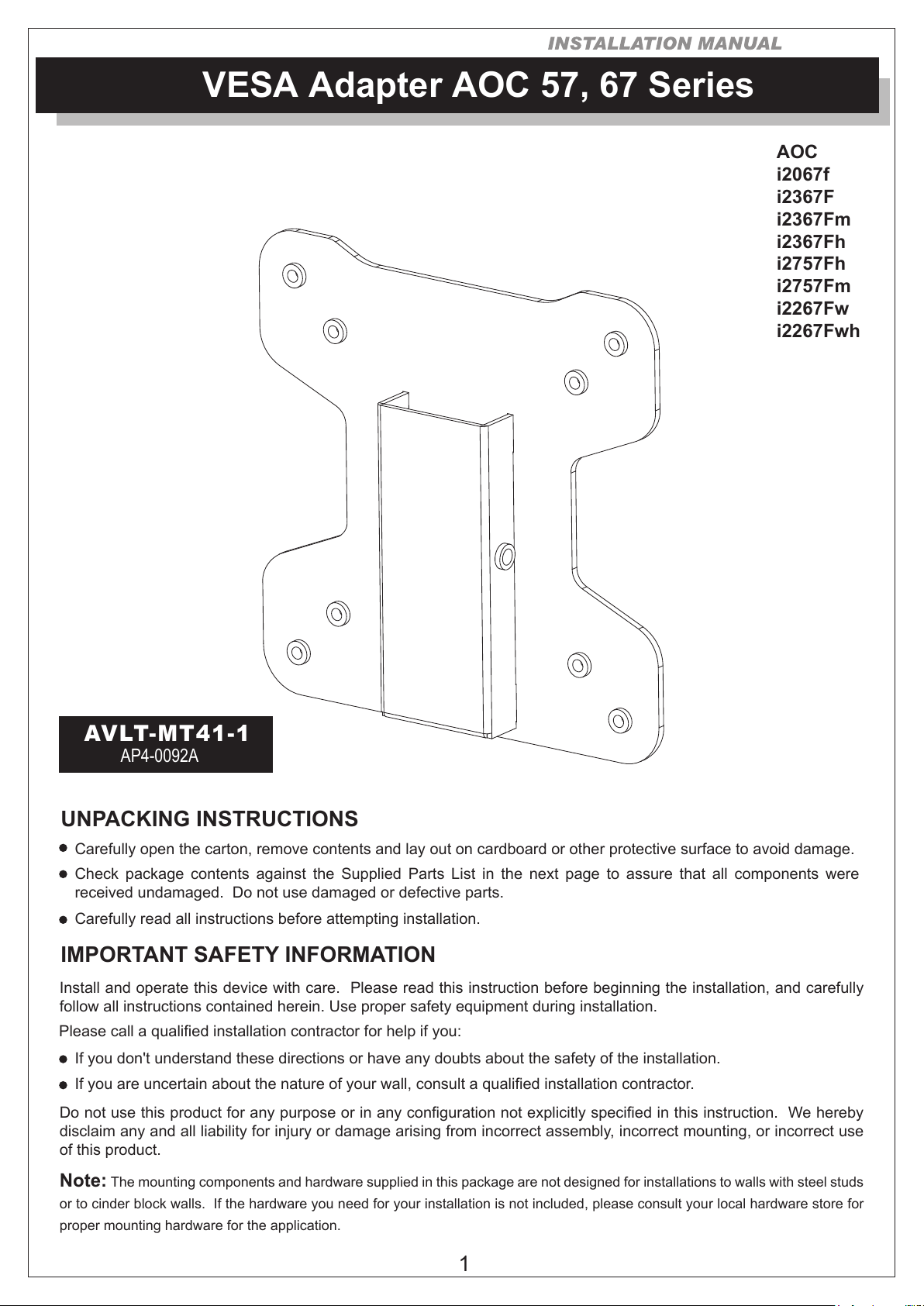

UNPACKING INSTRUCTIONS
Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure that all components were
received undamaged. Do not use damaged or defective parts.
Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
If you don't understand these directions or have any doubts about the safety of the installation.
Install and operate this device with care. Please read this instruction before beginning the installation, and carefully
follow all instructions contained herein. Use proper safety equipment during installation.
Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby
disclaim any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use
of this product.
If you are uncertain about the nature of your wall, consult a qualified installation contractor.
Please call a qualified installation contractor for help if you:
Note: The mounting components and hardware supplied in this package are not designed for installations to walls with steel studs
or to cinder block walls. If the hardware you need for your installation is not included, please consult your local hardware store for
proper mounting hardware for the application.
VESA Adapter AOC 57, 67 Series
AVLT-MT41-1
AP4-0092A
AOC
i2067f
i2367F
i2367Fm
i2367Fh
i2757Fh
i2757Fm
i2267Fw
i2267Fwh
All manuals and user guides at all-guides.com
2

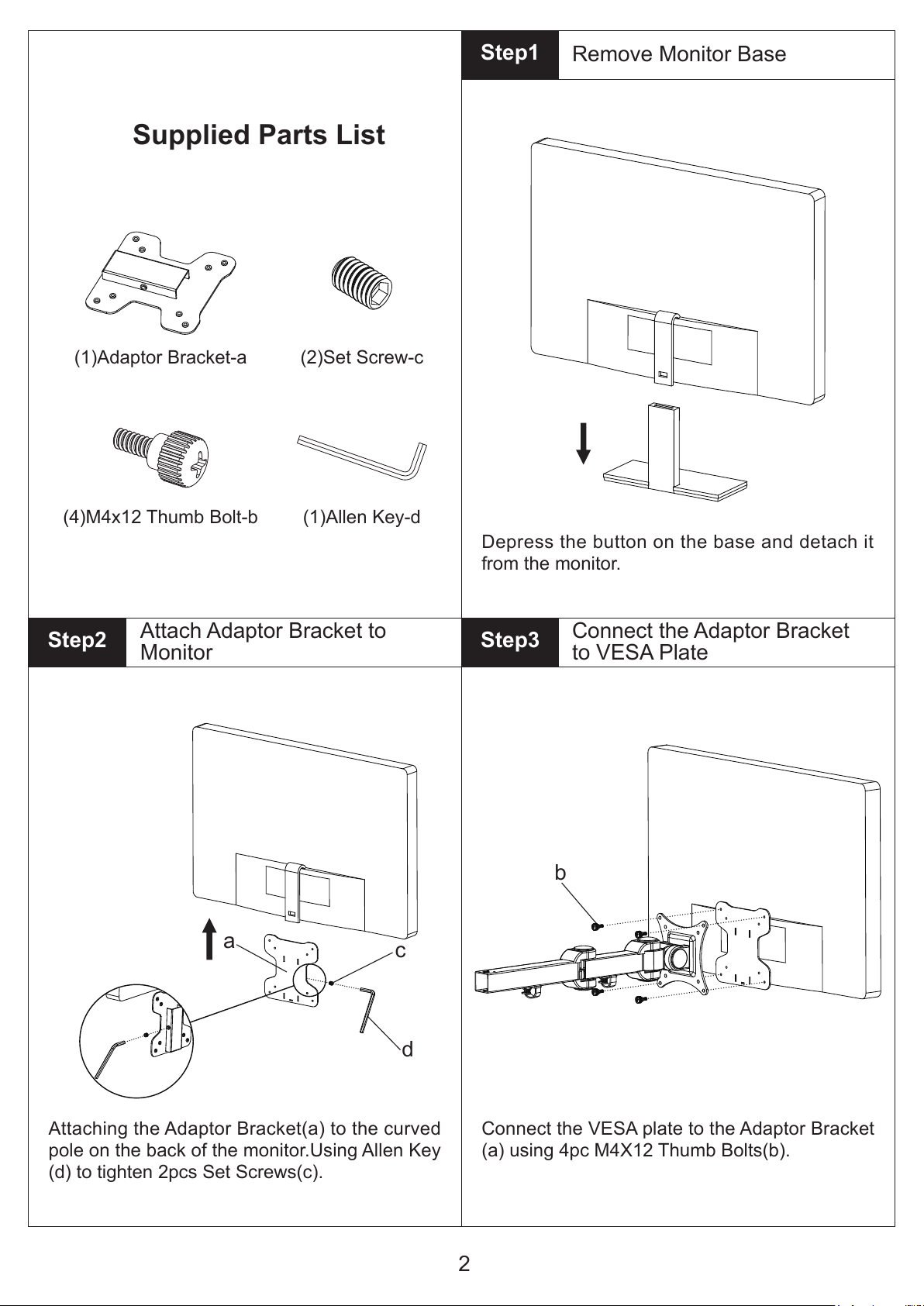

Attaching the Adaptor Bracket(a) to the curved
pole on the back of the monitor.Using Allen Key
(d) to tighten 2pcs Set Screws(c).
Connect the VESA plate to the Adaptor Bracket
(a) using 4pc M4X12 Thumb Bolts(b).
Depress the button on the base and detach it
from the monitor.
Step1 Remove Monitor Base
Step3 Connect the Adaptor Bracket
to VESA Plate
Step2 Attach Adaptor Bracket to
Monitor
ac
d
b
Supplied Parts List
(1)Adaptor Bracket-a
(4)M4x12 Thumb Bolt-b (1)Allen Key-d
(2)Set Screw-c
All manuals and user guides at all-guides.com
