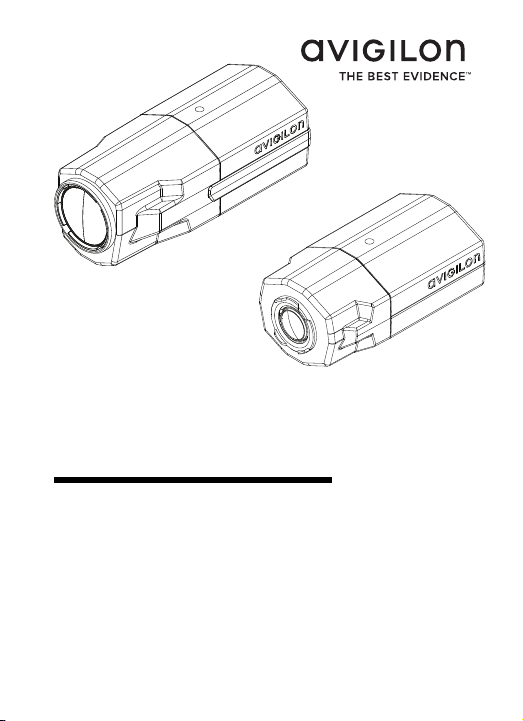

Avigilon 1.0-H3-B2 Manuel utilisateur

Installation Guide

Avigilon High Definition H.264 IP Camera

Models:

1.0-H3-B1, 1.0-H3-B2, 1.0-H3-B3, 1.3L-H3-B2, 1.3L-H3-B3, 2.0-H3-B1,

2.0-H3-B2, 2.0-H3-B3, 3.0W-H3-B2, 3.0W-H3-B3, 5.0-H3-B2

and 5.0-H3-B3

920-0061C-Rev1

English

Important Safety Information

This manual provides installation and operation information and

precautions for the use of this camera. Incorrect installation could

cause an unexpected fault. Before installing this equipment read this

manual carefully. Please provide this manual to the owner of the

equipment for future use.

• Do not use near water or expose to dripping or splashing.

Do not place objects filled with liquids above the device.

• Do not expose to rain or moisture.

• For indoor use only.

If used outdoors, an approved outdoor mounting adapter

or enclosure is required. Consult with Avigilon for more

information.

• Installation must be performed by qualified personnel only,

and must conform to all local codes.

• This product is intended to be supplied by a UL Listed

Power Unit marked “Class 2” or “LPS” or “Limited Power

Source” with output rated 12 VDC or 24 VAC, 6 W min. or

Power over Ethernet (PoE), rated 48 VDC, 6 W min.

• Any external power supply connected to this product may

only be connected to another Avigilon product of the same

The Warning symbol indicates the presence of dangerous

voltage within and outside the product enclosure that may

constitute a risk of electric shock, serious injury or death to

persons if proper precautions are not followed.

The Caution symbol alerts the user to the presence of hazards

that may cause minor or moderate injury to persons, damage to

property or damage to the product itself if proper precautions

are not followed.

Warning — Failure to observe the following instructions

may result in severe injury or death.

English

model series. External power connections must be

properly insulated.

• Do not connect directly to mains power for any reason.

• Do not install near any heat sources such as radiators,

heat registers, stoves, or other sources of heat.

• Do not subject the cables to excessive stress, heavy loads

or pinching.

• Do not open or disassemble the device. There are no user

serviceable parts.

• Refer all servicing to qualified personnel.

Servicing may be required when the device has been

damaged (such as from a liquid spill or fallen objects), has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

• Do not use strong or abrasive detergents when cleaning

the device body.

• Use only accessories recommended by Avigilon.

• Use only UL-listed mounting bracket suitable for the

mounting surface and minimum 0.7 kg (1.5 lb) weight.

• Use of controls or adjustments or performance of

procedures other than those specified in this document

may result in hazardous radiation exposure.

Caution — Failure to observe the following instructions

may result in injury or damage to the camera.

iii

English

Regulatory Notices

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

FCC Notice

This equipment has been tested and found to comply with the limits for

a Class B computing device pursuant to Subpart B of Part 15 of FCC

rules, which are designed to provide reasonable protection against

such interference when operated in a commercial environment.

Operation of this equipment in a residential area is likely to cause

interference, in which case the user at his/her own expense will be

required to take whatever measures may be required to correct the

interference.

Changes or modifications made to this equipment not expressly

approved by Avigilon Corporation or parties authorized by Avigilon

Corporation could void the user’s authority to operate this equipment.

Disposal and Recycling Information

When this product has reached the end of its useful life, please

dispose of it according to your local environmental laws and

guidelines.

European Union:

This symbol means that according to local laws and regulations your

product should be disposed of separately from household waste. When

this product reaches its end of life, take it to a collection point

designated by local authorities. Some collection points accept products

for free. The separate collection and recycling of your product at the

time of disposal will help conserve natural resources and ensure that it

is recycled in a manner that protects human health and the

environment.

English

Other Notices

Compilation and Publication Notice

This manual has been compiled and published covering the latest

product descriptions and specifications. The contents of this manual

and the specifications of this product are subject to change without

notice. Avigilon reserves the right to make changes without notice in

the specifications and materials contained herein and shall not be

responsible for any damages (including consequential) caused by

reliance on the materials presented, including but not limited to

typographical and other errors relating to the publication.

Intellectual Property Notice

No license is granted by implication or otherwise under any industrial

design, industrial design rights, patent, patent rights, or copyrights of

Avigilon Corporation or its licensors. Trademarks and registered

trademarks are the property of their respective owners.

English

Table of Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Required Tools and Materials . . . . . . . . . . . . . . . . . 3

Camera Package Contents . . . . . . . . . . . . . . . . . . . 3

Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Mounting the Camera . . . . . . . . . . . . . . . . . . 3

Connecting Cables . . . . . . . . . . . . . . . . . . . . 4

Assigning an IP Address . . . . . . . . . . . . . . . 5

Accessing the Live Video Stream . . . . . . . . . 5

Aiming and Focusing the Camera . . . . . . . . 6

For More Information . . . . . . . . . . . . . . . . . . 6

Cable Connections . . . . . . . . . . . . . . . . . . . . . . 7

Connecting External Power . . . . . . . . . . . . . . . . . . . 7

Connecting to External Devices . . . . . . . . . . . . . . . 8

Connecting to Microphones, Speakers

and Video Monitors . . . . . . . . . . . . . . . . . . . . . . . . . 9

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . 10

Reset to Factory Default Settings . . . . . . . . . 11

Setting the IP Address Through the ARP/Ping

Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 13

Limited Warranty & Technical Support . . . . 14

English

Overview

Front View

Feature Description

Camera Mounts Mounting points for the camera.

Mounts accept 1/4” - 20 UNC bolts commonly

found on mounting brackets.

Serial Number Tag Product serial number and part number label.

Serial

Number Tag

Camera Mount

(Top and Bottom)

Serial

Number Tag

Camera Mount

(Top and Bottom)

English

Rear View

Feature Description

Ethernet Port Accepts an Ethernet connection to a network. Server

communication and image data transmission occurs

over this connection. Also receives power when it is

connected to a network that provides Power over

Ethernet.

Power

Connector

Block

Accepts a terminal block with either AC or DC power

connection. DC input can be either polarity. Only

required when Power over Ethernet is not available.

Audio/Video

Connector Accepts a mini-jack connector (3.5 mm). See the

section about connecting microphones and monitors

for more information.

I/O Terminals Provides connections to external input/output

devices. See the section about connecting external

devices for more information.

Connection

Status LED Provides information about device operation. See

LED indicators for more information.

Link LED Indicates if there is an active connection in the

Ethernet port.

Connection Status LED

Link LED

Power Connector Block

Ethernet Port

Audio/Video Connector

I/O Terminals
