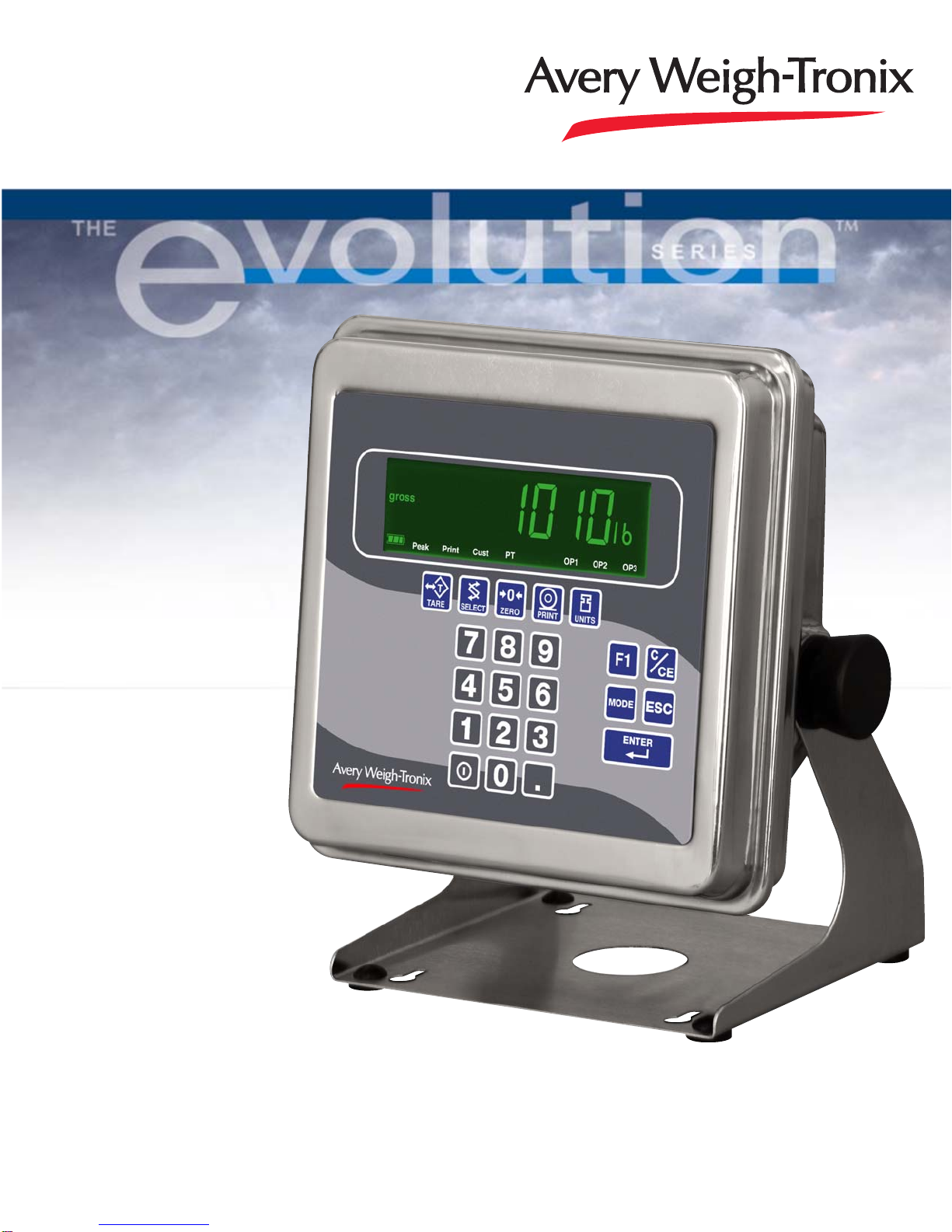

Model E1010 Indicator

User’s Manual

2Model E1010 Indicator User’s Manual

EUROPEAN COUNTRIES

WARNING

This is a Class A product. In a domestic environment this product may cause radio

interference in which the user may be required to take adequate measures.

12/12/05 E1010_U.P65 PN43030-0012Ee1 PrintedinUSA

UNITED STATES

This equipment has been tested and found to comply with the limits for

a Class A digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environ-

ment.Thisequipmentgenerates,uses,andcanradiateradiofrequency

energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications.

Operationofthisequipmentinaresidentialareaislikelytocauseharmful

interference in which case the user will be required to correct the

interference at his own expense.

CANADA

Thisdigital apparatusdoes notexceed theClass Alimits forradio noise

emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la

Class A prescrites dans le Règlement sur le brouillage radioélectrique

que edicté par le ministère de2s Communications du Canada.

CAUTION

CAUTION:DANGEROFEXPLOSIONIFBATTERYISINCORRECTLYREPLACED.

REPLACEONLYWITHTHESAMEOREQUIVALENTTYPERECOMMENDEDBYTHEMANUFACTURER.

DISPOSEOFUSEDBATTERIESACCORDINGTOTHEMANUFACTURER’SINSTRUCTIONS

ATTENTION:ILYADANGERD’EXPLOSIONS’ILYAREMPLACEMENTINCORRECTDELABATTERIE,

REMPLACERUNIQUEMENTAVECUNEBATTERIEDUMÊMETYPEOUD’UNTYPEÉQUIVALENT

RECOMMANDÉPARLECONSTRUCTEUR.METTREAUREBUTLESBATTERIESUSAGÉES

CONFORMÉMENTAUXINSTRUCTIONSDUFABRICANT”.

CAUTION:THEPOWERSUPPLYCORDISUSEDASTHEMAINDISCONNECTDEVICE,ENSURETHATTHE

SOCKET-OUTLETISLOCATED/INSTALLEDNEARTHEEQUIPMENTANDISEASILYACCESSIBLE.

ATTENTION:LECORDOND’ALIMENTATIONESTUTILISÉCOMMEINTERRUPTEURGÉNÉRAL.LAPRISEDE

COURANTDOITÊTRESITUÉEOUINSTALLÉEÀPROXIMITÉDEL’ÉQUIPEMENTETÊTREFACILED’ACCÉS”.

Avery Weigh-Tronix reserves the right to change

specifications at any time.

Model E1010 Indicator User’s Manual

Table of Contents

Table of Contents........................................................................................3

Specifications..............................................................................................4

Introduction .................................................................................................5

About This Manual................................................................................5

Setup ...................................................................................................5

Front Panel .................................................................................................6

Keys ...................................................................................................6

Battery Information......................................................................................8

PLU (Product Look Up) Memory Channels.................................................8

Menu Mode .................................................................................................9

Indicator Operations..................................................................................10

Gross Weighing ..................................................................................10

Tare/Net Weighing..............................................................................10

Accumulator Weighing........................................................................11

Using Cutoffs.................................................................................11

Checkweighing ...................................................................................12

Limit Mode: Entering Upper and Lower Limits...............................13

Sample Mode: Using Product to Set Target Weight......................13

Performing a Checkweighing Weighment .....................................13

Using Cutoffs.................................................................................13

Counting .............................................................................................14

Using Cutoffs.................................................................................14

Batch Weighing ..................................................................................15

Peak Weighing ...................................................................................16

UsingCutoffs..................................................................................16

CommunicationsandPrinting ....................................................................17

Error Messages.........................................................................................17

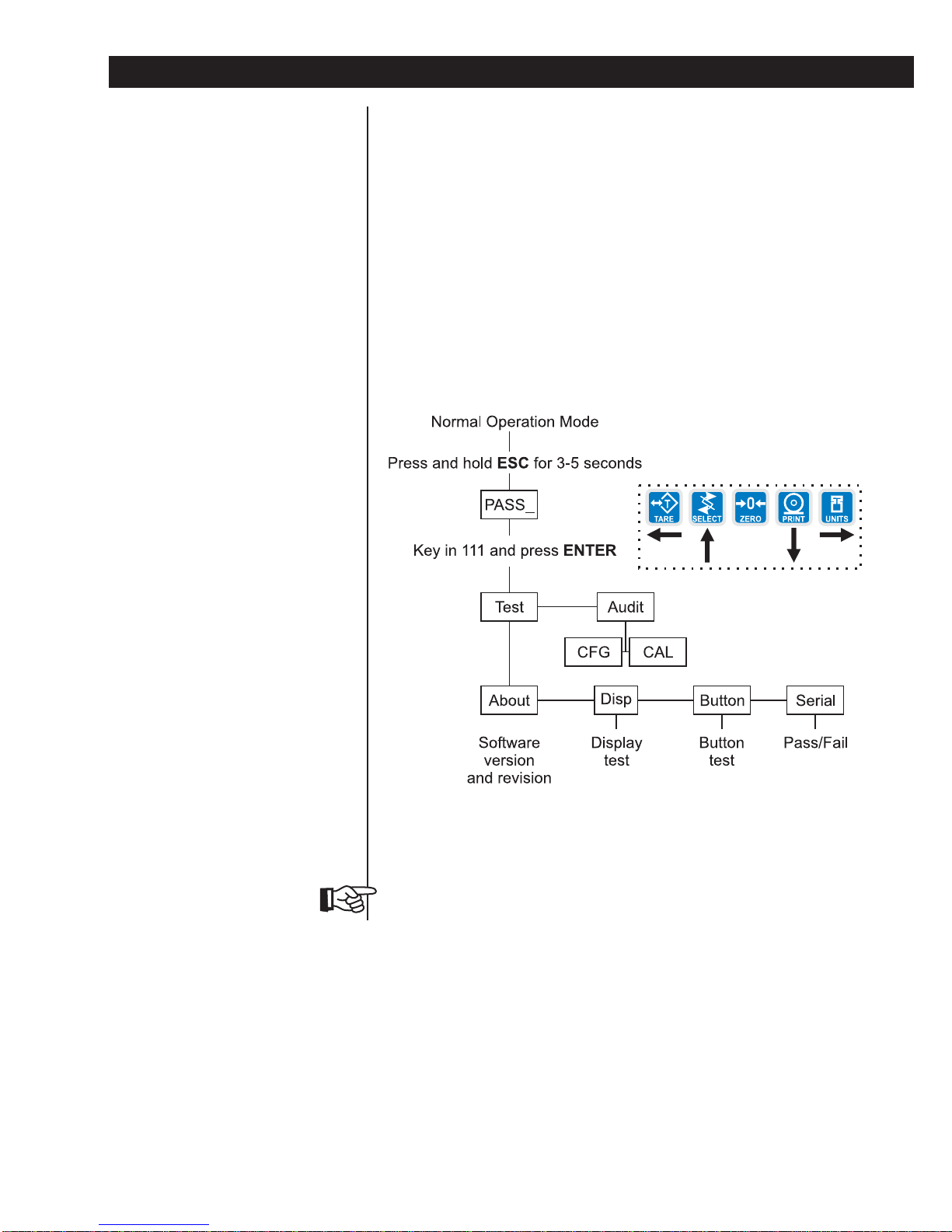

IndicatorDiagnostics .................................................................................18

IndicatorTestFunctions .......................................................................18

4Model E1010 Indicator User’s Manual

Specifications

Power requirements

• 100-240 Volts AC @ 600 mA

• 50/60 Hz

• Internal battery: 23 hours of continuous operation

with one weight sensor; 15 hours of continuous

operation with four weight sensors

• Standby mode extends battery life

Excitation

• 5 volts

• Supports up to four 350-ohm weight sensors

Analog signal input range

• +/- 12 mV/V

Analog input sensitivity

• 0.2 µV/divisions minimum

• 1.0 µV/divisions recommended

Calibration

• 2 to 5 points stored

Operational keys

• Tare, Select, Zero, Print, Units, F1, Clear, Mode,

Escape, Enter, On/Off, 0-9 numeric and decimal

point

Operational annunciators

• Center of Zero, Motion, Gross, Tare, Net, Battery

status

• Under/Target/Over

• Units of measure (LB, KG)

• Peak, Print, OP1, OP2, OP3

Display

• Seven-digit, seven-segment, 0. 8-inch high

• Lighted STN Transmissive

• Display rate Selectable (1, 2, 5, 10)

Analog to digital conversion rate

• 60 times per second

Unit of measure:

• Three, independently programmable

• Pounds, Kilograms, Custom

Capacity selections

• 999,999 with decimal located from zero to five

places

Incremental selections

• Multiples and sub-multiples of 1, 2, 5

Programmable selections

• Zero range, motion detection, automatic zero

tracking, five-point linearization

Time and date / RAM

• Battery backed up real time clock and RAM

Internal resolution

• 41,248,140 counts per mV/V per sec

Standardinputs

• Three logic level inputs for: Zero, Print, Tare,

Units, F1

Standard outputs

• Three cutoff outputs, open collector design

• Serial port RS-232 or 20mA current loop, or RS-

422 or RS-485

Serial Command Inputs

• Programmable serial response to ASCII character

input, SMA protocol

Self diagnostics

Display, keys, inputs, outputs, serial port

Circuitryprotection

• RFI, EMI, and ESD protection

Options

• Trips Interface Unit (TIU3)

Operating applications

• General weighing, Simple counting,

Check weighing,

• Peak measurement, Batching, Remote display

Operating temperature

• 14 to 104° F (-10 to 40° C) approved

• -4 to 140° F (-20 to 60° C) non-legal

• 10 to 90% noncondensing humidity

Enclosure

• Stainless steel NEMA 6/4X

Dimensions:

• 9.25” W x 9.25” H x4.5 “ D

(23.5cm W x 23.5cm H x 11.4cm D)

(without mounting bracket)

• 9.75" W x 11” H x 7" D

(24.8cm W x 28cm H x 17.8cm D)

(with mounting bracket)

Weight: 11 lb, 5 kg

Agencies:

• NTEP CC# 04-029

Class III/IIIL:10,000 divisions

• OIML Cert. No. R76/1992-GB1-04.09

Class III: 10,000 divisions

• Canadian Weights and Measures pending

• UL/CUL

• CE marked

Model E1010 Indicator User’s Manual

Introduction

The Model E1010 is an easy to use, uncomplicated indicator for general

weighing applications. It is ideal for bench scales, floor scales and tank

weighing applications. The display includes a multi-segment fan graph for

fast visual awareness for checkweighing. The indicator can perform count-

ing functions, peak weight functions, act as a remote display and operate on

battery power. The indicator also has 10 PLU (Product Look Up) memory

channels for storing data.

Communication port allows connection to a printer, remote display or

computer. The indicator also has three setpoint controls and can accommo-

date a footswitch for zero, print or tare function.

All this in an NEMA 6/4X rated enclosure.

Major sections of this manual are headed by titles in a black bar like Intro-

duction above. Subheadings appear in the left column. Instructions and text

appear on the right side of the page. Occasionally notes, tips, and special

instructions appear in the left column.

Your indicator will be installed by a qualified Avery Weigh-Tronix distributor.

They will make the required connections to your scale and peripheral

devices.

1. With the unit plugged in, see note at left, press and hold the switch

until the display lights up, then release the key.

2. The indicator powers up in normal operation mode.

Setup

About This Manual

The Model E1010 is battery

powered.

Charge the battery overnight

before using the indicator on

battery power only.

The unit can be run on the

transformer if the battery is

drained or absent.

See Battery Information for

more information.

6Model E1010 Indicator User’s Manual

Keys The functions of the keys on the front panel are listed below.

Never press a key with any-

thing but your finger. Damage

to the overlay may result if

sharp or rough objects are

used.

Press the TARE key to perform a tare function. Also acts as a

left arrow key when in the User menu.

Press the SELECT key to toggle between Gross, Tare, Net,

Count, Gross Accumulator, Net Accumulator, Transaction

Counter, Piece Weight, and Peak. This is dependent on the

current application. Also acts as an up arrow key when in the

User menu.

Press the ZERO key to zero the display.

Press the PRINT key to send information to a peripheral device

through the Comm port. Also acts as a down arrow key when in

the User menu.

Press the UNITS key to scroll through the available units of

measure while in normal operating mode. Also acts as a right

arrow key when in the User menu.

Front Panel

The front panel, shown in Figure 1, consists of the keys and display.

Figure 1

E1010 front panel

Model E1010 Indicator User’s Manual

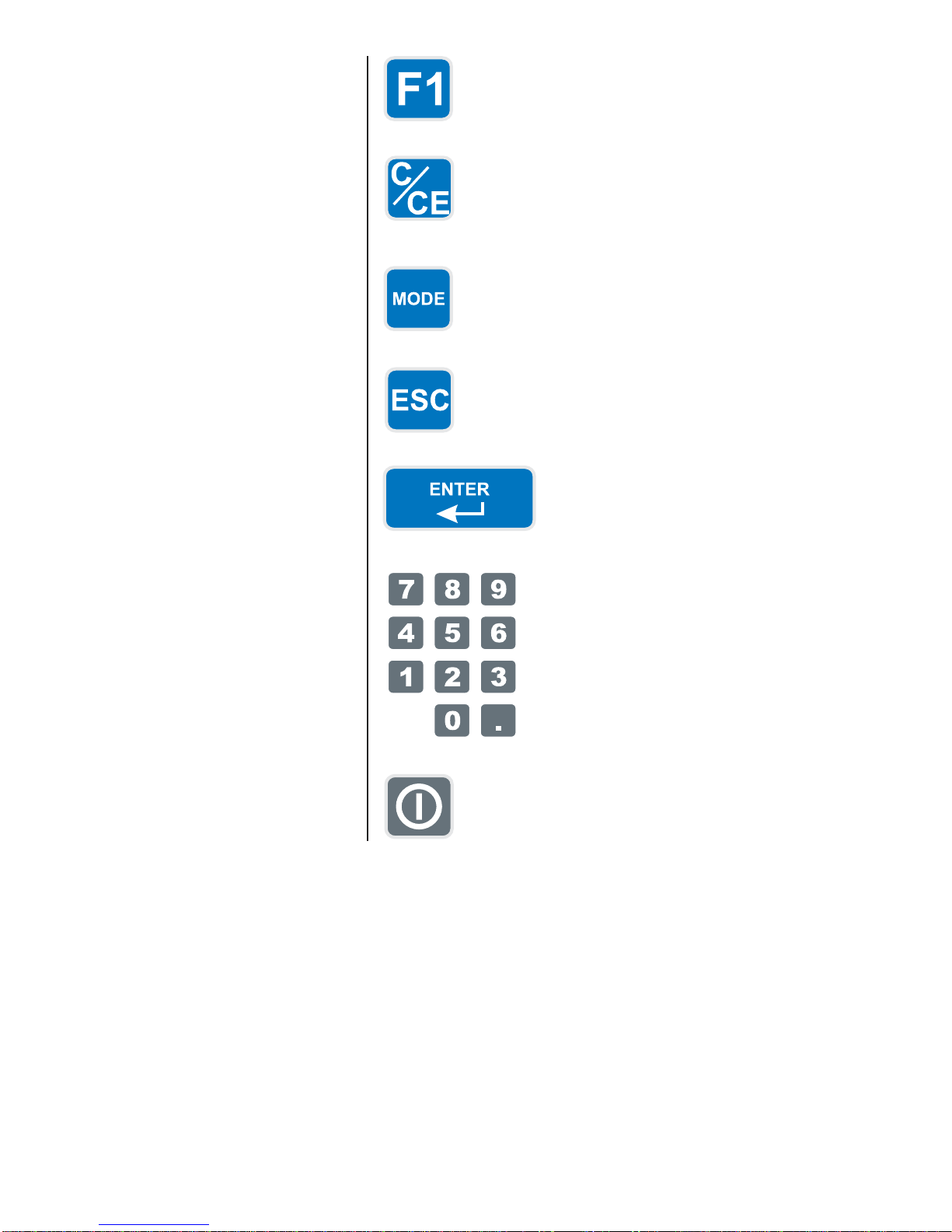

Press the F1 key to select application specific choices. Press

and hold to access the cutoffs (trips) function. Also used to

access PLU (Product Look Up) memory channels.

Use the numeric keypad to enter values.

For example:

• ID entry

• Setpoint target entry

• Preset tare entry

• Passwordentry

Press the C/CE key to clear entries.

Press the MODE key to scroll through the enabled applications.

The application name is briefly displayed when key is released.

Press the ESC key to escape a function or return to normal

operation mode. Press and hold to access the password

display for the User menu.

Press the ENTER key to accept displayed choices.

To turn the unit on, press and hold the ON/OFF key until the

display turns on. To turn the unit off, press and hold the ON/

OFF key until the unit turns off.

8Model E1010 Indicator User’s Manual

Battery Information

This unit contains a sealed rechargeable 6 volt, 3.0Ah, lead-acid battery. Life

expectancy of this battery is 3-5 years in standby use or:

180chargingcycles(approx.)ifdischarged100%

400 charging cycles (approx.) if discharged 50%

1200 charging cycles (approx.) if discharged 30%

Battery life is 23 hours with one 350 ohm weight sensor and 15 hours with

four 350 ohm weight sensors. Recharge time from complete discharge is 14

hours while powered up and in service (single loadcell). The AC adapter/

charger will charge the battery as it powers the indicator.

When the indicator goes to

sleep you must press the

ON/OFF switch to restart the

indicator.

PLU (Product Look Up) Memory Channels

This indicator has 10 channels of memory called PLU or Product Look Up.

Each channel can contain the following information:

Channel #

ID#

Tare

Gross Accum.

Net Accum.

Total

TARGET OP1

TARGET OP2

TARGET OP3

Lower Limit

Upper Limit

Count Accum.

Piece Weight

Peak Weight

1. To activate or recall a PLU, key in the desired channel number (0-9) and

press the F1 key. . .

The PLU channel is active. Any of the items listed above that have

values are activated. Any values that are listed above that change

while this PLU is active are stored, ie; accumulator, count, etc.

2. PLU channels can be cleared by using a password protected menu.

These instructions are found in the Service Manual. You can also print a

report of all the PLU channels in the same password protected menu.

If there are preset tares in the

PLUs, you cannot enter a

keyboard or pushbutton tare.

Preset tares are enabled and

entered under the Supervisor

menu. See the Service Manual

for instructions.

If preset tares are not enabled,

any tare you enter by keyboard

or pushbutton method will be

active for all PLUs.

Entering an ID Number

You can enter an ID number which is then part of the active PLU channel.

To enter an ID, key in a number on the keypad then press the ENTER key.

Model E1010 Indicator User’s Manual

Menu Mode

The E1010 has a User menu which you can use to do the following:

• Audit the number of configurations and calibrations performed

• See software information

• Display test

• Button test

• Serial port test

1. Access the User menu by pressing and holding the ESC key for 3-5

seconds.

PASS_ is displayed.

2. Key in the User menu password = 111 and press the ENTER key.

Figure 2 shows a flowchart of the User menu items. Use the keys shown

in the dotted box in Figure 2 to navigate through the menu and choose

the items you want.

Figure 2

User menu flowchart

Specific instructions on the User menu appear in the section Indicator

Diagnostics later in the manual.

User menu password is 111.

You must key in the password

within 10 seconds or the

display returns to normal

operation mode.

10 Model E1010 Indicator User’s Manual

Indicator Operations

Gross Weighing

Tare/Net Weighing

To change unit of measure,

press the UNITS key.

The E1010 comes equipped with several weighing applications;

• Accumulator weighing (default setting)

• Batch weighing

• Checkweigher

• Counting

• Peak capture

• Remote display

These applications are enabled using a password protected Service menu.

See the Service Manual for instructions on enabling applications and

clearing accumulators.

The accumulator application comes as the default application. You can do

gross weighments, tare/net weighments and accumulator functions. Below

are instructions for each.

To perform gross weighing, power up the unit and follow these steps:

1. Empty the scale and press ZERO key to zero the display. . .

0is displayed and gross and center of zero annunciators are lit.

2. Place item to be weighed on the scale. . .

Weight is displayed.

To perform a net weighment, power up the unit and follow these steps:

1. Empty the scale and press ZERO key to zero the display. . .

0is displayed and gross and center of zero annunciators are lit.

2. Place item to be tared on the scale. . .

Weight is displayed.

3. Press the TARE key. . .

0is displayed and net annunciator is lit.

4. Place material to be weighed on the scale. . .

Net weight of material is displayed and net annunciator is lit.

5. Repeatedly press the SELECT key to scroll through gross, tare, and net

values. Remove the weight from the scale and press TARE to return to

gross mode.

When the indicator goes to

sleep you must press the

ON/OFF switch to restart the

indicator.

This indicator has a 10 channel

PLU (Product Look Up)

memory. To access a memory

channel, press a number from

0 to 9, then press the F1 key.

Autres manuels pour E1010

Table des matières

Autres manuels Avery Weigh-Tronix Accessoires

Avery Weigh-Tronix

Avery Weigh-Tronix 915A Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix ZM505 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix WI-150 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix 640 Series Mode d'emploi

Avery Weigh-Tronix

Avery Weigh-Tronix ZM615 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix ZM201 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix WI-127 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix 640XL Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix ZM510 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix 1080 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix WI-127 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix 2060 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix ZM510 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix WI-127 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix ZM605 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix ZK830 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix 1310 Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix WI-125 SST Manuel utilisateur

Avery Weigh-Tronix

Avery Weigh-Tronix ZM401 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
