•Assure High Quality Bar Codes

•Performs Industry Standard Bar

Code Tests

•Fully Integrated Printer Interface

•Used with 9855 , 9855™RFID or

9860 Printers

•Rugged Stand to assure

Alignment

Monarch®938™Verifier

Product Specification

Avery Dennison Printer Systems Division

170 Monarch Lane Miamisburg, OH 45342

1.800.543.6650 Monday-Friday, 8 AM-6:30 PM ET

www.monarch.com

Standard Features

Printed in U.S.A. BC-SP-028 Rev. 8/08

Dimensions:

Height – 2.4" (61 mm)

Width – 4.4" (112 mm)

Depth – 5.2" (132 mm)

Weight (Verifier only) – 2.0 lbs. (0.9 kg)

Shipping Wt. (w/ stand) – 15 lbs. (6.8 kg)

Supported Bar Code:

Code 128, Code 39, Code 93, Codabar, Interleaved 2

of 5, UPC versions A and E (including +2 and +5),

EAN-13 and EAN-8 (including +2 and +5)

Communications Interface:

DB 9 pin (male) connecting to printer serial port with

baud rates up to 115200

Display:

Five LEDs – Power/Sync, Calibration, Read and 2

programmable

Warranty:

One (1) year parts and labor (ship-in).

Full written warranty statement is available on request.

Environment Ranges

Operating Temperature:

40° to 104° F (4° to 40° C)

Storage:

-4°F to 140°F (-20°C to 60°C)

Humidity/Operating and Storage:

10% to 90% non-condensing

Performance

Laser:

Focus Distance – 8" (203 mm)

X Dimension – 0.0067" (0.17 mm) minimum

Wavelength – 650-670 nm

Speed:

Verifies bar codes at print speeds up to 12 ips

Power Source:

Supplied by the printer, no external power is required

Bar Code Verification:

ANSI Method, Traditional Method, Encoded data

format checks, laser scanning type analyses

Stores & Uploads:

ANSI grade data

Special Considerations

•Support parallel (picket fence) bar codes only

•Bar code must be in the beam for at least 5 scans

•May require a reduction in print speed based upon

bar code height

•Maximum of four parallel bar codes across

•Minimum horizontal gap between codes 0.5" (13 mm)

•Minimum feed length for verification is 1.2" (30 mm)

•Maximum number of codes per label is 10

•Allow a 0.5" (13 mm) no scan zone at trailing of

each label

•Does not work with 926™ knife

•For use with 9855®, requires metal cover or plastic

verifier cover

•Printer must be configured as verifier-ready

•Documentation available at www.monarch.com

Autres manuels pour Monarch 938

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Avery Dennison Lecteur de codes-barres

Avery Dennison

Avery Dennison TTX 350 Manuel utilisateur

Avery Dennison

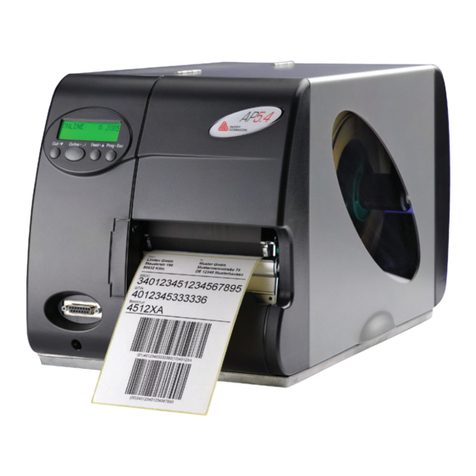

Avery Dennison AP5.4 Guide de dépannage
