AVerMedia®

AVerDiGi EB3004 NET/EB3004 NET+

Quick Installation Guide

Package Contents

(1) (2)

(3)

AVerMedia

AVerDiGiEB3004NET

QuickUserGuide

(4)

(5)

(6)

(7)

If there is any damage, shortage or inappropriate item in the package

contents, please contact with local dealer

(1) DVR unit

a. EB3004 NET b. EB3004 NET+

(2) Remote Control (Batteries are included)

(3) Quick Installation Guide

(4) Power Adaptor

(5) Power Cord (*The power cord may vary according

to the local electricity system.)

(6) Software CD (Manual is included)

(7) HDD holder (including 8 screws)

WARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE

WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION

P/N: 300AC2SB3-DCD

Nov.2009

Hardware Installation

A. Install the hard disk

Follow the steps to install the hard disk:

1. Loosen all screws

2. Push the cover backward and lift

3. Secure the brackets on the hard disk

4. Connect the end of the SATA cable and the

power connector to the hard disk

5. Secure the hard disk inside the unit then

replace unit cover

6. Push the cover forward and secure the cover

7. You may now connect all the cables. When the power is connected, the Power LED light

turns on

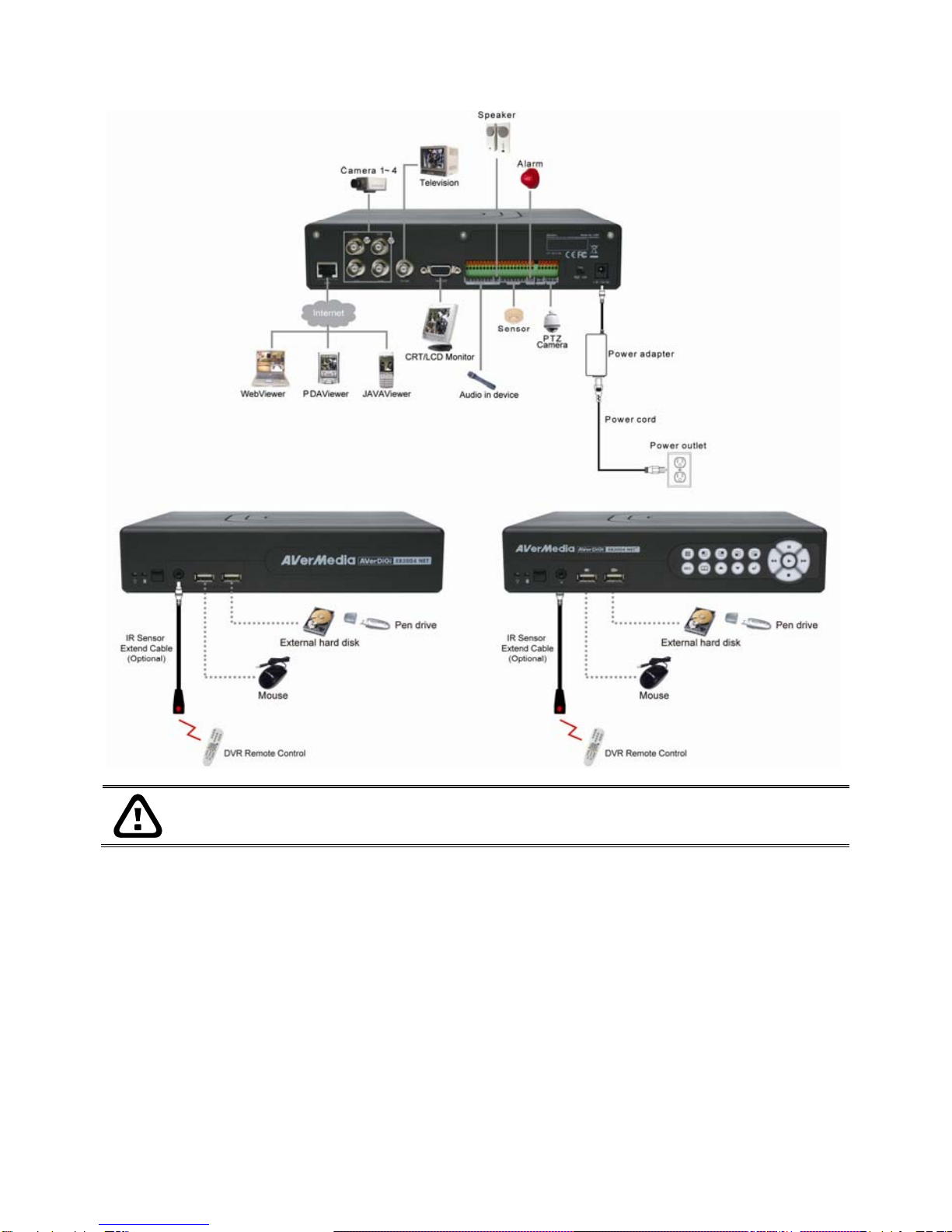

B. Connecting Devices

Each time you change the video display output or video system (NTSC/PAL), the power

must be turned off and on to reset the DVR unit.

First Time to Use the DVR System

1. Make sure all devices and power cables are well connected.

2. Turn on the DVR unit by connecting the power cable into the power plug.

3. User should see the SYSTEM INITIALIZE windows appear on the surveillance screen. The

system will do hard disk detection automatically.

4. For the first time use hard disk, please format the hard disk. Select HDD FORMAT and press

(YES) to format hard disk. If hard disk is not need to format, press (NO).

5. When is done, HDD FORMAT will show COMPLETE.

SYSTEM INITIALIZE

FW VERSION B3. 01. 01. 00. 01

HDD SIZE 476 , 918MB

HDD FORMAT YES(SELECT)/NO(MENU)

HDD STATUS WAIT . . . .

SYSTEM INITIALIZE

FW VERSION B3. 01. 01. 00. 01

HDD SIZE 476 , 918MB

HDD FORMAT COMPLETE

HDD STATUS WAIT . . . .

6. When hard disk format is done, please adjust the system date and time in order to have the

correct recording date and time.

7. Press to call up the OSD menu, and then, use and to select SYSTEM

→DATE/TIME and press to make a selection.

8. Press and use and to select the DATE FORMAT.

9. And then, adjust the DATE and TIME by using to make a selection and using

and to adjust the date and time.

DATE / TIME SETUP

DATE FORMAT

DATE

TIME

TIME SYNC

TIME ZONE

LAST SYNC TIME

DAYLIGHT SAVING

START

END

OFFSET

YYYY/MM/DD

2009 / 11 / 03

15 : 19 : 09

GMT +08 : 00

2009 / 01 / 01 00 : 00 : 00

00 : 00

FORCE SYNC

10. When is done, the DVR system is ready to record.

11. Press to start recording.

Network Setup

Configuring network parameter for internet connection and remote accessing.

NETWORK SETUP

VIDEO PORT

IP MODE

UPGRADE PORT

STREAM SETUP

0080

STATIC

5005

- Use and to go up and down

- Use to make a selection

- Use and buttons to go left and right

1. Press and select

NETWORK

2. Select

IP MODE.

The system provides 3 types of IP setup mode – STATIC, DHCP, and PPPOE.

-STATIC: Assigns a constant IP address for the DVR system.

-DHCP: Assign the IP address by local DHCP server to DVR system.

-PPPOE: Point-to-Point Protocol over Ethernet is a network protocol for encapsulating PPP

frames in Ethernet frames. It is used mainly with ADSL services. If your network is using

ADSL service connecting to internet, and then, select PPPOE mode.

3. Setup the

VIDEO PORT.

A port for the remote connection. Any port can be assigned as a video port, except the ports

already used by the network services. The default video port is 80.

4. Setup the

UPGRADE PORT.

A port for the remote update DVR system firmware. Any port can be assigned as an upgrade

port, except the ports are already used by the network services. The default upgrade port is

5005.

Playback the Recorded File

1. Press (play).

2. Use the and buttons to go up and down and select TIME SEARCH, FILE

LIST, or SMART MOTION SEARCH. And then, press to make a selection.

SEARCH METHOD

FILE LIST

SMART MOTION SEARCH

TIME SEARCH

TIME SEARCH (search by date and time):

1. In TIME SEARCH window, the START TIME and END TIME show the date and time from when

the recording begins and ends.

2. Press and use the and buttons to set the SEARCH TIME.

3. After

SEARCH TIME has set, select SEARCH EXECUTIION and press to start

searching.

TIME SEARCH

START TIME: 2009 / 01 / 09 11:36:21

END TIME: 2009 / 01 / 09 11:36:21

SEARCH EXECUTION

SEARCH TIME : 2009 / 01 / 09 11:36:21

4. When the playback file is found, the DVR system will start playback automatically.

FILE LIST (search by condition):

1. In FILE LIST window, press and use and buttons to set the date

and time for searching. And then, select the EXECUTION to start searching.

2. The searching result will be list out. Using and buttons to go up and down

and press to make a selection.

FILE LIST

2009/01/09 11:36:21 EXECUTIONMULTITIME SEARCH :

2009/05/09 10:10:00 - 10:37:06

2009/05/09 10:09:10 - 10:09:45

2009/05/09 10:08:21 - 10:08:27

2009/05/09 10:07:26 - 10:08:03

2009/05/09 09:50:30 - 09:59:59

2009/05/09 09:45:07 - 10:45:49

2009/05/09 09:00:00 - 09:43:48

2009/05/09 09:00:00 - 08:37:06

2009/05/09 08:00:00 - 08:59:59

2009/05/09 07:30:31 - 07:59:59 1/7

3. After make a selection, the FILE LIST of each channel will list out. Use and

buttons to the selection and press to make a selection.

EVENT LIST

CH2 NORMAL 14:23:25 - 14:23:33

CH3 NORMAL 14:23:25 - 14:23:33

CH4 NORMAL 14:23:25 - 14:23:33

1/1

2009/11/02

CH1 NORMAL 14:23:25 - 14:23:33

4. The selected event will start to playback.

SMART MOTION SEARCH (search by motion event):

1. In SMART MOTION SEARCH window, the START TIME and END TIME show the date and

time from when the recording begins and ends.

SMART MOTION SEARCH

START TIME: 2009 / 11 / 01 11:36:21

END TIME: 2009 / 11 / 02 11:36:21

SEARCH END TIME : 2009 / 11 / 02 11:36:21

CHANNEL : 01

SEARCH AREA

SEARCH EXECUTION

SEARCH START TIME : 2009 / 11 / 01 11:36:21

2. Use and press to set

SEARCH START TIME and SEARCH END

TIME for searching period.

3. Then, Select the CHANNEL that wants to search.

4. And then, select SEARCH AREA to mark an area to search. Use the , , ,

and to move the block and press or to confirm. To exit, press .

SEARCH AREA SETUP SCREEN

5. To start searching, select the SEARCH EXECUTION.

6. After make a selection, the DVR system will start playback automatically.

ÃSpecifications are subject to change without prior notice.

ÃThe information contained herein is to be considered for reference only
