AVer TR530 Manuel utilisateur

TR530/320 Tracking Camera

Quick Start Guide (Updated 2/11/2021)

Getting Started

Please visit the following link to learn more about the camera before using it:

https://averusa.com/pro-av/support/

You can find guided video tours like the ones listed below.

You can also find new Firmware, Software, Frequently asked questions and the User

manual as well as a host of guides in the respective tabs below:

To access more help, please submit a trouble shooting tickets here:

https://averusa.force.com/support/s/contactsupport

Important Camera Setup

Installation Suggestion:

◼Distance from podium:

➢TR320: 4~10m (13~33 feet)

➢TR530: 4~15m (13~49 feet)

◼Install height range (from floor): 2 ~ 3m(6.56~9.84 feet); 2.4m(7.87 feet) is suggested.

◼Distance range to podium: 4~15m; 8m is suggested.

◼Position: Center of the room.

Camera mounts suggestion (optional accessory)

For detail on optional accessory, consult your local dealer.

Wall mount (Part#COMSVCMNT)

Ceiling mount (Part#PTMLTWC01)

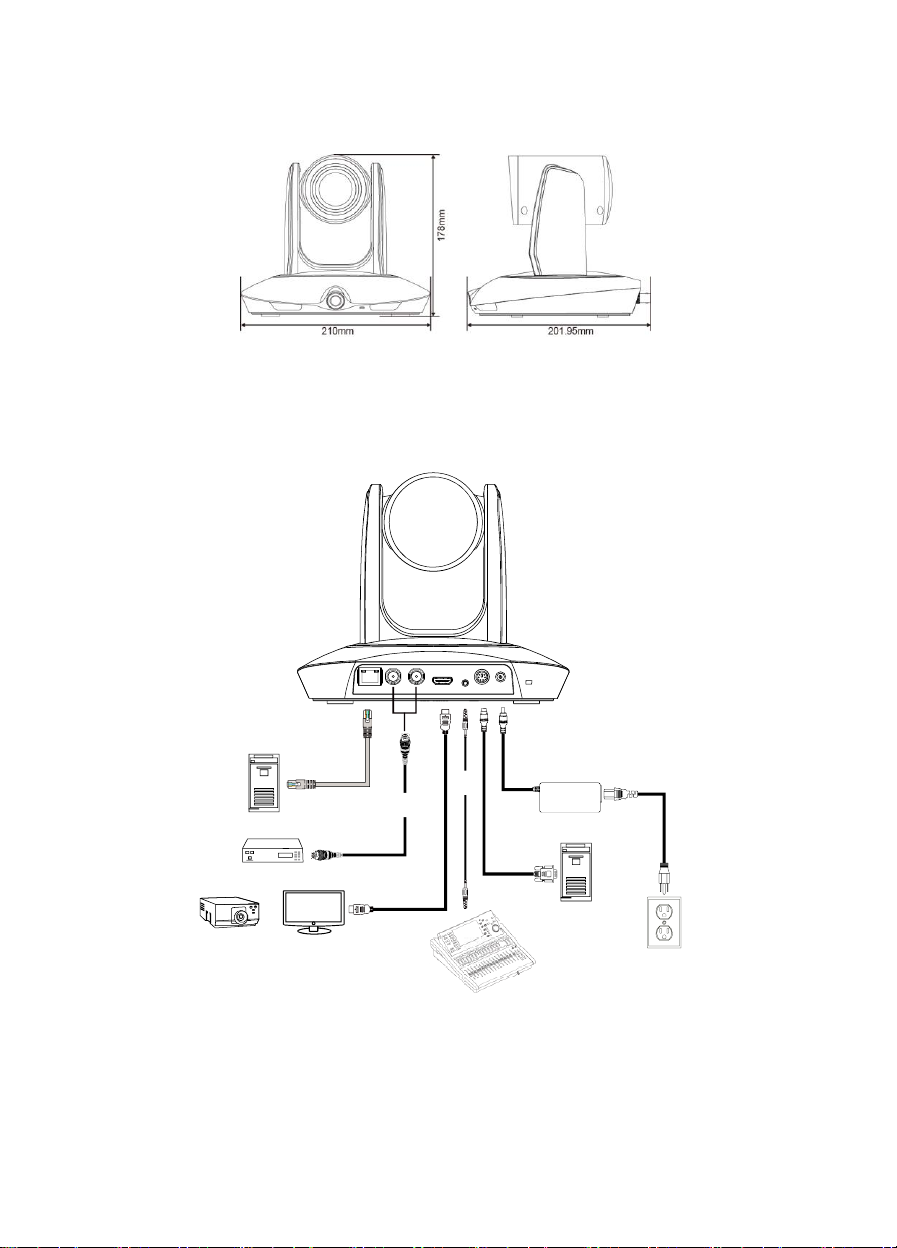

Dimension

Connections

Audio Mixer

RJ-45 cable

Projector TV

Recording System

HDMI cable

Multi Media Management System

Power

Outlet

Power

Adaptor

Power

cord

Control System

RS-232 to

D-Sub 9 cable

Audio

cable

coaxial

cable

Note: AVer Offices an HDMI to USB (Part#:PTCVBU110) or SDI to USB (Part#:PTCVBU111)

converter to convert the existing HDMI or SDI output into a USB feedback

Setup IP Address

◼Before setting the AI function, please set the IP address first. There are two ways to setup IP

address of the camera. Please follow the steps below to setup the IP address by connecting the

camera to an HDMI display. It is important to get the camera onto the network as this is the

only way to properly setup and configure the camera for Auto Tracking.

◼Static IP Address

1. After starting-up, press button on remote control to call setup menu.

2. Use ▲and ▼buttons to select the Camera > Static IP > IP, then press button to enter IP

address.

[Note] If DHCP is on, please turn off DHCP before setup static IP address. Go to Camera > DHCP >

DHCP > Off.

3. To setup gateway and DNS, use ▲and ▼to select “Gateway”or “DNS”. Then, press button

to enter the value.

◼Dynamic IP Address

1. After starting-up, press button on remote control to call setup menu.

2. Use ▲and ▼buttons to select the Camera > DHCP > DHCP > On, then press button to get

IP address from local DHCP server.

3. Use ▲and ▼buttons go to “Information”to check the IP address information.

Camera Setup Guide

•For the best experience, we recommend using the Google Chrome browser to access the camera.

If you have difficulty getting proper browser response, please clear the browser cache first.

•Key in the Camera IP address into browser and to login into control page.

•After login the web interface (password: admin), select “” to start setup.

•If you are having problems accessing the camera login page or having intermittent video

streaming problems on your browser please upgrade the firmware on the camera to the latest

version: https://averusa.com/pro-av/support/

•Refer to the video guides on the support site on configuration options and how best to program

the camera for your environment.

AVer TR530/TR320 is a professional tracking camera which supports 3 tracking methods, namely:

wide area, stage or segment mode. The camera uses body motion and image analysis algorithm to

track the intended target; the target subject does not need to wear any signal transmitting device.

MODE INTRODUCTION

Wide Area Mode

Application

➢This mode is suitable for a teacher or a lecturer tracking in normal sized classroom. The

algorithm is based on face detection, not facial recognition.

➢Regardless if the target is close to or away from TR530 / TR320, the tracking camera will

automatically zoom in/out to maintain the appropriate size and proportion, when auto zoom is

enabled.

➢If the tracking target is locked, TR530/TR320 will not be affected by the other moving objects.

Limitation

➢This mode is easily affected by the brown objects or the color similar to skin. Things like

cartons and wood furniture.

➢It should be used in a brightly lit environment. If the light level is not enough, it may not be able

to properly track the object.

➢It should not be used in an environment with high bright contrast. For example, the

environment with lots of IFP or projectors in the background. When the target enters or leaves

the high bright contrast zone, the TR camera may not be able to track the object properly.

◼Install height range (from floor): 2 ~ 3m; 2.4m is suggested.

◼Distance range to podium: 4~15m; 8m is suggested.

◼Position: Center of classroom.

Stage and Segment Mode (FW .51 or above for TR320)

Application

➢It’s suitable for a more complicated environment due to the utilization of the absolute motion

tracking algorithm. The TR530/TR320 will not be affected by the color of wood furniture or

any high bright contrast background.

➢Suitable for only one person in the tracking zone.

Limitation

➢Tracking is only available for horizontal movement. It will not auto zoom in/out for target close

to or going away from the TR530/TR320

➢Due to absolute motion tracking, it is unable to check who the target is or who the interference

is. It does not have anti-interference ability.

➢Due to the FOV limitation, the tracking zone is only available within the 120 degrees provided

by the panoramic camera.

➢Distance limitation <15M

◼Install height range (from floor): 2 ~ 3m; 2.4m is suggested.

◼Distance range to podium: 4~15m; 8m is suggested.

◼Position: Center of the room.

AVer PTZ Management

When your camera is all setup on the network, you can download our free camera control and

management software AVer PTZ Management. This software enables complete control of its devices

on Windows PCs and laptops. And it offers convenient and simultaneous control of up to 128 cameras.

Download link

USA: https://www.averusa.com/pro-av/support/

Package Contents

Camera Unit

Power Adapter

Power Cord

RS-232 to D-Sub 9 Cable

Battery(AAA)*2pcs

Quick Guide

Remote Controller

AAAAAA

Hot Key

Press certain button on remote controller to perform hot key function.

Button

Action

Function

Press and hold(3secs)

Power on/off camera.

[Note] Only support at TR530+ FW version

0.0.1000.08 and above.

Press three times(333)

Enable/Disable tracking function

When the hot key takes effect, you will see “tracking

on” or “tracking off” on the right bottom side.

Press six times(666666)

Enable/Disable AVer Logo

When the hot key takes effect, you will see “AVer”

logo on the right bottom side.

Press seven times(7777777)

Show the tracking indicator

When the hot key takes effect, you will see the

tracking indicator on the target face. This mode

only works in PIP Mode 2.

Press eight times(88888888)

Set TR530+/320+ IP address as default

IP(192.168.1.168.)

Press nine times(999999999)

Password Reset mechanism:

When the hot key takes effect, the password of

entering Web UI will go back the default “admin”.
