QUADPRO FLAT

User Manual

Table of Contents

Safety .......................................................................................2

Important Safety Instructions...........................................................3

Precautions......................................................................................4

Suspension......................................................................................4

Description................................................................................5

Features ............................................................................5

Setup........................................................................................6

Power Linking .....................................................................6

Mounting............................................................................6

Operation...........................................................................7

Menu Map..........................................................................7

DMX Channel......................................................................8

Specifications............................................................................8

Safety

Important Safety Information

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE

TO RAIN OR MOISTURE.

WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING

CONNECTION.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR

ATTEMPT TO OPEN THE LIGHTING FIXTURE. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER

ALL SERVICING TO QUALIFIED PERSONNEL.

1. Read this manual carefully.

2. Keep this manual safe for future reference.

3. Follow all warnings and recommendations.

4. Do not operate or store near water.

5. Do not expose the fixture to dripping or splashing liquid, and ensure that no objects

containing liquid are placed on this fixture.

6. Clean only with a dry cloth.

7. Do not install or operate near any heat sources such as radiators, gas heaters, stoves, or

other heating apparatus.

8. Only use attachments and accessories specified by the manufacturer.

9. Do not block any ventilation openings, including sound ports.

10. Install in accordance with the manufacturer’s instructions.

11. Do not obstruct or remove the ground plug from the fixture, doing so may cause electric

shock resulting in serious injury or death.

12. Protect the power cord from being walked on, pinched, or rolled over.

13. Unplug the fixture during electrical storms and power outages.

14. Refer all servicing to a qualified service technician. Servicing is required when the fixture no

longer operates, fails to power on, or emits an electrical smell or sound.

15. To completely disconnect AC power from this fixture, the power supply cord must be

unplugged.

Precautions

If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is

well ventilated to help prevent overheating.

Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C.

Suspension

Suspending any object is potentially dangerous and should only be attempted by qualified

individuals with thorough knowledge of the techniques and regulations for suspending objects. It is

the responsibility of the installer to ensure all fixtures and effects are installed correctly. AVE

strongly recommends inspecting installed systems every 6 months for signs of weakness or damage.

If any damage or weakness is detected then remedial action should be taken immediately. The user

is responsible for making sure the wall, ceiling, or structure is capable of supporting all objects

suspended overhead. Any hardware used to suspend the fixture not associated with AVE is the

responsibility of others.

Description

The AVE Quad Flat is a lightweight and versatile LED par can that is designed to give you the

flexibility and performance your event or stage needs. Powered by 186 LEDs, divided Red, Green,

Blue, and White diodes, allowing you to mix a huge colour spectrum. The par is built into a light ABS

plastic housing with thermal fan to keep the fixture cool. Also fitted is a dual yoke for safely hanging

the fixture from stands or lighting truss, or mounting on the floor.

The Quad Flat is supplied out of the box with ‘Auto’ programs including a ‘sound active’ mode for

plug-and-play operation with an amazing visual effect. The Quad Flat can also be controlled via DMX

for integration into larger lighting shows and setups with the 3-pin XLR connectors.

Features

186 Efficient LED diodes

Red, Green, Blue, and White colours

Lightweight ABS housing

3-Pin XLR connections for DMX control

Built-in Auto programs; Fade / Flash / Sound

Static colour settings

Master / Slave operation

Fitted with a Dual Yoke

Setup

To set up your AVE Quad Flat follow the below steps;

1. Mount the item on your lighting stand or on the floor

2. Connect the AC power cord from a grounded mains 240v power source.

3. Power the fixture/s on from the mains socket

4. Select the desired operation mode and press enter

Power Linking

The Quad is fitted with a Mains IEC input and output that allows you to power multiple fixtures from

one (1) mains power connection.

To power link your fixtures;

1. Ensure the mains power is off and unplugged from the wall

2. Connect your IEC extension cable to the output connector from the first fixture and connect

to the power input of the second unit ensuring that the connector are firmly in place

3. Repeat step 2 for each additional fixture up to 7 fixtures

Mounting

The Quad Flat is fitted with a Dual yoke that can be separated and used as a floor stand for use on

flat & sturdy surfaces.

For hanging the fixture to a lighting stand or trussing, simply attach a lighting clamp to the outer

yoke, ensuring that the clamp is tightened to prevent unwanted movement.

Next, attach a safety wire* through the eyelets located on the rear panel of the fixture. Secure the

safety cable to the stand or trussing.

*This is a secondary fall arrest; in the event the yoke or clamp fail, the fixture is safe from causing

serious injury or damage

Operation

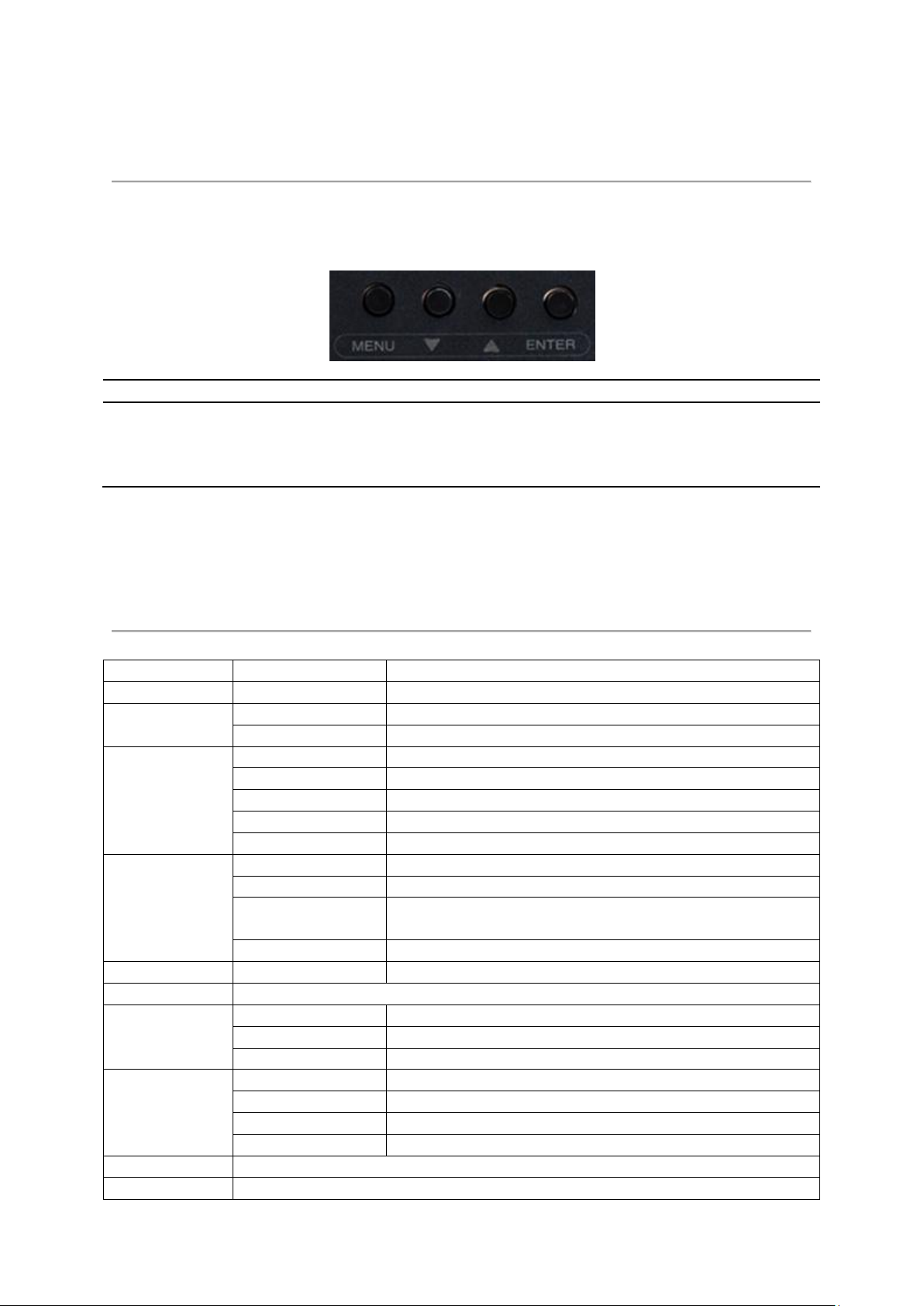

To access the menus and functions of the Quad Flat, use the four (4) buttons located under the main

control screen.

Button Label

Function

Press to access main menu, or change function once the fixture is on

Cycles upwards through the menu and options

Down

Cycles downwards through the menu and options

Enter

Press to select a menu option or save a setting

Menu Map

Main Level

Program Level

Description

Addr

1 –512

DMX Address Value

Chnd

4Ch

4 Channel DMX Mode

8Ch

8 Channel DMX Mode

SLnd

(master / slave)

nASt

Master

SL1

Slave Mode 1

SL2

Slave Mode2

SL3

Slave Mode3

SL4

Slave Mode4

Shnd

(show mode)

SoUn

Sound Active Mode

Auto

Auto Mode

Colo

Colour Presets 1 –15

+ Strobe speed

FAdE

Colour Fade SP1 - SP8 (speed)

LED

On/Off

LED backlight Display

dISP

Invert Display

bALA

(white balance)

red

Manual Red Colour 0 - 255

Gree

Manual Green Colour 0 - 255

bLue

Manual Blue Colour 0 - 255

NAnu

(manual colour)

red

Manual Red Colour 0 - 255

Gree

Manual Green Colour 0 - 255

bLue

Manual Blue Colour 0 - 255

Unbe

Manual White Colour 0 - 255

teSt

Test all colours + All on

FhrS

Displays hours of operation

DMX Channels

4 CH Control

1 CH

Red

2 CH

Green

3 CH

Blue

4 CH

White

8 CH Control

1 CH

0 - 255

Red

2 CH

0 - 255

Green

3 CH

0 - 255

Blue

4 CH

0 - 255

White

5 CH

0 - 255

Dimmer

6 CH

0 - 255

Strobe (slow > fast)

7 CH

0 - 7

No Function

8 - 255

Stepping Colour

8 CH

0 - 7

No Function

8 –199

Auto Colour (slow > fast)

200 - 255

Sound Active

Specifications

Light Source:

186 x 10mm LED Diodes

Diode Colour:

Red, Green, Blue, White

Beam Angle:

26 °

DMX Channels:

4CH / 8CH

DMX Connectors:

3-Pin XLR

Enclosure:

ABS Plastic

Power Consumption:

20W

Power Supply:

240V AC / 50Hz

Power Connectors:

IEC Mains

Dimensions:

240 x 235 x 80 mm

Weight:

1.0 kg
