AVCOM Galaxy Manuel utilisateur

Galaxy

Seismic Sensor

and Home Automation System

for Residential Applications

System Setup

Installation

& Operation Manual

ADVANCED COMMUNICATIONS INC

Introducing the New Galaxy complete whole house protection system. This

sophisticated system provides total security complete with voice notification, and

advanced warning communication anywhere in the world.

•NO MONTHLY FEES

•Simple Installation

•Full Warranty

•Complete Package

•Manufactured in Canada

•Compatible with Control4 Smart Home system

Contact information:

Tel: (604)944-8650

Table of Contents

BEFORE YOU BEGIN SET UP: .............................................................................................................................................................. 4

STEP-BY-STEP SETUP INSTRUCTIONS ................................................................................................................................................. 5

VALVES ...................................................................................................................................................................................................... 5

WATER SENSORS ......................................................................................................................................................................................... 6

INSTALLATION ................................................................................................................................................................................... 7

OPERATING VALVES .......................................................................................................................................................................... 8

OPENING AND CLOSING GAS AND WATER VALVES .............................................................................................................................................. 8

VALVE MANUAL OVERRIDE ............................................................................................................................................................................ 9

ADVANCED FUNCTIONS ................................................................................................................................................................... 10

SECURITY LOCKOUT [4321]* ....................................................................................................................................................................... 11

EARTHQUAKE SENSOR ON/OFF [1234] ........................................................................................................................................................ 12

WATER VALVE SHUTOFF DUE TO EARTHQUAKE ON/OFF [1235] ........................................................................................................................ 12

ERASING DEVICES FROM MEMORY [2000] ...................................................................................................................................... 12

CHANGE SENSOR NAME (GAS [7777] OR WATER [8888]) ............................................................................................................................... 13

CHANGE MASTER CODE [9999] ................................................................................................................................................................... 14

NEW GALAXY FEATURES .................................................................................................................................................................. 15

SET UP WIFI CONNECTION ........................................................................................................................................................................... 15

ENTER EMAIL ADDRESS BY KEYPAD ................................................................................................................................................................. 15

SEND A TEST EMAIL BY KEYPAD ..................................................................................................................................................................... 16

ADJUST BEEP VOLUME ................................................................................................................................................................................ 16

CHANGE LANGUAGE BETWEEN ENGLISH AND FRENCH BY KEYPAD ........................................................................................................................ 17

GALAXY SECURITY FEATURES .......................................................................................................................................................... 19

TO ARM THE SECURITY ALARM .................................................................................................................................................................... 19

TO DISARM THE SECURITY ALARM ................................................................................................................................................................ 19

TECHNICAL INFORMATION .............................................................................................................................................................. 20

GALAXY CONTROLLER WITH BUILT-IN GATEWAY ............................................................................................................................................... 20

WATER SENSOR ........................................................................................................................................................................................ 21

GAS AND CARBON MONOXIDE SENSING ......................................................................................................................................................... 22

VALVE ..................................................................................................................................................................................................... 23

TROUBLESHOOTING ........................................................................................................................................................................ 24

CONTROLLER [1] ....................................................................................................................................................................................... 24

SENSORS [4] ............................................................................................................................................................................................. 25

VALVES [2] ............................................................................................................................................................................................... 25

APPROVALS ..................................................................................................................................................................................... 26

TECHNICAL SUPPORT ....................................................................................................................................................................... 26

WARRANTY ..................................................................................................................................................................................... 27

Before you begin set up:

•Please note that each product in your Galaxy system is given a number as

follows. (The following configuration shows the typical “water” Galaxy. Other configurations are

available. You may not have all components listed here, or you may have other devices that are not

listed here. For other types of sensors (or devices) not listed here, see the manual for that device for

instructions on setting it up with the Galaxy controller):

Controller

Valve

DC Power

Adapters

Water

Sensor

Sensor Probe

[1]

[2]

[3]

[4]

[5]

*Products may not appear exactly as

shown.

This quick setup guide

will refer to the numbers

in [ ] for your

convenience

•Please do not install the

valves or sensors until

after completing the

steps in this guide.

You are now ready to proceed

with the step-by-step setup

on the next page.

Step-by-step Setup Instructions

Step 1. Plug the DC adapter into the port on the top of the controller. After

several seconds, the display will show “System Normal”

Valves

Step 2. Remove the cover from the

valve controller[2]

Step 3. Plug the DC adapter into the

valve [2] circuit board connector

Step 4. Press the “Sync” button on the

controller [1] keypad. The display will

change to “Waiting to Synchronize”

Step 5. Press the “Sync” button on the

valve [2]. This step must be

completed before the 30-second timer

on the control [1] counts down to 0.

Step 6. The display on the controller [1]

will show “Add New Valve Valve 1”

(Additional valves will show as Valve 2,

Valve 3, etc.) or “Valve Already Synched”

Step 7. Repeat steps 5-9 for any additional valves you are installing with your

system.

Press Sync

Water Sensors

Step 8. Open the back of the water sensor [4] and insert 2 AAA-size alkaline

batteries into the battery holder

Step 9. Press the “Sync” button on the controller [1] keypad. The display will

change to “Waiting to Synchronize”.

Step 10. Press BOTH buttons on the

front of the sensor [4] and hold for 2

seconds. This step must be completed

before the 30-second timer on the control

[1] counts down to 0.

Step 11. The display on the controller [1] will show “Add New Sensor

Sensor 1” (Additional sensors will show as Sensor 2, Sensor 3, etc.) or “Valve

Already Synched”

Step 12. Repeat steps 11-14 for any additional water sensors you are

installing with your system.

Congratulations. Your Galaxy devices are now linked and

ready for installation in their final locations

Installation

Step 1. Mount the Controller [1] to a wall using the hanger provided.

Step 2. Place the water sensors[4] around the premises

Step 3. Plug the water sensor probe [6] (pad sensor) into the water sensor [4].

Step 4. Place the pad in an area where you would expect to find water if a

water leak occurs.

Step 5. Install the water valve into the main water line where it enters the

building. WARNING: Galaxy valves should only be installed by a licensed

plumber in accordance with all local building codes and ordinances.

Operating Valves

Opening and closing Gas

and Water Valves

The Galaxy allows for very simple

operation of attached valves. The

current status of the valves is

indicated by the color of the light

behind its operating button.

Green = Valve is open

Red = Valve is closed

No light = No valve of this type

associated with this controller

Flashing Light (With no error message on LCD) = Valve is in the process of opening

or closing.

Flashing Light (With error message on LCD) = Valve is reporting trouble condition

“No Response” A valve is not responding to the control. Check the battery in the

valve. Try re-synchronizing your valve(s)

“Position Error” A valve is closed when the controller expects it to be open (or

vice-versa). The most common reason is that the manual override has been

activated. To clear this, either press the manual override on the valve again, or

press the button on the controller to operate the valve. After a few seconds the

light should stop flashing and this error will go away and you can leave the valve as

is, or push the button again to open (or close) it.

Gas Valve

Button/Light

Water Valve

Button/Light

To Open the valve: If the light is red, push the “water” button to open the water

valve (or “gas” button for gas valve). The light will change to flashing green while

the valve(s) open, then turn to solid green when all valves have finished opening.

To Close the valve: If the light is green, push the “water” button to close the water

valve (or “gas” for gas valve). The light will change to flashing red while the valve(s)

close, then turn to solid red when all valves have finished closing.

The controller will not allow valve operation until the alarm has been reset and the

source of the alarm (water/gas leak) had been corrected. Push any button,

(including the valve control buttons) to mute and reset the alarm, and allow for

continued valve operation.

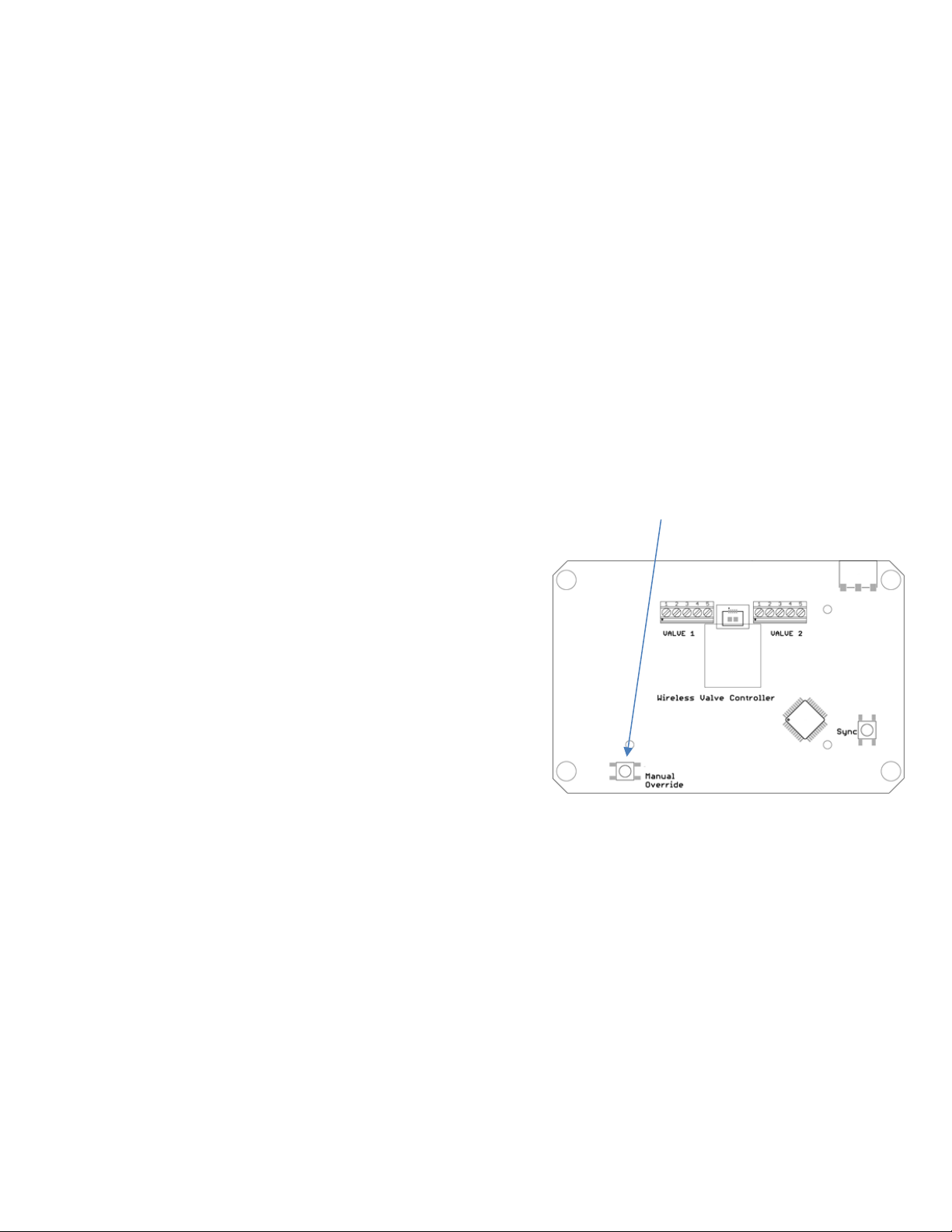

Valve Manual Override

The valve features a manual override button to

operate the valve independently from the

controller. Pressing this button will close the

valve if it is open and open the valve if it is

closed. Using the manual override will

temporarily disconnect the valve from the

controller. During this period, the controller

display may show “No Response” or “Position

Error” because the valve is either not responding, or is responding with the

unexpected status. This is normal. Pressing the override button again will cancel

the override mode and the valve will begin responding to the controller again.

Manual Override

Button

Advanced Functions

The various advanced functions can be accessed by pressing the Function Key “A”

on the keypad. You will be prompted to enter a 4-digit function code from the

table below. Each function is described in detail later in this section.

Function

Description

4-digit Code

Security

Lockout

Locks the keypad, preventing unauthorized use

of system

(4321)* or change to

your own code with

function 9999

Display IP

This function will display its current IP address

1111

Earthquake

Sensor On/Off

Enables or Disables the built-in earthquake

sensor

1234

Water Valve

Shutoff due to

Earthquake

On/Off

Enables or disables automatic shutoff of water

valve when an earthquake is detected

1235

Erase Devices

Erase Valves, or Sensors from Memory

2000

Change Gas

Sensor Name

Allows you to change the sensor name from its

default (e.g. “Sensor 1”) to a name more

descriptive of its location (e.g. Utility Room)

7777

Change Water

Sensor Name

Allows you to change the sensor name from its

default (e.g. “Sensor 1”) to a name more

descriptive of its location (e.g. Main Bathroom)

8888

Change

Master Code

Allows you to change the “Master Security

Code” for the device

9999
