Avanti FLD40V0W Manuel utilisateur
Model FLD40V0W
Ventless Condensing
Clothes Dryer
INSTRUCTION MANUAL
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS.
Avanti has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice.
Avanti Products LLC
3265 Meridian Pkwy # 114
Weston, FL 33331
www.avantiproducts.com
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the
operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep
this book for future reference.

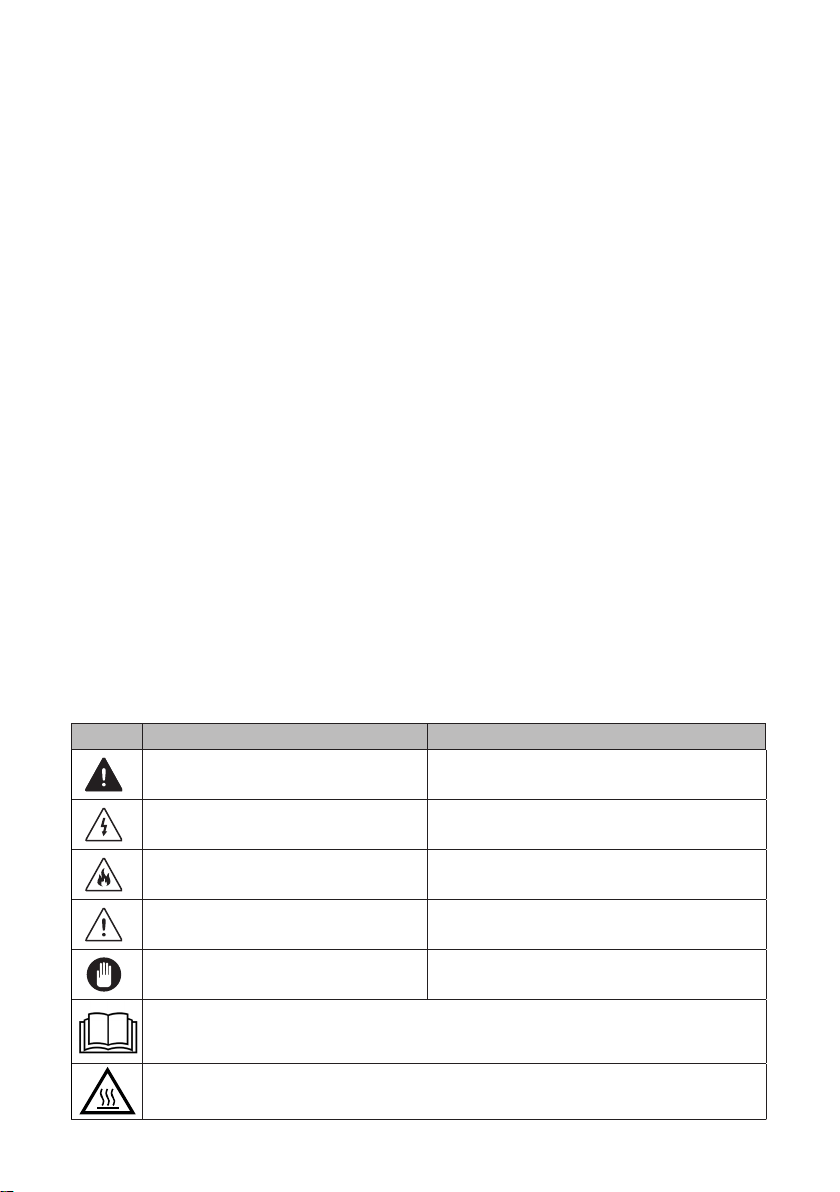

Icon Caption Description
WARNING Risk of serious injury or death
RISK OF ELECTRIC SHOCK Dangerous voltage
FIRE
ATTENTION Risk of injury or material damage
IMPORTANT/NOTE Information on correct operation of the system
Read the instructions.
Hot surface
EN - III
CONTENTS
Help Us Help You .............................................................................................V
1. QUICK START ..................................................................................................VI
2. SAFETY INSTRUCTIONS ................................................................................. 3
2.1. Electrical Safety............................................................................................... 3
2.2. Important Safety Instructions........................................................................... 4
2.3. Grounding Instructions .................................................................................... 5
2.4. Children's Safety ............................................................................................. 6
2.5. Product Safety................................................................................................. 7
2.6. Correct Use ..................................................................................................... 8
2.7. Installing On Top Of a Washing Machine......................................................... 9
3. INSTALLATION INSTRUCTIONS.................................................................... 11
3.1. Connection to Water Outlet (with optional drain hose) .................................. 11
3.1.1. Connecting the Water Discharge Hose ...................................................... 12
3.2. Electrical Connection..................................................................................... 12
3.3. Electric Installation......................................................................................... 12
3.4. Electrical Connection..................................................................................... 12
3.5. 4-Wire Power Supply Cord Connection......................................................... 13
3.6. 3-Wire Power Supply Cord Connection......................................................... 14
3.7. Under Counter Installation............................................................................. 16
3.8. Adjusting the Adjustable Feet ........................................................................ 16
3.9. Positioning the Machine on the Ground ........................................................ 16
4. OPERATING INSTRUCTIONS ........................................................................ 17
4.1. OVERVIEW ................................................................................................... 17
4.2. PREPARING THE LAUNDRY ....................................................................... 18
4.2.1. Sorting the Laundry to be Dried.................................................................. 18
4.3. Preparing the Laundry to be Dried ................................................................ 19
4.4. Load Capacity................................................................................................ 19
4.5. USING THE TUMBLE DRYER...................................................................... 20
4.6. Control Panel................................................................................................. 20
4.7. Program Selection and Consumption Table .................................................. 21
4.7.1. Auxiliary Functions...................................................................................... 22
4.7.2. Starting the Program .................................................................................. 23
4.7.3. Selection Stand By .................................................................................... 24
4.8. Drum Light Information.................................................................................. 24
EN - IV
5. CLEANING AND CARE................................................................................... 26
5.1. Cleaning the Lint Filter................................................................................... 26
5.2. Emptying the Water Tank............................................................................... 26
5.3. Cleaning the Condenser................................................................................ 27
5.4. Cleaning the Humidity Sensor....................................................................... 27
5.5. Cleaning the Inner Surface of the Loading Door ........................................... 28
6. TECHNICAL SPECIFICATIONS...................................................................... 29
7. TROUBLESHOOTING..................................................................................... 30
8. AUTOMATIC FAULT WARNINGS AND WHAT TO DO................................... 32
9. PRODUCT WARRANTY.................................................................................. 33
10. ENVIRONMENTAL PROTECTION AND PACKAGING INFORMATION ...... 34
10.1. Packaging Information................................................................................. 34
10.2. Energy Efficiency......................................................................................... 34
EN - V
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain your new
appliance properly.
Keep it handy to answer your questions. If you don’t
understand something or need more help, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as your sales
slip) with this guide to establish the warranty period.
Write down the model and serial numbers.
rear outside wall of the appliance.
Please write these number here:
----------------------------------
Date of Purchase
----------------------------------
Model Number
----------------------------------
Serial Number
Use these numbers in any correspondence
or service calls concerning your appliance.
If you received a damaged appliance, immediately
contactthedealer(orbuilder)thatsoldyoutheappliance.
Save time and money. Before you call for service,
check the Troubleshooting Guide. It lists causes of
minor operating problems that you can correct yourself.
CAUTION:
THIS APPLIANCE IS NOT DESIGNED FOR THE
STORAGE OF MEDICINE OR OTHER MEDICAL
PRODUCTS.
IF YOU NEED SERVICE
We’re proud of our service and want you to be pleased. If
for some reason you are not happy with the service you
receive, here are some steps to follow for further assistance.
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the details,
including your telephone number, and send it to:
Customer Service
Avanti Products
3265 Meridian Pkwy # 114
Weston, FL 33331 USA
EN - VI
1. QUICK START
Please check the user manual for detailed information.

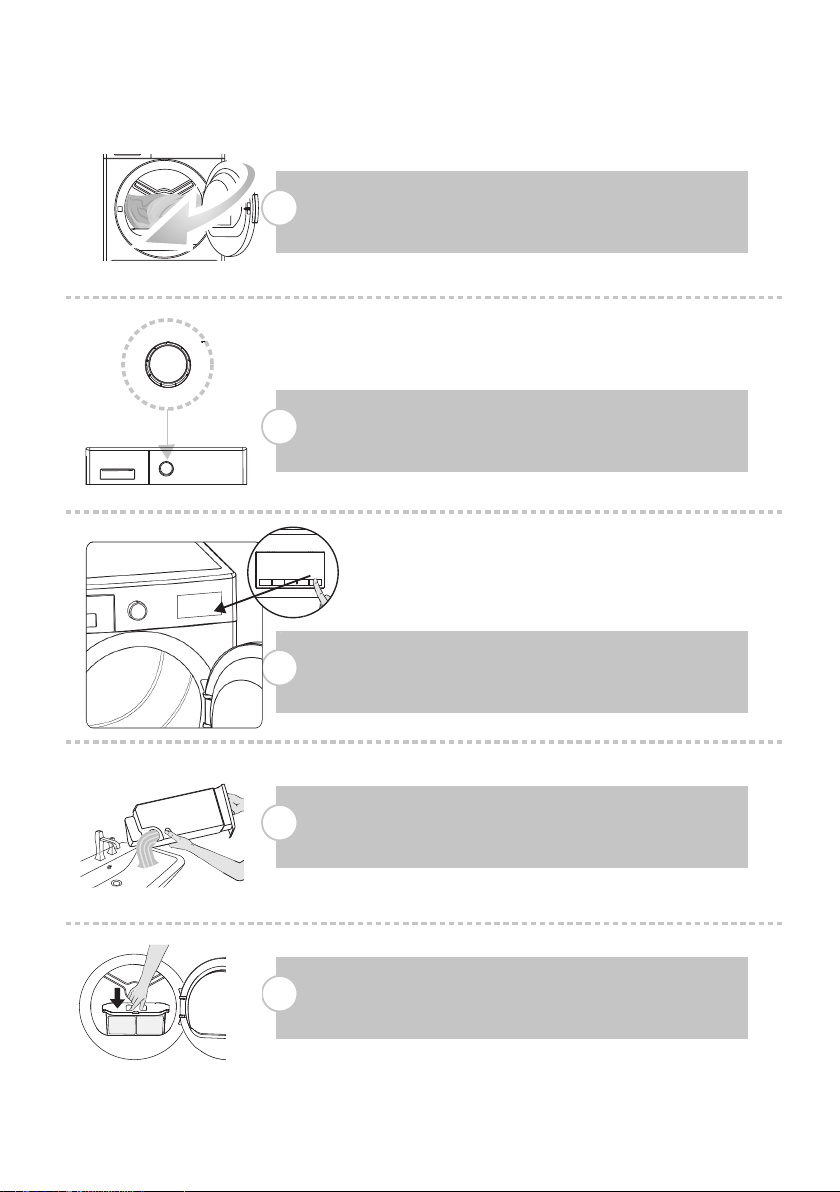

1Separate your clothes according to their types, place into the
machine and close the door.
2Select the suitable program for your laundry by rotating the adjustment knob.
3You can select additional functions for drying.
You can run the program by pushing Start / Pause button.
4After the drying program is completed, the water tank must be
emptied.
*** Please check the user manual for detailed information.
5After the drying program is completed, the filter must be cleaned.
*** Please check the user manual for detailed information.
EN - 1
PRIMARY CONSIDERATIONS
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children must not play with the
appliance. Cleaning and user maintenance must not
be made by children without supervision.
• Children of less than 3 years should be kept away
unless continuously supervised.
• This tumble dryer is intended only for household
and indoor use. The warranty will be void in case of
commercial use.
• Use this product only for laundry with a label that
indicates it is suitable for drying.
• The manufacturer will not accept responsibility for
damages resulting from incorrect use or transport.
•
ventilation openings.
• Installation and repair of the machine should
only be made by an authorised repair agent.
The manufacturer cannot be held responsible for
damages resulting from un-authorised repairs.
WARNING: Never spray or pour water onto the
dryer to wash it! There is risk of electric shock!
• Leave at least 3 cm of space between the side and
rear walls of the product and above if you plan on
placing your appliance under a worktop.
• Assembly / disassembly for under-counter
installation if neccessary must be done by an
authorised service agent.
• Before installation, check the product for visible
damage. Never install or operate a damaged
product.
EN - 2
• Keep pets away from the dryer.
• Fabric softeners, or similar products, should
be used in accordance with the manufacturers
instructions.
• Remove all objects from pockets such as lighters
and matches.
• The appliance must not be installed behind a
lockable door, a sliding door or a door with a hinge
on the opposite side to that of the tumble dryer, if it
prevents the door from being fully opened.
WARNING:
• Do not put any living thing in your machine for any
purpose.
• Condensation water which accumulates in the
water tank, may contain external particles such as
detergent residue, laundry thread, and lint. For this
reason, the water accumulated in the water tank
should not be used for any purpose.
• Opening the door before the cooling process is
• Opening the door before the cooling process is
• Do not take the laundry out of the machine before
the program ends.
•
performance.
EN - 3
2. SAFETY INSTRUCTIONS
This section contains safety instructions that will help
protect you from risk of personal injury or property
damage. Failure to follow these instructions will void
any warranty.
2.1. Electrical Safety
• The appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched on
• Do not touch the power plug with wet hands. Always
pull the plug to unplug the product, otherwise, there
will be risk of an electric shock.
• Connect the dryer to a grounded socket with fuse
protection. Have the earth connection installed by
responsible for damages/losses resulting from using
the dryer without an earth connection as required
by local regulations.
• The voltage and the allowable fuse protection are
indicated on the type plate.(For the type plate,
please see Overview)
• Voltage and frequency values indicated on the
type plate must be equal to the mains voltage and
frequency value in your house.
• Unplug the dryer when it is not used for an
extended period, and before installation,
maintenance, cleaning and repair, otherwise, the
dryer may get damaged.
• The plug socket must be freely accessible at all
times after installation.
EN - 4
give you an electric shock. When damaged it must
personnel.
use extension cords, multi sockets or adapters to
connect the dryer to mains power.
2.2. Important Safety Instructions
WARNING -
or injury to persons when using your appliance, follow
basic precautions, including the following:
• Read all instructions before using the appliance.
• Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
that could ignite or explode.
• Do not allow children to play on or in the appliance.
Close supervision of children is necessary when the
appliance is used near children.
• Before the appliance is removed from service
or discarded, remove the door to the drying
compartment.
• Do not reach into the appliance if the drum is
moving.
• Do not install or store this appliance where it will be
exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance
recommended in the user-maintenance instructions
or in published user-repair instructions that you
understand and have the skills to carry out.
Table des matières
Autres manuels Avanti Séchoir
Avanti
Avanti D110-1IS Manuel utilisateur
Avanti
Avanti D-24 Manuel utilisateur
Avanti
Avanti D110-1IS Manuel utilisateur
Avanti
Avanti SED67D0W Manuel utilisateur
Avanti
Avanti D-24 Manuel utilisateur
Avanti
Avanti D110-1 Manuel utilisateur
Avanti
Avanti D110 Manuel utilisateur
Avanti
Avanti WDB101 Manuel utilisateur
Manuels Séchoir populaires d'autres marques
Indesit
Indesit IDV 75 Manuel utilisateur
Infiniton
Infiniton SD-DG85C Manuel utilisateur
BOMANN
BOMANN WT 5019 Manuel utilisateur
Alliance Laundry Systems
Alliance Laundry Systems TMB795C Manuel utilisateur
Asko
Asko T793C Manuel utilisateur
Kenmore
Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
