AvaLAN AW58100HTA Manuel utilisateur

USER’S MANUAL

Industrial-grade, long-range wireless Ethernet systems

AvaLAN

WIRELESS

AW58100HTA

AW58100HTS

5.8 GHz Outdoor 100 Mbps

Wireless Ethernet Access Point

and Subscriber Unit Radios

AW58100HTA, HTS User’s Manual

PAGE 2

Technical Support (650) 384-0000 www.avalanwireless.com

Revision 6.26.2014

125A Castle Drive

Madison, AL 35758

Phone: (650) 384-0000

Fax: (650) 249-3591

The AW58100HTA is a radio with dual omnidirectional antennas. It serves as an Access Point (master) in

a point-to-multipoint network. The AW58100HTS is a radio with a dual at panel high gain directional

antenna. Multiple AW58100HTS radios can serve as a Subscriber Units (clients) in conjunction with an

AW58100HTA.

The AW58100HTA includes: The AW58100HTS includes:

(1) AW58100HTA Access Point Radio

(1) Heavy Duty Pole-mount Bracket

(1) Power Over Ethernet Injector

(1) 18 VDC power supply

(1) AW58100HTS Subscriber Unit Radio

(1) Heavy Duty Pole-mount Bracket

(1) Power Over Ethernet Injector

(1) 18 VDC power supply

Table of Contents

Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

LED Status Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Digital Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connecting To The Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Changing the Conguration - Step By Step . . . . . . . . . . . . . . . 6

Viewing Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Physical Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Frequency Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Warranty and FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

If you have any questions when conguring your AvaLAN system, the best place to get answers is

to visit www.avalanwireless.com. You will also nd the latest updates there. If more assistance is

needed, send email to [email protected].

To speak to a live technician, please call technical support at the number below during normal

business hours.

AW58100HTA, HTS User’s Manual

PAGE 3

Technical Support (650) 384-0000 www.avalanwireless.com

Quick Start Guide

Step 1. Radios are Precongured out of the Box

Step 2. Mount Radios

Step 3. Align Radios

Step 4. Attach Cables

System Default:

IP Address: 192.168.88.10 (Subscriber Unit)

192.168.88.12 (Access Point)

Username: admin

Password: password

Best Practices:

1. Ensure clear visual path between radios before deployment

2. Test on bench before deployment

3. Networking Cable:

- CAT 6 Shielded Outdoor Grade

- For AW58100 - maximum length 300 ft/100 meters

AW58100HTA

Access Point

AW58100HTS

Subscriber Units

POE

Up to 5 miles Line-of-Sight

Supported

*Networking cable not provided

Multipoint-to-Point

POE

Networking Cable*

Tools Needed:

- ½ inch wrench

- Large Phillips head screwdriver

- Small at screwdriver

AW58100HTA, HTS User’s Manual

PAGE 4

Technical Support (650) 384-0000 www.avalanwireless.com

Access Point LED Guide

LED Status Information

Status

Ethernet Wireless

Subscriber Unit LED Guide

The wireless status light blinks slowly when the product is powered

and is lit solid when it has a successful wireless connection.

The wireless activity light blinks when receiving data.

The Ethernet activity light blinks when receiving data.

The wireless status light blinks slowly when the product is powered

and is lit solid when it has a successful wireless connection.

This light will blink when receiving data

This light will blink when transmitting data

Status

Wireless

Ethernet

AW58100HTA, HTS User’s Manual

PAGE 5

Technical Support (650) 384-0000 www.avalanwireless.com

Digital Conguration

1. Digital conguration is done by means of the radio’s built in browser interface. The unit should be

powered on and connected at least temporarily to a network containing a computer that can run a

conventional web browser.

2. Using your web browser, connect to the radio as described in the Quick Start Guide found earlier

in this manual.

3. The initial page after a successful login is “Quick Set.” The content of this page is somewhat dif-

ferent for the AW58100HTA Access Point and for the AW58100HTS Subscriber Unit.

4. Each page provides a menu on the left to navigate from section to section. The menu looks like this

when its sections are expanded:

Beware that certain actions may cause the web page to freeze. In most cases, this is because you are

viewing a browser-cached version of the page and not the live one from the radio. Clear your browser

cache and/or logout and log back in to recover. You are cautioned not to use the “back” button on

your browser to attempt to move back to earlier pages. If you do, you will be logged out and will

need to login again.

In the upper right of the page is a label that tells you the version of the web interface. If the ver-

sion number is not the same as shown below, you might want to visit www.avalanwireless.com (the

Downloads page under the Support menu) to see if a newer version of this manual exists before pro-

ceeding further.

Connecting to the radio

AW58100HTA, HTS User’s Manual

PAGE 6

Technical Support (650) 384-0000 www.avalanwireless.com

Changing The Configuration - Step by Step

Please be aware that if you change the IP Address or User Password and forget their new values, you

have locked yourself out of the browser interface. The AW58100 runs self-diagnostics at boot-up and

will auto-correct most system conguration errors. Prior to calling technical support, it is recom-

mended to power cycle the radio and conrm that the problem remains.

In the event of a lost IP address, reboot the AW58100 to create a temporary IP address of 192.168.88.88

that can be used to access the radio to reset the user-dened IP address. This IP address expires after

3 minutes from reboot. In the event of a lost password, please contact AvaLAN technical support for

assistance.

If you are changing parameters over the RF link (we do not recommend this), be sure to make the re-

mote changes rst because the link will be broken if the network name or Security Keys do not agree.

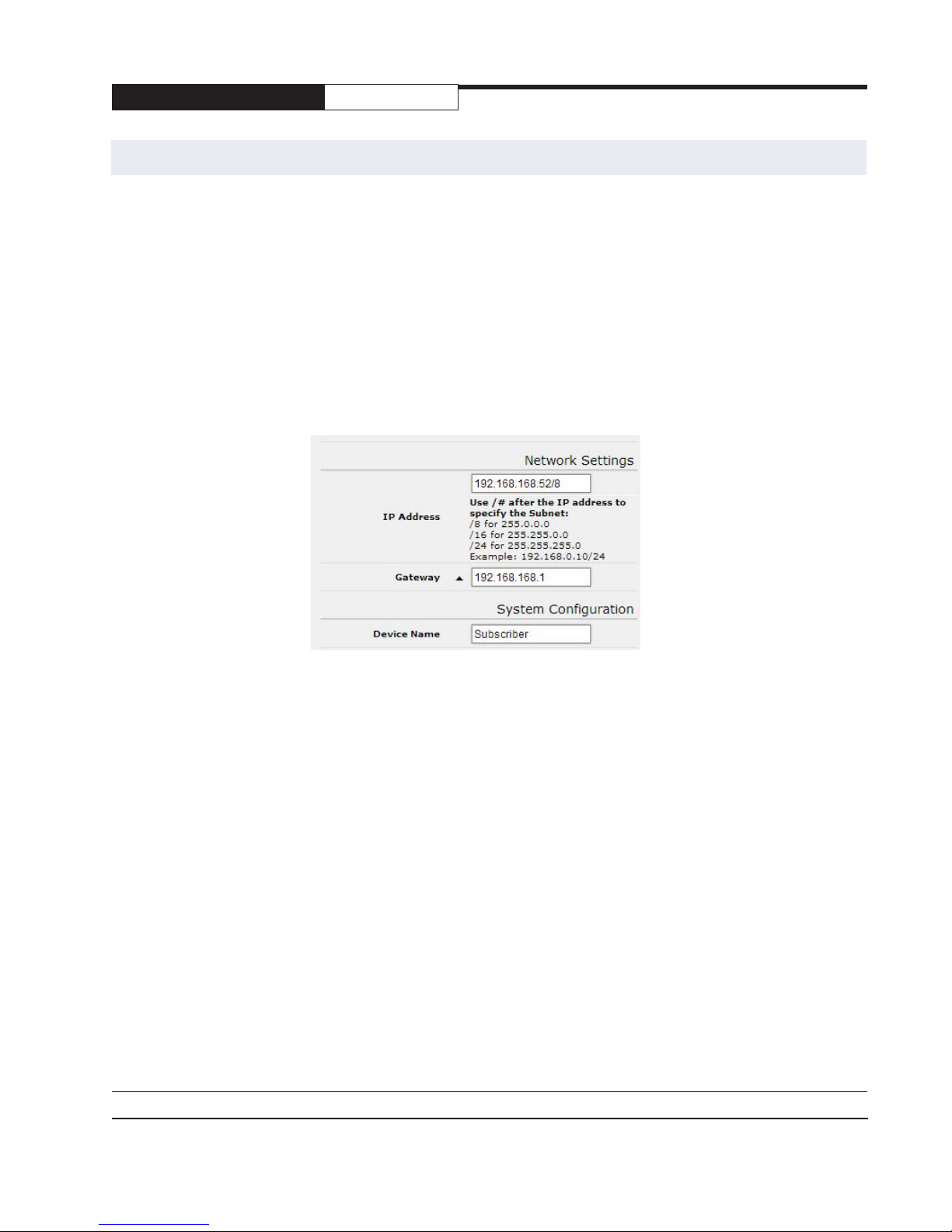

1. Setting the IP Address and Subnet Mask, Gateway and Device Name:

• In the upper right area of the Quick Set page are the data entry boxes for these parameters.

They contain the current values.

• A special notation is used for the IP Address and Subnet Mask: Use /x at the end of the

IP Address to specify the subnet mask: /8 for 255.0.0.0, /16 for 255.255.0.0 and /24 for

255.255.255.0. Enter a new IP Address and subnet making sure you will be able to browse to

the new address with your computer. Also, make sure that the new IP address is unique on your

LAN.

• The Gateway address should be specied if it is necessary to communicate with the radio

through the Gateway. Your system administrator should have this value.

• The Device Name is an arbitrary string and simply allows you to attach a human-friendly name

to this specic radio.

• Click “Apply Conguration” when you have entered new values. Nothing appears to happen, but

you have been disconnected and will need to browse to the new IP Address to login again.

AW58100HTA, HTS User’s Manual

PAGE 7

Technical Support (650) 384-0000 www.avalanwireless.com

2. Setting the User Password:

• On the Main Menu at the left side of the browser window, click “System”, then click

“Password.”

• Enter the old password and the new password twice in the boxes indicated.

• Click the “Change” button.

• Log out and log back in to test.

3. Setting the Frequency, Network name and Encryption Key:

• To set the Frequency, log in to the Access Point and on the quick start page a selection can be

made.

• The Network name is an arbitrary character string that must be set alike in all linked radios.

• The encryption key is a user specied character string.

AW58100HTA, HTS User’s Manual

PAGE 8

Technical Support (650) 384-0000 www.avalanwireless.com

After conguring your AvaLAN radios and establishing links among them, you can use the browser

interface to view status and troubleshooting Information. The initial “Quick Set” page will show

whether the wireless link is operating and the current signal strength. For more comprehensive infor-

mation, choose “Wireless” from the Main Menu at the left side of the window. The “Wireless” page

leads to most of the useful status information.

The table on the Interfaces tab provides a list of the interface processes running in this radio. If it is

a Subscriber Unit, there will be only one, “Wireless_Radio.” If it is an Access Point, there will also be

a WDS process running for each Subscriber Unit that is connected. These very long rows summarize

the conguration details and current running status of the radio. You can click and drag in the heading

row of the table to change the column width if part of the data is not visible.

Viewing Status Information

AW58100HTA, HTS User’s Manual

PAGE 9

Technical Support (650) 384-0000 www.avalanwireless.com

Physical Setup

1. Mount each unit securely using the mounting brackets provided or other means as necessary.

Maximize lightning resistance by providing a strong DC ground connection to the metal housing.

A. Assemble both bracket arms using the Rotator

Bolt, a Large Lock Washer and the Hex Nut. Leave the

bracket loose enough to rotate.

B. Use one of the following methods, or other

methods necessary to seccure the bracket.

Wide Pole Mounting: Place the pole between the

two large wedges of Bracket Arm A and the Pole

Clamp Bar. Use the two Clamp Bolts to bind the bar

and bracket to the pole. Use Large Washers and Lock

Washers if needed. Leave the clamp loose enough to

rotate.

Narrow Pole Mounting: Place the pole between the

large wedge of the Bracket Arm A and the small

wedge on the reversed side of the Pole Clamp Bar.

Use the two Clamp Bolts to bind the bar and bracket

to the pole. Use Large Washers and Lock Washers if

needed. Leave the clamp loose enough to rotate.

Wall Mounting: Hold Bracket Arm A ush against

the wall then drill four holes of roughly 3/16 inch

diameter using the four corner holes of bracket as a

measuring guide. If mounting on wood, simply use the

Wall Mounting Screws to secure the bracket through

its four corner holes and those that you have drilled.

If mounting on drywall press Drywall Anchors into the

drill-holes then do the same but instead screw into

the anchors.

C. Adjust the bracket apparatus so the square face of

Bracket Arm B faces the direction of the device your

radio will be communicating with. Then using a ½

inch wrench fully tighten all applicable components.

AW58100HTA, HTS User’s Manual

PAGE 10

Technical Support (650) 384-0000 www.avalanwireless.com

D. Use a large Phillips head screwdriver to mount

your radio to Bracket Arm B using the four Radio

Mounting Screws. Use small washers and lock washers

if necessary. Make sure that the orientation arrow on

the back of the panel antenna faces upward so that

the drainage hole is at the bottom of the radio.

E. Assemble the cable gland on the end of your RJ45

Ethernet cable(not provided). Then connect the

cable to your radio’s Ethernet port, and fasten the

gland. The gland must be fully tightened to provide a

waterproof seal.

2. The AW58100HTS units have dual directional at panel antennas. It is important that the

AW58100HTS antennas be pointed toward their Access Point AW58100HTA. Care should be taken to

align the AW58100HTS panel antenna to provide the best performance. The HTS antenna performs

best when the panel’s face is aligned toward its partner. By browsing to the Access Point radio, you

can see a graphical representation of signal strength received from each linked Subscriber Unit. Click

the row in the table to display the graph for that particular unit. This information can be used to

facilitate the aiming process.

3. Power is provided to the units by means of their Ethernet cables, allowing the power supplies to

be located at convenient locations. The included power-over-Ethernet injectors (POE) provide the

means for adding DC power to unused wires in the cable. Each radio is provided with a cable clamping

device that allows an RJ45 plug on the cable to pass through and can be tightened down around the

cable to provide a weatherproof seal.

Autres manuels pour AW58100HTA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AvaLAN Point d'accès sans fil

AvaLAN

AvaLAN AW58EMVAP Manuel utilisateur

AvaLAN

AvaLAN AW49200HTA Manuel utilisateur

AvaLAN

AvaLAN AW58EMVAP Manuel utilisateur

AvaLAN

AvaLAN AW58100HTA Manuel utilisateur

AvaLAN

AvaLAN AW58100HTA Manuel utilisateur

AvaLAN

AvaLAN AW58803HTS Manuel utilisateur

AvaLAN

AvaLAN AW58300HTS Manuel utilisateur

AvaLAN

AvaLAN AW58300HTA Manuel utilisateur

AvaLAN

AvaLAN AW58800HTP-PAIR Manuel utilisateur

AvaLAN

AvaLAN AW900R2-PAIR Manuel utilisateur

AvaLAN

AvaLAN AW58800HTA Manuel utilisateur

AvaLAN

AvaLAN AW58EMVAP Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
