AV Access 4KCVH2H Manuel utilisateur

4KCVH2H

4K HDMI Audio Extractor

User Manual

Disclaimers

The information in this manual has been carefully checked and is believed to be

accurate. AV Access Technology Limited assumes no responsibility for any

infringements of patents or other rights of third parties which may result from its

use.

AV Access Technology Limited assumes no responsibility for any inaccuracies that

may be contained in this document. AV Access Technology Limited also makes no

commitment to update or to keep current the information contained in this

document.

AV Access Technology Limited reserves the right to make improvements to this

document and/or product at any time and without notice.

Copy, Reproduce, Distribute and/or Edit of this document or part of it as well as

utilization of its contents and communication thereof to others without express

authorization are prohibited. Offenders will be held liable for payment of damages.

All rights created by patent grant or registration of a utility model or design patent

Trademarks Notice

All products or service names mentioned in this document may be trademarks of

the companies with which they are associated.

Business inquiry: service[email protected]

Technical problems: support@avaccess.com

Important Safety Instructions

Do not expose this apparatus to rain, moisture, dripping or splashing. No

objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install or place this unit in a bookcase, built-in cabinet, or in another

confined space. Ensure the unit is well ventilated.

To prevent risk of electric shock or fire hazard due to overheating, do not

obstruct the unit’s ventilation openings with newspapers, tablecloths,

curtains, or similar items.

Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

Do not place sources of naked flames, such as lighted candles, on the unit.

Clean this apparatus only with dry cloth.

Unplug this apparatus during lightning storms or when unused for long

periods of time.

Protect the power cord from being walked on or pinched, particularly at

plugs.

Only use attachments / accessories specified by the manufacturer.

Refer all servicing to qualified service personnel.

Table of Contents

Overview...............................................................................................................3

Package Contents.................................................................................................................. 4

Front Panel............................................................................................................................... 5

Rear Panel................................................................................................................................. 5

EDID Management ...............................................................................................6

Installation Instructions.......................................................................................8

Specification .........................................................................................................9

Trouble Shooting................................................................................................10

Warranty .............................................................................................................11

www.avaccess.com 2

Overview

4KCVH2H is a 4K HDMI audio extractor with resolutions up to 4K@60Hz (chroma

sub-sampling 4:4:4 8-bit) and HDCP 2.2.

Its digital or analog audio output allows audio to be de-embedded from HDMI

input and sent to audio distribution system, such as AVR or Zone Amplifier. Its rotary

EDID switch has 16 EDID presets for EDID management.

By auto-detecting input signal status, it could automatically trigger CEC command

to turn on or off TV with CEC support. It can be used in any AV application, such as

homes, offices, digital entertainment centers, control centers, conference rooms,

schools and corporate training environments which need HDMI audio extraction.

HDMI in and HDMI out, HDMI up to 4K@60Hz 4:4:4 8bit and HDCP 2.2 pass

through.

HDMI audio de-embedded out with Digital and Analog port.

Supports PCM 7.1, Dolby TureHD and DTS HD Master Audio from HDMI

output.

Support PCM, Dolby and DTS audio up to 5.1 channels from S/PDIF output.

EDID rotary switch on panel for EDID management function.

Built in CEC controller from HDMI out.

Automatic input cable equalization and signal regeneration compensation.

HDMI input and output both drive 4K@60Hz (4:4:4) 8bit with HDR up to 5m

over HDMI cable, while 1080p 24bit up to 15m.

www.avaccess.com 3

Overview

Package Contents

Before you start the installation of the product, please check the package

contents:

4KCVH2H x 1

Power Adapter (DC 12V 0.5A) x 1

Mounting Brackets x 2

User Manual x 1

www.avaccess.com 4

Overview

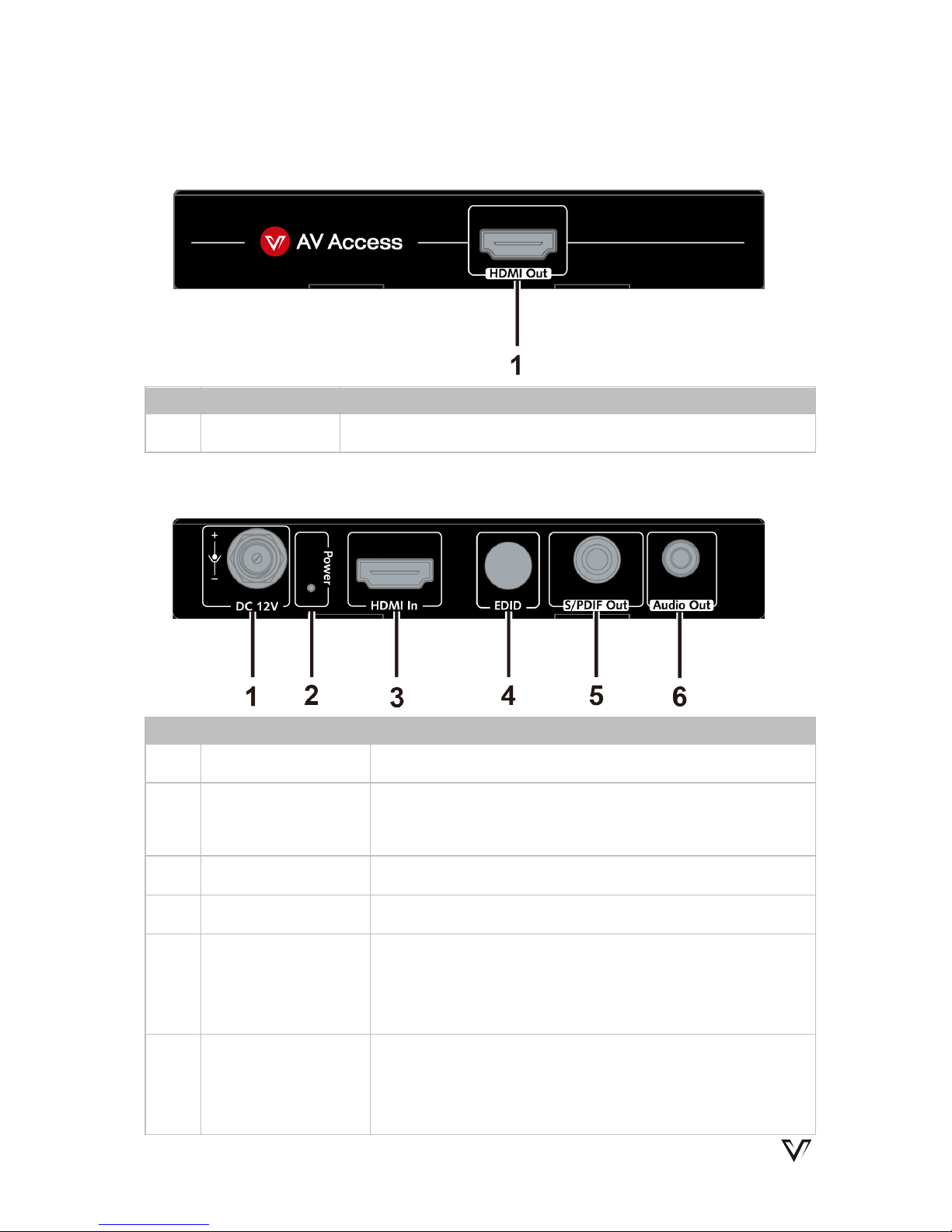

Front Panel

No.

Name

Description

1 HDMI Out Connects to an HDMI display

Rear Panel

No.

Name

Description

1 Power Connecter Connects to the DC 12V 0.5A power adapter.

2 Power LED ON: The device is powered on.

OFF: The device is powered off.

3 HDMI In Connects to an HDMI source.

4 EDID Rotary Switch for EDID Management.

5 S/PDIF Out

HDMI audio de-embedded out with Digital Coaxial,

connects to audio distribution system such as

amplifier.

6 AUDIO Out

HDMI audio de-embedded out with 3.5mm Analog

Stereo, connects to audio distribution system such as

headset. Note: This port only supports PCM2.0.

www.avaccess.com 5

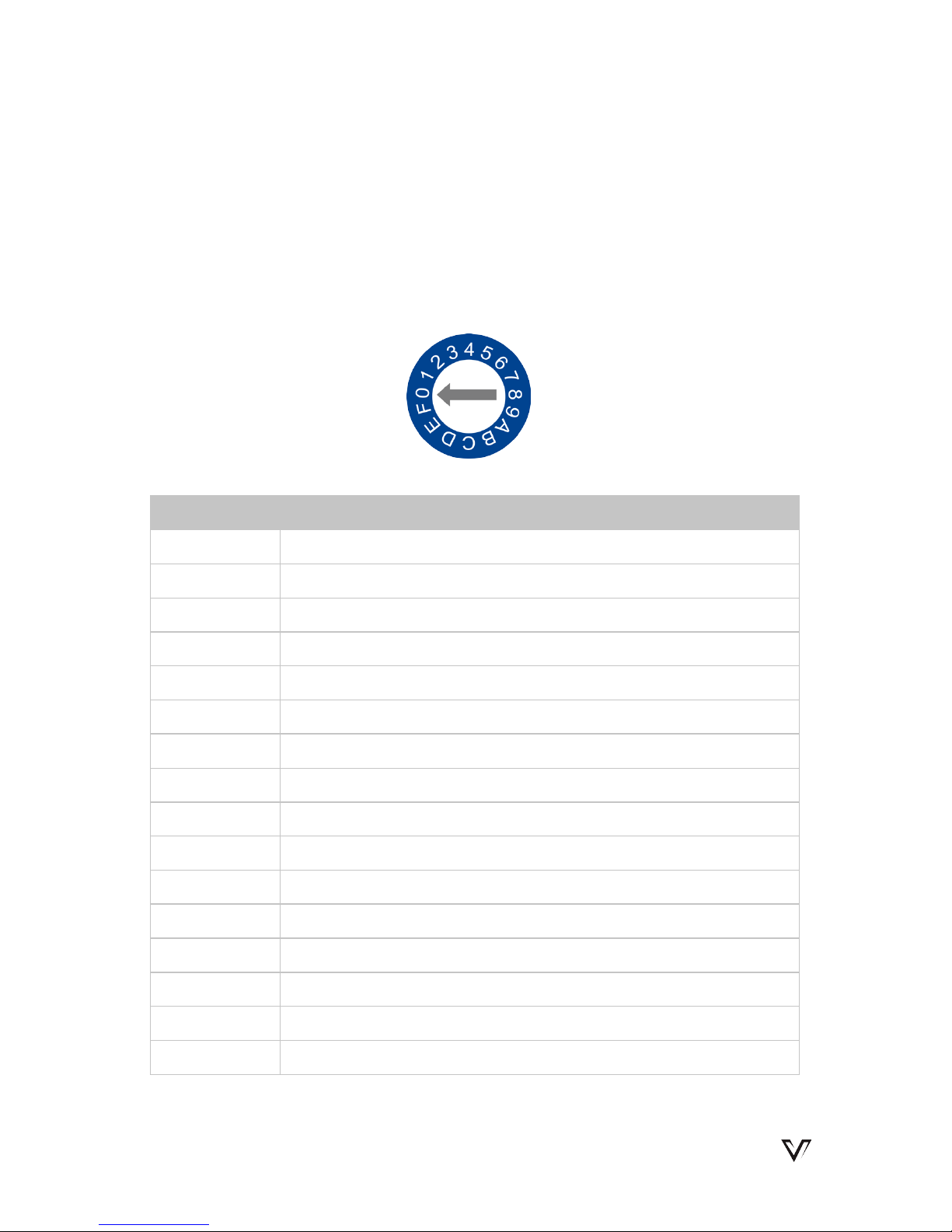

EDID Management

EDID (Extended Display Identification Data) is a data structure provided by a

digital display to describe its capabilities to a video source. The product features

an EDID management that can be used when the EDID dosen't meet the

installation requirements.

Switch for EDID Management with 16 presets as follows:

Position Descriptions

0(default) Copy EDID from HDMI Output

1 3840 x 2160@60Hz 2.0CH with HDR

2 3840 x 2160@60Hz 5.1CH with HDR

3 3840 x 2160@30Hz 2.0CH with HDR

4 3840 x 2160@30Hz 5.1CH with HDR

5 1920 x 1080@60Hz 2.0CH

6 1920 x 1080@60Hz 5.1CH

7 1920 x 1200@60Hz 2.0CH

8 1600 x 1200@60Hz 2.0CH

9 1680 x 1050@60Hz 2.0CH

A 1600 x 900@60Hz 2.0CH

B 1440 x 900@60Hz 2.0CH

C 1360 x 768@60Hz 2.0CH

D 1280 x 1024@60Hz 2.0CH

E 1280x768@60Hz 2.0CH

F 1024x768@60Hz 2.0CH

Note:

If EDID Copy failed, a fixed 1920 x 1080P@60Hz 2.0CH would be provided to

www.avaccess.com 6

EDID Management

source device.

In order to achieve a better user experience, please refer to the following

audio support descriptions for EDID setting during installation.

1. Switch the EDID to position 0——Copy EDID from HDMI out.

TV Audio HDMI Audio SPDIF Audio 3.5mm Analog

Stereo Audio

Dobly/DTS 7.1 Dobly/DTS 7.1 - -

Dobly/DTS 5.1 Dobly/DTS 5.1 Dobly/DTS 5.1 -

PCM 7.1 PCM 7.1 PCM 2.0 PCM 2.0

PCM 5.1 PCM 5.1 PCM 2.0 PCM 2.0

PCM 2.0 PCM 2.0 PCM 2.0 PCM 2.0

2. Switch the EDID to position 1/3/5/7/9/A/B/C/D/E/F——The option with

2.0CH.

HDMI Audio SPDIF Audio 3.5mm Analog Stereo Audio

PCM2.0 PCM2.0 PCM2.0

3. Switch the EDID to position 2/4/6——The option with 5.1CH.

TV Audio HDMI Audio SPDIF Audio 3.5mm Analog

Stereo Audio

Dobly/DTS 5.1 Dobly/DTS 5.1 Dobly/ DTS 5.1 -

PCM 5.1 PCM 5.1 PCM 2.0 PCM2.0

PCM 2.0 PCM 2.0 PCM 2.0 PCM2.0

www.avaccess.com 7
