SB-3

Battery Load Tester

Instruction Manual

Simplied Check Program for Charging Systems

The SB-3 is a variable load battery tester that provides a simplied check

for the alternator and starter.

CONGRATULATIONS

The automotive electrical system consists of a battery, starter, solenoid

(usually mounted on the starter), ignition switch, alternator with connecting

cables and wires. All parts of the electrical system must be operating

properly for a vehicle to provide dependable transportation. Whenever a

component fails, the whole system should be checked to insure that the

failure was not caused by another part of the system.

The SB-3 model is a simplied approach to test the battery and simplied

check of the system. This insures that you will be making only the

necessary repairs, resulting in satised customers and increased business.

To gain a complete understanding of how this tester works, and to derive

the maximum benets from this unit, we recommend reading through the

entire instruction before testing.

Equipment Needed

This tester is a basic tool for battery testing. The following test equipment

items are recommended in order to facilitate complete and accurate

results.

• Battery Charger

• Battery Clamp Spreader

• Battery Clamp Puller

• Battery Terminal Cleaner

• Hydrometer

You have purchased a quality Battery/Circuit tester. In addition to

performing accurate battery load tests, this tester provides non-inductive

starter-draw and alternator output testing capabilities.

The Charging System ------------------------------------------------2

Specications -----------------------------------------------------------3

Safety ---------------------------------------------------------------------4

Cause of Battery Failure ---------------------------------------------4

Battery Check and Visual Inspection -----------------------------5

Preliminary Notes------------------------------------------------------6

Battery State of Charge ----------------------------------------------7

Hydrometer Method ---------------------------------------------------8

Battery Load Test ------------------------------------------------------9

Starter Draw Test ------------------------------------------------10-11

Alternator Test ----------------------------------------------------12-13

Starter Circuit Test -----------------------------------------------14-15

Appendix A

Service Information--------------------------------------- 16

Appendix B

Battery Charging Guide --------------------------------- 18

Battery Voltage Chart ------------------------------------ 18

Warranty --------------------------------------------------------------- 19

Contact Information -------------------------------------------------20

SPECIFICATIONS

Carbon Pile 12 volt 500 Amp capacity

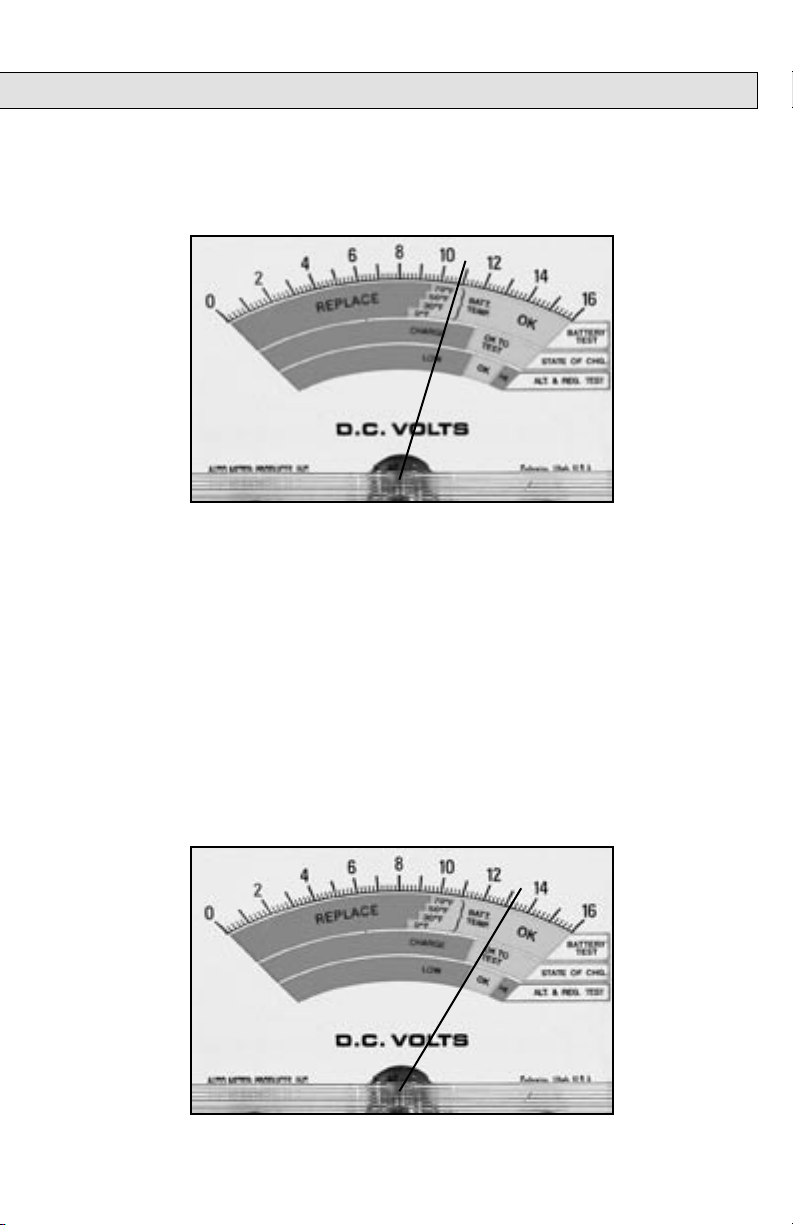

Volt Meter Accurate 8-16 Volt scale

Amp Meter 0-500 Amp Scale - Precise color coded, pass/fail indication

Load Knob Variable load with automatic load release

Load Clamps 500 Amp rating with vinyl coated red and black handles and

insulated jaws

Load Leads 5 ft. 2 gauge coax cable with internal 18 gauge conductor

Dimensions 10.5" x 9" x 4" metal case

Shipping Weight 12 lbs.

TABLE OF CONTENTS

APPENDIX
