AHGR32AW17 EVI DC Inverter Heat Pump

Installation and Instruction Manual

Inverter Air Source Heat Pump (AHGR32AW17) - Installation and Instruction Manual

Contents

1. Preface .........................................................................................4

2. Safety Precautions......................................................................5

2. Signs nd Symbols used in this Mnul................................................................................................... 5

2.2 Wrning........................................................................................................................................................... 5

2.3 Attention.......................................................................................................................................................... 

3. General Information....................................................................7

3. Het Pump Drwings nd Dimensions..................................................................................................... 

3.2 Euipment Fetures..................................................................................................................................... 

3.3 Speciﬁctions................................................................................................................................................. 8

4. Installation ...................................................................................9

4. Schemtic Digrm for Air-conditioning................................................................................................. 

4.2 Euipment Selection & Sizing .................................................................................................................... 

4.3 nstlltion onditions............................................................................................................................... 

4.4 Mchine Foundtion ................................................................................................................................... 

4.5 Wter Loop onnection.............................................................................................................................. 

4. Power Supply onnection ......................................................................................................................... 

4. Positioning the Unit..................................................................................................................................... 

4.8 Trnsit............................................................................................................................................................ 

4. Tril Run ........................................................................................................................................................ 

5. Control & Operation ..................................................................12

5.. Min nterfce Disply nd Function.....................................................................................................2

5.2 Usge of Wired ontroller......................................................................................................................... 3

6. Troubleshooting ........................................................................16

. Mlfunction Tbles......................................................................................................................................

.2 Freuency onversion Bord Fult Tble............................................................................................. 

.3 Prmeter List............................................................................................................................................. 

7. Main Controller Terminals .......................................................18

. Wire ontrol nterfce Digrm nd Deﬁnition....................................................................................8

.2 The Min ontroller Terminls ................................................................................................................8

8. Appendix ....................................................................................19

8. Appendix  – nstlltion Schemtic Digrm.....................................................................................

8.2 Appendix 2 – nstlltion of the Automtic Fill-wter Vlve.............................................................2

8.3 Appendix 3 – nstlltion of the Lekge Pressure Vlve................................................................. 2

8.4 Appendix 4 – Assistnt Het Sources ....................................................................................................2

Contents

Inverter Air Source Heat Pump (AHGR32AW17) - Installation and Instruction Manual

01. Preface

1. Preface

Thank you for purchasing this AHG R32 AW Series - EVI DC Inverter Heat

Pump from Automatic Heating Global Pty Ltd.

In order to provide the customers with a high-quality, reliable, and versatile product, this

heat pump was produced in accordance with strict design and manufacturing standards. This

manual includes all necessary information about installation, handling, maintenance, and

troubleshooting. Please read this manual thoroughly before using the unit. The manufacturer

will not be held liable in case of damages or injuries resulting from improper installation,

handling, maintenance, and troubleshooting that is not in accordance with this manual.

The unit must be installed only by a qualiﬁed personnel.

Please take note of the following in order to keep

the warranty:

• The unit shall only be installed, opened, or repaired

by a qualiﬁed installer or an authorized dealer.

• Maintenance and operation must be carried out

according to the recommended procedures and

frequency stated in this manual.

• Use genuine standard spare parts only.

Failure to comply with the above-mentioned

conditions will invalidate the warranty.

AHG R32 AW Series - EVI DC Inverter Heat Pump

is an ecient, energy-saving, and eco-friendly

equipment that is mainly built for space heating. It

can work with any kind of indoor unit including fan

coils, radiators, and ﬂoor heating pipes, which can

all be connected to a single monobloc unit. This

equipment was designed to allow heat recovery via

a super heater that could generate hot water for

sanitary and other purposes.

This series of DC Inverter Heat Pumps has the

following features:

Advanced Control

The microprocessor-based controller can be used

to easily check or set the running parameters of

the heat pump. The centralized control system can

also be used to control several units via PC.

Neat Appearance

The heat pump was designed to be pleasing to the

eye. A monobloc unit has a water pump already

included, which makes it compact and also very

easy to install.

Easy Installation

The unit has a smart structure and a compact body

that makes it very easy to install outdoors.

Noiseless Operation

This device uses high quality and ecient

compressor, fan, and water pump that ensure low

noise level during operation.

Ecient Heat Exchange

This equipment uses a specially-designed heat

exchanger that is ecient, helping you save more

energy using the device.

Reliable

This device was built to work even under extreme

working conditions. It can work under an ambient

temperature as low as -15ºC for heating.

Inverter Air Source Heat Pump (AHGR32AW17) - Installation and Instruction Manual 02. Safety Precautions

2. Safety Precautions

To prevent accidents from happening and avoid damages on the unit and other

surrounding properties, please read and understand this manual carefully.

Installation Operation

Warning

A wrong operation may lead to death or

serious injuries.

Prohibited

The action identiﬁed is prohibited.

Mandatory

The action identiﬁed is mandatory.

Installer must be professionally trained.

The heat pump must be installed by a

qualiﬁed and professionally-trained

personnel to avoid installation mistakes

which could lead to water leakage, electrical

shock, or ﬁre.

Keep ﬁngers away from fans.

Do not stick your ﬁnger or any small object

in the fans and evaporator of the unit to avoid

injuries and equipment damage.

Provide proper grounding.

Make sure that the unit and power

connection have good grounding / earthing

to prevent electrical shock from happening.

Shut down the unit in case

of emergency.

If you notice something wrong in the unit or

if it gives o a strange smell, shut it down

immediately by disconnecting the power

supply. Continuing to run the unit may cause

an electrical short circuit or ﬁre.

Attention

A wrong operation may cause minor harm to

people or material damages and/or losses.

2.1 Signs and Symbols used in this Manual

2.2 Warning

Keep away from ﬁre.

The appliance shall be stored in a room

without any potential ignition source e.g.

open ﬂames, gas appliance, and electric

heater.

Inverter Air Source Heat Pump (AHGR32AW17) - Installation and Instruction Manual

02. Safety Precautions

Moving and Repairing

Entrust the moving and re-installation of

the unit to qualiﬁed personnel.

If the unit needs to be moved and be re-

installed, please contact a qualiﬁed person

or company to carry it out for you. Improper

installation may lead to water leakage,

electrical shock, personal injury, or ﬁre.

Entrust the repair of the unit

to qualiﬁed personnel.

If the unit needs to be repaired, please

contact a qualiﬁed person or company to

carry it out for you. Improper installation

may lead to water leakage, electrical shock,

personal injury, or ﬁre.

Do not repair the equipment

on your own.

Unless you are professionally trained, do

not repair or tinker with the unit on your

own to avoid electrical shock, ﬁre, and other

accidents.

2.2 Warning (continued)

2.3 Attention

Installation Operation

Keep away from ﬂammable substances.

DO NOT install the unit near ﬂammable

gases or substances. Leakage of these may

cause ﬁre.

Check the baseplate /

foundation regularly.

Inspect the baseplate or foundation of the

equipment at least once every month to

avoid any decline or damage.

Switch o the power during

maintenance.

Please switch o the power when cleaning

the equipment or during maintenance

Provide appropriate machine foundation.

Make sure that the unit is securely positioned

and that its base is strong enough to prevent

it from falling.

Provide a circuit breaker.

Provide an appropriate and properly-sized

circuit breaker for the unit. Lack of circuit

breaker could lead to electrical shock or ﬁre.

Do not use copper or iron as fuse.

It is prohibited to use copper or iron as fuse.

The appropriate fuse for the equipment must

be selected and installed by an electrician.

Do not spray ﬂammable gas to the unit.

DO NOT spray ﬂammable gas to the heat

pump to avoid ﬁre.

Inverter Air Source Heat Pump (AHGR32AW17) - Installation and Instruction Manual 03. General Info

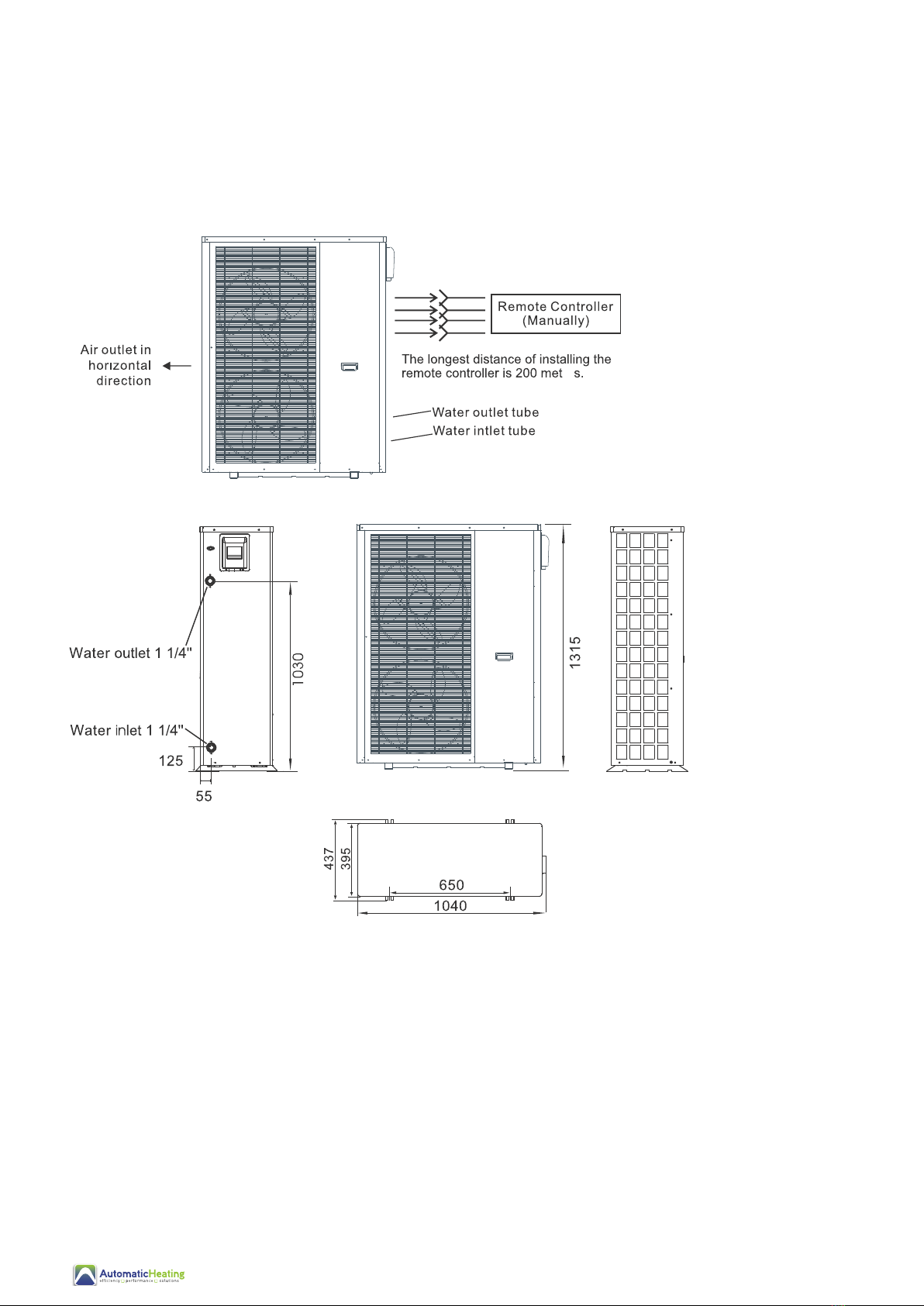

3.1 Heat Pump Drawings and Dimensions

3.2 Equipment Features

3. General Information

Plate Heat Exchangers

The equipment uses SWEP plate-type heat

exchangers that are compact yet highly ecient.

Eco-friendly Refrigerant

The equipment uses the new generation of eco-

friendly refrigerant, R32, which is harmless to the

ozone layer.

Wide Operating Temperature Range

The equipment is designed to function normally

even at harsh conditions and ambient temperatures

as low as -15ºC.

Inverter Air Source Heat Pump (AHGR32AW17) - Installation and Instruction Manual

03. General Info

3.3 Speciﬁcations

Model AHGR32AW17

Rated Heating Capacity kW 17.0

BTU/h 58006

Rated Cooling Capacity kW 12.5

BTU/h 42651

Rated Heating Power Input kW 3.65

Rated Cooling Power Input kW 4.16

Max Current Input A 12.0

Cooling Capacity Range kW 5.5~15.5

Heating Capacity Range kW 7.0~20.5

Cooling Power Input Range kW 1.5~6.0

Heating Power Input Range kW 1.5~6.0

Max Power Input kW 7.2

Power Supply 380V/3N~/50Hz

Compressor Quantity 1

Compressor Model Rotary

Fan Quantity 2

Fan Power Input W 110

Fan Rotational Speed RPM 850

Noise dB(A) 55

Water Pump Input kW 0.18

Noise Range dB(A) 44~58dB(A)

Water Connection inch 1 1/4

Water Flow Volume m /h3 2.9

External Pressure m 6.5

Unit Net Dimensions (L/W/H) mm 1040 x 395 x 1315

Unit Shipping Dimensions (L/W/H) mm 1070 x 435 x 1340

Net Weight kg See nameplate

Shipping Weight kg See package label

Cooling working conditions: (DB/WB) 35º/24º, (Outlet/Inlet) 7º/12º.

Heating working conditions: (DB/WB) 7º/6º. (Outlet/Inlet) 35º/30º.

Inverter Air Source Heat Pump (AHGR32AW17) - Installation and Instruction Manual 04. Installation

4.1 Schematic Diagram for Air-conditioning

4.2 Equipment Selection & Sizing

4. Installation

Considering local climate conditions, space

restrictions, and insulation level, calculate the

required cooling (heating) capacity per square

meter. Compute the total capacity needed for the

whole area.

Then choose the right pump model, considering

their temperature requirements and outputs

speciﬁed below:

Cooling Only Unit

Chilled water outlet temperature: 5-15ºC

Maximum ambient temperature: 43ºC

Heating and Cooling unit

Cooling chilled water outlet temperature: 5-15ºC

Maximum ambient temperature: 43ºC

Heating unit

Warm water inlet temperature: 40-50ºC

Minimum ambient temperature: -10ºC

Inverter air source heat pumps are generally used

in houses, oces, hotels, and other establishments

that need heating or cooling in dierent areas and

that need to be controlled separately

Inverter Air Source Heat Pump (AHGR32AW17) - Installation and Instruction Manual

04. Installation

4.3 Installation Conditions

4.4 Machine Foundation

4.5 Water Loop Connection

4.6 Power Supply Connection

• The unit can be installed on any area outdoors such

as terrace, housetop, and ground as long as it can

carry heavy machinery.

• The location must have good ventilation.

• The place must be free from direct heat and ﬂames.

• In areas subject to snow, a shelter is needed in

winter to protect the equipment.

• There must be no obstacles near the air inlet and

outlet of the heat pump.

• There must be an available water channel around

the equipment to drain the condensing water.

• The area must be free from strong winds.

• There must be enough space around the unit for

maintenance.

The heat pump can be installed onto a concrete base by expansion screws,

or onto a steel frame with rubber feet that can be placed on the ground or

housetop. Make sure that the unit is placed horizontally.

Please consider the following when installing the water pipe connection:

• Try to reduce the resistance on the water through the piping.

• The piping must be clean and free from dirt and debris. Water leakage test must be

carried out before insulating to ensure that there will be no water leaking.

• Pipe pressure must be tested separately. DO NOT test it together with the heat pump.

• There must be an expansion tank at the top point of the water loop, and the water level

in the tank must be at least 0.5 meters higher than the top point of the water loop.

• The ﬂow switch must be installed inside the heat pump. Ensure that the wiring and

action of the switch is normal and controlled by the controller.

• Avoid air staying inside of the water pipe. There must be an air vent at the top point of

the water loop.

• There must be a thermometer and a pressure gauge at the water inlet and outlet for

easy inspection during operation.

• Open the front panel, then open the power supply access.

• The power supply must go through the wire access and be connected to the power

supply terminals in the controlling box. Then connect the 3-signal wire plugs of the

wire controller and main controller.

• If the outside water pump is needed, please insert the power supply wire into the

wire access as well and connect to the water pump terminals.

• If an additional auxiliary heater is needed to be controlled by the heat pump

controller, the relay (or power) of the auxiliary heater must be connected to the

relevant output of the controller.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Automatic Heating Pompe à chaleur

Automatic Heating

Automatic Heating AHGR410AW Series Guide rapide

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
