CAiCE Visual Survey 10

CAiCE™Visual Survey® 10 software enables surveying professionals to import, process,

analyze, and present surveying data—all in one software package. Visual Survey gives you

the creation, integration, coordinate geometry (COGO), and digital terrain model (DTM)

tools of Visual CAD plus survey data import, processing, and editing features. For maximum

productivity, CAiCE Visual Survey combines these tools with powerful visualization and VBA

customization features to match the product to your workflow.

CAiCE Visual Survey supports all major survey formats. If you work with other formats, you

can easily add them using Microsoft®Visual Basic®for Applications (VBA) integration.

CAiCE Visual Survey comes with the CAiCE Project Manager, drawing import/export

capability (supporting DWG, DGN, and others), basic drafting tools, and a powerful graphics

engine. Primary features include the following:

•Converts from raw survey file formats and uploads and downloads data from data

collectors. Supports more than 50 data collector and survey formats.

•Preserves the value of your digital design data in a single format throughout your

business processes.

•Provides a single set of commands for importing, editing, and processing all raw data for

easy integration into your workflow. As a result, you can increase your productivity and

concentrate on data quality rather than on learning a new interface for each data

format.

•Provides simple, yet powerful coordinate geometry tools for defining points, lines,

curves, spirals, and chains. The software includes numerous utilities for finding and

correcting errors that create inaccuracies in digital terrain models.

•Presents survey data in both 2D and 3D and includes real-time drive-throughs of the

project area.

•Offers scalability and VBA customization to meet the needs of both small businesses and

large organizations. You can customize CAiCE Visual Survey to meet your requirements

for data collection, coding standards, plans production, operations, and CAD standards.

•Provides complete DTM creation, editing, and display capabilities, including draping of

raster images. The software’s DTM methodology is optimized for large data sets, such as

those encountered in transportation projects.

Features and Benefits

CAiCE Visual Survey 10 Features and Benefits

www.autodesk.com/caice 2

CAiCE Visual Survey Features and Benefits

CAiCE Visual Survey provides precision data import, processing, editing, and presentation

tools for surveyors, engineers, and technicians. You can use the software to create,

maintain, and produce topographic maps, and integrate data from many sources and

formats, including those from aerial, conventional, and global positioning system (GPS)

surveying methods. CAiCE Visual Survey software is part of an entire surveying workflow

solution from Autodesk. You can work with various surveying data sources, merging

multiple data types into a single project database.

Feature Function Benefit

New: Survey

Data Collector

Link—raw survey

data

compatibility

Converts from raw survey file formats, and

uploads and downloads data from data

collectors. Supports more than 50 data collector

and survey formats, including

•ASCII (including linework)

•TDS (Tripod Data Systems) rw5 and raw

formats

•Leica GSI

•AASHTO—SDMS, CAL, PRJ, and PAC

•Florida EFB

•Caltrans TLI, TSS, and DMP

•Sokkia SDR 20 and SDR 33

You can also import data through CAiCE’s

Leica®Link and Trimble Link.

Increases productivity and ease

of use by supporting the most

popular data collector formats

on the market. Other data

collector formats are easy to

add through VBA.

Observations

Master File

(OBM)

All raw survey data is edited in the OBM file,

providing a common interface for all data types.

The OBM file allows for quality assurance

checks on survey data and offers powerful

search and replace functions. The OBM file

keeps a record of all changes to the raw data

and never allows editing of the original file,

thus retaining an audit trail and data rollback

path.

You can easily and efficiently

manage editing of survey data

from a common interface,

eliminating the need to learn

different interfaces for various

raw data formats. Streamlines

the surveying process by

enabling you to concentrate on

data accuracy rather than on

learning conventions associated

with a particular data format.

Industry-

standard least-

squares

processing

You can easily adjust imported data formats

with the Electronic Field Book Processor. Well-

formatted reports enable you to analyze the

adjusted data and easily reprocess if necessary.

Features include the following:

•Rigorous least-squares adjustment of entire

control network

•Separate error estimation for all control

points

•Error ellipse computation for all control

points

•Computation of all available traverse

closures with reports for each loop

•Detailed reports for initial coordinate

approximations, vertical and horizontal

adjustments, and final coordinates

•Ability to automatically reweight all controls

to detect errors

Well-designed reports and

familiarity with this widely used

processor increase accuracy and

speed of processing for

algorithm design. Graphical

review of all angles, distances,

and traverses helps reduce

errors.

CAiCE Visual Survey 10 Features and Benefits

www.autodesk.com/caice 3

Feature Function Benefit

•Graphical viewing of all traverses,

distances, and angles with standard errors

of unit weight to aid in error analysis

COGO

commands,

including picker

controls

Powerful, interactive COGO commands include

•Point editing and creation

•Intersection of geometry objects

•Street intersections

•Cul-de-sac creation

•Best fit curve and alignment

•Manual traverse entry

•Parallel offsets, including spiral offsets

•Curves

•Spirals

•Compound curves

•Location of points by bearing/distance or

angle/distance

•Storage of curves by 1, 2, and 3 points or

by definition of any two curve components

•Storage of concentric, nonconcentric, and

best fit curves (and many other curve

options)

•Spiral, spiral-curve-spiral, and compound

spiral elements

•Graphical and interactive intersection

commands for all geometry elements

(points, lines, curves, chains, and spirals)

•Ability to recalculate COGO commands in

batch mode without having to start over

from the point of beginning

All COGO commands are

graphical and interactive,

increasing ease of use. Picker

controls provide access to

alternate COGO commands

within other COGO commands.

Because you stay within a single

command to perform multiple

COGO operations, you can avoid

jumping from command to

command. Combined, these

features help to make you more

productive.

Reduced survey

data

compatibility

Reduced Survey Data formats supported

include the following:

•AutoCAD®DWG files

•MicroStation®DGN files

•TDS (Tripod Data Systems)

•SDMS (AASHTO’s Survey Data Management

System)

•Delimited ASCII files (including chain data)

from any system

•CEFB (Cadastral Electronic Fieldbook)

through the XYZ file created from

processing

The ability to reuse data without

having to spend field time re-

collecting work in another

format helps to increase your

productivity.

General import

and processing

features

Provides tools to manage, process, and edit

data in manageable portions. General data

import and processing features include the

following:

•Ability to sort data by source (raw, reduced,

DWG, DGN, and so forth) by using

segments

•Automatic line creation from EFB, SDR,

TDS, and SDMS, and from delimited ASCII

files using a user-defined translation table

Automatically creates linework

from commands in the field

data with minimal or no change

in field procedures. The data

types can even be mixed in a

project without losing the ability

to automatically create

linework.

Sorts data by breaking it into

segments, so you can con-

centrate on a particular area

CAiCE Visual Survey 10 Features and Benefits

www.autodesk.com/caice 4

Feature Function Benefit

without having the screen

cluttered with data that is not in

use.

Survey data

viewing

•Dynamic graphical viewing of processed

survey data

•2D and 3D viewing and editing of survey

points and chains

•Automatic graphical attributes of points and

chains as determined by feature code

•Automatic graphical annotation of points

and chains as determined by feature code

or global settings

•Multiple 2D and 3D camera positions with

independent zoom settings

•Custom control of lighting for enhanced 3D

views and presentations

•Ability to easily attach or create cell files

from MicroStation or AutoCAD applications

•Automatic patterning of survey chains with

text containing cells for items such as

underground utilities

The ability to interactively check

for errors in 3D makes it easy

to find incorrect elevation data

and correct it before passing it

to the design department. The

3D drive-through capability

enhances client presentations,

is easy to set up, and is

available in real time.

The ability to segregate data by

feature code gives you control

over any automatic symbology

created.

DTM modeling

and viewing

Powerful and fast DTM algorithms mean your

systems perform well even with large DTMs.

DTM features include the following:

•Ability to easily handle large data sets such

as USGS DEM (digital elevation models)

•Ability to drape single or multiple USGS

7.5-minute quad maps onto a DTM surface

model

•Simplified point and breakline editing

•Cross-section construction

•Tagging of obscured areas

•Easy loading and construction

•Curved breaklines

•Viewing, rendering, and editing

•Freehand cross sections and profiles

•Terrain and DTM visualization

•Color by elevation

•Breakline crossing resolution

•Ability to easily combine existing and

proposed surface models

•Accurate earthwork computation using

surface-to-surface volumes

•Ability to view aerial photographs at correct

location, scale, and orientation

•Ability to drape aerial photographs onto

DTM surfaces

•Ability to map images to real-world

coordinates

•Realistic, on-the-fly renditions of survey

data

•AVI files for drive-throughs, reviews, and

client presentations

Fast DTM creation, viewing, and

editing increase your

productivity. By combining

spreadsheet–type interfaces

with real-time graphical

updates, you can make fast

edits without having to

regenerate complex graphics.

The Auto Track feature built into

the DTM creation and editing

tools enables you to

automatically pan to a specific

area of interest, without having

to spend extra time panning

and zooming around the project

area.

CAiCE Visual Survey 10 Features and Benefits

www.autodesk.com/caice 5

Feature Function Benefit

Stakeout reports Stakeout report options include the following:

•Customized report formats using ASCII text

files, Microsoft®Word documents, and Excel

spreadsheets

•Roadway stakeout reports created directly

from design cross sections

•Export of stakeout information directly to

industry-standard data collector formats

•Ability to customize stakeout reports

through VBA macros

Because survey crews can use

their preferred format for

internal stakeout reports, there

is no lost time or inaccuracy

interpreting a new report format

in the field.

Customization

and report

generation

VBA integration for customized macros and

report options includes the following:

•Customized macros are available online for

traverse, cross section plotting, quantity

reports, chain labeling, and many other

common surveying operations.

•Use VBA to link your project database to

Microsoft®Excel, Word, and Access, ESRI®

ArcView®, and other software programs.

•Easy-to-use VBA TugBoat macros make it

easier to learn the software.

The ability to customize CAiCE

Visual Survey to meet your

workflow requirements reduces

training time and increases

productivity. The software

conforms to the way you work,

not the other way around.

Drafting and

plans production

Features that help minimize drafting cleanup

time include the following:

•Plotting—plan, profile, cross sections, and

plats

•Text manipulation, editing, and labeling

•Customizable annotations of alignments

and profiles

•Intelligent labeling of station-offset-

elevation information that automatically

updates with modifications

Less time spent on drafting

cleanup means you can focus

on data quality instead of on

data presentation.

Translators and

CAD

compatibility

CAiCE Visual Survey offers

•Ability to import and export data from other

civil software packages

•Complete compatibility with AutoCAD and

MicroStation applications

Import and export capabilities

allow the reuse of existing data

in other formats, easing the

transition to Visual Survey.

Database

properties

Database properties include

•Double-precision storage for all values

•Full geodetic support for state plane zones,

Universal Transverse Mercator (UTM) zones,

and grid-to-ground conversions

•Database designed for surveying, terrain

modeling, and roadway design modeling

operations

Double precision means that

data accuracy does not depend

on the accuracy of your CAD

drafting tool and ensures the

integrity of your digital design

data.

Autodesk, AutoCAD, CAiCE, Visual CAD, and Visual Survey are either registered trademarks or trademarks of Autodesk, Inc., in the

USA and other countries. All other brand names, product names, or trademarks belong to their respective holders.

Autres manuels Autodesk Logiciel

Autodesk

Autodesk 240B1-05A111-1301 - Revit Architecture 2010 Manuel utilisateur

Autodesk

Autodesk GREEN BUILDING STUDIO - QUESTIONS AND... Manuel utilisateur

Autodesk

Autodesk 18506-091462-9305 - Architectural Desktop... Manuel technique

Autodesk

Autodesk ARCHITECTURE 2010 Manuel utilisateur

Autodesk

Autodesk 495B1-05A111-1301 - 3ds Max Design 2010 Manuel utilisateur

Autodesk

Autodesk CAICE VISUAL SURVEY 10 Manuel utilisateur

Autodesk

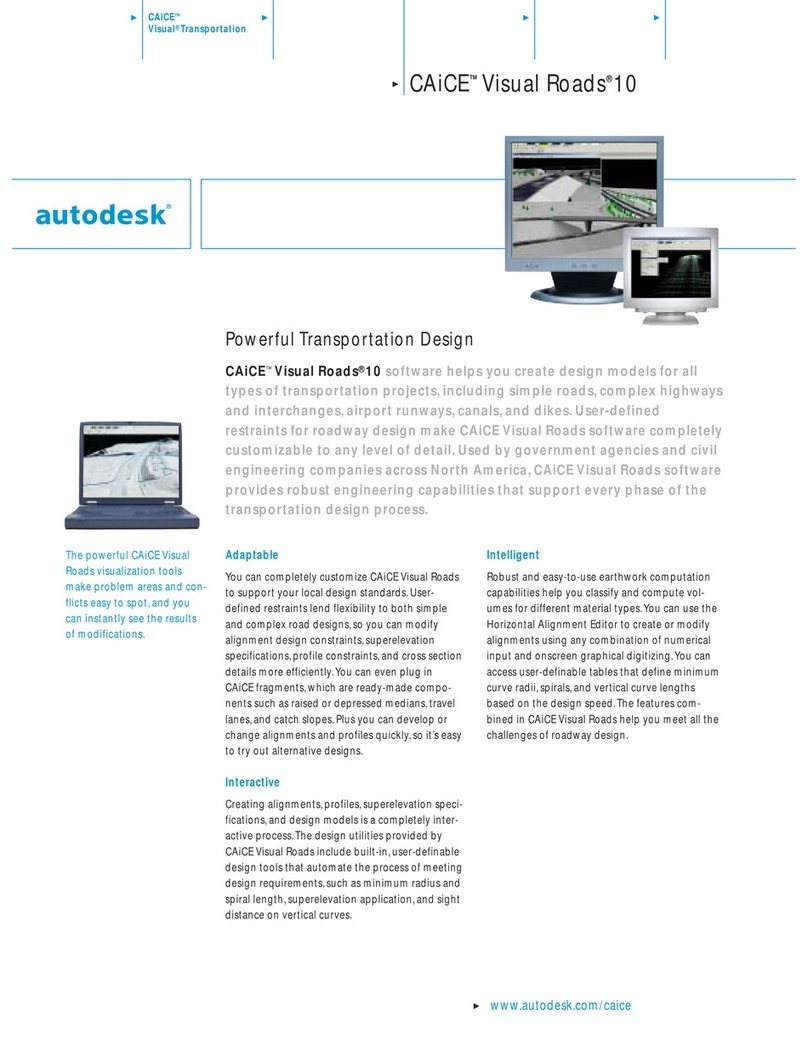

Autodesk CAICE VISUAL ROADS 10 Manuel utilisateur

Autodesk

Autodesk QUANTITY TAKEOFF 2010 Manuel utilisateur

Autodesk

Autodesk ECOTECT ANALYSIS 2010 Manuel utilisateur

Autodesk

Autodesk MAPGUIDE ENTERPRISE Manuel utilisateur

Autodesk

Autodesk AUTOCAD 2010 - Instructions de montage

Autodesk

Autodesk VAULT 2011 - SYSTEM REQUIREMENTS Manuel utilisateur

Autodesk

Autodesk 00308-011408-9F30A - VLA AUTOSKETCH R8-MEDIA... Manuel utilisateur

Autodesk

Autodesk 24108-051400-9000 - AutoCAD Revit Architecture Suite... Manuel utilisateur

Autodesk

Autodesk AUTOCAD RASTER DESIGN Manuel utilisateur

Autodesk

Autodesk CAICE VISUAL SURVEY 10 - QUESTIONS AND... Manuel utilisateur

Autodesk

Autodesk AUTOSKETCH 10 - SYSTEM REQUIREMENTS Manuel utilisateur

Autodesk

Autodesk TASKalfa 2420w Manuel utilisateur

Autodesk

Autodesk 256B1-05A761-1301 - AutoCAD Revit Structure Suite... Manuel utilisateur

Autodesk

Autodesk 057A1-09A111-1001 - AutoCAD LT 2009 Manuel utilisateur

Autodesk

Autodesk 12812-051462-9011 - 3DS MAX 9 COM LEGACY SLM Guide de référence

Autodesk

Autodesk AUTODESK SHOWCASE 2011 Manuel utilisateur

Autodesk

Autodesk 23802-091408-9020 - PSG Dwf Composer 2 Instructions de montage

Autodesk

Autodesk ALIAS 2010 Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Canon

Canon Vixia HF21 Manuel utilisateur

Canon

Canon ZR950 Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur
