AUNE X8 MAGIC DAC Manuel utilisateur
32bit/768k D SD 解码器
32bit/768k D S D M A G I C D A C
X8
Thanks for purchasing the aune X8 and congratulations on choosing this high-
performance DAC.
We sincerely hope the brand new X8 will bring you excellent Hi-Fi experience.
Please read this manual carefully before using the device.
Dear Customers,
View of front/rear panel
and name of each part
Selection button Indicator light
fastroll-off,linearphasefilter
slowroll-off,linearphasefilter
fastroll-off,minimumphasefilter
2. Filter mode
Volume knob (for pre-amp)
Coaxial input Power switch
USB
Optical
Coaxial
1. Input
Indicator light
Pre-amp output
Line output
Optical input
USB input
Power input
slowroll-off,minimumphasefilter
apodizing,fastroll-off,linearphasefilter
hybrid,fastroll-off,minimumphasefilter
brickwallfilter
The X8 is a DAC of the aune X series. It
uses aune's self-developed FPGA
technology and supports music files up
to PCM768 / DSD512. The Op-amp is
interchangeable and there are seven
filter modes to choose from. It's a DAC
purely focused on sound quality.
USB: up to 32bit/768k DSD512
Optical: up to 24bit/192k DSD64
Coaxial: up to 24bit/384k DSD128
Line output level: 2.0Vrms
Frequency response ( 20Hz ~ 20kHz): ±0.2dB
SNR: 117dB
THD+N @ 1kHz: 0.0006%
Dimensions: 145 mm x 171 mm x 45 mm
Weight: 2kg
Accessories: Power adaptor, USB cable
Introduction Specifications
Selection button Indicator light

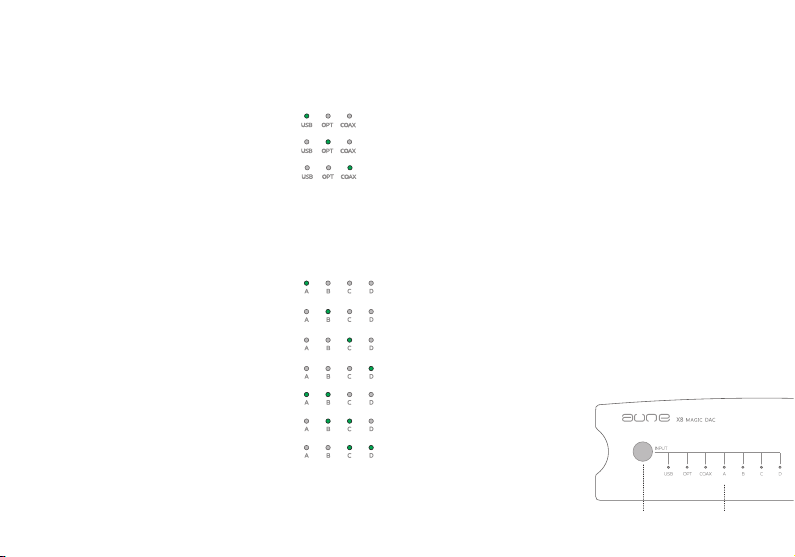

Operations To change Input / filter mode
fastroll-off,linearphasefilter
slowroll-off,linearphasefilter
fastroll-off,minimumphasefilter
2. Press the button longer to change filter mode
1. Press the button on the panel to change input
a.Pressfor2secondstoindicatethecurrentfiltermode
b.Pressfor4seconds,thelightswillbeonandoffinturn.Letgowhenthelightsofthe
desiredfiltermodeis/areon.
slowroll-off,minimumphasefilter
apodizing,fastroll-off,linearphasefilter
hybrid,fastroll-off,minimumphasefilter
brickwallfilter
USB
Optical
Coaxial
Via USB
1. Connect the X8 and a computer with the USB cable in the package (diagram 1)
2. Set input to USB
3. Play music on the computer
4. Optional: connect the X8 and an amplifier / active speakers via AUDIO OUT (fixed line out)
5. Optional: connect the X8 and an amplifier / active speakers via PREAMP OUT (variable)
Operations
Diagram 1

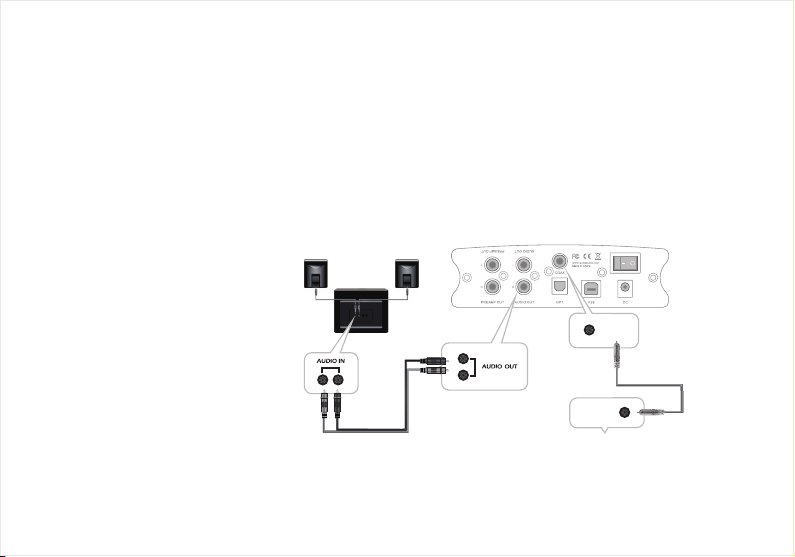

Diagram 2
1. Connect the X8 and a digital audio device (eg. digital transport, computer main board with digital
outputs) (diagram 2)
2. Set input to COAX or OPT
3. Play music on the connected device
4. Connect the X8 and an amplifier / active speakers via AUDIO OUT (fixed line out)
5. Adjust volume (PREAMP OUT only)
Via Coaxial / Optical
COAX IN
COAX OUT
Operations
www.auneaudio.com
