1 • PRE IN (low level inputs)
Ch1 - Ch2 - Ch3 - Ch4 - Ch5 - Ch6 - AUX1 - AUX2
Connect the RCA cables coming from the analog
signal source.
Description of Input / Output connection panels
OUTPUT SIGNALS
3 • SPEAKER IN (high level inputs)
Ch1 - Ch2 - Ch3 - Ch4 - Ch5 - Ch6 - Ch7 - Ch8
Phone
Connect the specific cables coming from the used
sources.
5 • AD Link - OUT (digital signal)
S/PDIF digital output (Ch1÷Ch8) for amplifiers
provided with appropriate AD Link input.
6 • AC Link 1 - 2 (REMOTE CONTROLS)
DRC: Input for the processor function’s remote
control and for the devices connected to AMPS.
AMPS: Control bus to adjust the functions of the
amplifiers provided with AC Link connection, throu-
gh DRC or PC (with ACNet software) connected to
the processor.
2 • DIGITAL IN (digital inputs)
Optical - Coaxial (S/PDIF standard)
Connect the specific cables coming from the digital
signal source.
4 • PRE OUT (low level analog signal)
Ch1 - Ch2 - Ch3 - Ch4 - Ch5 - Ch6 - Ch7 - Ch8
IN/OUT REMOTE CONTROLS
INPUT SIGNALS
8 • REMOTE IN - IGNITION SWITCH
MEM: remember the state at shutdown - optional
ON - OFF: power on - optional
7 • REMOTE IN-OUT
IN: turn on the processor:
connect to source Rem Out lead.
OUT: turn on other devices of the system:
connect to other devices Rem In lead.
negative pole (ground)
positive pole
9 • POWER (power connection)
- 12V +
10 • USB

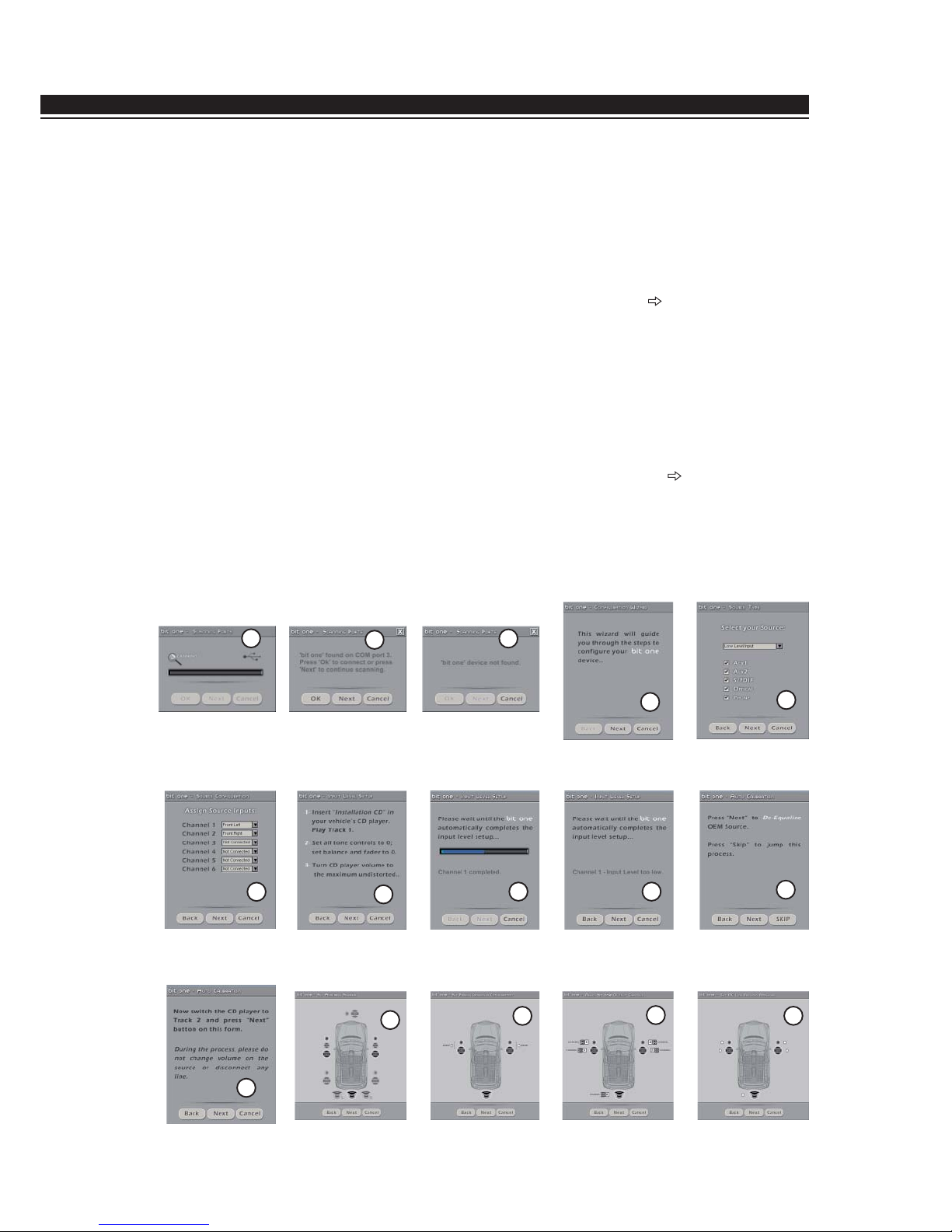

PC connection with Bit One software to manage all
aspects of the processor.
