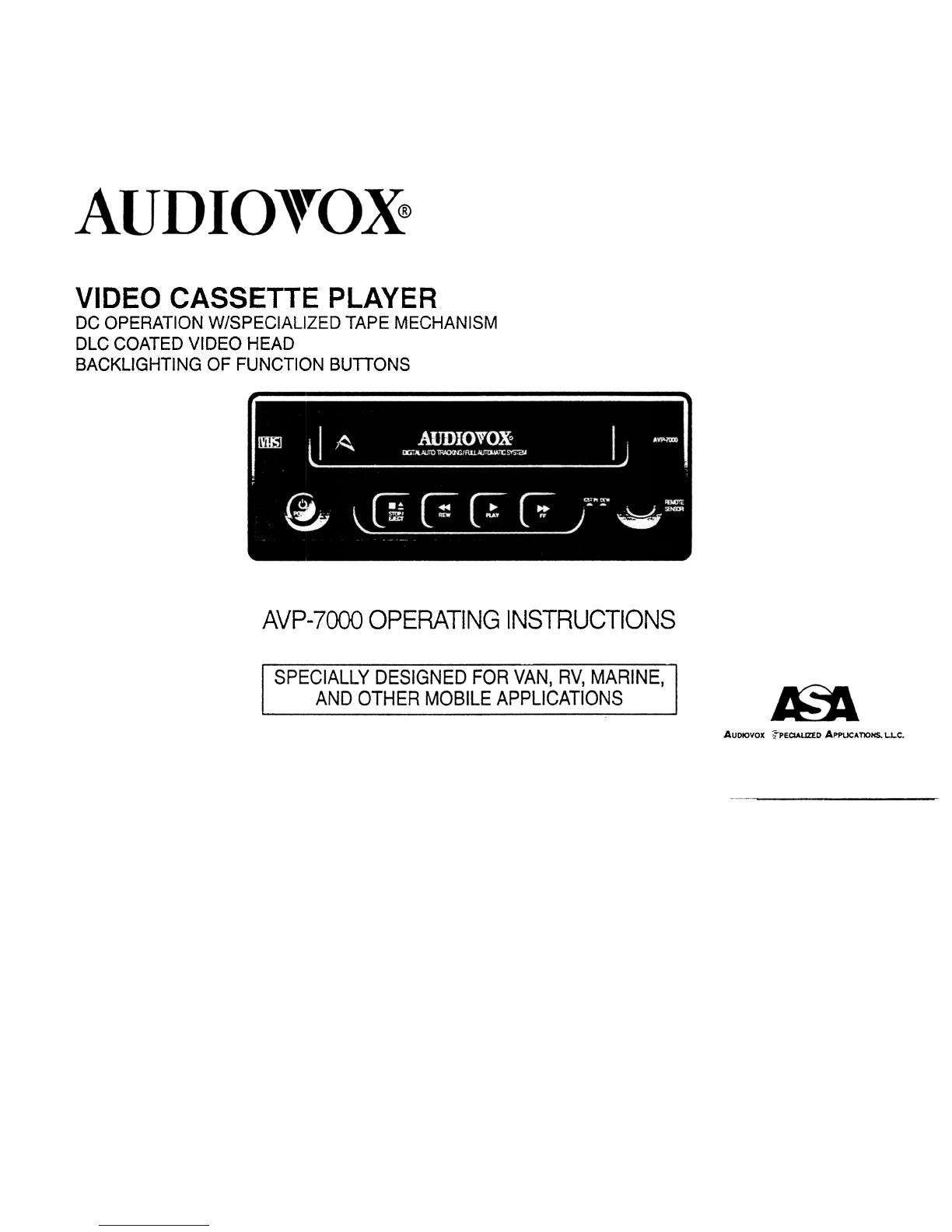

Audiovox AVP-7000 Manuel utilisateur

VIDEO CASSETTE PLAYER

DC OPERATION W/SPECIALIZED TAPE MECHANISM

DLC COATED VIDEO HEAD

BACKLIGHTING OF FUNCTION BUTTONS

AVP-7000 OPERATING INSTRUCTIONS

AUDIOVDX ~peCI.WZED APPUCAT1ONS. LLC.

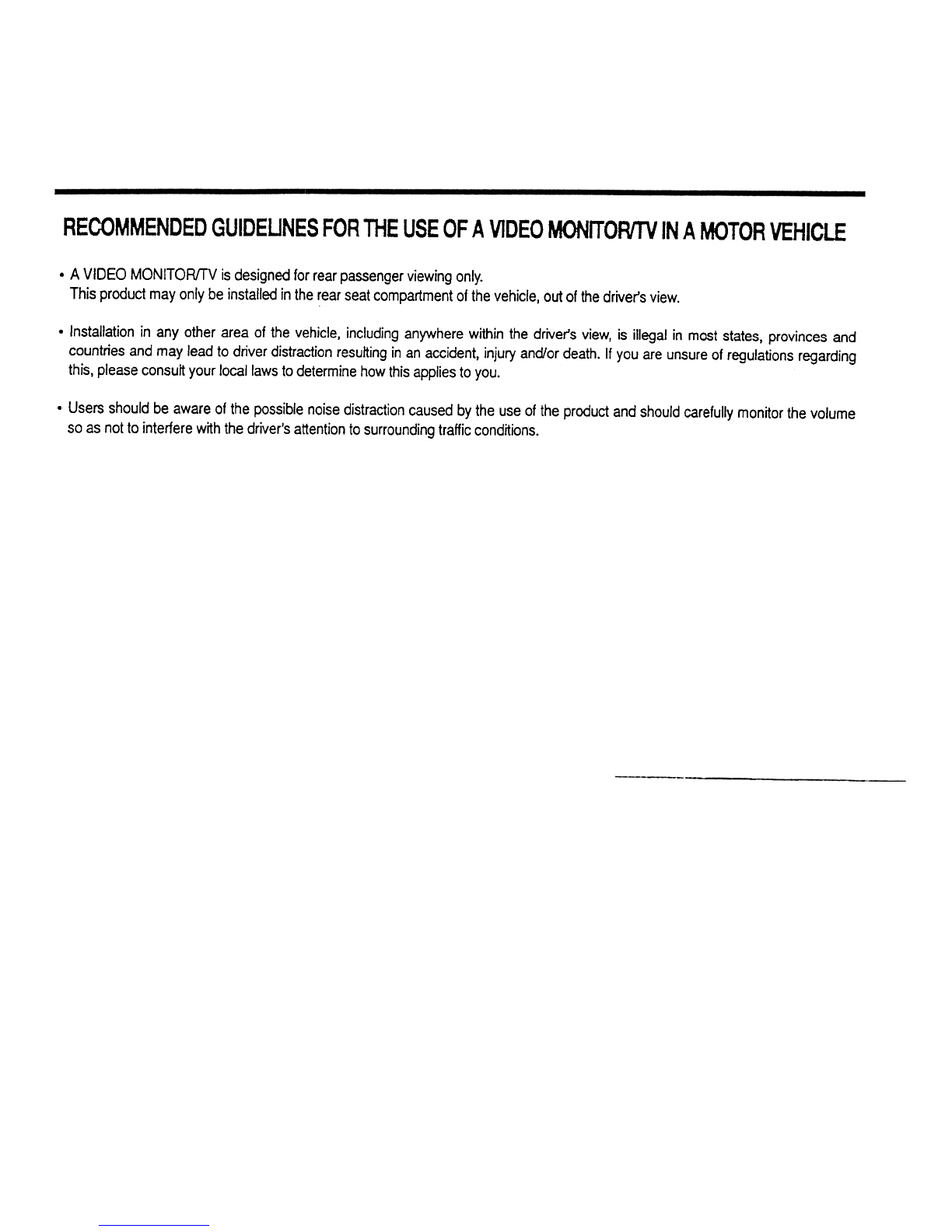

RECOMMENDEDGUIDEUNESFORTHEUSEOFA VIDEOMONITORf1VINA MOTORVEHICLE

.A VIDEO MONITOR!TV is designed for rear passenger viewing only.

This product may only be installed in the rear seat compartment of the vehicle, out of the driver's view.

.Installation in any other area of the vehicle, including anywhere within the driver's view, is illegal in most states, provinces and

countries and may lead to driver distraction resulting in an accident, injury and/or death. If you are unsure of regulations regarding

this, please consult your local laws to determine how this applies to you.

.Users should be aware of the possible noise distraction caused by the use of the product and should carefully monitor the volume

so as not to interfere with the driver's attention to surrounding traffic conditions.

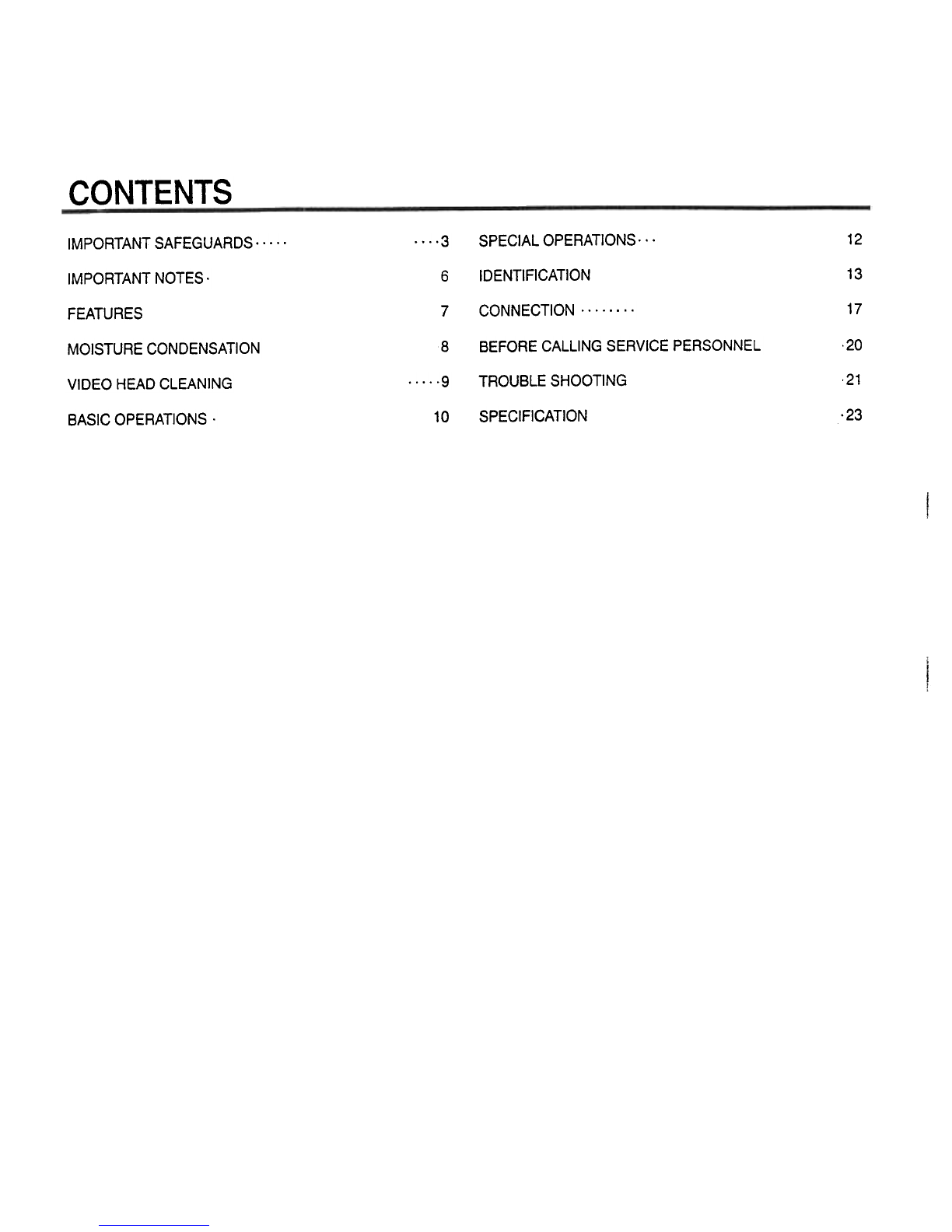

CONTENTS

SPECIAL OPERATIONS. ..

IMPORTANT SAFEGUARDS. 3

IDENTIFICATION 13

IMPORTANT NOTES .

CONNECTION.7

FEATURES

BEFORE CALLING SERVICE PERSONNEL .20

MOISTURE CONDENSATION

TROUBLE SHOOTING .21

VIDEO HEAD CLEANING

SPECIFICATION .23

BASIC OPERATIONS .

Thank you for purchasing AUDIOVOX VCP, developed to provide advanced features and functions for high quality performance

To obtain the best results and to avoid malfunction, please read the following instructions carefully before using.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol. within an

equilateral triangle. is intended to alert the user to the

presence of uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

A The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

, operating and maintenance(servicing) instructions in the

.literature accompanying the VGP.

Note to CATV system Installer:

This reminder is provided to call the CATV system installer's

attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical.

NOTE:

This equipment has been tested and found to comply with the

limit for a Class Bdigital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installa-

tion.

This equipment generates, uses and can radiate radio frequency

energy and if not installed and used in accordance with the

instructions may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

-Consult the dealer or an experienced radiorrv technician for

help.

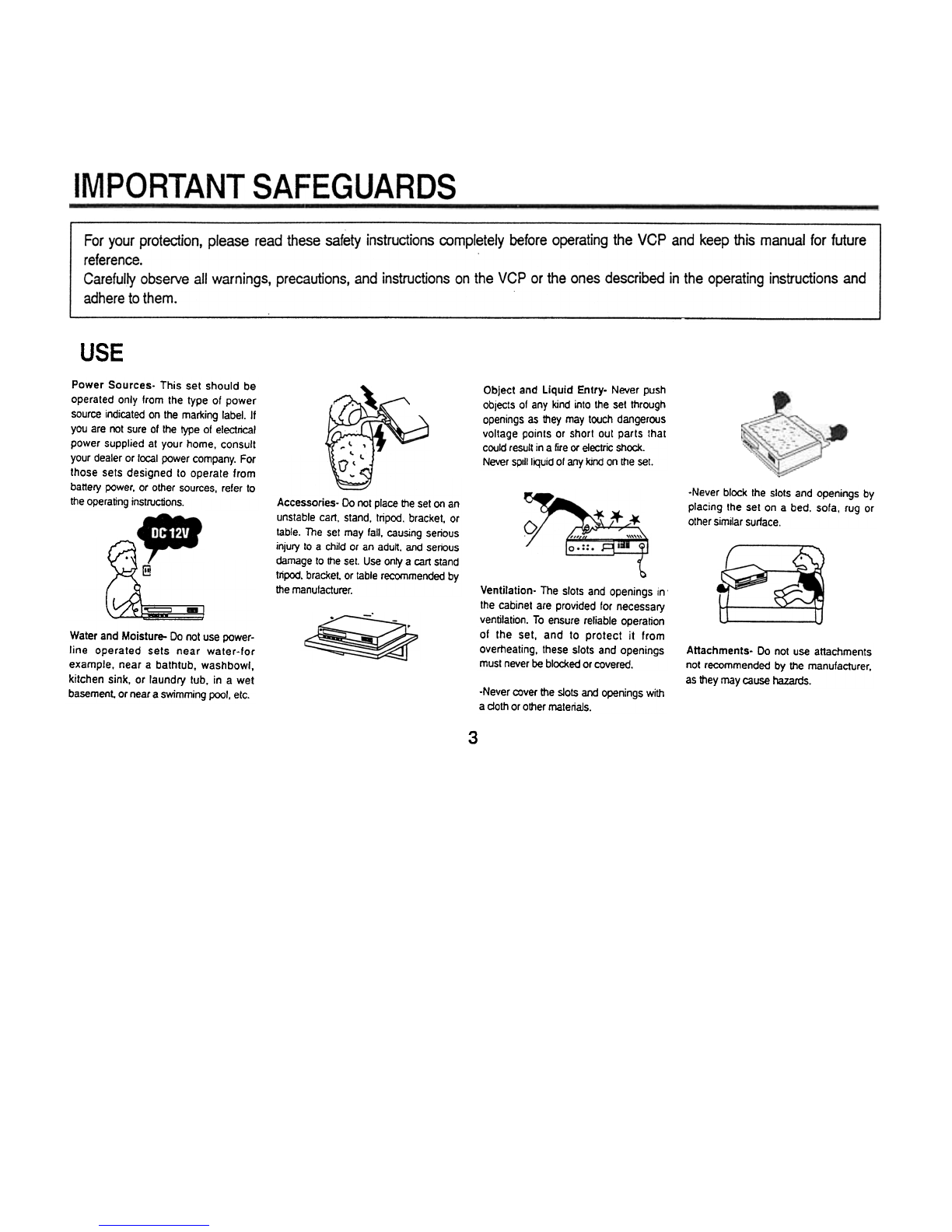

USE

Power Sources- This set should be

operated only from the type of power

source indicated on the marking label. If

you are not sure of the type of electrical

power supplied at your home. consult

your dealer or local power company. For

those sets designed to operate from

battery power, or other sources, refer to

the operating instructions.

ObJect and Liquid Entry- Never push

obJects of any kind into the set through

openings as they may touch dangerous

voltage points or short out parts Ihat

could result in a fire or electric shock.

Never spill Iquid of any kind on the set.

-Never block the slots and openings by

placing Ihe set on a bed. sofa. rug or

other similar surface.

Water and Moisture. Do not use power-

line operated sets near water-for

example. near a bathtub, washbowl,

kitchen sink, or laundry tub. in a wet

basement, or near a swimming pool. etc.

Ventilation- The slots and openings in

the cabinet are provided for necessary

ventilation. To ensure reliable operation

of the set, and to protect it from

overheating, these slots and openings

must never be blocked or covered. A"achments. Do not use attachments

not recommended by the manufacturer.

as they may cause hazards.

-Nevercovertheslotsandopeningswith

adoth orothermaterials.

Accessories- Do not place the set on an

unstable cart, stand, tripod. bracket, or

table. The set may fall, causing serious

injury to a child or an adult, and serious

damage to the set. Use only a cart stand

tripod, bracket, or table recommended by

the manufacturer.

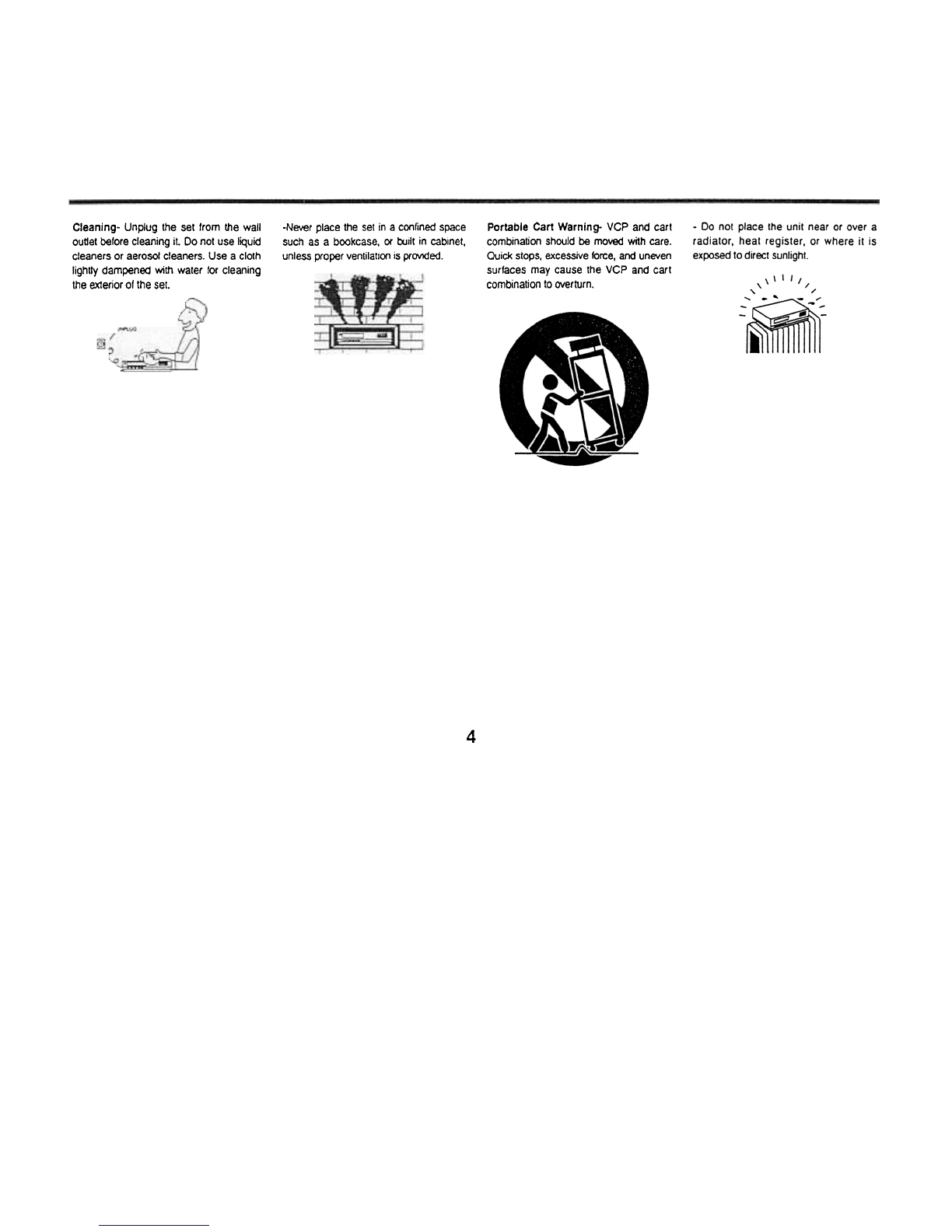

Cleaning- Unplug the set from the wall

outlet before cleaning it. Do not use liquid

cleaners or aerosol cleaners. Use a cloth

lightly dampened with water tor cleaning

the exterior of the set.

-Never place the set in a confined space

such as a bookcase, or txJlit in cabinet,

unless proper ventilation is provIded.

Portable Cart Warning. VGP and cart

combination should be moved with care.

Quick stops, excessive force, and uneven

surfaces may cause the VGP and cart

combination to overturn.

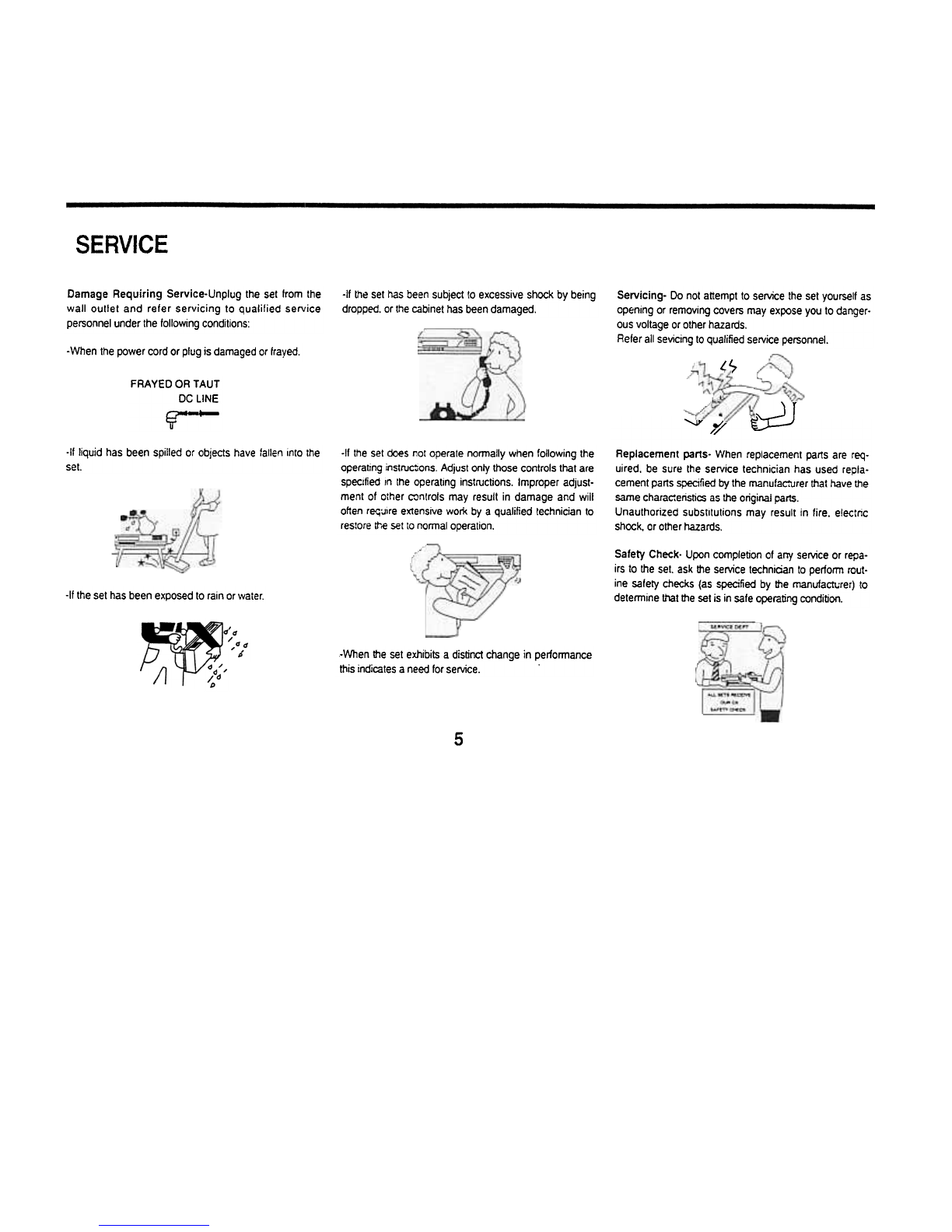

SERVICE

Damage Requiring Service-Unplug the set from the

wall outlet and refer servicing to qualified service

personnel under the following conditions

-If the set has been subject to excessive shock by being

dropped. or the cabinet has been damaged. Servicing- Do not attempt to service the set yourself as

opening or removing covers may expose you to danger-

ous voltage or other hazards.

Refer all sevicing to qualified service personnel.

-When the power cord or plug is damaged or frayed. L7

FRAYEO OR TAUT

OC LINE

" '(

'b::::.J

.If liquid has been spilled or objects have fallen into the

set. -If the set does not operate normally when following the

operating instruC:;ons. Adjust only those controls that are

specified In the operating instructions. Improper adjust-

ment of other controls may result in damage and will

often req"ire extensive wor1<by a qualified technician to

restore tt'.eset to normal operation.

'.JYT/

Replacement parts- When replacement par1s are req-

uired. be sure the service technician has used repla-

cement par1s specified by the manufac:urer that have the

same charac:eristics as the original par1S.

Unauthorized substitutions may result in fire. electric

shock. or other hazards.

Safety Check- Upon completion of any service or repa-

irs to the set. ask the service technician to perfolT11 rout-

ine safety checks (as specified by the manufactl;rer) to

detelT11ine that the set is in safe operating condition.

-If the set has been exposed to rain or wale(

,When the set exhibits a distinct change in perfonnance

this indicates a need for service.

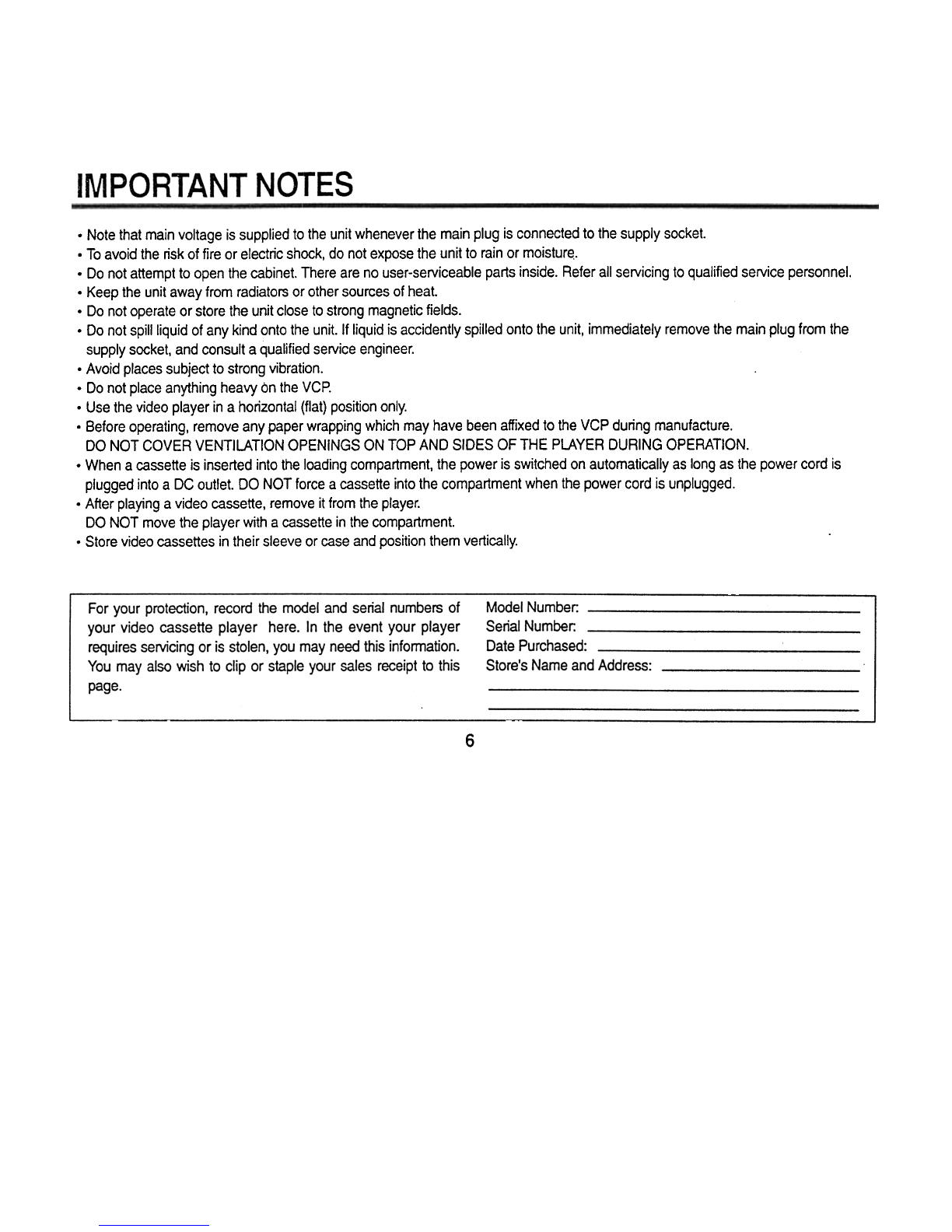

.Note that main voltage is supplied to the unit whenever the main plug is connected to the supply socket.

.To avoid the risk of fire or electric shock, do not expose the unit to rain or moisture,

.Do not attempt to open the cabinet. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel.

.Keep the unit away from radiators or other sources of heat.

.Do not operate or store the unit close to strong magnetic fields-

.Do not spill liquid of any kind onto the unit. If liquid is accidently spilled onto the unit, immediately remove the main plug from the

supply socket, and consult a qualified service engineer.

.Avoid places subject to strong vibration.

.Do not place anything heavy on the VCP.

.Use the video player in a horizontal (flat) position only.

.Before operating, remove any paper wrapping which may have been affixed to the VCP during manufacture.

DO NOT COVER VENTILATION OPENINGS ON TOP AND SIDES OF THE PLAYER DURING OPERATION.

.When a cassette is inserted into the loading compartment, the power is switched on automatically as long as the power cord is

plugged into a DC outlet. DO NOT force a cassette into the compartment when the power cord is unplugged.

.After playing a video cassette, remove it from the player.

DO NOT move the player with a cassette in the compartment.

.Store video cassettes in their sleeve or case and position them vertically.

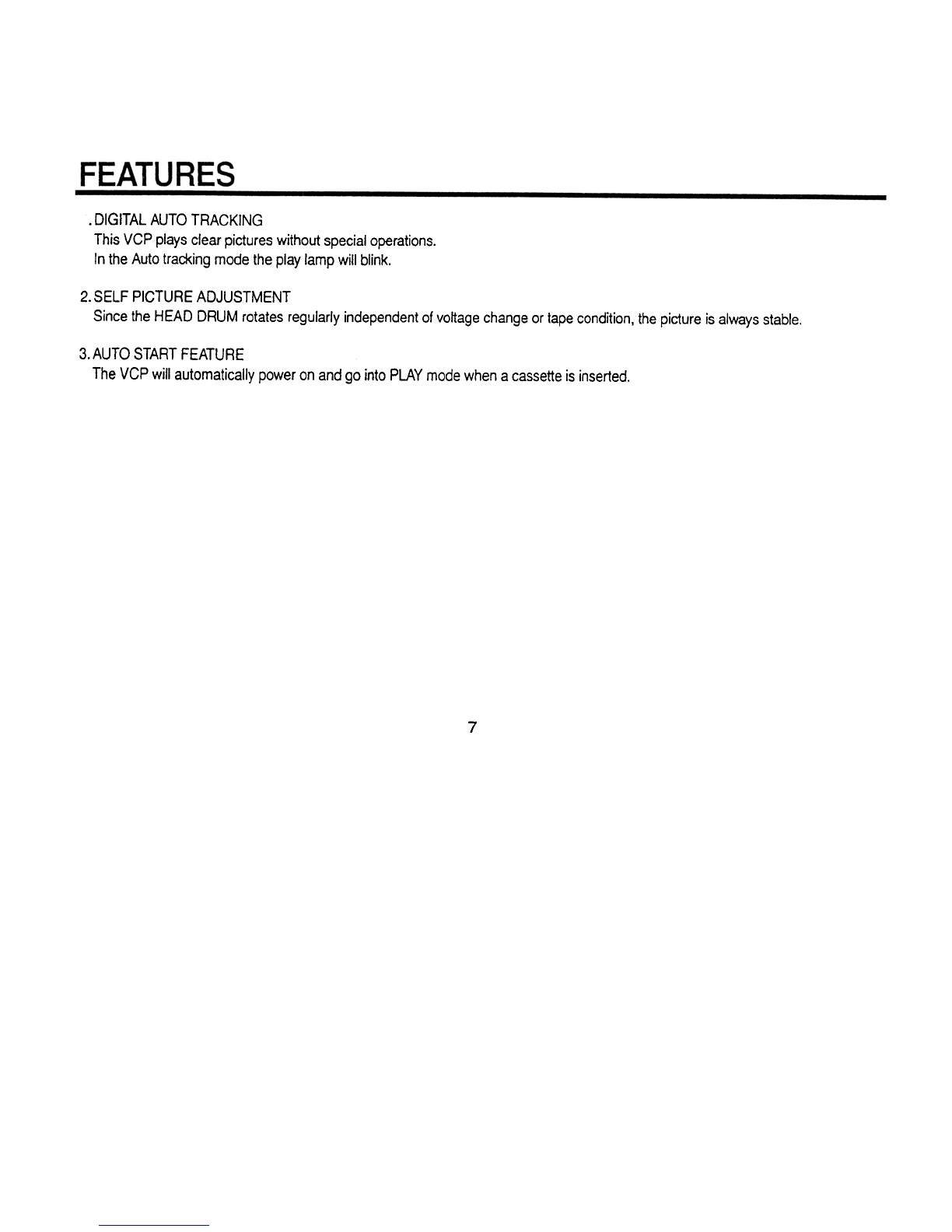

.DIGITAL AUTO TRACKING

This VCP plays clear pictures without special operations.

In the Auto tracking mode the play lamp will blink.

2. SELF PICTURE ADJUSTMENT

Since the HEAD DRUM rotates regularly independent of voltage change or tape condition. the picture is always stable.

3. AUTO START FEATURE

The VCP will automatically power on and go into PLAY mode when a cassette is inserted.
