Installation and Operation Manual

FEATURES

VE-560

Low Profile Television

5.6” LCD Drop Down Under Counter TV

TIMESET

TIMEADJUST

SENSOR

POWEROPEN

ELECTRO NICS CO RP.

TV/AV1/AV2 AUTOPROG PICTURE VOLUME TVCHANNEL

999.audiovox.com

For Customer Service

Visit Our Website At

Product Information, Photos,

FAQ’s Owner’s Manuals

NOTE: This Page Left Blank Intentionally

128-6317

IMPORTANT SAFETY INFORMATION

A. Precautions

1) Unplugtheunitbefore cleaning. Donotuseliquidcleanersor aerosolclean-

ers. Use a damp cloth for cleaning.

2) Use onlyAudiovoxapprovedaccessories.

3) Do not install this video product where it is likely to be exposed to water.

4) Donotobstructtheslotsand openings in the cabinet. They are providedfor

ventilation and are necessary to ensure reliable operation of the TV and to

protect it from overheating. This TV should never be placed near or over a

radiatororheat register. ThisTV shouldnotbeplaced inabuilt-ininstallation

suchasabookcaseorrackunlessproperventilationisprovided.

5) This TV shouldbeoperatedonlywiththeAC/DCadapterprovided.

6) Do notoverloadelectricaloutletsoruseextensioncordsas this can resultin

a risk of fire or electric shock.

7) Never push objects of any kind into this TV through openings as they may

touchdangerousvoltagepoints orshort-circuitpartsthatcould resultinafire

or electric shock. Never spill liquid of any kind on the TV.

8) Do not attempt to service this TV yourself as opening or removing

covers may expose you to dangerous voltage or other hazards. Refer

all servicing to qualified service personnel.

9) Unplug thisTVfromtheoutletandreferservicingto qualifiedserviceperson-

nelunderthefollowingconditions:

a) When the power-supplycordorAdapterisdamaged.

b) If liquid has been spilled, or an object has fallen into the TV.

c) Ifthe TV has been exposed towater.

d) If theTVdoesnot operatenormallywhenfollowing theoperatinginstruc-

tions.

e) If the TVhasbeendroppedorthecabinethasbeendamaged.

B. Kit Components

INCLUDED IN THIS KIT

1 VE-560Television

2 AudiovoxRemoteControl(PN1361613)

3 ACPowerAdapter (PN1541096)

4 Mountingtemplate

5 HardwareBag

A 10 - 32 x 2 1/2 Mounting screws (4)

B 10 - 32 x 3/4 Mounting screws (4)

C 10 - 32 x 1 3/4 Mounting screws (4)

D 3/4”Spacer(4)

E 1/2”Spacer(4)

F 1/4”Spacer(4)

G Countersunkwasher(4)

H SelfAdhesiveWiremountingclip(2)

6 DipoleAntenna

AUDIO OX



TOOLS REQUIRED

Philipsheadscrewdriver

Centerpunch

1/4” Drill bit

Electric Drill

AdhesiveTape

128-6317

C. Installation

1) Chooseanappropriatemountinglocationunderneathacabinetorshelf. Close

proximity to an electrical outlet and a TV antenna or cable connection will

facilitate a neat, easy installation. Do not mount the VE-560 above a range

or oven. Be sure that the location chosen will provide adequate access to

theelectrical connectors on the rear of theunitbefore continuing.

2) If the location chosen has bottom edge molding it may be necessary to use

themountingspacersprovidedtoeffectivelylowertheVE-560’sfrontpanel

below the molding. Measure the distance between the bottom of the mold-

ingandthebottomofthecabinet. Amaximummeasurementof1.5” can be

accommodated without using spacers. For larger moldings choose a com-

bination of spacers which will reduce the mounting depth to 1.5” or less.

3) Measure the thickness of thebottom of the cabinet or shelf andthe spacers

chosen. Selecttheshortestscrewlengthwhichwill pass through thecoun-

tersunk washer, kitchen cabinet and spacers with between 1/4” and 1 1/2”

inches to spare

4) Cut outthetemplatesuppliedandtapeitinplace onto the cabinetsurfaceto

be drilled. Center punch the four holes indicated on the template and re-

movethetemplate.

5) Carefullydrillfour1/4”holesatthelocationsmarkedabove. Placethescrews

chosen through the countersunk washers and then through the holes from

thetopdown.

6) Screw the appropriate spacers on to the screws first, then position the VE-

560 and screw it in place using its threaded holes.

7) Plug theACPoweradapterintoanearby electrical outletandintotherecep-

tacle marked DC 12V input at the rear of the VE-560

8) Connect your TV antenna or cable system to the antenna connector on the

rearoftheVE-560.

9) Route the wires safely away from heat and moisture sources and secure

theminplaceusingtheselfadhesivewire mounting clip provided.

UNDER CABINET INSTALLATION

Cabinet or Shelf

BottomEdgeMolding

WALL MOUNT INSTALLATION

IMPORTANT!! Donotattempt toinstalltheVE-560 vertically,unlessyouare

sure that the electric circuits in the chosen area have been turned off at the

fuse or circuit panel. Failure to do this could result in electric shock.

1) For vertical installations, choose a mounting location that is close to eye

level and is in close proximity to an electrical outlet and a TV antenna or

cableconnection.

2) Cut out the template provided and temporarily tape it to the wall at the de-

siredlocation. Markthecenteroftheverticalmountingslotand remove the

template.

3) Determine if a wall stud is present at the chosen location by drilling a 1/16”

holeatthemarked location. CAUTION!! Ifthisunitis tobeinstallednear an

electrical outlet, there is likely to be electrical wiring present.

4) If astructuralstudispresent,asuitablelengthdrywall screwcanbescrewed

directly into it. Leave approximately 1/4” of the screw protruding from the

wall.

If there is no structural stud present, a drywall anchor from your local hard-

ware store will be necessary. Remember to leave 1/4” of its screw head

protrudingfromthewall.

5) Hang theVE-560ontothescrewhead using theverticalmountingslotat the

rearoftheunit.

6) Plug the male end of the adapter into the receptacle marked DC 12V input

onthebottomofthe VE-560 and ACPoweradapterplugintoanearby elec-

trical outlet.

8) Connect your TV antenna or cable system to the antenna connector on the

bottomoftheVE-560

9) Route the wires safely away from heat and moisture sources and secure

theminplaceusingtheselfadhesivewire mounting clip provided.

Vertical Mounting

Slot (Rear of Unit)

128-6317

C. Positioning Screen

To releasethescreenfromits lockedposition,presstheOPEN button locatedon

the front panel this will unlock the screen and it will swing downward. Pivot the

screen forward until a comfortable viewing angle is reached. The screen may

also be rotated from side to side. NOTE: Do not force the screen beyond its

rotational limit of fifteen degrees. In vertical mount applications it is not neces-

sary to release and position the screen.

D. Controls/Indicators on the Unit

1. OPEN BUTTON

2.TIMESETBUTTON

3.TIMEADJUSTUP/DOWN

BUTTONS

4. TIME AM/PM DISPLAY

5. TIME DISPLAY

6.REMOTECONTROLSENSOR

E. Rear Panel Connections

1. DC12VINPUT

Plug the male end of the supplied adapter into this jack, then plug the other

endintoyourAC poweroutlet.NOTE:Neverdisconnectthe cordfromtheunit

beforetheplugisremovedfromthewall outlet.

7.POWERBUTTON

8.TV/AV1/AV2SELECT BUTTON

9.AUTOPROGRAMBUTTON

10.PICTURESELECTBUTTON

11.VOLUME UP/DOWNBUTTONS

12.TVCHANNELUP/DOWNBUTTONS

2. LINEOUT

This is a standard 1/8 stereo jack that provides a fixed low level output.

3. DC12VOUTPUT

You can connect this jack to an Audiovox VC-6000 Wireless Camera Re-

ceiver.

4. AUDIORINPUT1, AUDIOLINPUT1,VIDEO INPUT1

AUDIORINPUT2, AUDIOLINPUT2,VIDEO INPUT2

For input of an external A/V source such as video game, camcorder, digital

camera etc. Always match the color-coded cable to the appropriate jacks:

Yellow (video) to Yellow, White (left audio) to White, and Red (right audio) to

Red. You can press TV/AV1/AV2 to select the audio and video source.

5. EXTERNALTVANTENNAJACK

You can input your CATV into this jack for receiving CATV stations.

F. TV Operation

1. Press TV/AV1/AV2 to select the TV mode or AV1/AV2.

2. Press TV/CATV to select the type of signal you receive, When using an

antenna, adjust it to its best extension, angulation and direction to optimize

the image and sound. When using cable, connect the cable to the external

antennajack,andpressTV/CATV on the remote control to selectSTD,HRC

or IRC (see Remote Control section). STD is used by most cable systems,

however, if the STD setting does not work with your TV,trytheother settings

and/orcheckwithyourcable service provider.

3. Pressing AUTO PROG, the TV’s tuner will scan the entire range of the se-

lected band and memorize all the active channels in your area.

4. Press TV CHANNEL UP/DOWN or use the number buttons for TV to select

anyactivechannel.

5. Press VOLUME UP/DOWN to raise or lower the sound level.

6. If the picture needs to be adjusted, press PICTURE to illuminate the on-

screendisplayforcontrast,brightness,colorandtintinsequence,and press

+/- to adjust each function up/down.

7. Press MUTE to cut off the sound, and the screen will display the volume

adjustmentbarforsixseconds toindicatethatthesoundhas beenturnedoff.

PressMUTEagain torestoresoundto thesoundlevelset previously.You can

alsoreleasethemutefeaturebypressingVOLUMEUP/DOWN.

128-6317

G. Clock Operation

1. Connect the power to the unit, the LCD in the front panel will display the

time.

2. Press the TIME SET button once (the hour will start to blink) press TIME

ADJUSTup/downdirectionbuttonstoadjustthehour, press TIME SET again

(theminute will start to blink) pressTIME ADJUST up/down direction buttons

toadjusttheminute.Whenthe correct time isentered,pressTIMESETagain

to set time.

H. Remote Control

TheremotecontrolwilloperateAudiovoxTelevisionsandVideoCassettePlayers.

It is not a universal remote control and will not control equipment from other

manufacturers.

If a universal remote control is to be used with the VE-560, choose the remote

encodingschemeforAudiovoxTelevisionswhenprogrammingthe remote.

1.TV/VIDEO

Press this button to select the TV mode or AV1/AV2.

2. POWER ON/OFF

Press this button to turn on the TV. The channel number or current video

sourcewillbedisplayedonscreen,andthepicturewillappearinafewseconds.

Press the button again to turn the TV off.

3.NUMERICALBUTTONS

Use these buttons to make a direct channel selection. The channel number

chosen will be displayed on the screen for 4 seconds. Channel selection is

carried out with 0-9 keys (0-99ch) and “1—“ key when in cable mode (100-

125ch).

4. SKIP/SEARCHBUTTON

This button selects between SKIP and SEARCH mode. In “SKIP mode” the

TVonlystopsonchannelsthatareprogrammedintomemorywhentheCHAN-

NEL UP/DOWN buttons are used. When SKIP mode is off, the TV is in

search mode and will stop on all active channels.

a. Press this button until SKIP MODE ON is displayed on the screen. Then

whenthechannelupanddownkeysare used,theTVwillstoponlyonthe TV

channelsstoredinmemory.

b. Press this button until SKIP MODE OFF is displayed on the screen. Then

all the TV channels will be shown using the channel up and down keys.

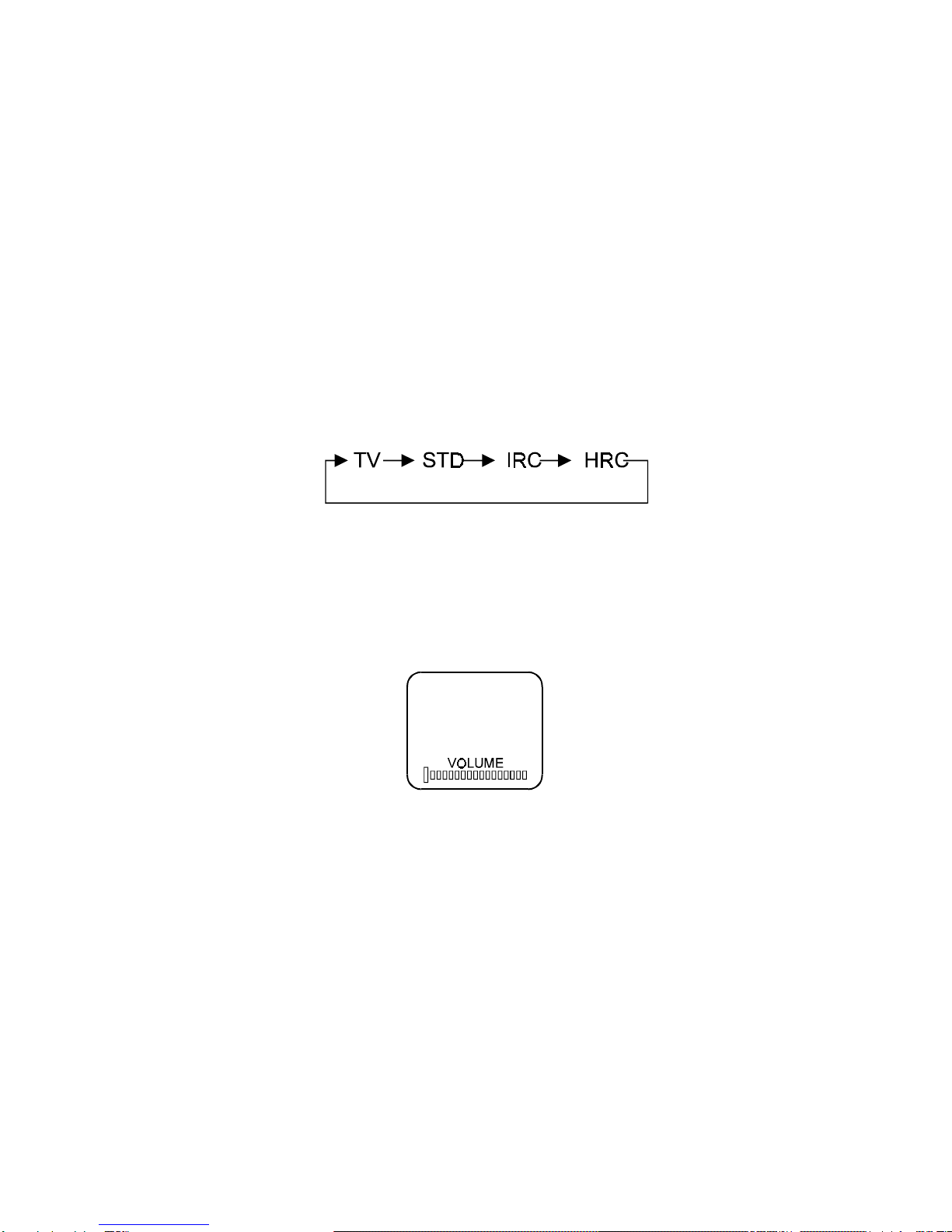

5.TV/CATV

Press this button to select the regular 69 channel broadcast TV and the 125

Channel Cable TV (Standard Cable, HRC Cable, and IRC Cable) with the on

screen display.

6.MUTE

Press this button to cut off the sound, and the screen will display the volume

adjustmentbarforsixsecondstoindicatethatthesoundhasbeenturnedoff.

Pressthisbuttonagaintorestore sound to thesoundlevelsetpreviously. You

can also release the mute feature by pressing VOLUME UP/DOWN.

7.CHANNELUP/DOWN

Use these buttons to advance to the next higher or lower channel.

8.VOLUMEUP/DOWN

Use these buttons to raise or lower the sound level. They are also used to

make picture adjustments in picture select mode.

9. AUTO MEMORY

Pressing AUTO PROG, the TV’s tuner will scan the entire range of the se-

lected band and memorize all the active channels in your area.

10.PICTURESELECT Each time this button is pressed, the on screen picture

adjustmentdisplaycyclesthrough“adjustmentbars”forCONTRAST,BRIGHT-

NESS,COLORandTINT. Once thedesiredadjustmentbarisdisplayed, use

Table des matières

Autres manuels Audiovox TV

Audiovox

Audiovox VE-500A Manuel utilisateur

Audiovox

Audiovox FPE4217P Manuel utilisateur

Audiovox

Audiovox VE926 Manuel de service

Audiovox

Audiovox AVT-597 Manuel utilisateur

Audiovox

Audiovox AVT-1928 Manuel utilisateur

Audiovox

Audiovox FPE2005 Manuel utilisateur

Audiovox

Audiovox AVT1345 Manuel utilisateur

Audiovox

Audiovox FPE2705 Manuel utilisateur

Audiovox

Audiovox FPE6317P Manuel utilisateur

Audiovox

Audiovox FPE4216P Manuel utilisateur

Audiovox

Audiovox VE706 Manuel du propriétaire

Audiovox

Audiovox VE726 - 7" LCD TV Manuel de service

Audiovox

Audiovox AVT-597 Manuel utilisateur

Audiovox

Audiovox FPE3706 - 37" LCD TV Manuel utilisateur

Audiovox

Audiovox DBS-30500 Manuel utilisateur

Audiovox

Audiovox AVT-1940 Manuel utilisateur

Audiovox

Audiovox LC-37K7 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
