Audiovox IPD-SB Manuel utilisateur
www.audiovoxproducts.com
128-9131
OWNERS MANUAL
IPD-SB
2
INTRODUCTION
Congratulations on your purchase of the IPD-SB Sound Bar. Please read the instruction
manual for this product before using. The documentation provided will allow you to fully
enjoy all the features this unit has to oer. Please save this manual for future reference.
WARNING! Never install this unit where operation and viewing could interfere with safe
driving conditions.
WARNING! Never disassemble the unit.
WARNING! To prevent injury from shock or re, never expose this unit to moisture or
water.
3

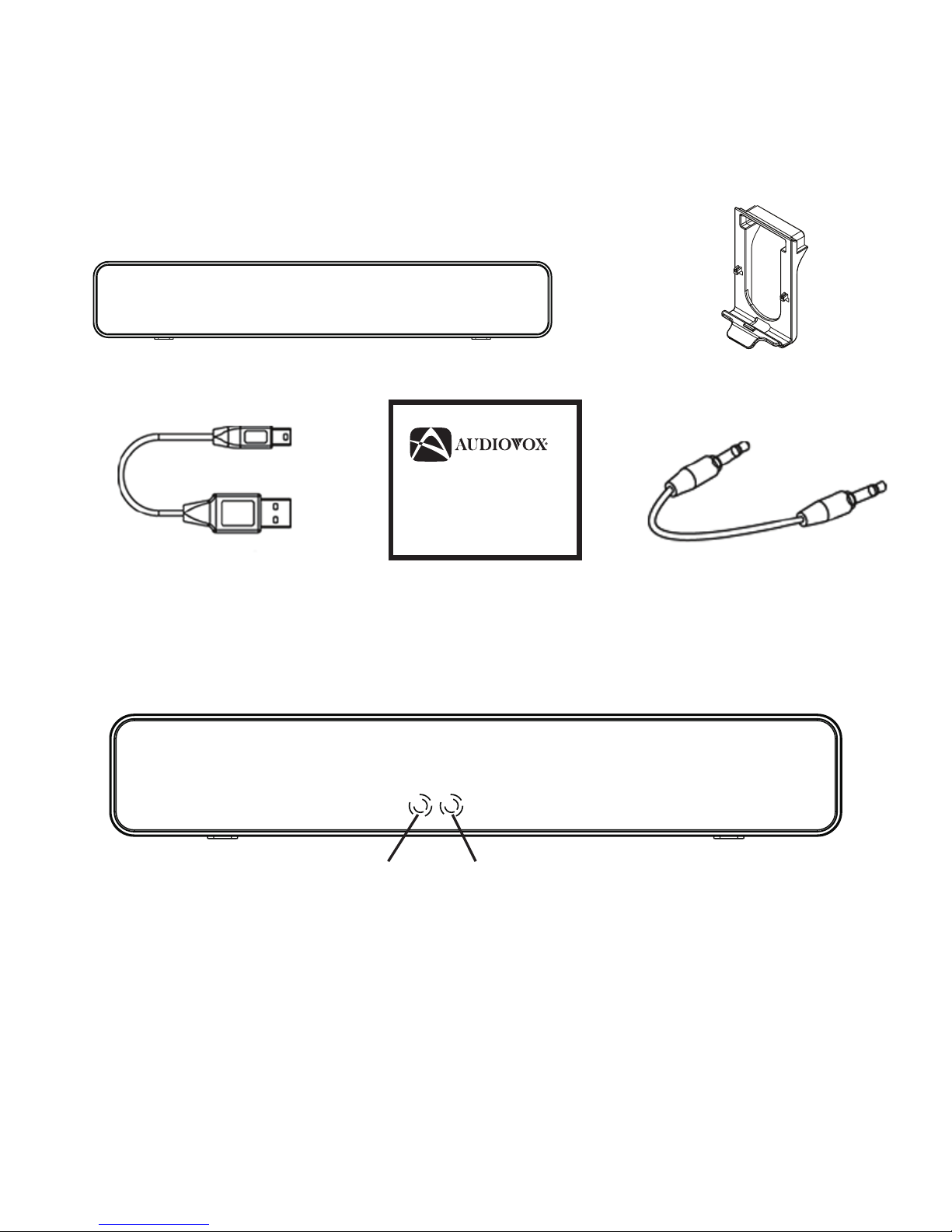

Package Includes:
Sound Bar IPD-SB Sound Bar Bracket
Mini USB Charging Cable Owner’s Manual 3.5 mm AUX-IN Cable
CONTROLS AND INDICATORS
IPD-SB FRONT VIEW
1. Yellow LED
When the LED is ON the battery is being charged. When the LED is OFF the battery is
fully charged.
2. Red LED
When the LED is ON the battery charge is low.
1 2
4
IPD-SB REAR VIEW
1. Device Holder
When the stand is in the open position, most tablet devices, MP3 players or cell phones can
placed and held within the stand notches.
2. STAND
Opens to hold most tablet devices or cell phones placed within the stand notches.
3. -VOL+ Adjustment
Rotate to increase or decrease the volume.
4. AUX IN Jack
Accepts a 3.5mm jack which is used to accept audio inputs from an external device.
5. OFF/ON Switch
Slide switch used to turn the Sound Bar On and O.
6. DC 5V Mini USB Connector
Allows for the connection of a mini USB connector which is used the charge the Sound Bar
battery.
23 5
46
1
5
OPERATING INSTRUCTIONS
Power On/O
Use the rear panel slide switch to turn the Sound Bar ON and OFF. The LEDs on the front panel light
or blink depending on the Sound Bar status.
Battery Charging
To charge the Sound Bar battery, connect the mini USB connector to the rear panel DC 5 V
connector. Connect the USB connector to a USB port on a computer. Allow the unit to charge fully
before using it.
Volume Adjustment
Rotate the rear panel volume control to increase or decrease the volume. It is recommended leaving
this control at max volume and controlling the volume with the connected device.
AUX-IN Cable for Audio
The Sound Bar has an auxiliary audio input which can accept audio signals from various devices. The
AUX-IN jack on the rear panel accepts a 3.5mm jack.
6
Sound Bar Device Stand (may not work with all devices)
1. Place the Sound Bar on a at surface and open
the rear panel stand as shown.
2. Place the device in the Sound Bar holding slot
which provide the best t for your device.`
3. The viewing angle of the device in the stand can be
adjusted by moving the two stands as shown.
7
Sound Bar Vehicle Installation
The Sound Bar can be attached to an optional Audiovox iPad protective case (IPD-1, IPD-2C, IPD-2HP,
IPD-2FM, sold separately) for in-vehicle installations. Refer to the gure below.
The included Sound Bar Bracket and optional Audiovox vehicle kit are required for vehicle
installations. The headrest post mount and protective case are not included in this package. For
further information, refer to the Audiovox website at www.audiovoxproducts.com.
Sound Bar
Sound Bar Bracket
Protective Case
Headrest Mount
8
Sound Bar Bracket Installation
The Sound Bar can be attached to a protective case using the Sound Bar bracket for in vehicle
installations. Refer to the gure below.
NOTE: Before installing the Sound Bar set the Sound Bar volume to the maximum setting. The Sound
Bar volume will be controlled through the volume control of the iPad, if the headphone audio out of
the iPad is connected to the audio-in of the Sound Bar.
1. Hold the RED switch on the Protective Case in the UNLOCK position.
2. While holding the RED switch on the Protective Case mounting arm in the UNLOCK position,
insert the Sound Bar Bracket on the Mounting Bar.
3. When the Sound Bar Bracket is fully inserted on the mounting arm, release the RED switch on
the Protective Case mounting arm moving the switch to the LOCK position.
UNLOCK
LOCK
Protective Case
Mounting Bar
Sound Bar Bracket
Headrest Mount
Mounting Bar
RED Switch
9
4. While holding the red switch on the protective case mounting arm in the unlock position,
insert the mounting arm with the Sound Bar Bracket into the Headrest Mount and release the
red switch to lock the unit into the headrest mount.
Inserting the Sound Bar into the Sound Bar Bracket
1. Align the two tabs on the Sound Bar Bracket with the two mounting holes on the rear panel of
the Sound Bar. Refer to the gure below.
