Audiovox VOD1021 Manuel utilisateur

128-7092

1 of 28

VOD705

ELECTRONICS CORP.

VOD1021

DVD PLAYER

WITH

DROP-DOWN

VIDEO

MONITOR

128-7092

ReleaseDate:6-28-04

128-7092

2 of 28

-2-

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Donot use anyabrasive cleaners, theymay scratch thescreen. Use only alightly dampened lintfree cloth towipe the

screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome

lights, if left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Licensedunderoneormore of thefollowing patents,

PatentNOS. 5,775,762 and5,927,784

Important Notice

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video

monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video

monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these

features will only function when the vehicle is in “park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear

orwhen the parkingbrakeis not applied must beinstalled to the rear of the driver’sseat where it will not be visible, directly

or indirectly, to the operator of the motor vehicle. It is unlawful in most jurisdictions for a person to drive a motor vehicle

which is equipped with a screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or

that is visible, directly or indirectly, to the driver while operating the vehicle. In the interest of safety, the VOD1021 should

never be installed where it will be visible, directly or indirectly, by the operator of the motor vehicle.

128-7092

3 of 28

-3-

Congratulations on your purchase of the Audiovox

VOD1021DVDPlayerwithDrop-Down VideoMonitor.

The VOD1021 has been designed to give you and

your family many years of video entertainment in the

mobile environment. Please read the directions that

follow to familiarize yourself with the product and to

ensure that you obtain the best results from your

equipment.

Please note: Installation options vary, see the

individual owner’s manuals for each component in

your system to obtain a full understanding of each

component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and

that you do not allow children to unfasten seat-belts

to change video media or make any adjustments to

the system. System adjustments can be

accomplished using the remote control unit, while

seat-belts remain fastened. Enjoy your Audiovox

entertainment system but remember-safety of all

passengers remains the number one priority.

Features

••

•10.2” TFT Active Matrix Color LCD Monitor

••

•Built-In DVD Player

••

•DVD/CD/MP3 compatible

••

•On Screen Display

••

•16:9 and 4:3 Screen Mode (switchable)

••

•IR Remote Repeater for AV1 & AV2 Inputs

••

•Dual IR Sensors

••

•Remote Control

••

•Four Source Selection (DVD/AV1/AV2/AUX)

••

•AUX Input for Game or Camcorder

••

•6 Frequency FM Modulator

(Remote Control Accessible)

••

•Dual Headphone Jacks

••

•Built-In Dual IR Transmitter

••

•Built-In Dome Lights with Switch

••

•Last position memory for DVD

128-7092

4 of 28

-4-

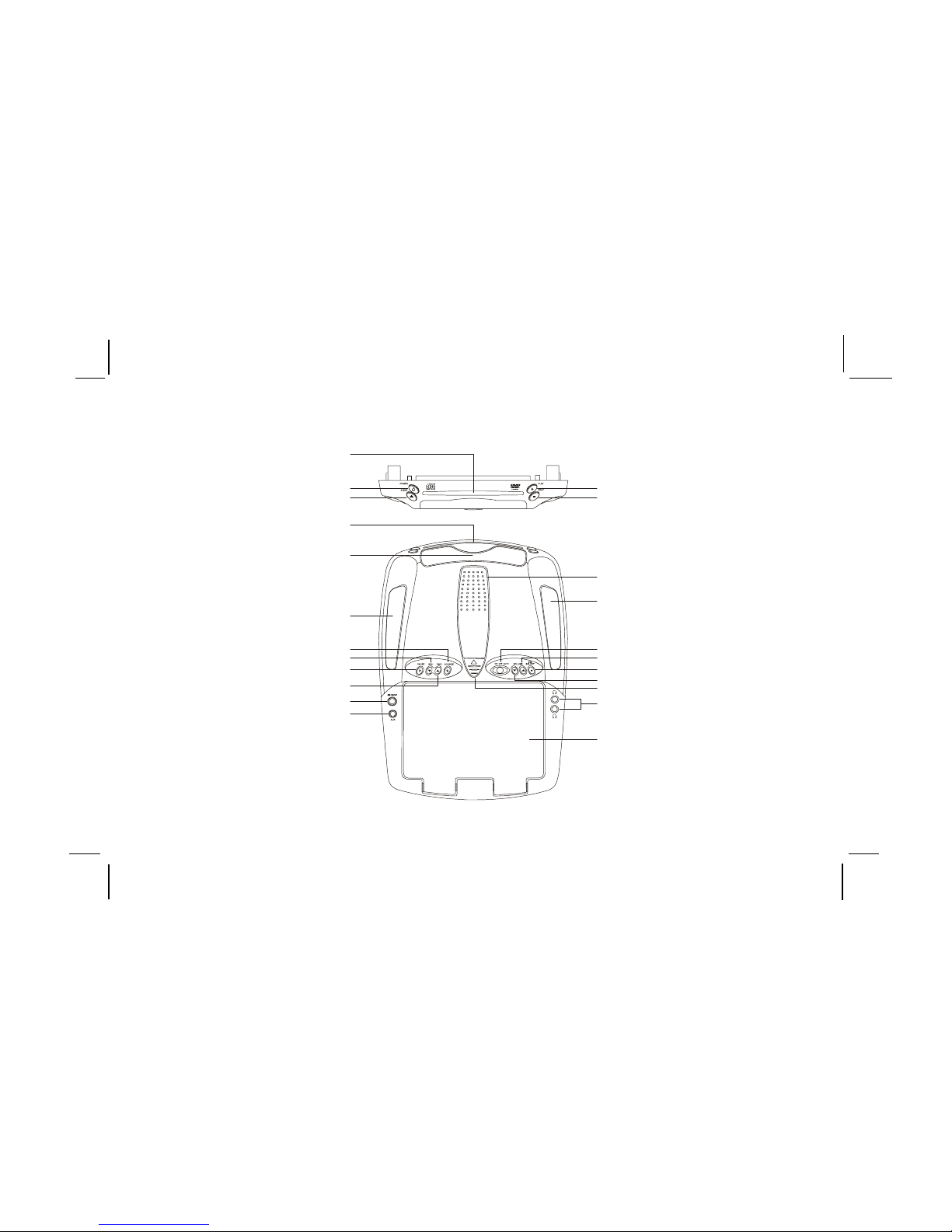

Controls and Indicators Diagram

128-7092

5 of 28

-5-

Main Function Descriptions

1. DVD Disc insertion slot – For loading Disc.

2. POWER Button – Bright red when system is on dim when

off.

3. EJECT ( ) Button – For ejecting discs from the disc

compartment.

4. PLAY ( ) Button – This button is used to enter the play

mode.

5. STOP ( ) Button – To stop playback.

6. Infrared Transmitter and Sensor – Use to transmit audio

to wireless headphones. Also allows the remote control to

operate the VOD1021 and to control other accessories in

the system.

7. VOD1021 Ventilation Opening.

8. Dome Lights –Provide additional interiorillumination.

9. SOURCE Select – Used to select one of the four sources

(AV1,AV2, AUX, DVD).

10. REV Button– Allows the user to search in a backwards

directionat 2X, 4X,6X, 8X timesthe normal speed.

11. PAUSE Button –Allows the user to pause the playback.

12. FWDButton –Allowstheusertoseachinaforword direction

at2X, 4X, 6X,8X times thenormal speed.

13. Side Remote Sensor Eye – Allows the remote control to

operatethe VOD1021,control volumeto wired headphone

jacks and control the other accessories.

14. AUX Input

••

•AuxiliaryAudioRightInput.

••

•AuxiliaryAudioLeftInput.

••

•AuxiliaryVideo Input.

15. Drop Down LCD Panel.

16. Headphone Jack – Allow the use of wired headphones

witha 1/8” plugfor listening tovideo program audio.

17. Screen release –Moves indirection ofthe arrowto release

thedrop down screen.

18. VOLUME ( ) Button – Use this button to decrease the

volumelevel of the wiredheadphone jacks. It isalso used

to make picture adjustments in the picture select mode.

19. FM Select Button – Each time this button is pressed the

FMModulator will cyclethrough the followingoptions: (FM

OFF – POD AUDIO – SAT AUDIO) The frequency of the

FMmodulator will remain same.

128-7092

6 of 28

-6-

20. VOLUME( ) Button– Usethisbutton toraise thevolume

levelofthe headphonejacks. Itis alsousedto makepicture

adjustments in picture select mode. Note : Audiovox

recommendsthe useof the AudiovoxHP275 Headphones

whenusingwired headphones.

21. Three position Dome Light Switch

• Auto – Automatically switches on the dome lights in

conjunctionwith the vehicle’sinterior illumination.

• Off – The dome lights will not turn on in this position.

• On – Turns on the dome lights.

Note:Thevolume buttonswillnoteffectthevolumeof thewireless

headphonesorthe wiredFM modulator. Whenusing these

devices the volume must be adjusted with the wireless

headphonevolumecontrolorwithyourradio’svolumecontrol

(see page 15, Wireless Headphones, or page 16, Wired

FMModulator).

128-7092

7 of 28

-7-

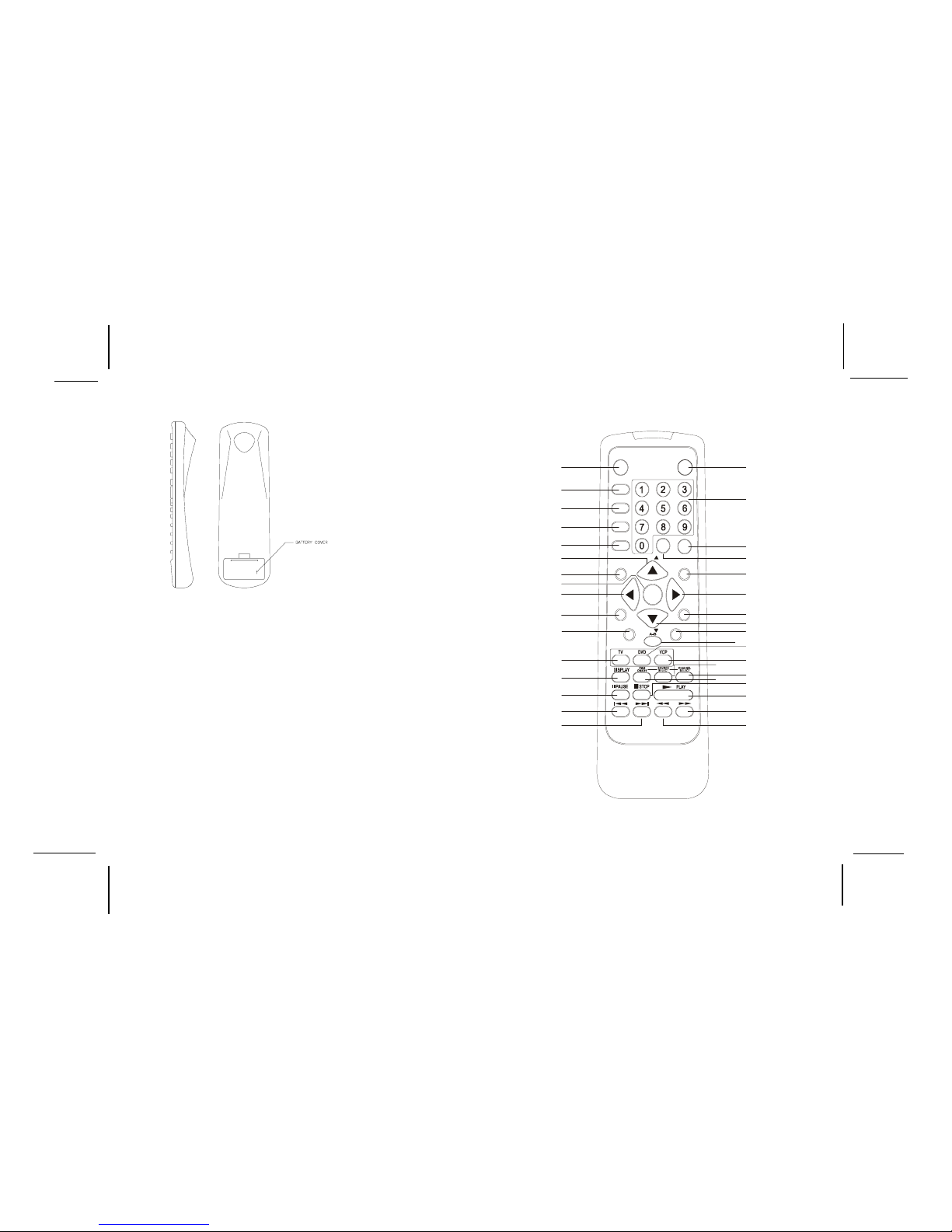

Remote Control Operation

POWER

SOURCE

RETURN

SETUP

PIX

Enter

ERASE/

WRITE

SKIP/

AUTO

MEMORY

VOL

–+

MUTE

REPEAT

EJECT

Battery Installation

Before attempting to operate your Remote Control, install the

batteries as described below.

1) Turn the Remote Control face down. Using a fingernail,

lift the battery cover off.

2) Install two “AAA” batteries as shown. Make sure that

proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control and press

down until the cover clicks.

The remote control will operate the VOD1021 and most Audiovox

VCP’s. It is not a universal remote control and will not control

equipment from other manufacturers.

128-7092

8 of 28

-8-

Remote Control Function Descriptions

*Function control is available on the unit and the remote control.

**Not used in this model.

1. POWER Button*

Press this button to turn the VOD1021 on. Press the button again to turn the VOD1021 off.

2. SOURCE Button*

Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by

pressing this button. Each time the button is pressed, the audio / video source will change sources in the

followingorder: DVD, AV1,AV2andAUX.

3. AUTO MEMORY Button (AUTO PROGRAM Button)**

When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with

signals of sufficent levels are automatically stored.

4. SKIP/SEARCH Button**

This button selects betweeen SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on

channels that are programmed into memory when the CHANNEL UP/DOWN buttons are used. When in the

SEARCH mode, the TV will stop on all active channels.

5. ERASE/WRITE Button**

While tuned to a channel, pressing this button will either store or erase the channel from memory. The stored

channel numbers are displayed in “GREEN” on the LCD display screen, and the erased channel numbers are

displayed in “RED”.

128-7092

9 of 28

-9-

6. Channel** Up ( ) Button

Used to scroll upward in menu options.

7. MUTE Button

Press this button to mute the audio.

Pressing the button again restores the sound to the previously set level.

8. ENTER Button

Used to confirm a selected setting or option.

9. LEFT ( ) Button

Allows the user to shift left in the menu options.

10. MENU Button

Allows the user to access the DVD (DVD MODE) main menu and monitor menu (TV MODE).

11. RETURN Button**

Allows the user to return to the menu while PBC on.

Note:Thisfunction only presentonVCD2.0.

12. TV Mode Select Button**

Switches certain function keys on the remote control for TV functions.

128-7092

10 of 28

-10-

13. DISPLAY Button

Press to display DVD Disc current information.

Press DISPLAY button DVD Player Perform

Once Display current TITLE & CHAPTER

Twice Display current SUBTITLE

3 times DisplaycurrentAUDIO language &channel

4 times DisplaycurrentANGLE

5 times DisplayA-B current status

6 times Display REPEAT current status

7 times Display is turn off

ForTitle&Chapter, use cursor buttonstodo title/chapter selection,thenpress Enter buttontoimplement the selection.

ForSubtitle,Audio, Angle, A toB&Repeat, press the Enterkeyrepeatedlyto change the options.Theseoptionsmay vary

fromdisc to disc.

14. PAUSE ( ) Button*

Allows the user to pause playback.

15. PREVIOUS ( ) Button

Allows the user to return to the previous chapter or track.

16. NEXT ( ) Button

Allows the user to skip to the next chapter or track.
