Operating Instructions

160 watts peak

40W x 4

iii

VM9214

CONTENTS

Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s

manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to

use all the features of your new Jensen VM9214 Mobile Multimedia Receiver for maximum

enjoyment.

Features................................................................................................................................ 1

Controls and Indicators......................................................................................................... 4

Remote Control..................................................................................................................... 6

Using the TFT Monitor ........................................................................................................ 11

Operating Instructions......................................................................................................... 14

Setup Menu......................................................................................................................... 19

Tuner Operation.................................................................................................................. 25

DVD/VCD Video Operation................................................................................................. 29

DVD/CD Audio Operation ................................................................................................... 36

MP3/WMA Operation.......................................................................................................... 39

iPod Operation.................................................................................................................... 44

Bluetooth Operation............................................................................................................ 48

Troubleshooting .................................................................................................................. 55

Specifications...................................................................................................................... 59

VM9214

FEATURES

Congratulations on your purchase of the Jensen VM9214 Mobile Multimedia

Receiver.

It’s a good idea to read all of the instructions before beginning the installation.

We recommend having your Jensen VM9214 installed by a reputable

installation shop.

DVD

• Aspect Ratio - Full and Normal

• Fast Forward - 2X, 4X, 8X and 20X

• Slow Motion - 2X, 4X, 8X and 20X

• Play, Pause, Stop, Next Chapter and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Direct Track Access via Remote Control

• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA / Europe / Latin America / Asia Frequency Spacing

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod

• iPod via USB

• High Speed Direct Connect Interface to Access iPod Playlists, Artists,

Albums and Songs. Play music and view video/photo* files from your iPod.

*Video/photo playback requires jLink-USB iPod interface cable (sold

separately).

• Power Management Charges iPod while Connected

Chassis

• 1.0 DIN (Import / ISO-DIN Mountable)

• Motorized Flip-Out / Flip-Up LCD Screen

• 8 Character / Segment Type Secondary LCD Display

• 7" TFT Active Matrix LCD

• 336, 960 Sub Pixels (1440W X 234H)

• Screen Tilt / Angle Adjustment

• Beep Tone Confirmation (ON-OFF Option)

VM9214

• Heat Management System - Forced Air-Cooling To Keep The Chip-Sets

Operating at Nominal Temperatures

General

• Navigation Ready (NAV102)

• Bluetooth Ready (with purchase of BTM10) providing hands-free profile for

safety / convenience and A2DP profile for streaming music from a PDA /

PMP

• 44-Key Infrared Remote Control

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Three-Band Tone control (Bass, Mid and Treble) with Eight Preset EQ

Curves

• Front Panel A/V Aux Input for Portable Media Devices

• Front, Rear and Subwoofer Line Output

• Programmable Volume Control

• Rear Camera Input (Normal and Mirror Image View)

• Touch Screen Calibration Mode

• 2VRMS Line Output - All Channels

• Rotary Encoder Audio Control

• SWC Interface – Compatible with PAC adapter SWI-PS Steering Wheel

Control Interface, sold separately

Optional Equipment

•NAV102

The VM9214 is "navigation ready." Before accessing any navigation

features, you must purchase and install the navigation module (NAV102).

All installation and operating instructions will be included with the

navigation module.

Once the navigation module is connected and operating properly, the NAV

source mode will become active. While the navigation module is not

installed, the NAV option appears gray, indicating the function is not

available.

•BTM10

Before you can connect to a Bluetooth enabled device, you must purchase

and install the Jensen BTM10.

•Bluetooth Phone

See “Bluetooth Operation” on page 48.

•Rear Camera

The VM9214 is "camera ready." Before accessing any camera features,

you must purchase and install a rear video camera. Once the rear camera

is connected and operating properly, the CAMERA source mode will

become active. While the camera is not installed, the CAMERA option

appears gray, indicating the function is not available.

VM9214

WARNING! Never install this unit where operation and viewing could

interfere with safe driving conditions.

WARNING! To reduce the risk of a traffic accident (except when using for

rear view video camera) never use the video display function while

driving the vehicle. This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or fire, never expose this unit to

moisture or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid

impact to the TFT monitor.

WARNING! The monitor employs an automatic motorized mechanism. To

prevent damage to the core mechanism, please do not push, pull or

swivel the monitor manually.

VM9214

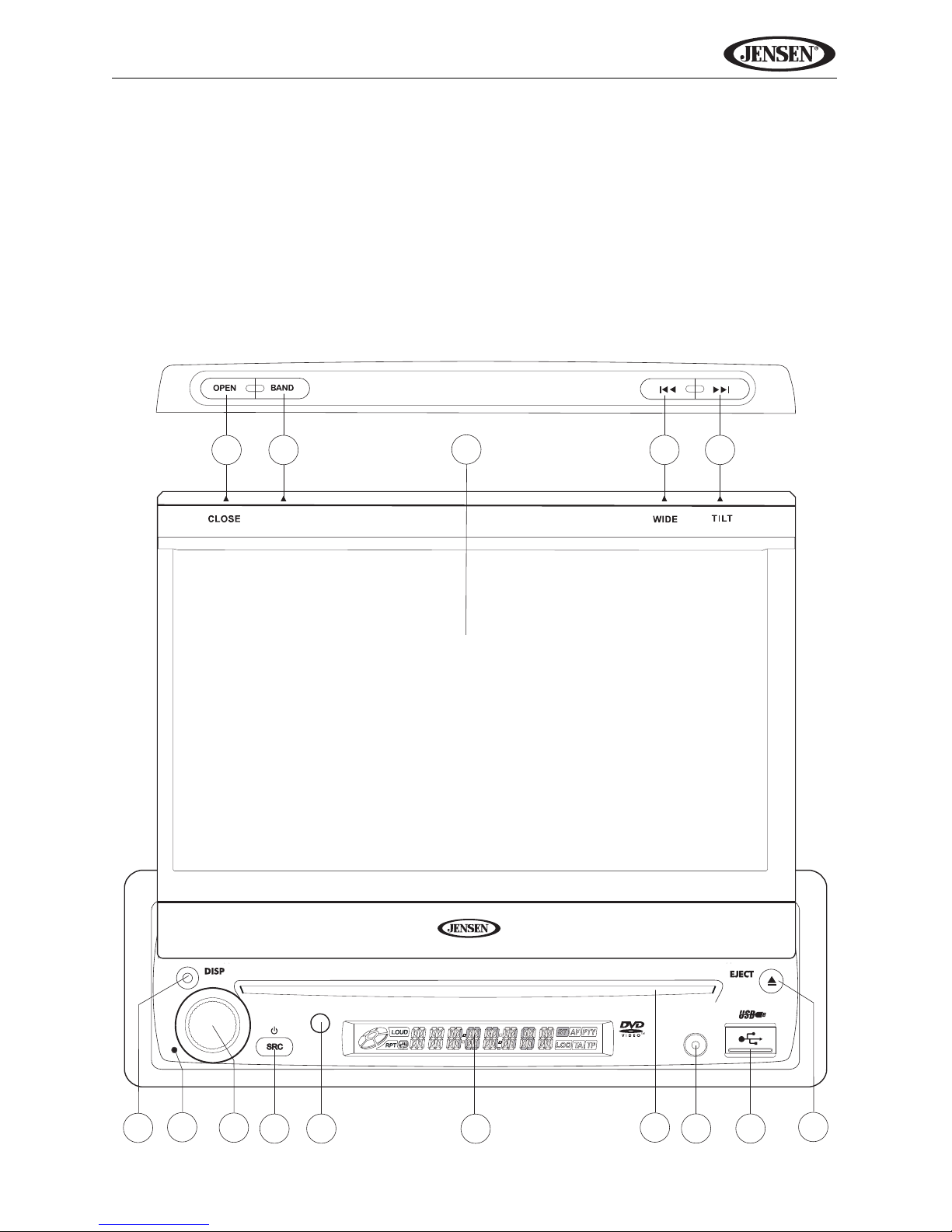

CONTROLS AND INDICATORS

1. CLOSE/OPEN

Press to activate the automatic mechanical system and move the TFT monitor

into viewing position. Press again to close the TFT.

2. PIC/BAND

Press to adjust the Brightness and Contrast (see “Image/Display Settings” on

page 12).

With the monitor closed, press BAND to change between three FM and two

AM bands.

3. DISC SLOT

4. WIDE/ |<<

Press to adjust the display aspect of the picture to one of two settings: Full,

Normal or STANDBY.

With the monitor closed, press to seek backward.

When the NAV102 is connected to the VM9214, press and hold to display the

navigation user interface. The TFT screen must be open for this function to

operate.

5. TILT / >>|

Press to activate the tilt function. Use the rotary encoder to make adjustments

while the blue tilt icon is flashing.

With the monitor closed, press to seek forward.

6. EJECT

Press to eject a disc.

Press and hold to reset core mechanism position.

7. LCD Display

8. DISP

With the monitor closed, press to view alternate LCD display information.

9. IR Remote Control Receiver

10. SRC

Press to turn the unit on. Press and hold to turn the unit off.

When on, press once to select playing mode.

11. Rotary Encoder

Rotate to adjust the volume. While in the audio menu, press and release to

enter and/or confirm audio settings.

Press to activate the MUTE function and silence the receiver. Press again to

resume sound.

Press and hold to activate the Local (LOC) setting. Press and hold again to

turn Local reception off.

VM9214

12. RESET

Press to reset system settings to factory default (except the password and

parental lock setting).

13. A/V Input

Attach a compatible A/V device.

14. USB Interface Connector

Connect a USB device for playback of music/video files.

15. TFT Display

810

11 96

VM9214

A/V

INPUT

DISP

PIC

1245

VM9214

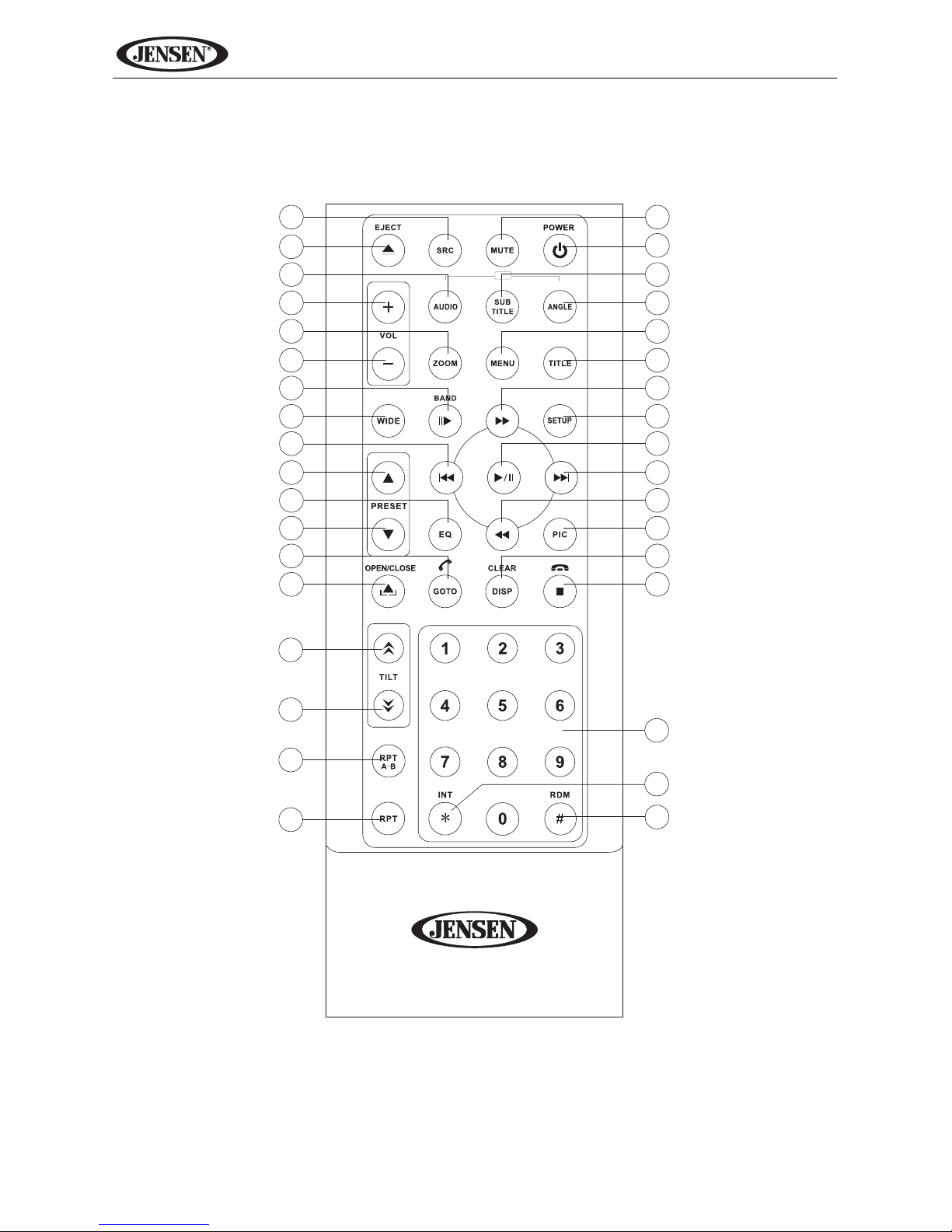

REMOTE CONTROL

See Table 1 for remote control functions.

MUSIC PHOTO VIDEO

iPod

VM9214

Table 1: Remote Control Functions

Button Function

Name # DVD VCD TUNER CD/MP3/

USB iPod

MENU 1 Enters the

main menu

of the disc

Turnson/off

PBC when

playing

VCD

Selects

Photo mode

TITLE 2 Enters the

titlemenuof

the disc

Plays first

tenseconds

of each

chapter/title

Selects

Music mode

MUTE 3 Toggles on/

off audio

output

Toggles on/

off audio

output

Toggles on/

off audio

output

Toggles on/

off audio

output

Toggles on/

off audio

output

POWE

R/ 4 Turns the

power on/

off

Turns the

power on/

off

Turns the

power on/

off

Turns the

power on/

off

Turns the

power on/off

AUDIO 5 Changes

the audio

language

for disc

playback

Selects

Music mode

REPT

A-B 6 Setup to

repeat play-

back from

time frame

A to time

frame B

Setup to

repeat play-

back from

time frame

A to time

frame B

REPT 7 Repeats

playback of

current

chapter

Repeats

playback of

current

chapter

Repeats

playback of

current

track

Repeats

playback of

current track

SRC 8 Selects

playing

mode

Selects

playing

mode

Selects

playing

mode

Selects

playing

mode

Selects

playing

mode

SUBTI-

TLE 9 Language

selectionfor

subtitle

Selects

Photo mode
