Audiovox MMD92 Manuel utilisateur

MMD92

9.2" OVERHEAD LCD

VIDEO MONITOR

WITH DVD PLAYER

Owner’s Manual

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM1

2MMD92

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen.

Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Beforeputtingonheadphonesalwaysadjustthevolumesettingtothelowestposition.

Remember to leave the dome light switch in the off or auto positions when the

vehicle is unattended, as the dome lights, if left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Caution children to avoid touching or scratching the screen, as it may become dirty

or damaged.

Important Notice

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to

the driver if the LCD panel or video monitor is used for vehicle information, system

control, rear or side observation or navigation. If the LCD panel or video monitor is

used for television reception, video or DVD play, the LCD panel or video monitor must

be installed so that these features will only function when the vehicle is in “park” or

when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that

operates when the vehicle is in gear or when the parking brake is not applied must be

installed to the rear of the driver’s seat where it will not be visible, directly or indirectly,

to the operator of the motor vehicle.

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM2

MMD92 3

Congratulations on your purchase of the Movies 2 Go MMD92 drop-down

Video Monitor with DVD Player. The MMD92 has been designed to give you

and your family many years of video entertainment in the mobile environment.

Please read the directions that follow to familiarize yourself with the product

and to ensure that you obtain the best results from your equipment.

NOTE: Installation options vary, see the individual installation/owner’s

manuals for each component in your system to obtain a full understanding

of each component’s operation.

FEATURES

•9.2.” TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display)

Monitor,16:9AspectRatio

•OSD (On Screen Display) for Control of Picture Quality and Functions

•Infrared Transmitter for Optional IR Wireless Headphones

•ThreeAudio/ Video Source Inputs (including the Built-in DVD player)

•Audio/VideoOutputs

•Dome Lights with Built-in Three Way Switch

•Video Display ON/OFF Control (when LCD Panel is Opened and Closed)

•Last Position Memory for DVD

•Screen Mode Select (16:9, 4:3)

•Full Function Remote Control

•Backlit Controls for Low Light Operation

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM3

4MMD92

CONTROLS AND INDICATORS DIAGRAM

456 78 910111213

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM4

MMD92 5

MAIN FUNCTION DESCRIPTIONS

1. Dome Lights –Provideadditionalinterior illumination.

2. Power ON/OFF Button ( )–TurntheMMD92 ONand OFF.

3. Menu Button – Source select DVD,AV1 andAV2.

4. A/V Source Button – Source select DVD,AV1 and AV2.

5. (-) Button – Used to move down for Menu navigation.

6. (+) Button – Used to move upwn for Menu navigation.

7. Dome Light Switch – Moveto theON/OFF position, thenpress toturn the domelight onor off.

8. Screen Release – Press to lower the LCD screen.

9. Rewind Button ()– This button is used to skip theprevious chapteron DVDor track onCD.

Press and hold it to fast reverse playback at 2x, 4x, 8x, 16x and 32x speeds.

10. Fast Forward Button ()– This button is used toskip the nextchapter on DVDor track onCD.

Press and hold it to fast forward layback at 2x, 4x, 8x, 16x and 32x speeds.

11. Stop Button ( ) – Press once tostop playbackand resume playbackat thelast position. Pressthe

buttontwice tofully stopplayback andresume playbackat thebeginningof DVD.

12. Play or Pause Button ( II )– This button is used to begin or pause playback.

13. Eject Button – This button is used to eject the disc.

14. Infrared Transmitter and Sensor – Used to transmit audio to wireless headphones.Also allows

theremote control to operatethe MMD92 andto control other accessoriesin the system.

15. DVD disc insertion slot

16. LCD Screen Shut Off Switch – Turns off the LCD screen when the screen is in the closed

position.

17. AV 1 Input

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM5

6MMD92

Initial Use*

*When purchased the remote control

has a battery installed with a plastic insert

to prevent battery discharge. Remove the

plastic insert before attempting to use

the remote.

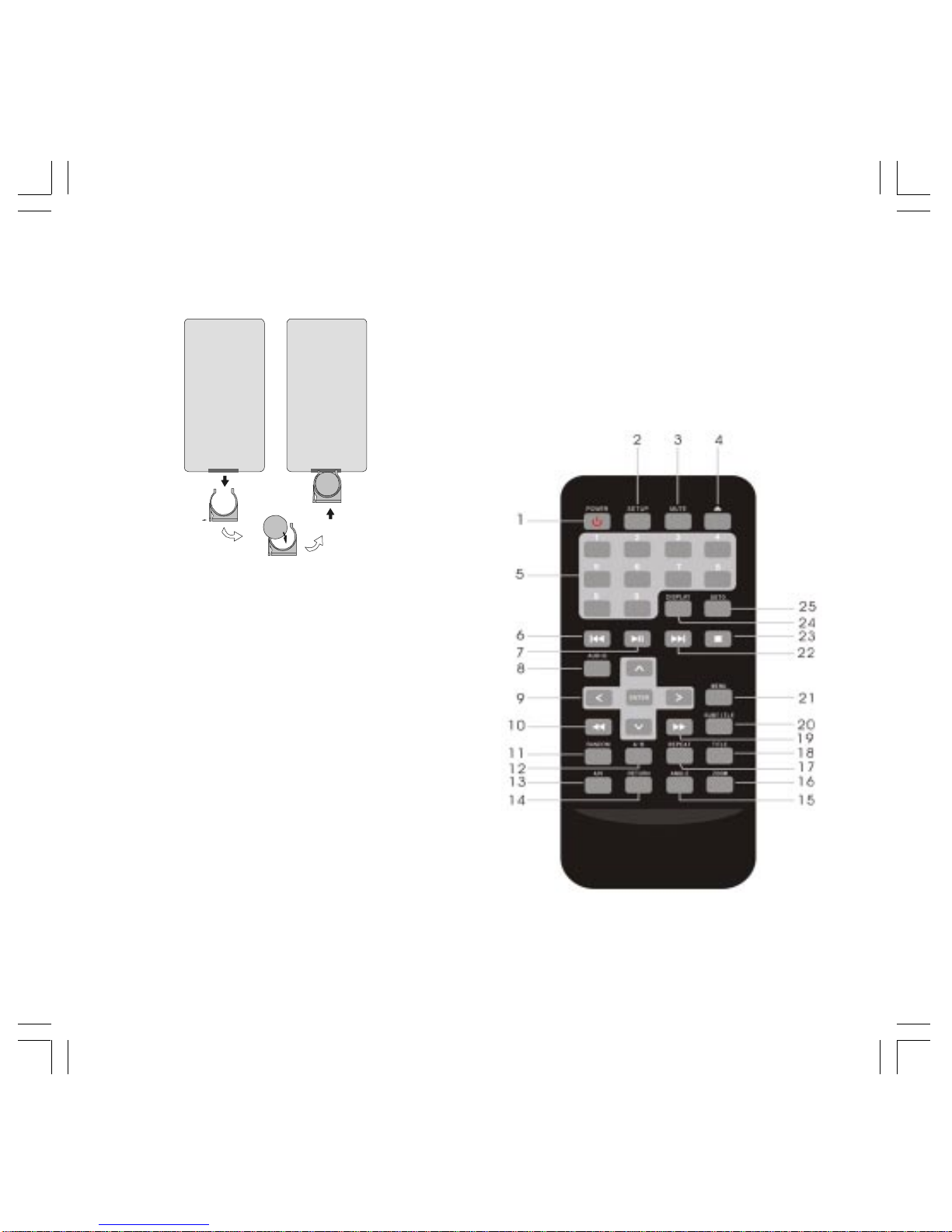

Battery Replacement

1. Remove the battery holder. Refer to the

drawing.

2. Insert the battery into the battery holder and

insert the battery holder into the remote. Be

sure to observe the correct polarity

3. For best results, aim the remote directly at

the remote receiver window within 10 feet,

and angles not exceeding 60 degrees.

4. The path between the remote control and

remote sensor should be free of

obstructions.

5. Under normal use the battery will last for

approximately one year.

Remote Control Operation

6. Remove the battery if the remote is

not going to be used for a long time or

during storage. The remote control

will only operate the MMD92. It is not

a universal remote control and will not

control equipment from other

manufacturers.

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM6

MMD92 7

1. POWER - Press this button to turn the MMD92 “ON” or “OFF” .

2. SETUP - Press to access the setup menu to modify the DVD player settings.

3. MUTE - Press to turn sound on or off.

4. Eject ( ) Button - This button is used to eject the disc.

5. 0-9 - Press to enter numbers directly such as settings or track numbers.

6. Previous Button ( ) - This button is used to go to the previous chapter on DVD or

track on CD.

7. Play or Pause Button ( II ) - This button is used to begin or pause playback.

8. Audio - DVD: press to change the audio language during DVD playback. CD: press to

change the audio channel (Left, Right and Stereo) during CD playback.

9. Arrow and ENTER Buttons - Press to navigate in a menu and change setting values.

10. Fast Reverse ( FR ) Button - Press to fast reverse playback at 2X, 4X, 8X, 16X and

32X speeds.

11. Random - Press to play chapters or tracks in random order.

12. A-B - Press to repeat playback from point A to point B.

13. A/V - Press to select the video input mode among DVD-IN,AV IN 1 and AV IN 2.

14. Return - Press to return to main menu; press again to return to last playback position.

15. ANGLE - Press to select a different filming angle. This feature only works if the DVD is

recorded with multiple angles.

Operation with Remote Control

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM7

8MMD92

Operation with Remote Control (Cont)

16. Zoom - Press to set the zoom for movie viewing.

17. Repeat - Press to repeat the track or the entire disc.

18. Title - Press to view the DVD disc’s title menu.

19. Fast Forward ( FF )Button - Press to fast forward playback at 2x, 4x, 8x, 16x and

32x speeds.

20. Subtitle - Press to select and turn on subtitles during playback.

21. Menu - Press to view the DVD disc’s main minu; Press and hokd it to display the system menu.

22. NEXT ( ) Button - Press to go to the next chapter on DVD or track on CD.

23. STOP ( ) - Press to stop playback, press [PLAY] or [ENTER] button to start playing at the last

position. Press [STOP] button twice to fully stop playback. Press [PLAY] or [ENTER] button to start

playing at the beginning of DVD.

24. Display - Press to display the playvack information (such as title, chapter, track and time).

25. GoTo - Press to start playback at a sselected chapter, track or time.

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM8

MMD92 9

Using your DVD player

Adjusting the DVD player

To open the DVD player

1. Press Open Button to unlock the LCD panel.

2. Swingthe DVDplayer downwardto thedesired viewingangle.

TheLCD display opens to a maximumangle of 150° degrees. Donot

attempt to open it further.

To close the DVD player

Swing the LCD panel upward until you hear the lock click.

Make sure that cords and other items do not get caught in the panel when

you close it.

For your safety, be sure to close the LCD panel when not using it.

Caution

150°

OPENBUTTON

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM9

10 MMD92

Basic operation

Turning on the player

Press the [ ] button on the remote control or on the front panel. The player turns on and the input

sourceand format are displayedon the screen:

Notes:

1. Thedefaultis DVD-IN.

2. If the message "NO DISC" is displayed on the screen, insert Disc Media or

press A/V button to change input source.

Selecting the input source

1. After Power ON, press A/V button to switch from one mode to another.

2. Theoperating modeschanges inthe followingorder:

DVD-IN>AV 1>AV2>DVD-IN

Note:

DVD Disc cannot be inserted if unit is not in DVD mode.

Turning off the player

Press the[ ] button again; the player will be turned off.

1. If there is a disc in the player, it will continue playback from last position the

next time you turn the player on.

2. DVD Disc cannot be ejected if player is switched off or not in DVD mode.

Input source name

The system of the input source

detected automatically

DVD-IN

NTSC

1287962 user manual 6-12-07.P65 6/15/2007, 1:27 PM10
