Wireless 4.5”LCD Display System

Model: ACA450

Installation/User Manual

Features:

•4.5" TFT Color LCD Display

•On Screen Display Function

•2.4 GHz Wireless Receiver

•Automatically Displays Image when Vehicle is in Reverse

TABLE OF CONTENTS

Warnings 2

Product Description 3

Packing List 3

Installation Instructions 4

Controls and Indicators 6

Specifications 7

Maintenance 8

Troubleshooting 8

Warnings

The product is intended to assist in safe driving and to allow the driver to

have a broader rearview while the vehicle is in reverse. You, as the driver,

are solely responsible for the safe operation of your vehicle and the safety

of your passengers according to your local traffic regulations. Do not use

any features of this system to the extent it distracts you from safe driving.

Your first priority while driving should always be the safe operation of

your vehicle. Audiovox Electronics Corporation cannot accept any

responsibility whatsoever for accidents resulting from failure to observe

these precautions or safety instructions.

1. This product utilizes high voltage. Any unauthorized modifications

or damage to the product may result in electrical shock. Handle all

components with care. Inspect regularly for damage to

components and cabling.

2. You are responsible for ensuring that the installation of this

product does not void or affect the vehicle manufacturer’s

warranty. Audiovox Electronics Corporation or its subsidiaries are

not liable in full or in part for improper installation resulting in

loss or damage to your property, or for voiding all or part of the

vehicle manufacturer’s warranty.

3. Do not apply excessive force to any of the components contained

within this kit. Excessive force used before, during or after

installation that results in a damaged or non-functional part will

void all warranties.

4. Please follow the procedures in this installation manual. Improper

installation or modification of this product will void all warranties.

Product Description

This Wireless Backup Camera/Monitor Package is designed to assist the

driver by providing a clear and wide image of the area behind the vehicle

whenever the vehicle is shifted into reverse. Never rely solely on this product

to ensure the area is clear of children and/or obstructions. Use your monitor

and look both ways. This product is not intended to replace existing safety

procedures, but rather to add an additional safety tool for your vehicle.

CAUTION: Do not back up your vehicle while watching the monitor screen.

Always look in the direction the vehicle is traveling. Use the monitor as an aid

to ensure there are no children or obstructions. The image on the monitor is

not designed to show distance and may be misleading. The actual distance is

less than appears in the monitor. The range of the image is limited. Be aware

of blind spots.

Packing list

The model ACA-450 monitor package consists of the following items:

1. LCD Wireless Reception Monitor −1 qty

2. ACA200 Wireless Camera −1 qty

3. Visor Clip −1 qty

4. Mounting Bracket −1 qty

5. 1.5m Power Supply Cable −1 qty

6. 1.5m Cigarette Lighter Cable −1 qty

7. Theft-proof Screws: 2 each course thread and machine thread

8. Wire connectors:

a) Tap connectors-1 qty

b) Ring connector-1 qty

Installation Instructions

T-slot for Mounting

4-Bolt Amps Style Mount

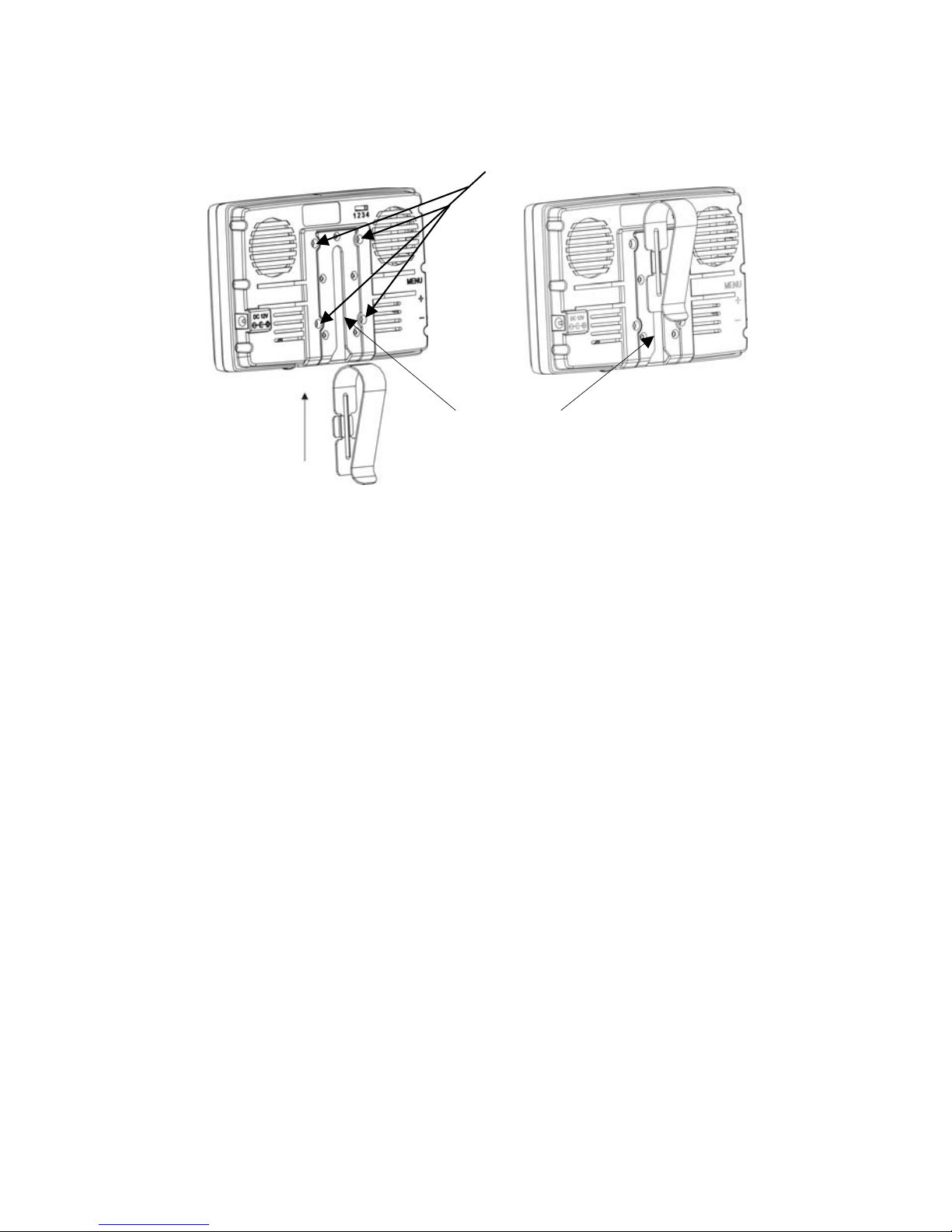

Figure 2 (Mounting the Monitor)

NOTE: Amps Style Mount is an industry standard 4-bolt pattern for assorted

style mounts available at many retailers. Use caution when installing bolts, as

bolts that are too long will damage the monitor.

(1) Installing the Visor Clip (mounting bracket)

a) Slide the Visor Clip all the way onto the T-slot on the back of the

monitor, as shown in figure 2.

b) Slide the Visor Clip over the sun visor.

(2) Installing the Suction Cup Mount

c) Slide the T-bolt on the base of the suction cup mount into the T-slot

on the back of monitor display.

d) Tighten the T-nut until snug with the back of the monitor.

e) Place the suction cup on the windshield and adjust to a suitable angle

for observing the image on the monitor. Be sure not to obstruct your

view through the windshield.

(3) Electrical Connections:

The monitor can be powered two ways:

1. Plug the cigarette lighter adapter into the vehicle’s cigarette

lighter socket, and then insert the 2.5mm plug into the power

supply jack on the monitor.

2. Permanently wire the leads to the vehicle. Choose a source that

only has power when the vehicle ignition is on.

a. Red wire: ignition source +12 volt. Using the tap

connectors supplied, perform the following steps:

i. Place the un-stripped ignition source wire on the

run channel

ii. Place the un-stripped red power wire completely

iii. Fold the tap connector back over the wires and

make the connection by crimping the u-contact

down flush with the plastic insulator.

/Run Connection

iv. Close the top hinged cover until latched.

b. Black wire: chassis/ground. Using the ground ring

supplied, perform the following steps:

i. Place stripped wire (1/4”) inside a connector

ii. Crimp the connector using a crimping tool to

secure the wire.

c. Plug the power plug into the monitor power supply jack.

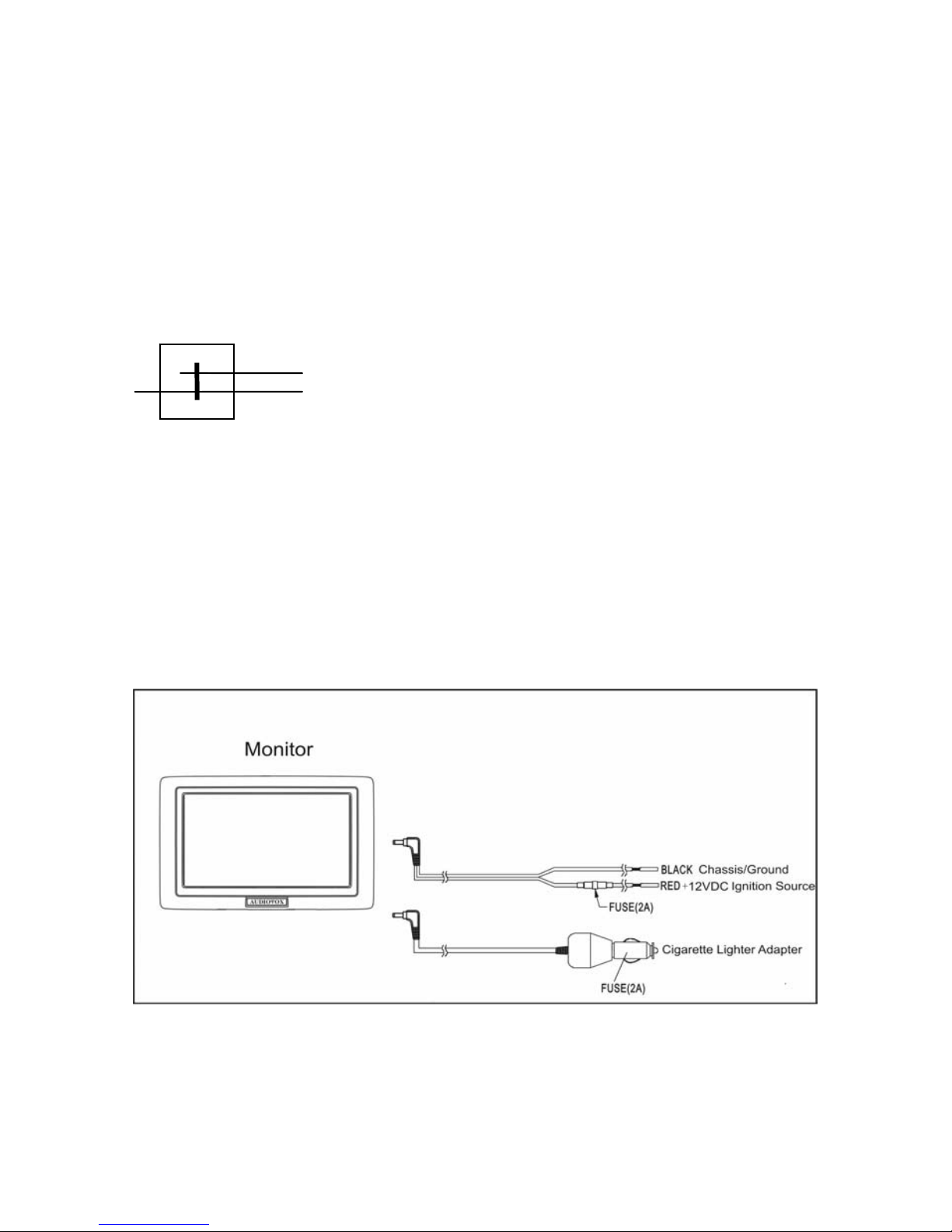

Figure 3 (Electrical Connections)

Controls and Indicators

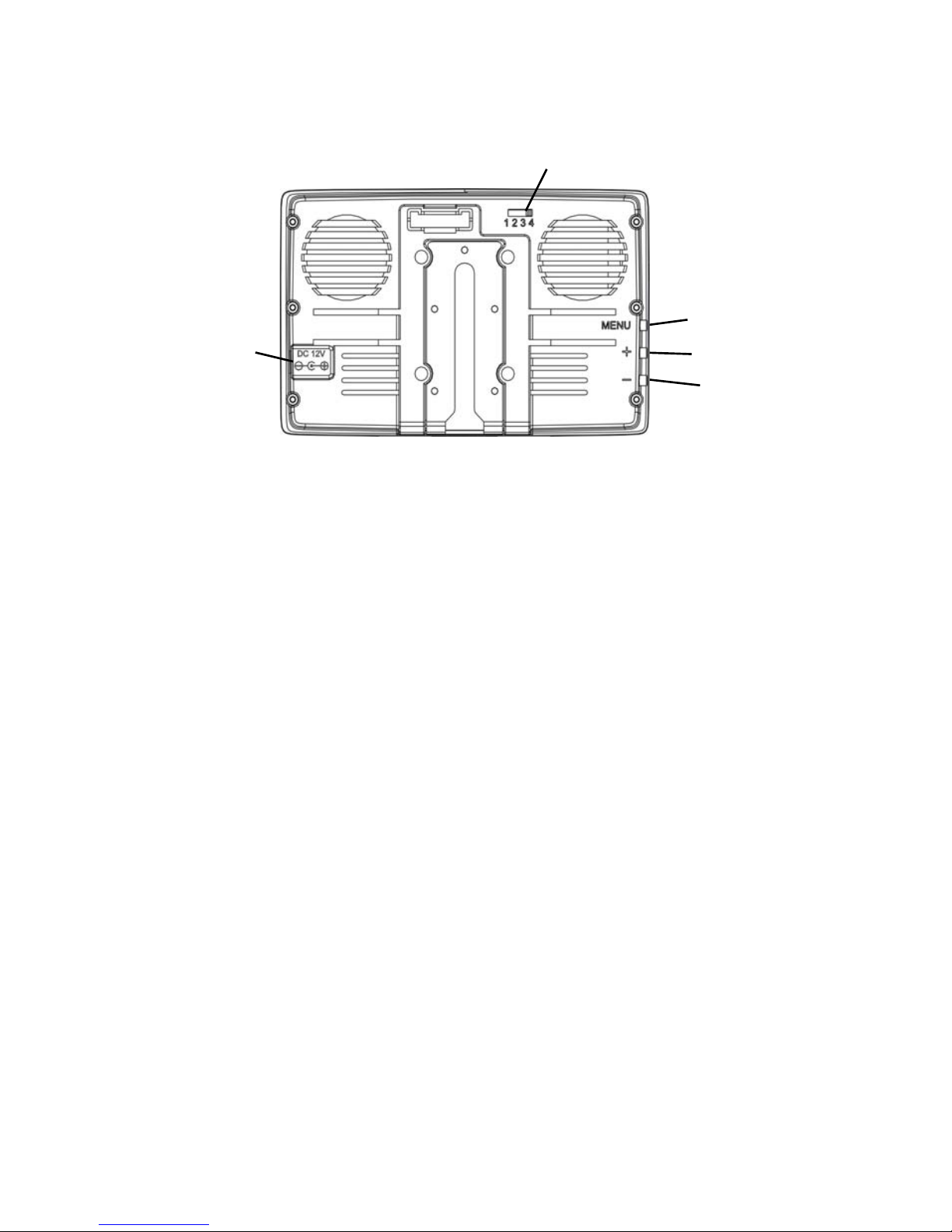

Figure 2Back Side of Monitor

Figure 2 illustrates the controls and indicators on the back side of the ACA450

Monitor:

A: Menu Key-shows on screen displays

B: “+” Volume Adjustment Key

C: “-” Volume Adjustment Key

D: Four Position/Channel Receiver Frequency Switch

NOTE: Position switch should be in the #1 position. Monitor can receive 4

different frequencies, as noted in specifications, and can receive 4 separate

camera signals (optional).

E: Power Supply Jack

Specifications

General

Power Supply DC12V

Power Consumption <6W

Current Draw <400 mA

Operating Temperature Range 0to 50

Display System

Screen 4.5” TFT Color LCD

Brightness 400 cd/

Contrast Ratio 150:1

Backlight Life 10000 hours

14 MHz,

50 MHz,

Resolution 960×234

Video Format NTSC/PAL

Display Format 16 : 9

Wireless Reception System

Operating Frequency 2.4GHz

Selectable Channel Quantity 4 Channe

CH1: 24

CH2: 2432 MHz

CH3: 24

CH4: 2468 MH

Maintenance

Though your monitor requires little care, you will still need to maintain its

condition and performance by following the guidelines below.

•Keep your system away from excessive moisture, extreme heat or

cold.

•Keep liquids away from the display.

•Occasionally clean the surface of the monitor with a soft cloth

moistened with water or glass cleaner.

Troubleshooting

Symptoms Solutions

The Monitor is not on after

the vehicle is started and the

vehicle is in reverse

1. Check the monitor wiring and

connections

2. Check that the channel switch is set

to position 1

No video signal appears while

reversing the vehicle

1. Check the rear view camera lens and

Clean if needed

2. Check the rear view camera wiring

and connections

Video image is not sharp

enough

Clean the camera lens
