Audiovox Auto Security AS-9950 Manuel utilisateur

Model AS-9950

Owner's Manual

Congratulations! Your purchase of this state-of-the-art security

system expresses a deep concern for the security of your vehicle,

its contents, and passengers. To fully appreciate the many

functions and safeguards incorporated in this system, please

spendafewminutesreadingthismanual. Youmayfindunexpected

features that could mean the difference between “protected” and

“fully protected”.

FEATURES :

MQuick Disconnect Relay Sockets

MFlashing Red LED Light

MPre-Wired Valet Toggle Switch

MLow Current Draw

MOptional Negative Horn Output (Requires Additional Relay)

MPositive Siren Output for Optional Siren

MOverride Switch Can Be Any 12 Volt On/Off Switch Existing in the Vehicle

(Brake Light, Parking Light, Turn Signal, Window Roll Up, etc.)

MPassive Arming

Starter Interrupt System

Page 2

STARTER INTERRUPT SYSTEM

TheStarterInterruptSystemautomaticallypreventsyourvehiclefrombeingstartedafteryour

ignition key is turned off. As an option, if an attempt is made to start the vehicle, the horn or

a siren will be activated if so equipped, until the AS-9950 is disarmed if using positive output.

Using the negative output, the siren will turn off the moment the potential thief stops cranking

the starter.

OPERATION

TO ARM SYSTEM:

When the ignition key is turned to the “off” position, the starter interrupt system is enabled

which is confirmed by a continuously flashing red LED. The system has a low current draw

(less power than your vehicle's clock).

TO DISARM SYSTEM:

Turn your ignition key to ignition position. Turn your secret switch on and off. The system will

disarm, confirmed by the red LED turning off. The vehicle will now start as long as the ignition

key is in the “on” position.

VALET SWITCH:

Turn “off” the hidden toggle switch to allow vehicle to start during extended stop overs such as

theservice station, washing, valetparking,etc. Turn“on” the hidden toggleswitchtoallowthe

passive arming operation to continue.

INSTALLATION

Tworelayspluggedinon thesocketsoftherelayharnessarerequired tooperatethissystem's

starter interrupt, LED and positive output trigger. One relay can be plugged in the optional

socket location and used for the negative horn output. This optional relay is to be plugged in

only if you want a negative output for horn activation when a theft attempt is made.

MOUNTING VALET SWITCH:

Find a location in an accessible, but hidden area of the passenger compartment to mount the

toggleswitch. Drilla1/4"holeinthechosenareaandsecurethetoggleswitchwiththehardware

provided.

MOUNTING RED FLASHING LED INDICATOR LIGHT:

Drill a 3/8” hole. Pull the LED. light out of the housing from the backside, and slide the

housing through the 3/8” hole. Now push LED light back in to the housing.

Page 3

WIRING

THIN RED WIRE FROM FLASHING LED LIGHT: (12 Volts Positive Input)

This wire supplies a constant positve 12 volts to operate the LED. The connection should be

made to a location that has a constant positive 12 volts at all times.

BLACK WIRE FROM VALET TOGGLE SWITCH: (Ground Input)

ThiswireprovidesapathtogroundforallthecircuitsonAS-9950. Thiswireshouldbesecured

to the metal ground frame of vehicle or directly to the battery ground terminal.

Make sure to

scrape away all dirt and grease to get good ground connection.

YELLOW WIRE FROM AS-9950: (Ignition 12 Volt Input)

When the ignition key is in the “off” position, the starter interrupt function is enabled preventing

thevehicle frombeingstartedagain. When ignitionkeyisinthe“on”position, applying 12volts

to the secret switch circuit will disable starter interrupt function. This will allow the vehicle to

bestarted. Connectthiswiretoan ignition wireinthecarwhichhas12voltsin the onandcrank

positions of the ignition key and 0 volts when the key is off.

PINK WIRE FROM AS-9950: (To Secret Override Switch)

When the ignition key is in the “on” position, momentarily applying positive 12 volts to this wire

will override the starter interrupt function allowing the vehicle to be started. Once the ignition

key is turned to the “off” position, the starter interrupt function will automatically be enabled,

preventing the vehicle from being started. This wire can be connected in two manners. Refer

to option A or B.

A) Connect this wire to any on/off switch that when in the “on” position, positive 12 volts

isapplied. Someexamplesarethebrakelightswitch,parkinglightswitch,positivetype

doorlockswitch,windowrollupswitch,turn signal switch, etc. Usinganexistingswitch

eliminates the need to install another switch in the vehicle.

B) Connectthiswiretoanyadditionallyinstalledmomentarypushbuttonswitchthatwhen

in the “on” position, supplies positive 12 volts.

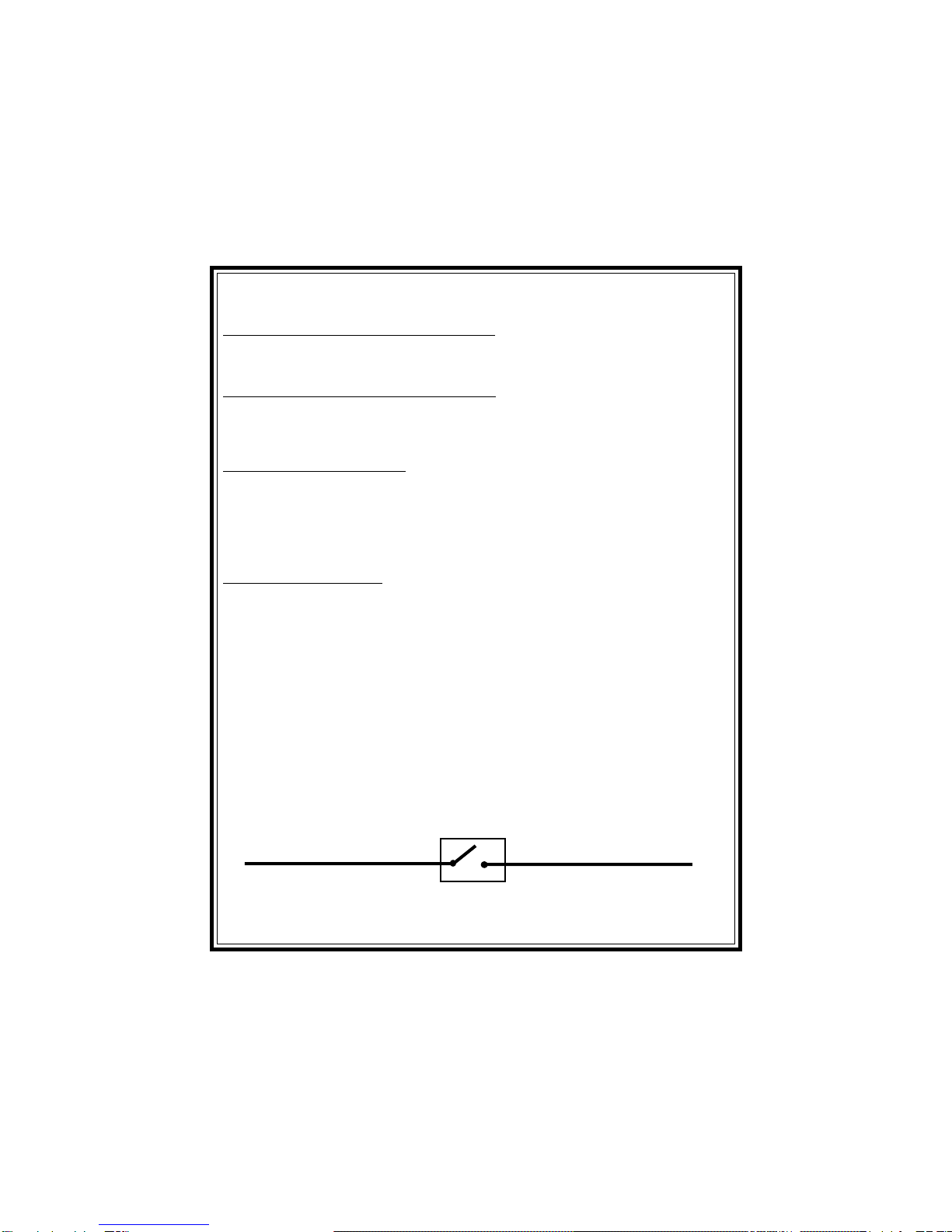

SECRET OVERRIDE

SWITCH

PINK OVERRIDE WIRE +12V

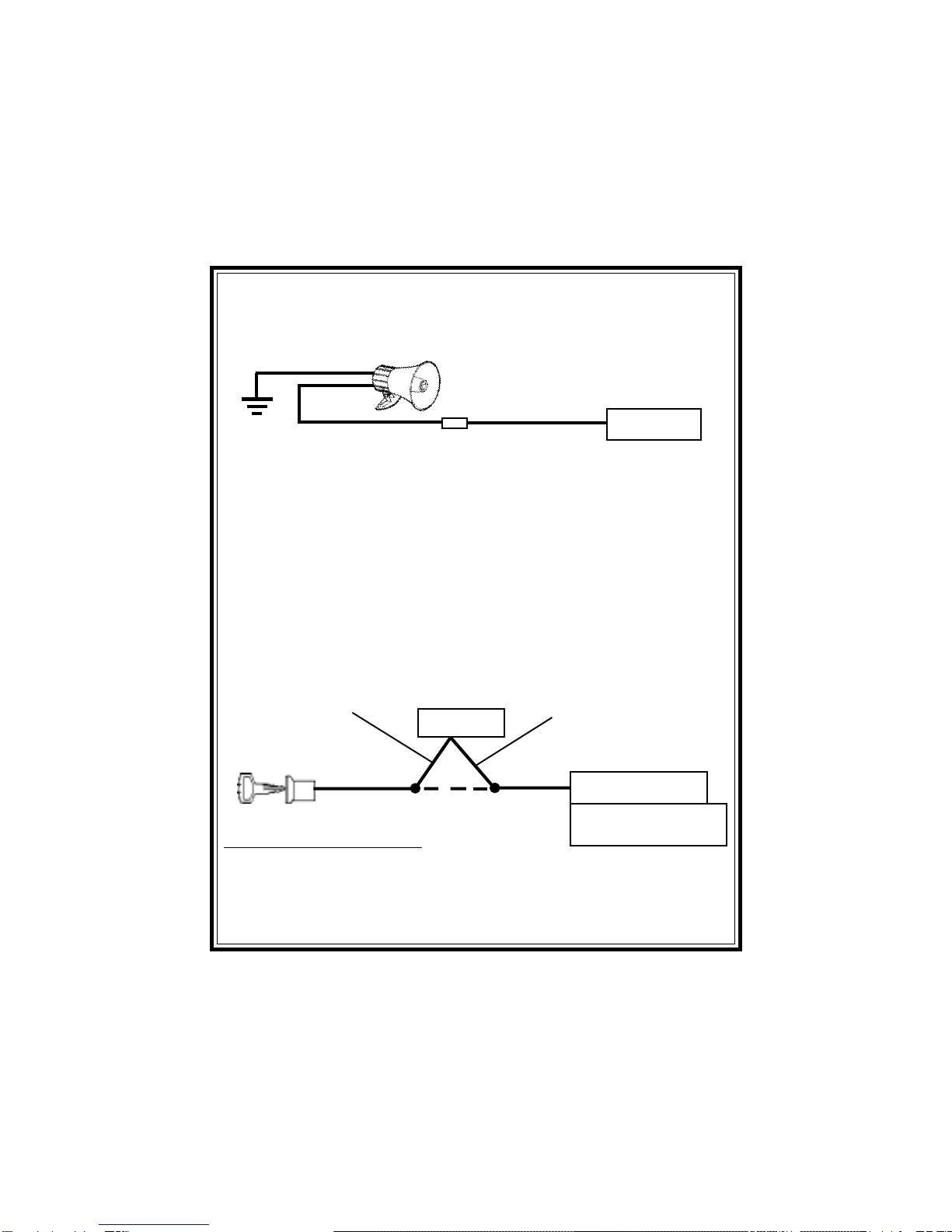

WHITE/BLACK WIRE (18 GAUGE) FROM AS-9950: (Positive Horn/Siren Output)

Positive Horn/Siren output: When an attempt is made to start the vehicle the optional horn/

siren will be activated the moment you start cranking the starter and will stop sounding the

moment you stop cranking the starter.

Page 4

BLACK/WHITE (18 GAUGE WIRE):

This wire provides ground to sound the vehicle’s horn when unauthorized attempts to start

thevehiclearemadewhenthesystemisarmed. Connectthiswiretothenegativehorntrigger

of the vehicle. This wire will provide an output only if the optional relay is installed into it's

socket in the relay harness.

WHITE/BLACK(12GAUGE)ANDBLACKWIRE(12GAUGE)FROMAS-9950:(IgnitionKey

Starter Solenoid Wires)

BLACK (12 Gauge Wire )

Wheninthedisarmedconditionthiswiresuppliespositive12voltstothevehicle’sstarterrelay

allowing the vehicle starter to engage. Refer to White/Black for connection information.

WHITE/BLACK (12 Gauge)

When in the armed condition this wire supplies positive 12 volts to a relay which prevents the

starter from engaging. This wire also supplies positive 12 volts from the white/black wire to

the optional horn/siren output while attempting to engage the starter.

Thewireisconnectedbycuttingthewirefromtheignitionkeygoingtothestartersolenoid. This

wirecontains12voltsonlywhen ignition key isinthe"Start"position. Connectthewhite/black

wire(12 Gauge) tothewirefrom the ignitionkeyandconnect the black wire(12Gauge) to the

remaining cut wire going to the starter solenoid.

IGNITION KEY

AS-9950

CUTWIRE

WHITE/BLACKWIRE

(12 GAUGE) BLACKWIRE (12 GAUGE)

STARTER

SOLENOID

WHITE/BLACKWIRE 18G AS-9950

AS-9950

Red

2A FUSE

Blue

Ignition Source

Connect To +12 Volts

Ignition/Crank

2A FUSE

Yellow

Ground Output

To Operate Horn

Black/White

Black 12 Gauge

White/Black

12 Gauge

2A FUSE

White/Black

(18 Gauge)

(Optional Siren)

To Secret Override

Switch (+12V when

activated)

Pink

Page 5

Required Relays Optional Horn

Relay

+12 Volts

Constant

Valet Toggle

Switch

To Starter

Solenoid

12 MONTH LIMITED WARRANTY

AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this

productthatshouldthisproductoranypartthereof,undernormaluseandconditions,beproven

defective in material or workmanship within 12 months from the date of original purchase, such

defect(s) will be repaired or replaced (at the Company's option) without charge for parts and

repair labor.

To obtain repair or replacement within the terms of this Warranty, the product is to be delivered

withproofofwarrantycoverage(e.g.dated billofsale),specificationofdefect(s),transportation

prepaid, to an approved warranty station or the Company at the address shown below.

This Warranty does not cover costs incurred for removal or reinstallation of the product, or

damage to vehicle electrical systems.

This Warranty does not cover batteries nor apply to any product or part thereof which, in the

opinion of the Company, has suffered or been damaged through alteration, improper installa-

tion, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial

number/bar code label(s).

This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRAN-

TIES,INCLUDINGANYIMPLIEDWARRANTYOFMERCHANTABILITY,SHALLBELIMITED

TOTHEDURATIONOFTHISWRITTEN WARRANTY. ANY ACTIONFORBREACHOFANY

WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABIL-

ITY MUST BE BROUGHT WITHIN A PERIOD OF 30 MONTHS FROM DATE OF ORIGINAL

PURCHASE. INNOCASESHALLTHECOMPANYBELIABLEFORANYCONSEQUENTIAL

OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY,

EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to

assume for the Company any liability other than expressed herein in connection with the sale

of this product.

The Company does not warrant that this product cannot be compromised or circumvented.

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO

THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE

COMPANY'SLIABILITYEXCEEDTHEPURCHASEPRICEPAIDBYPURCHASERFORTHE

PRODUCT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or

limitation of incidental or consequential damage so the above limitations or exclusions may not

apply to you. This Warranty gives you specific legal rights and you may also have other rights

which vary from state to state.

CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA

U.S.A. : AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 1-800-645-9449

Form No. 128-4118E

Applies to control modules, relays,

transmitters, sensors, and sirens.
