AS-22 Printed in Korea Form No. 128-4718

INSTALLATION GUIDE FOR:

DUAL STAGE

MICROWAVE SENSOR

INTRODUCTION:

The Audiovox AS-22 has been designed to provide maximum protection for the interior of any vehicle. This

unit will provide a series of pre-warn chirps upon attempted entry into the protected area. If further attempts

to enter the vehicle continue, the unit will provide a pulsed ground output to trigger the alarm system.

MOUNTING THE SENSOR:

Select a mounting location close to the center of the passenger compartment, or the area to be protected.

The sensor should be placed with the LED and adjusting potentiometer facing upward. For best results, the

unit should be placed as close to the steel floor pan of the vehicle as possible.

NEVER

mount the unit below

metal as the wave form provided by this sensor will not penetrate metals.

WIRING THE UNIT:

RED WIRE : +12 VOLT DC BATTERY SOURCE

Connect the red wire of the sensor to a fused +12 volt constant battery source.

BLACK WIRE : GROUND WHEN ARMED

Connect this wire to a ground when armed source from the alarm system. If the alarm system you are using

has a dedicated "Ground" output when armed, then connect the Black wire directly to it. If the alarm system

has a starter inhibit Ground when armed output, then the diode assembly must be used. Locate the starter

inhibit control wire between the alarm module and the starter inhibit relay. Cut this wire and install the diode

assembly with the orange lead connected to the alarm module and the orange / black lead connected the

starter inhibit relay. Connect the black wire of the sensor to the point where the orange diode assembly wire

and the alarm control wire are joined.

GREEN WIRE : NEGATIVE ALARM TRIGGER OUTPUT

Connect this wire to the instant negative trigger input wire of the alarm system. This wire

MUST NOT

connected to any other sensor directly. If only one negative trigger wire is available from the alarm, be certain

to diode isolate the trigger output of this unit from any other sensors, or trigger may not occur.

WHITE / BLACK WIRE : SIREN CONTROL

Connect this wire to the +12 volt siren control wire of the alarm system. This wire will supply multiple +12 volt

output pulses to the siren upon pre-entry attempts.

ADJUST THE SENSITIVITY OF THE PRE-WARN CHIRPS:

Use

CAUTION

when making adjustments to this sensor. The sensitivity adjustment has a maximum rotation

of approximately 260 degrees.

DO NOT OVERTURN THIS ADJUSTMENT SCREW.

Locate the two dip switches accessed through the hole in the top of the sensor.

Set the two switches as shown IN FIGURE 1 to adjust the pre-warn chirps. The security system must be

armed during the adjustment procedure, however the alarm system will not trigger with the switches set as

shown. You must wait for the green LED to turn off before testing the field adjustment.

Turn the EXT. adjustment potentiometer half way up, exit the vehicle, and wave your arm outside the right,

left, and front windows of the vehicle. The sensor should emit pre-warn chirps. If not, increase the sensitivity

until desired result is achieved.

NOTE : This field should be set as close to the outside of the vehicle as allowed by local law. It is the

installersresponsibilitytosetthissensortocomplywithyourstate'snoiseabatementlaws.Expanding

the predetect field beyond a reasonable predetect point will cause warning chirps during heavy rain

or snow.

ADJUST THE INTERIOR ZONE:

Use

CAUTION

when making adjustments to this sensor. The sensitivity adjustment has a maximum

rotation of approximately 260 degrees.

DO NOT OVERTURN THIS ADJUSTMENT SCREW.

Set the dip switches as shown in figure 2 to adjust the interior zone. The security system must be armed

during the adjustment procedure, however the alarm system will not trigger when the switches are set as

shown.

Turn the INT. adjustment potentiometer half way up, open both left and right front windows. Exit the

vehicle and wave your arm inside the right and left front windows. The sensor will emit chirps when you've

entered it's field. Adjust the sensitivity up or down until the desired result is achieved.

OPERATING WITH LIMITED EXTERIOR ZONE:

Set the dip switches as shown in FIGURE 3 to operate with limited exterior zone operation. In this mode

the sensor will trigger the alarm after four detections of the exterior zone violation within 15 seconds.

When the unit detects a third exterior zone violation, it will emit a series of warning chirps. If one additional

violation occurs, the alarm will trigger.

OPERATING WITH FULL EXTERIOR AND INTERIOR PROTECTION:

To operate with full dual zone protection, set the dip switches as shown in FIGURE 4 . In this mode, when

arming the system, the sensor will not trigger for 5 seconds. After the 5 second stabilizing period, if the

exterior zone is violated, the siren will emit a series of warning chirps. If the interior zone is violated, the

alarm will trigger.

Note : During pre-detect, the green L.E.D. will turn on for 3 seconds. During full trigger, the red L.E.D. will

turn on briefly.

Note : Interior zone must always be set lower than exterior zone for proper operation.

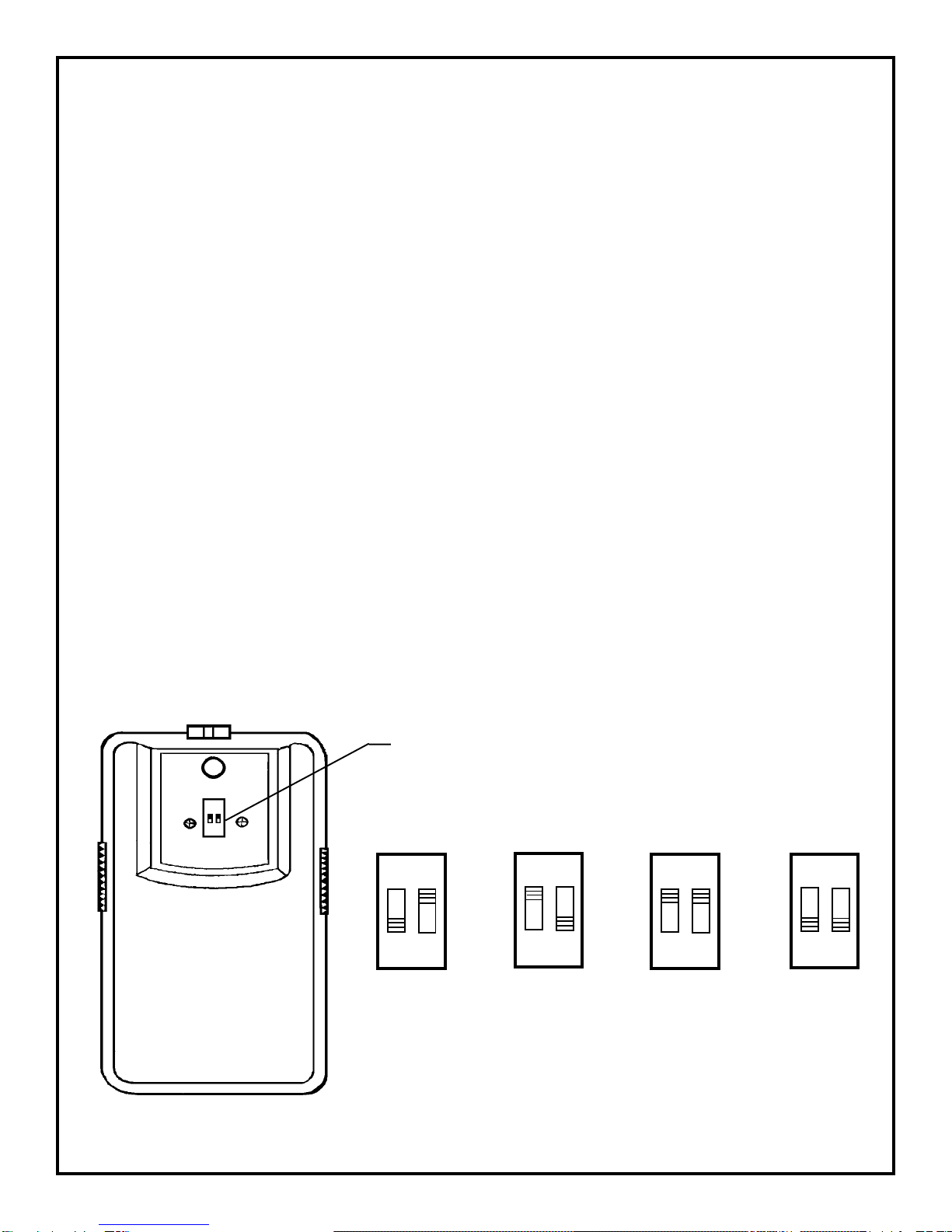

ADJUST ADJUST

INT. OPERATEEXT.

AS-22

LED DIP SWITCH

FIG 4

1 2

FIG 2

1 2

FIG 3

1 2

FIG 1

1 2
