Audiovox APS-596C Manuel utilisateur

128-8803b

1 of 20

PATENTED: www.voxxintl.com/company/patents

Table Of Contents:

Features and Options Page 2

Arming the System-Active Page 3

Protection While the System is Armed Page 4

Disarming Your System Page 5

While The System Is Sounding Page 6

Intrusion Signals and Tones Page 6

Valet Override, Programming & Safety Control Switch Page 7

Manually Overriding Your System Page 7

Programming Your Custom Code Override Page 8 - 10

Eliminating the Normal Arm & Disarm Chirps Page 10

Remote Panic Operation Page 10

Optional Remote Function Channels Page 11

Telematic Upgrade Page 12

Two Way Remote (Transceiver) Screen Icons & Indications Page 13 - 16

Two Way Remote Function Program Chart Page 17

New or Replacement Transmitters Programming Page 18

FunctionsAtAGlance Page 19

Rev b New Format 5/2013

Model APS-596C

5 Button Remote Security

System with Dual Stage

Shock Sensor

Owners Guide

Notes Page 20

128-8803b

2 of 20

IMPORTANT! In order to provide the highest possible level of security to your vehicle,

this system is equipped with selectable manual override circuitry. It is

possible that you will need to manually override your security system if

the transmitter becomes lost, or inoperative due to battery failure.

Reading the sections on "MANUALLY OVERRIDING YOUR SYSTEM"

is necessary to fully understand the procedure required to enable your

vehicle in such situations. In addition, the chart on the last page of this

manual has a section for the particular features and options installed in

your vehicle as well as the override method selected.

Valet Switch manual override is pre-selected from the factory,

however, the system can be configured for "Custom Code" operation.

Confirm the override mode selected on the last page of this manual, and

familiarize yourself with the selection on it's operation.

FEATURES :

1 Five Button Programmable RF Transmitters

1 Five Button Programmable Transceiver

Five Channel Receiver (Capable Of Accepting Up To 4 Transmitters)

External Superheterodyne Transceiver Antenna w/PushButton Switch and LED

Code Hopping Technology

Selectable Manual Override Mode

Remote Panic in all modes

Protected Valet

User Programmable Manual Override Code

7 Function LED (Light Emitting Diode) - Arm / Disarm / Zone 1, 2, 3 / Valet / Arming

Intrusion Alert with Memory

Audible Arm / Disarm / Defective Zone / Tamper Confirmation

Instant Siren Activation

Starter Disable

Additional Engine Immobilizer Output (optional relay required)

True Last Door Arming (hardwire only)

Defective Zone By-Pass

Hardwire or Voltage Sense Selectable

Active or Passive Arming Selectable

Programmable Auto Lock On / Off

Programmable Auto Unlock On / Off

Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds/1 Sec L/ Dbl. U/L

Programmable Active or Passive Door Locks

User Programmable Permanent Chirp Delete

On Command RF Chirp Delete from Transmitter

6 Tone Multi Tone Siren

RF Inhibit with ignition on

Parking Light Flasher

Plug In Dual Stage Shock Sensor

OPTIONS:

Remote Trunk Release (must have electronic trunk release)

Remote Keyless Entry (must have power door locks)

Multiple Vehicle Capable

Remote Starter

Remote Power Window Roll Up

Two Step Unlock Configurable

Headlight Illumination During Arming, Disarming, Or Both

Rev A Added new web URL 12-2-11

Rev b New Format 5/2013

128-8803b

3 of 20

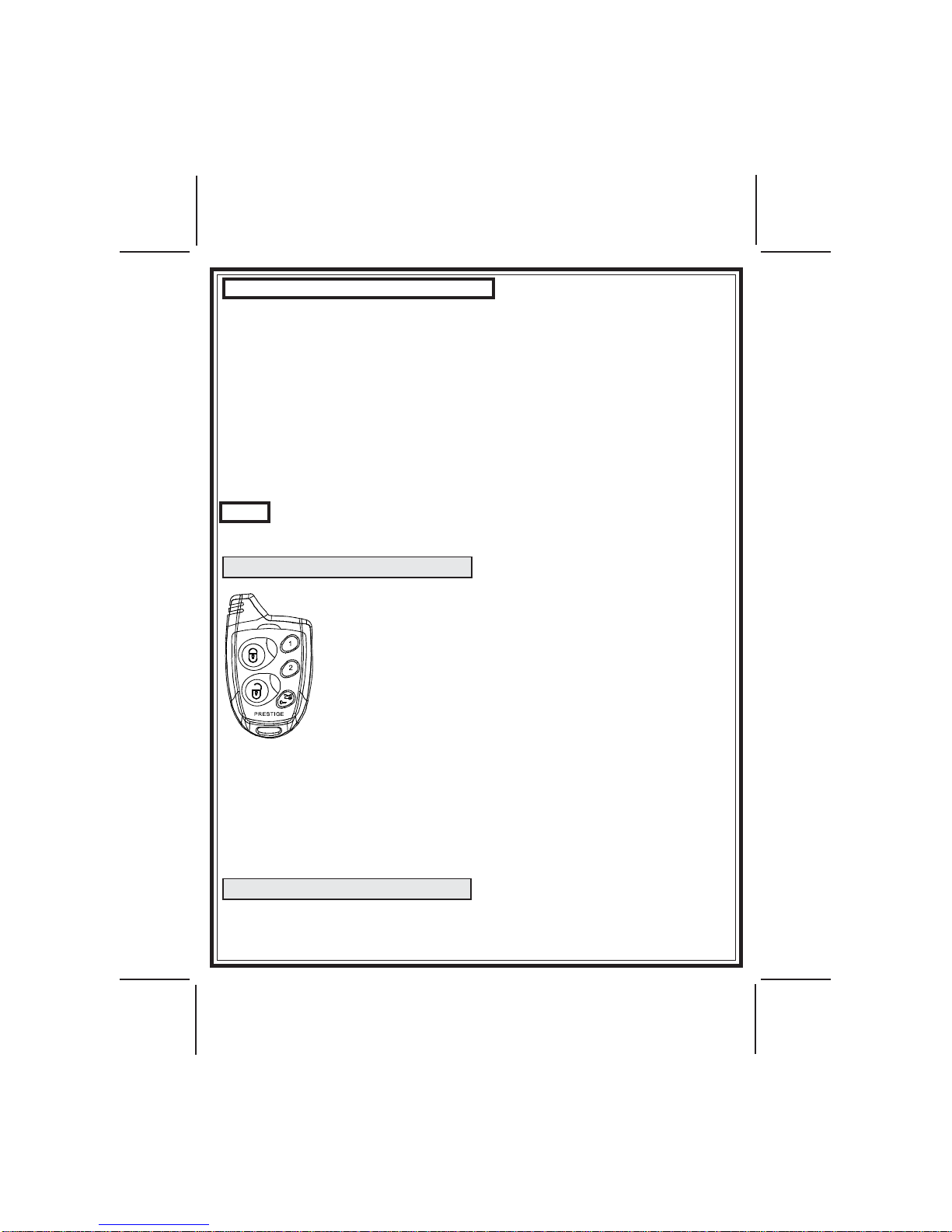

YOUR “ Code Hopping “TRANSMITTERS

The transmitters included with your new security system use the most advanced

and secure form of radio frequency transmission available on any current

automotive security system. Some of today’s sophisticated auto thieves use a

device known as a code grabber, which will receive and store the signal from

your keychain transmitter, and retransmit at a later time to disarm your system.

Your anti code hopping transmitters will change their signal every time the but-

ton is pressed, so when a thief grabs then retransmits your signal, the alarm

system will not respond.

If your transmitter button is pressed more than fifty times while it is out of range

of the vehicle (children playing with your keys), the transmitter will not operate

when you return to the vehicle and will need to be realigned to the receiver. To do

this, simply press the lock button two times within a one second time period.

The system will now respond to that transmitter each time a button is pressed.

NOTE: Your system has the option of using a siren, the vehicle horn, or both for

the sounding device. Where the siren is referenced below, the horn or

both may in fact chirp, or beep.

ARMINGTHESYSTEM-ACTIVE

1. Turn off the engine, exit the vehicle and close all doors, hood

lid and trunk lid.

2. Press and release the Lock button on the keychain transmit-

ter.

Dash mounted LED begins to flash slowly.

Parking Lights flash one time.

Siren sounds one chirp.

If the siren/horn sounds 3 chirps, then you have left a door,

trunk, or hood lid ajar. Simply close the opened entry point to

provide full protection. If the siren "chirped" three times, some-

time after arming, the exclusive delayed dome light learn circuit

has been programmed and the system detected a open entry point

after the learned delay expired. Again, closing the hood, trunk, or doors

will correct the problem and you do not need to disarm the system to

make the correction. If the siren/horn did not sound when arming, then

the chirps have been turned off and you should refer to the section titled

"ELIMINATING THEARM/DISARM CHIRPS" in this manual.

Doors Lock - Optional

Headlight Illumination - Optional

SILENTARMING-ACTIVE

1. Turn off the engine, exit the vehicle, and close all doors, hood lid, and trunk

lid.

128-8803b

4 of 20

2. Press and hold the Lock button on the keychain transmitter for 2 seconds.

Dash mounted LED begins to flash slowly.

Parking Lights flash one time.

Siren will not sound.

If the siren "chirped" three times, sometime after arming, the exclusive delayed

dome light learn circuit has been programmed and the system detected a open

entry point after the learned delay expired. Closing the hood, trunk, or doors will

correct the problem and you do not need to disarm the system to make the

correction.

Doors Lock - Optional

Headlight Illumination - Optional

ARMINGTHE SYSTEM - PASSIVE(AUTOMATIC)

1. Turn off the engine, exit the vehicle and close and lock all doors, hood lid

and trunk lid.

Dash mounted LED begins to flash rapidly, indicating 30 second

passive arming has begun.

2.Opening any protected entry point during the 30 second passive arming

cycle will immediately suspend automatic arming and the 30 second

passive arming cycle will restart when all doors are closed.At the end of the

passive arming cycle;

Dash mounted LED begins to flash slowly.

Parking Lights flash one time.

Siren sounds one chirp

If the siren did not sound when arming, then the chirps have

been turned off, and you should refer to the section titled

"ELIMINATING THEARM / DISARM CHIRPS" in this manual.

Doors Lock - Optional

Door locking during passive arming is a selectable feature.

The alarm can be programmed to allow the doors to lock only

when arming using the keychain transmitter and they will not

automatically lock during passive arming.

PROTECTION WHILE THE SYSTEMISARMED

Opening any protected door, hood, or trunk lid will cause the alarm to

immediately sound. The alarm will continue to sound for 30 seconds,

then stop and continue to monitor all protected entry points. If the thief

left a door opened, the alarm will sound for six 30 second cycles,

remain armed and ignore that triggered zone.

Whenever the system is armed, the dash mounted LED indicator will

slowly flash. This serves as a visual deterrent to the potential thief.

The LED is a very low current bulb and will not cause the vehicle’s

battery to drain, even when left unattended for extended periods.

128-8803b

5 of 20

Whenever the system is triggered, the vehicle’s parking lights will

flash for the full 30 second alarm cycle, attracting visual attention to

the vehicle.

Optional - Whenever the system is armed, the vehicle’s starting circuit

will be bypassed. If the thief should choose to ignore the siren, the

vehicle can not be started.

Any mild impact to the vehicle’s glass will cause the alarm to sound a

short series of warning tones.

Any strong impact to the vehicle’s glass will cause the alarm to trigger

for the full 30 second alarm cycle.

DISARMINGTHESYSTEM

As you approach the vehicle, press and release the Unlock button on the keychain

Transmitter.

Dash mounted LED turns off.

If passive arming was selected during the installation, then the LED

will start flashing rapidly, indicating that the system is re-arming auto-

matically. Open any door to suspend the automatic arming.

Parking Lights flash two times.

If the parking lights flashed three times, then the alarm was trig-

gered inyour absence. Before turning the key on, examine the LED to

identify which zone was triggered.

Siren sounds two chirps.

If the siren sounds 4 chirps, then the alarm was triggered in your

absence. Before turning the key on, examine the LED and refer to the

INTRUSION WARNING SIGNALS section of this manual to iden-

tify which zone was triggered.

If the siren did not sound when disarming, then the chirps have

been turned off, and you should refer to the section titled “ELIMI-

NATING THE ARM / DISARM CHIRPS“ in this manual.

Doors Unlock - Optional

NOTE: If the optional 2 step door unlock circuit is installed, when the un

lock transmitter button is activated, the drivers door only will unlock,

pressing the unlock button a second time will cause all doors to

unlock. If your transmitter has a separate lock unlock buttons,

pressing the unlock button anytime after the first unlock command

will cause all the vehicle doors to unlock.

Headlight Illumination - Optional

SILENTDISARMING

As you approach the vehicle, press and hold the Unlock button on the keychain

transmitter for 2 seconds.

Dash mounted LED turns off.

If passive arming was selected during the installation, then the LED will

start flashing rapidly, indicating that the system is re-arming automatically.

128-8803b

6 of 20

Open any door to suspend the automatic arming.

Parking Lights flash two times.

If the parking lights flashed three times, then the alarm was triggered in

your absence. Before turning the key on, examine the LED to identify which

zone was triggered.

Siren will not sound.

If the siren sounds 4 chirps, then the alarm was triggered in your absence.

Before turning the key on, examine the LED and refer to the INTRUSION

WARNING SIGNALS section of this manual to identify which zone was

triggered.

Doors Unlock - Optional

NOTE: If the optional 2 step door unlock circuit is installed, when the unlock

transmitter button is activated, the drivers door only will unlock, pressing

the unlock button a second time will cause all doors to unlock. If your

transmitter has a separate lock/unlock buttons, pressing the unlock

button anytime after the first unlock command will cause all the

vehicle doors to unlock.

Headlight Illumination - Optional

WHILE THE SYSTEM ISSOUNDING

If during a triggered state, you wish to shut off the siren without disarming your

security system, simply press and release any transmitter button other than the

disarm button. This action will turn off the siren yet leave the vehicle fully armed

and protected. This feature is particularly useful if you are aware of children

playing near your vehicle that may accidently trigger your security system. In this

case you can cancel the siren sounding without disarming your alarm.

INTRUSIONWARNINGSIGNALS

This system will inform you if an intrusion attempt has occurred while you were

away from the vehicle. If an intrusion attempt has occurred, the siren will chirp 4

times and the parking lights will flash 3 times when disarming the system. Enter

the vehicle and observe the dash mounted LED to identify which zone was

triggered.

If the LED is flashing one time...pause...one time...pause...etc., then an

intrusion attempt was made to the shock sensor, or an accessory

triggering device that may have been added to the system.

If the LED is flashing two times...pause...two times...pause...etc., then an

intrusion attempt was made to a hood or trunk pin switch that was added

to the system, or to a light activated entry point if the alarm was installed

using the voltage sensing feature.

128-8803b

7 of 20

If the LED is flashing three times...pause...three times...pause...etc., then

an intrusion attempt was made through one of the vehicle’s doors.

These intrusion warning indicators are stored in the system’s memory and

will only be erased when the ignition key is turned on.

PUSH-BUTTONLEDRECEIVERVALET/OVERRIDE/SAFETYCONTROLSWITCH

The Push-Button LED switch located on the windshield receiver allows you to

temporarily bypass all alarm functions, eliminating the need to hand your trans-

mitter to parking attendants or garage mechanics. When the system is in valet

mode, all alarm functions are bypassed, however the remote panic feature and

remote door locks will remain operational. To use the valet mode, the system

must first be disarmed either by using your keychain transmitter, or by activating

your personalized manual override code.

1. Enter the vehicle, and turn the ignition key to the on position.

2. Press and hold the Push-Button switch until the LED turns on solid. The

system will enter and remain in the valet mode.

3. To return to normal operation, press and release the Push-Button switch

any timethe ignition is on.

NOTE: Always remember to return the vehicle to the valet off position. This will

ensure that the vehicle remains protected at all times.

MANUALLYOVERRIDINGYOURSYSTEM:

Using The Receivers Push-Button Override Switch

Your Security System can be disarmed without the use of the keychain transmit-

ter. This is necessary, since you will need the ability to operate your vehicle if the

transmitter is lost or its battery fails. If your system has been selected for Valet

Switch manual override as indicated on the last page of this manual, to bypass

the alarm system;

1. Open the vehicle door. The alarm will sound.

2. Turn the ignition key to the on position.

3. Within 5 seconds, press and release the push-button override switch.

The alarm system will stop sounding and enter the (bypassed) mode. You can

now start and operate the vehicle normally.

Typically this override mode is used only if the transmitter has become

inoperative.

128-8803b

8 of 20

Programming Your Custom Override Code:

Unlike override switches easily found, and defeated, this security system allows

the consumer to program a personal override code, offering a higher level of

security. To take advantage of this option, programmable feature # 10 must be

selected for the Custom Code Option. Consult your installation center for pro-

gramming details. The system comes from the factory with a pre-programmed

override code of 11. To change this default override code, do the following:

1. Disarm the system by use of the transmitter, or by use of the emergency

override sequence. Turn the ignition switch to the on position.

2. Within 10 seconds, press and release the Receivers Push-button switch, 3

times.

3. Within 10 seconds turn the ignition switch off, on, off, on, off, on.

(The siren or horn will beep and the lights will flash one time.)

4. Within 10 seconds, begin to enter your chosen 10ths digit by pressing and

releasing the Receivers Push-button switch from 1 up to 9 times.

5. Within 10 seconds of the last entered 10ths digit, turn the ignition switch off

then on.

6. Within 10 seconds, begin to enter your chosen units digit by pressing and

releasing the Receivers Push-button switch from 1 up to 9 times.

7. Finish by turning the ignition switch to the off position.

If the new code was accepted, the unit will report back the newly entered code, by

flashing the LED, first indicating the 10ths digit, pause and then the units digit.

The unit will report the new code three times with a one second pause between

each code, then the system will begin arming. If the LED flash pattern reports the

previously stored code, the new code was not entered correctly. Please repeat

steps 1 through 7 above considering the following.

NOTE: Acceptable digits 10ths or units are 1 through 9. The unit will not

recognize a 0 (Zero), or no digit entered in any place, units or tenths.

NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for

more then 5 seconds during any of the above steps, the unit will

revert back to the last successfully stored code.

Custom Code Programming Example:

To Change the code from the factory pre-assigned code of 11 to “52” you would

do the following:

128-8803b

9 of 20

1. Disarm the system by use of the transmitter, or by use of the emergency over-

ride sequence.

2. Turn the ignition switch to the on position.

3. Within 10 seconds, press and release the Receivers Push-button switch, 3

times.

4. Within 10 seconds turn the ignition switch off, on, off, on, off, on.

(The siren or horn will beep and the lights will flash one time.)

5. Within 10 seconds, begin to press and release the Receivers Push-button

switch to set the tenths digit. (As per the example, press and release 5 times to

set the tenths digit to 5)

6. Within 10 seconds of the last press of the pushbutton, turn the ignition switch off

then on.

7. Within 10 seconds, begin to press and release the Receivers Push-button switch

to set the units digit.

(As per the example, press and release 2 times to set the units digit to 2).

8. Turn the ignition switch to the off position. Immediately observe the LED flash

pattern.

You will note the LED flashing five times, pause, and then flash two times, pause. This

pattern will be repeated three times indicating the new code (52) has been accepted and

stored in memory.

NOTE: If after step 7, the LED flashes a code other than what was just entered,

this indicates that the code has not been changed. You will have to repeat

steps 1through 7 above being certain to note the following:

Acceptable digits 10ths or units are 1 through 9. The unit will not recognize a 0

(Zero), or no digit entered in any place, units or tenths.

NOTE: If15 secondsof inactivityexpire, orif theignition switchis turnedoff for more then

5 seconds during any of the above steps, the unit will revert back to the last

successfully stored code.

MANUALLYOVERRIDINGYOURSYSTEM:

USINGTHECUSTOMCODEOVERRIDE

Assuming the override code programmed has not been changed and the default

override code of 11 is in the system's memory.

1) Enter the vehicle and turn the ignition switch to the on position.

128-8803b

10 of 20

NOTE: The siren will sound.

2) Within 5 seconds, press and release the Receivers Push-button switch

1 time.

3) Within 5 seconds, turn the ignition switch off then on.

4) Within 5 seconds, press and release the Receivers Push-button switch

1 time.

5) Turn the ignition switch off then on and start the vehicle.

NOTE: If you have changed the programmed override code then substitute your

new code tenths for step 2 above, and units for step 5 above.

ELIMINATING THENORMAL ARM/DISARMCHIRPS

You can selectively eliminate the normal arm and disarm chirps by holding the

transmitter button slightly longer when arming or disarming. This will prevent the

siren chirps for one arm or disarm cycle. If you find this inconvenient and wish to

eliminate these chirps permanently,

1. Turn the ignition switch 'on" then 'off".

2. Within 10 seconds of turning off the ignition, press and release the Receivers

Push-button switch 3 times.

3. If the chirps were on before you started, the siren will emit 2 short chirps

indicating that the chirps are now off. If the chirps were off before you started, the

siren will emit one short chirp indicating that the chirps are now on.

NOTE: If the vehicle battery is disconnected then reconnected, the unit will

return to the default setting of chirps on. Repeat the above procedure to

eliminate the arm/disarm chirps.

REMOTEPANICOPERATION

The ARM or DISARM button on your keychain transmitter also functions as a

panic switch for use in emergency situations. To use remote panic,

1. Press and hold theARM or DISARM button on the keychain transmitter for 3 or

more seconds. The alarm will immediately sound.

2. To stop the alarm, press and hold the ARM or DISARM button on the transmit-

ter again for 3 seconds. If the button is not pressed, the alarm will automati-

cally stop after 30 seconds. Also if any transmitter button other than the ARM

Autres manuels pour APS-596C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Audiovox Alarme de voiture

Audiovox

Audiovox Prestige Platinum APS-400 Manuel utilisateur

Audiovox

Audiovox Prestige Platinum APS-596 Manuel utilisateur

Audiovox

Audiovox Pursuit PRO 9845B Manuel utilisateur

Audiovox

Audiovox PS-155CH Manuel utilisateur

Audiovox

Audiovox Prestige Platinum APS-700 Manuel utilisateur

Audiovox

Audiovox XRO9100 Manuel utilisateur

Audiovox

Audiovox Prestige APS-15CH Manuel utilisateur

Audiovox

Audiovox Pursuit PRO 2000S Manuel utilisateur

Audiovox

Audiovox Prestige Platinum APS-700 Manuel utilisateur

Audiovox

Audiovox AS-9495-4P Manuel utilisateur

Audiovox

Audiovox Prestige Platinum APS-150-A Manuel utilisateur

Audiovox

Audiovox 5BCRCS Manuel utilisateur

Audiovox

Audiovox Prestige Platinum 128-4631B Manuel utilisateur

Audiovox

Audiovox Prestige 5BLCR Mode d'emploi

Audiovox

Audiovox Prestige Platinum APS-785 Manuel utilisateur

Audiovox

Audiovox Prestige Platinum APS-350-A Manuel utilisateur

Audiovox

Audiovox Prestige APS-25KB Manuel utilisateur

Audiovox

Audiovox AS9233ST Manuel utilisateur

Audiovox

Audiovox APS-20A Manuel utilisateur

Audiovox

Audiovox APS996A - Prestige Remote Security System Manuel utilisateur

Audiovox

Audiovox Prestige Platinum APS-510 Manuel utilisateur

Audiovox

Audiovox Prestige Platinum APS-400 Manuel utilisateur

Audiovox

Audiovox Prestige APS-920 Manuel utilisateur

Audiovox

Audiovox Prestige Platinum APS 995 Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur

Clifford

Clifford Nova 3 Manuel utilisateur

Viper

Viper 560XV Manuel utilisateur
