Audiovox CCDLF Manuel utilisateur
128-7729
1 of 8
1
Model CCDLF
License Plate Rearview Camera
with Non-Reversed Image
CCDLF FEATURES:
•Built Into License Plate Frame
•HighResolution,1/3”CCDColorCamera
•Compact ZincAlloy Die Cast Body
•WaterproofHousing
•WaterproofMicrophone
•150O WideAngleView
•Non-ReversedImage
128-7729
2 of 8
2

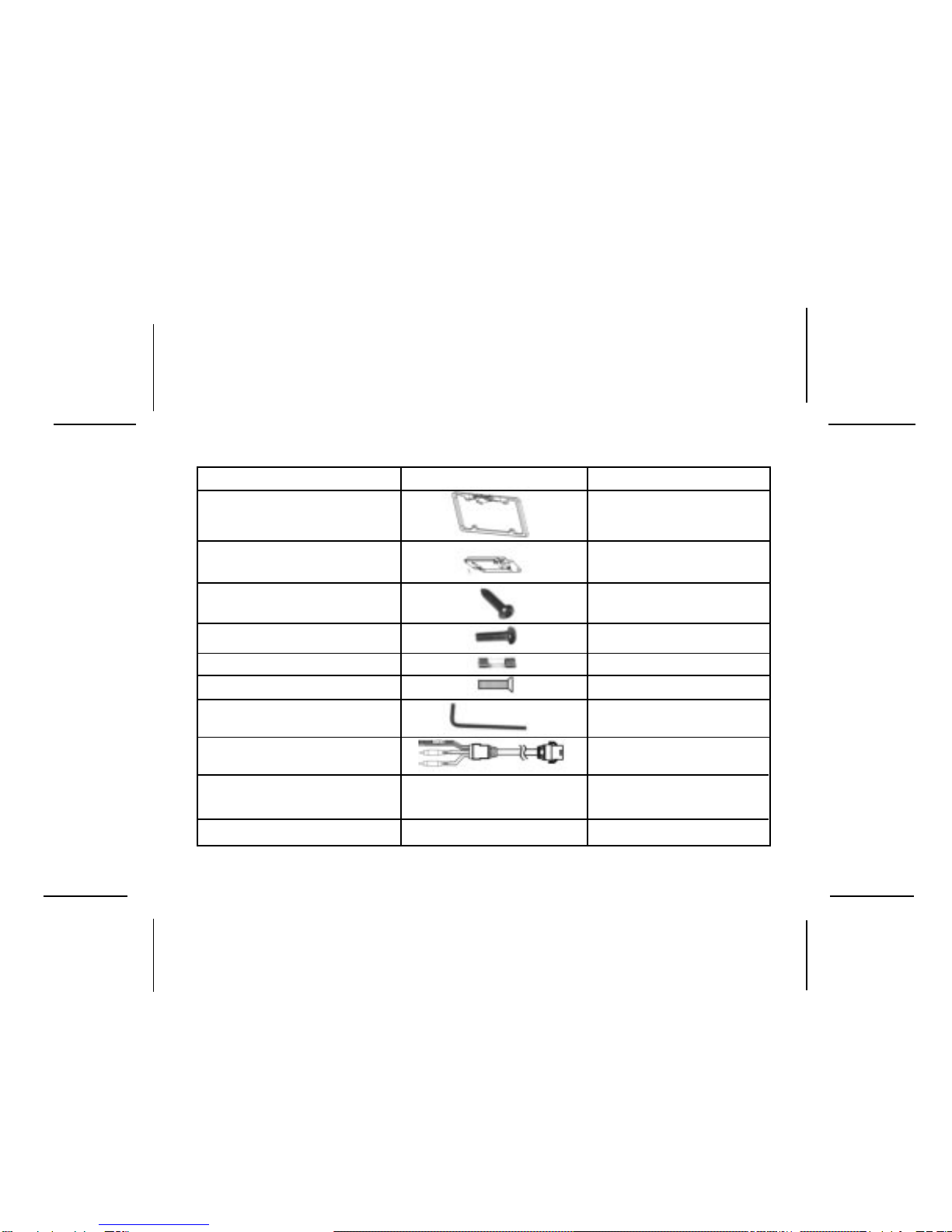

CONTENTS
LICENSEPLATE WITH 1
NONREVERSEDCAMERA
CAMERA ANGLE 1
ADJUSTMENTWEDGE
THEFT-PROOFSCREWS 2
THEFT-PROOFSCREWS 2
FUSE(1A) 1
CAMERAMOUNTINGBOLT 2
ANTI-THEFTALLENKEY 1
EXTENSIONCABLE 1
DIELECTRIC GREASE
PACKET
ITEM FIGURE QUANTITY
HEATSHRINK TUBING
1
1
128-7729
3 of 8
3

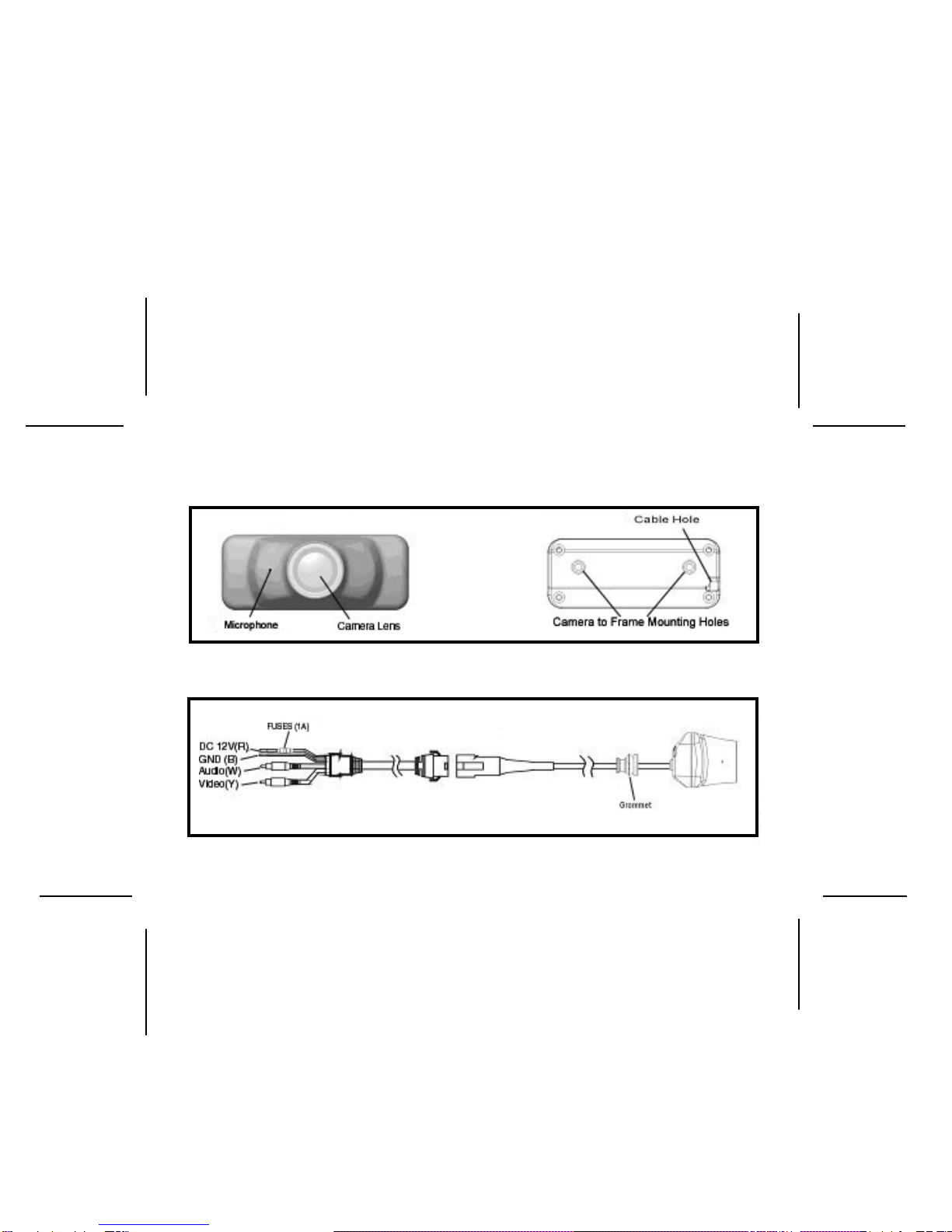

Color Camera View:
Cable Connector End View:
128-7729
4 of 8
4
Installation.
1. Locate suitable location near the vehicles rear license plate to route the camera cable. The
camera cable can be routed through an existing grommet or use a location where a 5/8” hole
can be drilled. Be sure to check behind intended drilling location. Check for camera interfer-
ence with license plate lights, hatch release switch and/or mechanism.
2. Remove the screws holding the rear license plate to the vehicle and remove plate.
3. Place the license plate into the camera license plate frame. If routing camera cable into
vehicle behind license plate, drill a 5/8-inch hole at selected location. Coat edge of hole with
rust preventative. Then route the camera cable connector through the hole and insert grom-
met into hole. Place the license plate against vehicle and line up the mounting screw holes.
Using the black screws provide, tighten the screws with the anti-theft tool provided. Pull gently
on the camera cable to remove slack.
4. If routing camera cable into vehicle above license plate, remove license plate light valence.
Drill a 5/8-inch hole at selected location. Coat edge of hole with rust preventative. Then route
the camera cable through the hole and insert grommet into hole. Place the license plate
against vehicle and line up the mounting screw holes. Using the black screws provide,
tighten the screws with the anti-theft tool provided. Pull gently on the camera cable to remove
slack.
The CCDLF camera has a non-reversed image. This camera can be used with Audiovox
LCD rear view mirrors and the LCM45NB. It can also be used with multimedia systems that
reverse the backup camera image.
128-7729
5 of 8
5
View angle adjustment:
This camera frame is designed for universal application. The angle of the image of the installed
frame might have to be adjusted depending on the license plate mounting angle. There is a 10-
degree angle adjustment wedge supplied to change the downward angle from 40 degrees to either
30 or 50 degrees. The angle wedge goes between the camera frame and camera body. Longer
camera mounting screws are provided for use with the angle wedge.
1. Turn on monitor and look at back up camera image. You should be able to see a small
portion of the vehicles bumper.
5. Connect the Camera cable to the extension cable (supplied). Route the extension
cable up to the intended monitor. Connect as follows:
a. Black wire- connect to chassis ground
b. Red wire- connect to 12V accessory wire
c. Yellow RCA- connect to Video input
d. Red RCA- connect to audio input (if equipped)
If using Audiovox LCD rearview mirror or LCM45NB, use the extension cable supplied with the
monitor.
When the connection of the Camera and Extension Cable is outside of the vehicle, (such as a Pickup
Truck Application), prior to making the connection, coat the male and female terminals with the
Dielectric grease supplied. Slide the packaged pre-sized heat shrink tube over both connectors and
shrink using a heat gun to ensure a watertight connection.
128-7729
6 of 8
6
1. LICENSE PLATE
2.CAMERA ANGLEADJUSTMENTWEDGE
3.CAMERA
Camera Installation
2. If you see too much bumper, the downward angle must be decreased. Place the thin edge
of the wedge on top between the camera and frame.
3. If you cannot see the bumper at all, the downward angle must be increased. Place the thin
edge of the wedge on the bottom between the camera and frame.
128-7729
7 of 8
7
Specifications:
1. Image Device : 1/3” CCD with 10 Bit A/D Digital Signal Processor.
2. Signal System: CCDLF NTSC, Standard image.
3. Total Effective Pixels: NTSC:537(H)*505(V).
4. Resolution: Greater than 250,000 pixels Greater than 420 TV Lines.
5. Power source : DC12V
6. Video Output:1.0Vp-p Composite( 75 ohm load).
7. Low Lux Sensitivity :0.2 Lux
8. S/N Ratio : More than 48db.
9. Current: 80mA
10. Operating Temperature: -13oF to 158oF (-25oC to 70oC)
11. WideAngle View : Diagonal 150° (natural state lens declination 40
degrees)
12. Camera Outer Dimensions: 25mm(w) x 30mm(H) x 62mm(D)
128-7729
8 of 8
8
©2006 AudiovoxElectronicsCorp.,150Marcus Blvd.,Hauppauge,N.Y.11788
128-7729
