Audiosystem SW 11 ACTIVE Manuel utilisateur

IMPORTANT: Your proof of purchase is evidence of warranty claim for repair or replacement. Keep your proof

of purchase, manual and original packaging.

IMPORTANT: Before installation of your spare-wheel-subwoofer, we recommend to read the owner‘s manual

carefully and to follow the instructions regarding connection and ﬁtting exactly.

Audio System Germany accepts no liability for hearing loss, bodily injury or property

damage as a result of use or misuse of our products. We recommend installing the equipment by an

authorized service center or dealer. A professional ﬁtting and connection is the requirement for further

warranty and perfect sound.

ATTENTION: Pay attention to advices and instructions of the car manufacturer.

ATTENTION: Use of sound components can impair your ability to hear neccessary trafﬁc sounds and may

constitute a hazard while driving your automobile.

SW 11 ACTIVE - SW 11 PASSIVE

10 - 16 V

150 W

> 92 dB

50 - 150 Hz

20 Hz

0° / 180°

35 Hz ~ 150 Hz (+/-1 dB)

< 0,3%

0 bis +12 dB

25A

0,1 V ~ 10 V (+/- 5%)

360(D) x 135(H) mm

2x 175 W

35 Hz ~ 150 Hz (+/-1 dB)

2x 2 Ohm

360(D) x 135(H) mm

equipment SW 11 ACTIVE

technical data SW 11 active

Technical data SW 11 passive

Congratulation on your purchase of your new SW-Series Subwoofers.

- 27,5cm Active-Spare-Wheel-Woofer with extremely heavy housing

- PRS (Phantom-Resistor-Simulation) impedance simulation

- Extremely wide input sensitivity from 0,1 to 10 V

- Multi-Way-Protection-Circuitry: overheating, overcurrent, short circuitry & DC protection

- High-Power-Input (normally OEM radio) with automatically „Turn-On“

- Cable-High-Level-Input or Cinch-Input

- Included RTC SW wired remote for Gain, Bass Boost, Low-Pass-Filter and Phase

blue

The SW 11 ACTIVE has RCA LOW-LEVEL inputs to connect it to the pre-output connection of the headunit

using a RCA cable. When using RCA connections you also have to connect the remote input (blue) to remote or

antenna out of headunit.

If your car radio doesn‘t have RCA outputs (normally OEM radios) you can connect the speaker outputs directly to

the HIGH-LEVEL inputs of the SW 11 Active. The ampliﬁer will turn on automatically with remote wire.

Fig. 1: Connection variant Low-Level

Fig. 2: Connection variant High-Level Fig. 3: Connection RTC SW

All settings can be adjusted by

using the RTC SW wired

remote.

You can adjust the gain, bass

boost, low-pass-ﬁlter and phase

to match the car and your pre-

ferred sound setup.

SW COnnection SW 11 PASSIVE

AMPLIFIER

It is possible to connect the SW 11 PASSIVE in different conﬁgurations. By this you can use the subwoofer

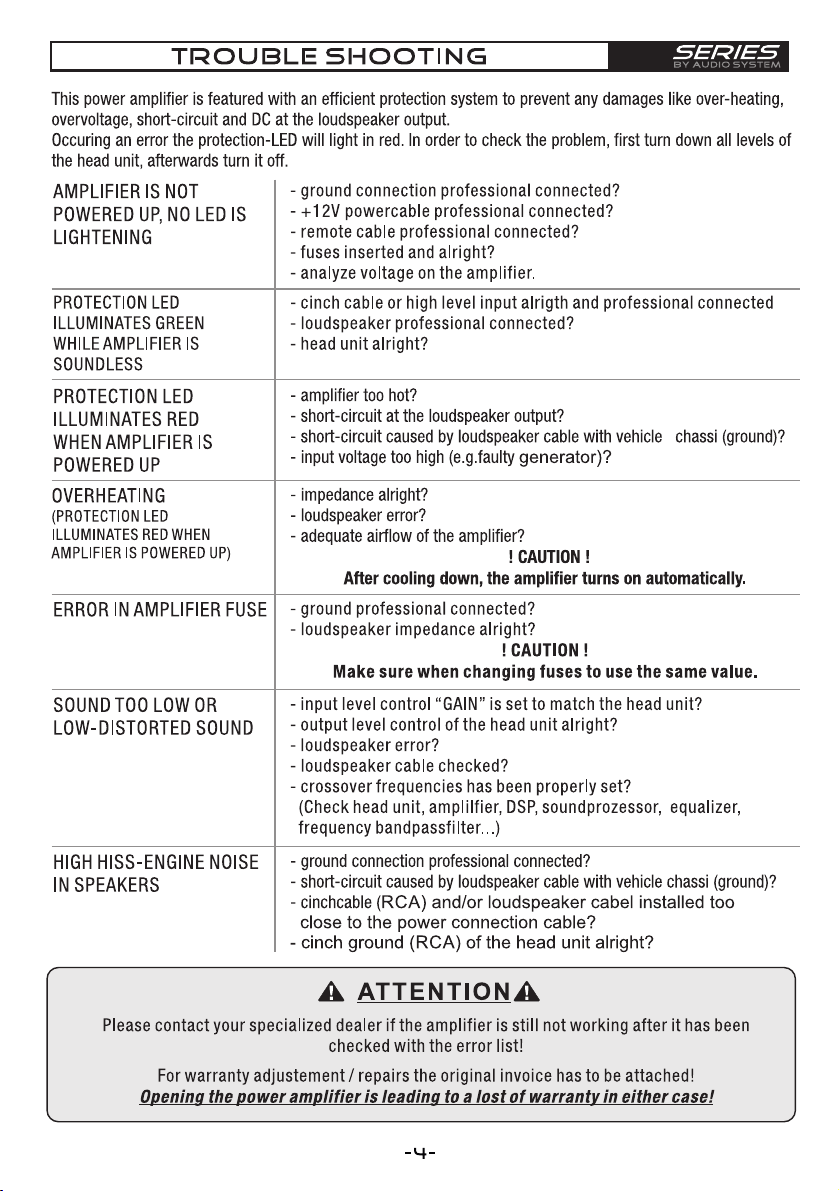

as 2x 2 Ohm (ﬁgure), 1x 4 Ohm (row) or 1x 1 Ohm (parallel) subwoofer.
