Audiolab 8200P Manuel utilisateur

8200P

8200P

VERSION HISTORY

Rev

V01

Date Update Content

2011.06.14 First Version

CONTENT

8200P

Introduction

ia

screen of Bottom

Assembly Parts List

Electronic Parts List

/

Specification

Assembly Sketch

Schematic Diagram

Wir ng Di gram

Silk Top

Maintenance Alignment Procedure

1

2

3

4

5

6

7

8

9

.

.

.

.

.

.

.

.

.

1

2

3

4-8

9

10-11

12

13-14

15-19

INTRODUCTION

1

8200P

No part of this document may be reproduced or transmitted in any form or by any means,electronic or

mechanical, for any purpose, without the express written permission of International Audio Group

Limited (IAG)

This manual is for the exclusive use of IAG, its approved distributors and approved UK service agents.

No part of this manual shall be transferred to any other party without the express written permission of

IAG.

It is the responsibility of the user to ensure that all the information contained in this manual is current.

Notification for new issues of this manual and minor updates will be given via the IAG web-site or on

request.

This manual has been prepared with the greatest care, it is intended for information only and no liability

shall be accepted for errors or changes to specification.

For further service information, parts lists and updates, please contact our web-site at

www.international audio group.com .

2011 International Audio Group Limited. All rights reserved.

C

SPECIFICATION

2

8200P

Rated Output Power 100W (20dBW) /Channel into 8 both channels drive

n

Inputs Sensitivity 1V rms for 100W into 8

Input Impedance: 50k

Load Connected in parallel with INPUT

Gain 29.0 dB at1kHz

Signal To Noise Ratio(IHF, rel. 0.dBW)Better than 95 dB

Frequency Response 20 Hz-20 kHz ±0.3 dB

0.1Hz-75 kHz -3 dB.

Total Harmonic Distortion&Noise Less than 0.05%

Channel Balance Within1dB

Polarity (Phase) Non-Inverting

Muting Muting controlled automatically

Operating Temperature Range 10-35 °C

Power Requirements(Depending on

Region)

50-60Hz 100V, 110-120V, and 220-230V models

available

Maximum Power Consumption:500 VA

Dimensions (W×H×D) 444×78×326mm

Weight Net: 8.4 kg Shipping: 9.8 kg

ASSEMBLY SKETCH

3

8200P

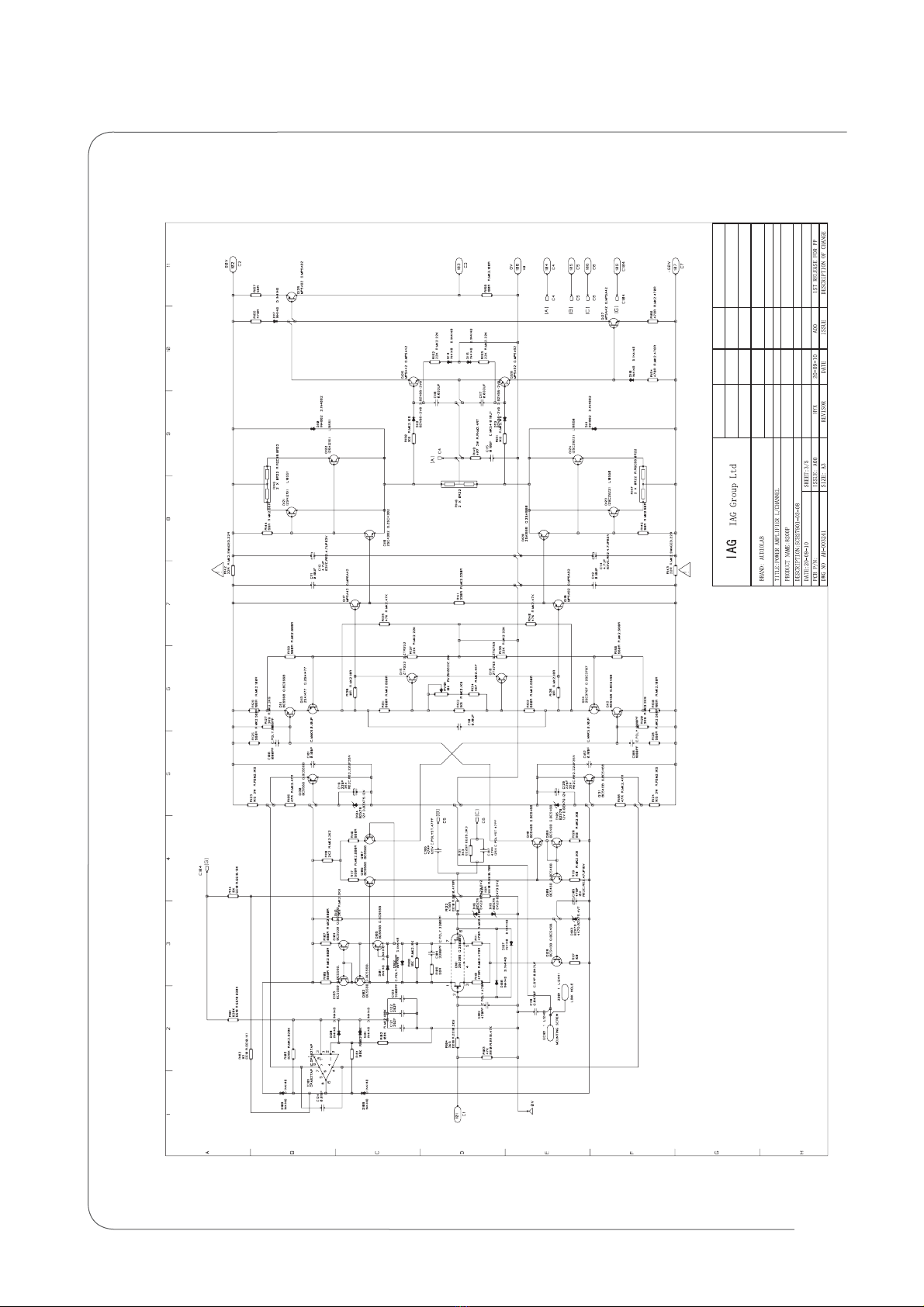

SCHEMATIC DIAGRAM

8200P

4

8200P-Mainboard-P1/5

C358 10NF

OV

C358 10NF

OV

A01

SCHEMATIC DIAGRAM

5

8200P

8200P-Mainboard-P2/5

SCHEMATIC DIAGRAM

6

8200P

8200P-Mainboard-P3/5

SCHEMATIC DIAGRAM

7

8200P

8200P-Mainboard-P4/5
