VIDEO CONNECTIONS

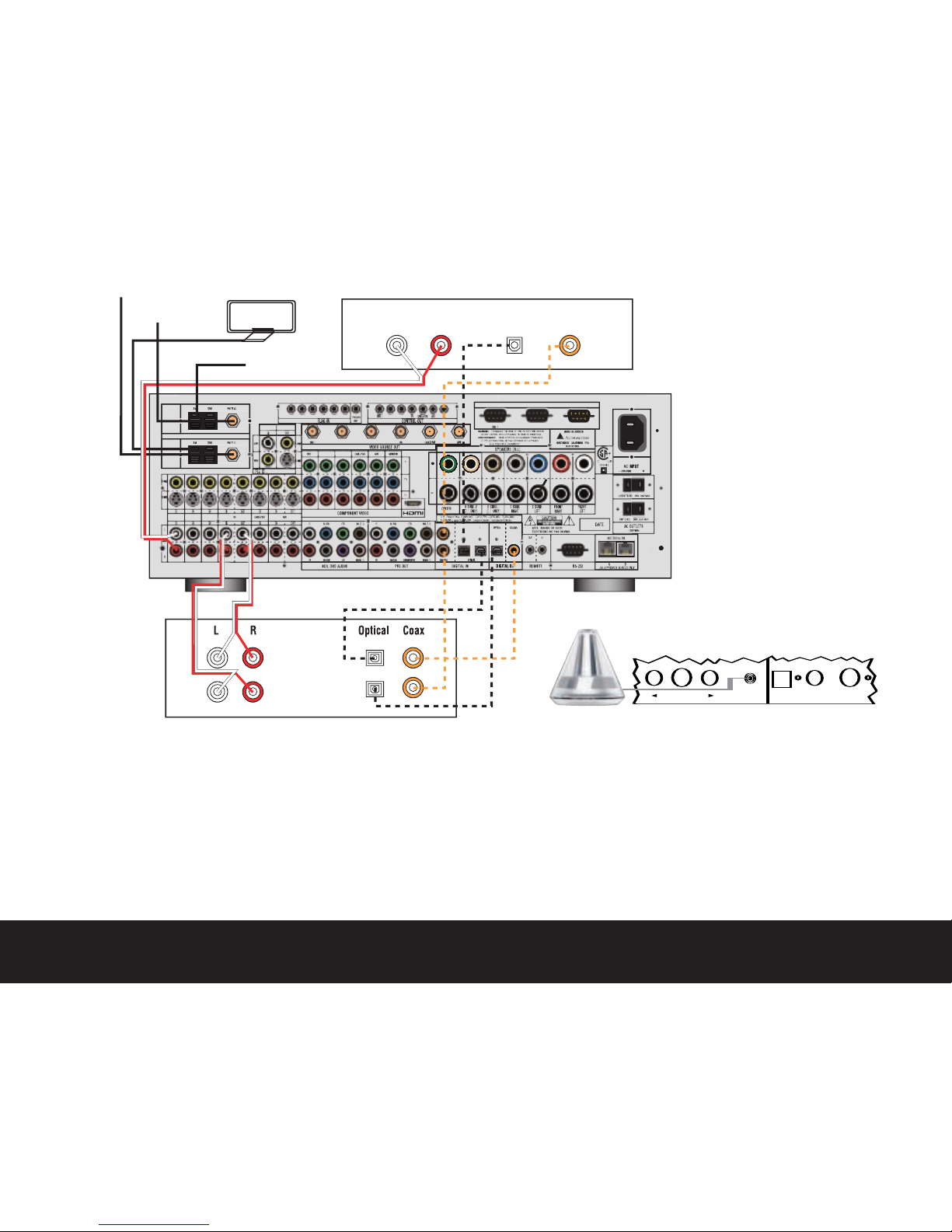

Device Connection Options:Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Front Input Analog Audio and Composite, S-, or Component Video, Digital Audio Coaxial 3 and
Digital Audio Optical 3 inputs areon the front of the receiver.
Device Input Name Audio Input Connections Audio Output Connections Video Connections
DVD Player Disc 1 Coaxial Digital 1, 2orOptical Digital 1, 2 or Disc 1 L/R Inputs Not Required Disc 1 Component Video Input, Composite or S-Video
CD Disc 2 Coaxial Digital 1, Coaxial Digital 2, Optical 1, 2 or Disc 2 L/R Inputs Not Required Not Required
iPod Disc 3
Disc 3
L/R Inputs Not Required Composite
VCR/TiVo®VR VR L/R Inputs VR L/R Outputs VR Composite or S-Video Input and Output
Cable Box or Satellite Receiver Cable/Sat
Cable/SATL/R Inputs, Optical Digital 1 or 2†or Coaxial Digital 1 or 2†Inputs
Not Required Component Cable Sat, Composite or S-Video
TV or Video Display Not Applicable Not Required Not Required Monitor-Out HDMI Component, Composite and/or S-Video
†Check with your cable company to determine whether digital audio is available for all channels. It may be necessary to make BOTH analog and digital connections if it is not.
NOTE: If a multiroom network is used, analog audio and composite video must be connected for all sources. In addition to analog audio and composite video, other audio and video inputs can be connected for use in the main room.
250 Crossways Park Drive, Woodbury,New York 11797 www.audioaccess.com ©2007 Harman International Industries, Incorporated. All rights reserved. Part No.ZKD6615HA00
Figure 6 – Video Connections
Dotted lines (••••)indicate component, composite
or S-video connections from your video source
equipment to the AVR21EN. Component video is
the preferred connection from your sources when
available, but you may use any of the three types.
The AVR21EN is configured from the factory to
automatically select the highest-quality video
connection for a source if more than one type of
video output is connected from the same source.
For AVR21EN to TV/projector connection, HDMI
(if available on TV/projector) or component video
connection is preferred. If you are connecting
composite video or S-video sources and only
connecting the component outputs to your TV, or
if using the HDMI output of the AVR21EN, make
sure that the Faroudja video processor is on (press
the FAROUDJA button on your remote control).
Switch your TV set’sinput to match the type of
video used for the currently selected source.
NOTE: You must connect composite video in
addition to any other video connection from all
video sources if you are using the multiroom
video distribution network.
