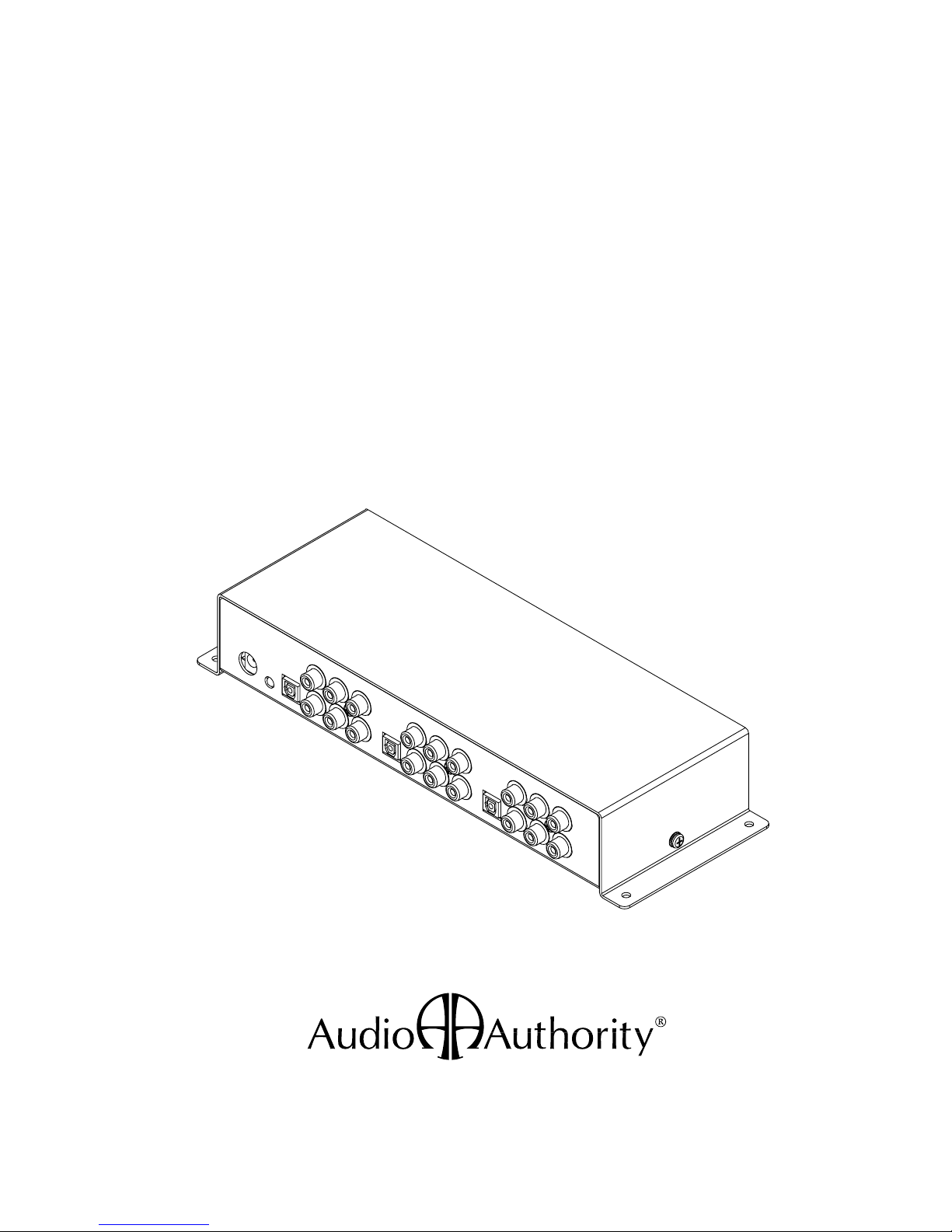

Audio Authority 1185ci Manuel utilisateur
User Manual
Model 1185ci
HDTV Signal Distribution Amplier
2
3
Model 1185ci
HDTV Signal Distribution Amplier
Table Of Contents
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 Liability Statement . . . . . . . . . . . . . . . . . . . 3
3.0 Checking Package Contents . . . . . . . . . . . . . . . 3
4.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . 5
5.0 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 5
6.0 Limited Warranty . . . . . . . . . . . . . . . . . . . . 6
7.0 Specications . . . . . . . . . . . . . . . . . . . . . . 7
8.0 Regulatory Compliance . . . . . . . . . . . . . . . . . 7
9.0 Contact Information . . . . . . . . . . . . . . . . . . . 8
1.0 INTRODUCTION
Thanks for purchasing this Model 1185ci Signal Distribution
Amplier from Audio Authority. This product is designed to allow
audio and high denition video signals to be distributed to a total
of four destinations, without signal degradation. The Model 1185ci
is the rst Audio Authority distribution amp expressly designed
for Custom Installers of Home Theater systems. It includes the
most-asked-for features, such as ultrawide video bandwidth, audio
channels that also pass sync for RGBHV displays, and full optical/
coaxial support of digital audio with automatic conversion. Housed
in a durable steel enclosure, the Model 1185ci also has side-looking
input and output jacks for extra compact cable routing. Audio
Authority also offers an extensive line of audio and video switchers,
converters, and distribution amps available for purchase online at
www.audioauthority.com or through authorized dealers.
2
3
1.1 Liability Statement
Every effort has been made to ensure that this product is free of
errors. Audio Authority cannot be held liable for the use of this
hardware or any direct or indirect consequential damages arising
from its use. It is the responsibility of the user of the product to
check that it is suitable for his/her requirements and that it is
installed correctly. All rights reserved. No parts of this manual may
be reproduced or transmitted by any form or means electronic
or mechanical, including photocopying, recording, or by any
information storage or retrieval system without the written consent
of the publisher.
Audio Authority reserves the right to revise any of its hardware and
software following its policy to modify and/or improve its products
where necessary or desirable.
Audio Authority and the Double-A Symbol are registered trademarks
of Audio Authority Corp. Copyright April, 2006, all rights reserved.
All third party trademarks and copyrights are recognized.
1.2 FEATURES
• Ultra-high bandwidth
• Supports 480i, 480p, 720p, 1080i, 1080p and other resolutions
• One input, four outputs
• Component video with stereo audio or RGBHV
• Rugged all-metal construction
• Compact form factor: 1.75 x 10.5 x 4.1 (HxWxD, inches)
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make certain the following items are contained in the shipping
carton:
• 1185ci Distribution Amplier
• 12V DC Power Adapter
• User Manual
Note: Please retain the original packing material should the need ever arise
to return the unit. If you nd any items are missing, contact Audio Authority
immediately. Have the Model Number, Serial Number, and Invoice available for
reference when you call.
4
5
12V DC
DIGITAL
AUDIO
OPTICAL
LEFT RIGHT
PrPb
YVIDEO:
COAX DIGITAL
AUDIO
OPTICAL
LEFT RIGHT
PrPb
YVIDEO:
COAX DIGITAL
AUDIO
OPTICAL
LEFT RIGHT
PrPb
YVIDEO:
COAX
POWER
234
Made in USA • Audio Authority, Lexington, Kentucky
800-322-8346 • 859-233-4599 • www.audioauthority.com
RGB / YPbPr
DIGITAL
AUDIO
OPTICAL
LEFT RIGHT
PrPb
YVIDEO:
COAX INPUT
DIGITAL
AUDIO
OPTICAL
LEFT RIGHT
PrPbYVIDEO:
COAX
1
MODE
SWITCH
POWER
CONNECTION
POWER
INDICATOR
DIGITAL
AUDIO
COMPONENT
VIDEO
ANALOG AUDIO
-OR-
H AND V SYNC
WHEN IN RGB MODE INPUT JACKS
Physical Dimensions: 1.75 x 10.5 x 4.1 (HxWxD, inches)
4
5
4.0 INSTALLATION
Connect the input port to a source of Component or RGB video
using high-quality patch cables. Connect each of the four outputs to
its destination television using coaxial cable suitable for baseband
video, such as RG-59 with a solid copper center conductor. Do not use
RG-6 or steel-core cable. Plug the included 12 volt DC power supply
into the Model 1185ci Power jack and plug the wall adapter into an
AC outlet.
4.1 VIDEO APPLICATIONS
The 1185ci may be used for either YPbPr or RGBHV video. Do not mix
video signals in a single application.
When using Component Video, set the mode switch to YPbPr and
connect audio and video cables as indicated on the panel legends. In
RGB applications, set the switch accordingly and connect the video
cables acording to the jack color code. In the case of RGBHV, the
wideband audio channels are used to pass horizontal and vertical
sync instead of analog audio so only digital audio pathways are
available.
5.0 TROUBLESHOOTING
• Ground loops often cause disturbances such as hum in the audio
channels, rolling bars in the picture, or jitter in RGBHV video. In
the event a ground loop interferes with downstream television
performance, add an Audio Authority Model 1184 Hum Eliminator
at each television that exhibits the symptoms.
• Make certain that the Distribution Amplier is receiving power
by looking at the power LED. It should be illuminated and
not ickering or intermittently going on and off. Intermittent
operation generally means a problem with the DC power adapter
or low AC voltage being applied to the DC adapter’s input.
• In RGB applications, be sure all ve video cables are connected
– RGB requires separate cables to pass H and V (horizontal and
vertical sync) in addition to the cables for red, green, and blue.
Connect the H and V cables to the R and L audio jacks.
If the problem still persists after trying the above suggestions,
contact the Audio Authority Technical Service department via email:
support@audioauthority.com, or call 800-322-8346 or 859-233-4599.
6
7
6.0 LIMITED WARRANTY
Should any consumer use product from Audio Authority fail due to
defects in materials or workmanship within one year from the date
of the original sale to the end-user, Audio Authority guarantees that
we will replace the defective product at no cost. Freight charges for
the replacement unit will be paid by Audio Authority (ground service
only). A copy of the invoice showing the item number and date of
purchase (proof-of-purchase) must be submitted with the defective
unit to constitute a valid in-warranty claim.
Units that fail after the warranty period has expired may be returned
to the factory for repair at a nominal charge, if not damaged beyond
the point of repair. All freight charges for out-of-warranty returns
for repair are the responsibility of the customer. Units returned for
repair must have a Return Authorization Number assigned by the
factory.
This is a limited warranty and is not applicable for products which,
in our opinion, have been damaged, altered, abused, misused, or
improperly installed. Audio Authority makes no other warranties
either expressed or implied, including limitation warranties as to
merchantability or tness for a particular purpose. Additionally,
there are no allowances or credits available for service work or
installation performed in the eld by the end user.
6.1 WARRANTY SERVICE PROCEDURES
If you suspect a product defect, contact Audio Authority’s Technical
Service Department at 800-322-8346 or 859-233-4599 for assistance in
verifying the problem. If a defect or potential defect is suspected, a
replacement unit will be shipped immediately on a defect-exchange
basis and a Return Authorization Number will be issued for the
return of the defective product. Replacement units are sent out at
the Manufacturer’s Suggested Retail Price which is debited to the
Customer’s Credit Card at the time of shipment. Once we receive
the defective unit back at the factory, it will be evaluated under the
conditions of this warranty and if found to be in-warranty, a full
credit will be issued to the Customer’s Credit Card. Return freight
charges for the defective unit are the customer’s responsibility.
Please contact our Technical Service Department for complete details
concerning all in and out of warranty service matters.
We appreciate your condence in our products and services and will
always strive to meet or exceed your needs.
6
7
7.0 SPECIFICATIONS
Video Parameters
Signal Type Component/RGBHV
Video Resolutions Supported All, including 480i/p, 720p, 1080i/p
Input/Output Impedance 75 ohms
Input Ground Isolation No
Gain Unity gain (1-to-1)
Gain Accuracy 1%
3dB Bandwidth 250MHz
Input Coupling AC/sync tip clamped
S/N Ratio 65dB
Max Gain/Equalization 1
Audio Parameters
Analog/Digital Digital/Analog
Digital Input/Output Type Optical+Coaxial In/Out
Input Impedance 75 ohms/10K ohms
Min Load Impedance 75 ohms/10K ohms
Multi-channel Digital Yes
Frequency Response DC-1MHz
S/N Ratio 72dB
THD+Noise 0.05%
Crosstalk 62dB
DC Input Connector 5.5 X 2.1mm
DC Input Voltage/Polarity 12V/Center positive
Max DC Input Current 180mA
Power Supply 571-013
8.0 REGULATORY COMPLIANCE
The 1185ci has been tested for compliance with appropriate FCC and
CE rules and regulations and is also RoHS compliant.
The Power Adaptor/Supply included with this unit has been tested
for compliance with UL, CE, and CSA rules and regulations and is
RoHS compliant.
2048 Mercer Road, Lexington, Kentucky 40511-1071
Phone: 859/233-4599 • Fax: 859/233-4510
Customer Toll-Free USA & Canada: 800/322-8346
Website: http://www.audioauthority.com
752-545
6/07
9.0 CONTACT INFORMATION
If you have questions or require assistance with this product in areas
not covered by this manual, please contact Audio Authority using the
information below.
Audio Authority Technical Service
800-322-8346 M-F 8:30 AM to 5:00 PM, EST
International: 859-233-4599 Fax: 859-233-4510
Send email to: support@audioauthority.com
Audio Authority Corporation
2048 Mercer Road
Lexington, Kentucky 40511-1071
USA
Table des matières
Autres manuels Audio Authority Amplificateur
Audio Authority
Audio Authority AMP-1235 Manuel du propriétaire
Audio Authority
Audio Authority SF-16M Manuel
Audio Authority
Audio Authority 985DTV Mode d'emploi
Audio Authority
Audio Authority SF-16M Mode d'emploi
Audio Authority
Audio Authority SF-16M Mode d'emploi
Audio Authority
Audio Authority 1374A Manuel utilisateur
Audio Authority
Audio Authority 985U Mode d'emploi
Audio Authority
Audio Authority 1816-1 Manuel utilisateur
Audio Authority
Audio Authority 1398C Manuel utilisateur
Audio Authority
Audio Authority High Definition Cat 5 Matrix AVX-562 Manuel utilisateur
Audio Authority
Audio Authority 1710A Manuel utilisateur
Audio Authority
Audio Authority 9850 Mode d'emploi
Audio Authority
Audio Authority ADX-1616 Manuel
Audio Authority
Audio Authority DTV Manuel utilisateur
Audio Authority
Audio Authority 1710A Manuel utilisateur
Audio Authority
Audio Authority SonaFlex SF-16M Manuel utilisateur
Audio Authority
Audio Authority Sona Flex SF-16B Mode d'emploi
Audio Authority
Audio Authority 1392 Manuel utilisateur
Audio Authority
Audio Authority 1394A Manuel utilisateur
Audio Authority
Audio Authority Distribution Amplifiers 985DTO Mode d'emploi
