Auber Instruments KIT-Cube5E Manuel utilisateur

AuberInstruments,Inc.  www.auberins.com

Nopartofthismanualshallbecopied,reproduced,ortransmittedinanywaywithouttheprior,writtenconsentofAuberInstruments.Auber

Instrumentsretainstheexclusiverightstoallinformationincludedinthisdocument.



KIT-Cube5E Assembling Guide

Version0.9

(2023‐04‐21)



ThisassemblingguideonlyprovidesbasicguidanceonhowtoassemblethepartsinKIT‐CUBE5Etogether.The

personwhoattemptstoassembletheKIT‐CUBE5Eshouldhavebasicknowledgeofelectricalcircuits,can

understandwiringdiagrams,andcanusetoolssuchasamultimeter,screwdrivers,andetc.



Beforeyoustarttheassemblingprocess,pleasereadthewiringdiagramofCube5Eandunderstandeachpartis

wiringtothecircuit.



Weusethe“WiringKit”ofKIT‐CUBE5Einthisassemblingprocess.



1. Preparation

1.1. Parts

Pleaseseethepartlistincludedwiththekit.



1.2. Tools

 Flat‐endpunches(orsimilar)andasmallhammer(forremovingknockouts)

 Phillipsscrewdrivers

 Flat‐headscrewdrivers

 Adjustablewrenchorsocketwrenches

 Pliers

 Multimeter(fortroubleshooting,ifneeded)

2. Installing Components

2.1. DisassembletheEnclosure

Removethebottomplate(Figure2‐1‐a)andthebackplate(Figure2‐1‐b)byremovingthe

screwspointedbytheredarrows.



Figure2‐1‐a Figure2‐1‐b





AuberInstruments,Inc.  www.auberins.com

Page2of11



2.2. RemovetheKnockouts

Thereareafewknockoutholesontheback‐plateandoneknockoutholeonthefrontofthe

enclosurethatneedtoberemoved.PleaseseeFigure2‐2‐aandFigure2‐2‐bforthefinal

resultafteralltheknockoutsareremoved.Useflat‐endpunches(Figure2‐2‐c)andahammer

toremovetheknockoutsasshowninFigure2‐2‐d.



Figure2‐2‐a Figure2‐2‐b





Figure2‐2‐c Figure2‐2‐d



2.3. InstallComponentstotheBack‐Panel

IdentifythepowerconnectorsandtheXLRCON‐Mconnectorfromthepartsyoureceived,

installthemtotheirknockoutholesasshowninFigure2‐3(a)and(b).Pleasenotethatonly

thetwoNEMA5‐15Rsocketsaresnap‐inconnectors,otherconnectorsshouldbetightenedto

theback‐panelbyscrews.



AuberInstruments,Inc.  www.auberins.com

Page3of11



Figure2‐3‐a Figure2‐3‐b



2.4. InstallFuseBlocks

Installthetwofuseblockstotheleftsideoftheenclosure.Foreachfuseblock,firstalignthe

smallanti‐rotationtabandthescrewholewiththeholesontheenclosure(Figure2‐4‐a),then

securethefuseblockusingtheM3screwandnut(Figure2‐4‐b).Makesurethefuseblockis

notremovingaround,theninstallthefuse.





Figure2‐4‐a Figure2‐4‐b



2.5. InstallComponentstotheFront‐panel

Installthetwoselectorswitches(SW4)tothetwoAUXswitchholesonthefrontplate.Align

theselector’stwoswitchpositionswiththe“OFF”andthe“ON”markersonthefrontplate.

EachoftheSW4istightenedbytwoscrews,oneonthetopandoneonthebottomasshown

inFigure2‐5‐a.Tightenedthesetwoscrewstilltheswitchissecureandwon’trotate.



Installthepush‐buttonswitch(SW9‐UL)totheknockoutholeonthelowerfrontpanelofthe

Cubeenclosure.ThisswitchistightenedbyahexnutasshowninFigure2‐5‐a.Insertthe

suppliedwiringharness(WH‐16)tothisswitch.Youcanremovetheredwireforthenormally

closed(N.C.)pinfromthewiringharnessasshowninFigure2‐5‐b.



AuberInstruments,Inc.  www.auberins.com

Page4of11



Figure2‐5‐a Figure2‐5‐b



InstalltheEZboilcontrollertothecenterholeonthefrontplate.Installthetwowoodscrews

suppliedwithEZboilcontrollertohelpsecurethemountingbracketagainstthefrontplate

(Figure2‐5‐c).

Figure2‐5‐c



2.6. InstalltheSSRandtheHeatsink

Placethesiliconeheat‐transferpadontheheatsink(Figure2‐6‐a),thenplacethesolid‐state

relay(SSR)onthepad,usetwooftheM4screwstofixtheSSRtotheheatsink.Placethe

heatsink/SSRassemblytothetopoftheCubeenclosure,install4piecesofM6screws

suppliedwiththekittosecuretheheatsinktothetopoftheenclosure(Figure2‐6‐b).



AuberInstruments,Inc.  www.auberins.com

Page5of11



Figure2‐6‐a Figure2‐6‐b



3. Installing Wires

ImportantNotesonWiring

 Thecolorcodefor14AWGand10AWGwires

o Green:groundingwire

o White:neutralwire

o Black:hot,L1line

o Red:hot,L2line

 Threesizesofwiresareused:

o 22AWGwiresarecontrolwiresthatonlycarrysmallcurrent.

o 14AWGwireareforAUXsocketsthatcarrylessthan15Aat120VAC.

o 10AWGwiresareforthemaininput/outputthatislessthan30Aat240VAC.



3.1. InstallGroundWiresontheBack‐panel

InstallthegroundwiresasshowninFigure3‐1.UseoneofthemountingscrewsontheL14‐

30Rpowerinletasthegroundingpost.



3.2. InstallwirestotheAUXSockets

InstallthehotwireandtheneutralwiretoeachoftheAUXsockets(NEMA5‐15Rsockets)as

showninFigure3‐2.Theblackwiresontheleftarethehotwiresandthewhitewiresonthe

rightistheneutralwires.



AuberInstruments,Inc.  www.auberins.com

Page6of11



Figure3‐1 Figure3‐2



3.3. InstalltheNeutralWiresandNeutralWireBus

Useoneofthe5‐polewireconnectorsuppliedinthekitastheneutralbus.Eachofthewhite

wiresonAUXsocketshasabaretip.Insertthebaretiptothe5‐poleconnectorasshownin

Figure3‐3‐b.Installthepinconnectorofthe10AWGwhitewiretotheL14‐30Ppowerinlet

andinsertthebaretipontheotherendtothe5‐poleconnector.Identifyapieceof22AWG

whitewirefromthewiringkitandconnectittothe5‐poleconnector.



Figure3‐3‐a Figure3‐3‐b



3.4. InstallL1andL2WirestotheInputandtheOutputSockets

Identifythe4piecesoflong10AWGwiresfromthekit(ashorterblack10AWGwireisnot

neededforthisstep),andinstallthemtothepowerinletandthepoweroutletasshownin

Figure3‐4(a)and(b).TheblackwiresinthewiringkitareforL1(line1)wiresandthered

wiresareforL2(line2)wires.Pleasenotethatthewiresinstalledtothepoweroutlet(L6‐30R)

shouldhaveforkconnectors,andthewiresinstalledtothepowerinlet(L14‐30P)shouldhave

pinconnectors.



AuberInstruments,Inc.  www.auberins.com

Page7of11



Figure3‐4‐a Figure3‐4‐b



3.5. InstallWiresontheFrontPanel

Usetheother5‐polewireconnectorastheHotBus.OnthetwoAUXselectorswitches(SW4),

removeoneblockfromeachswitchbecauseweonlyneedoneblockoneach.Theblackwires

forthisstepare14AWGwireswithforkconnectorononeend,baretipontheotherend.

InstallonewiretoeachswitchblockandinsertthebaretiponotherendtotheHotBus

connector(seeFigure3‐5‐a).



Next,connecteachswitchblocktothefuseblock.Theblackwiresforthisstepare14AWG

wireswithforkconnectorononeend,femalequick‐disconnectconnectorontheotherend

(seeFigure3‐5‐b).



Onthewiringharness(WH16)ofthecontrollerswitch(SW9‐UL),thereare4pieceswiresleft,

black(LEDhot),white(LEDneutral),green(N.O.),andblue(common).Theblackandtheblue

wirefromthewiringharnessshouldbeinsertedtotheHotBus.Thewhitewirefromthe

wiringharnessshouldbeconnectedtotheEZboilcontroller’s#9,andthegreenwirefromthe

wiringharnessshouldbeconnectedtocontroller’s#10terminal.Thewiresonthewiring

harnessdon’thaveforkconnectorsinstalled.



(Note:weaddedforkconnectorstothewiresconnectedtotheEZboilcontrollerbutthisstepisnotrequiredaslong

asthewiresarefirmlyclampedbythescrewterminals.)





AuberInstruments,Inc.  www.auberins.com

Page8of11



Figure3‐5‐a Figure3‐5‐b



3.6. InstallWirestotheMainBreakerSwitch

Nowthereshouldbeashorterpieceof10AWGblackwireleftinthewiringkit.Installittothe

MainBreakerSwitch’stopleftportasshowninFigure3‐6‐a.Theninstalltheblackwire(L1)

andtheredwire(L2)fromthepowerinlet(L14‐30P)tothelowersideoftheMainBreaker

SwitchasshowninFigure3‐6‐b.Installtheredwire(L2)fromthepoweroutlet(L6‐30R)tothe

topleftportontheMainBreakerSwitch(Figure3‐6‐b).Theblackwiresshouldbeontheleft

sideoftheMainBreakerSwitchandtheredwiresshouldbeontherightside(Figure3‐6‐c).



Figure3‐6‐a Figure3‐6‐b Figure3‐6‐c



3.7. InstalltheMainBreakerSwitchtotheFrontPanel

First,installthebracketoftheMainBreakerSwitchtothefrontpanel(Figure3‐7‐a).Turnthe

breaker(aswellastheback‐panel)tothecorrectorientationandpushitintothebracketas

showninFigure3‐7‐b.Onceitisfittedin,thetwobottomtabsonthebracketshouldsnapin

andholdthebreakerinplace(Figure3‐7‐c).



InserttheshortblackwireonthebottomofthebreakertotheHotBusasshowninFigure3‐

7‐c.

AuberInstruments,Inc.  www.auberins.com

Page9of11



Figure3‐7‐a Figure3‐7‐b Figure3‐7‐c



3.8. Connectwirestothesolid‐staterelay

Installtheshortblack10AWGwiretothe#1pinontheSSRandinstalltheblack10AWGwire

fromtheL6‐30Rsockettothe#2pinontheSSR(Figure3‐8‐a).Pre‐bendthewiretoaproper

shapefirst,andtheninserttheforkconnectortothescrewterminal.Tightenthescrewso

thattheconnectorisfirmlysecured.



InstallthecontrolsignalwiresbetweentheEZboilcontrollerandtheSSR(Figure3‐8‐b).Please

notethatthecontrolsignalis12VDCandithaspolarity.Thepositivesignalfromcontroller’s

#7shouldbeconnectedtotheSSR’s#3pin.





Figure3‐8‐a Figure3‐8‐b



3.9. ConnectwirestotheEZboilcontroller

AuberInstruments,Inc.  www.auberins.com

Page10of11



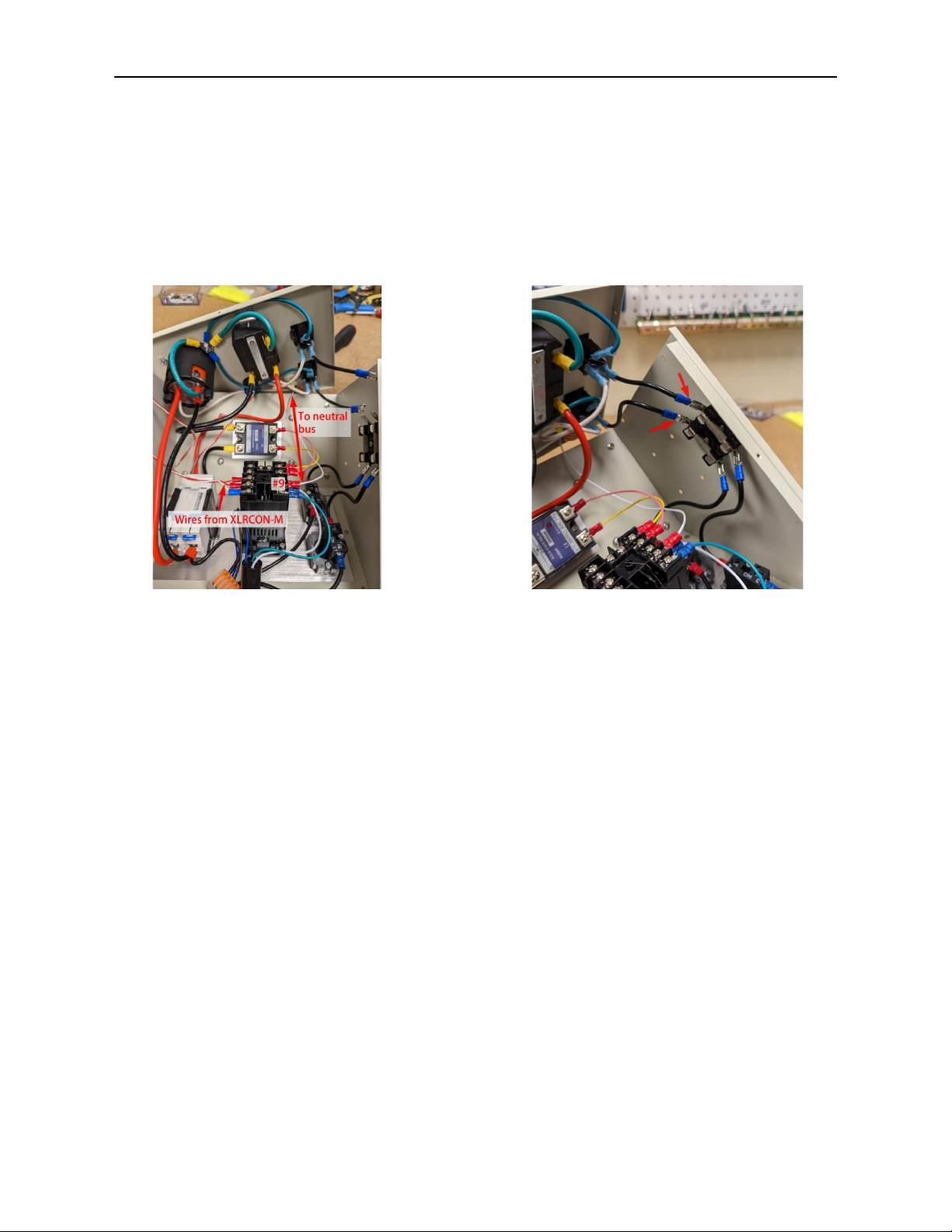

Installthethreewiresfromtheprobeconnector(XLRCON‐M)totheEZboilcontrolleras

indicatedbythestickeronthecontroller.Thetwowiresofthesamecolorshouldbe

connectedto#3and#4,theotherwireto#5asshowninFigure3‐9.



Identifythe22AWGwhitewireontheneutralbus.Connectitsforkconnectortothe#9pin

onthecontroller.Ensurethatanotherwhitewirefromtheswitchwiringharnessisalsofirmly

installedtothe#9pinonthecontroller(Figure3‐9).



Figure3‐9 Figure3‐10



3.10. ConnectAUXSocketsandFuseBlocks

Connecttheblack14AWGwiresontheAUXsocketstothecorrespondingfuseblocksas

showninFigure3‐10.



Atthispoint,allthepartsandwiresshouldhavebeeninstalled.



4. Inspection and Assemble the Cube

4.1. Inspection

Checkforanylooseorfreewires,oranymismatchofthewirecolorbetweenthewiringin

yourCubeunitandtheimageinFigure4‐1.Checkthewiringagainstthewiringdiagram.
