SE5001 Ethernet Serial Server

Quick Start Guide

Version 1.5

September 2011

Tel: 886-3-5508137

Fax: 886-3-5508131

http://www.atop.com.tw

Quick Start Guide Version 1.5

SE5001 Ethernet Serial Server

This document is intended to provide customers with brief descriptions on the product and to assist

customers to get started. For detail information and operations of the product, please refer to the user’s

manual in the product CD.

1.Packaging

Please check your package contains the following items:

SE5001 Series Serial Server

Quick Start Guide

Product CD

Wall mounting screws

3 pin terminal block for power input

5-pin terminal block with lock*1 (SE5001-S5is or SE5001-S5-TB only)

Optional Accessories

Name

Part Number

Description

DK-25

30200000000022G

DIN-Rail Kit

UN305-0510(US-DC)

50500051500001G

DC jack (1.35/3.5/7.5 mm) power adaptor,

100-240VAC input, 1.0A @ 5 VDC output, US plug

UNE305-0510(EU-DC)

50500051500011G

DC jack (1.35/3.5/7.5 mm) power adaptor,

100-240VAC input, 1.0A @ 5 VDC output, EU plug

US315-12(US-TB3)

70100000000027G

3-pin Terminal block (5.08 mm) power adaptor,

100-240VAC input, 1.25A @ 12VDC output, US plug

USE315-12(EU-TB3)

70100000000028G

3-pin Terminal block (5.08 mm) power adaptor,

100-240VAC input, 1.25A @ 12VDC output, EU plug

2.Hardware Setup

SE5001/SE5001-S2/SE5001-S5

SE5001-S5is (with isolation)

Figure 2.1. SE5001 Series Interface

LED Indicators:

Quick Start Guide Version 1.5

SE5001 Ethernet Serial Server

LAN LED

Message

Description

Off

Ethernet Disconnected

Blinking with Green

Data is transmitting on Ethernet for 100Mbps

Blinking with Orange

Data is transmitting on Ethernet for 10Mbps

COM Port LED

Message

Description

Off

No data is transmitting on COM port

Blinking

Data is transmitting on COM port

RUN LED

Message

Description

AP firmware is disabled

Blinking (rate: 0.5 Sec)

AP firmware is running normally

Installation Procedures:

Step 1: Step 1: Connect SE5001 to a power source using its 5V DC Jack or its 9-30V DC Terminal

Block. Note that the DC Jack is 5V only and should be used with a power adaptor.

Step 2:Connect SE5001 to the Ethernet network. Use a standard straight-through Ethernet cable when

connecting to a hub/switch. To simply the setup, a cross-over Ethernet cable can be used to

connect the serial device server to a PC directly.

Step 3: Connect SE5001’s serial port to a serial device.

Step 4: Placement options: Mount SE5001 to a wall/panel (Mounting screws included) or Din-Rail rack

(Din-Rail-Kit DK-25).

3. Software Setup

Default Network Setting:

Default User Name/Password:

IP: 10.0.50.100

User Name: admin

Gateway: 10.0.0.254

Password: null (leave it blank)

Subnet: 255.255.0.0

Auto IP (Dynamic IP):

A DHCP server can automatically assigns the IP address and network settings. SE5001 supports the

DHCP function. By default, the DHCP function on SE5001 is disabled; you can use SerialManager to

enable this function (refer to Figure 3.1).

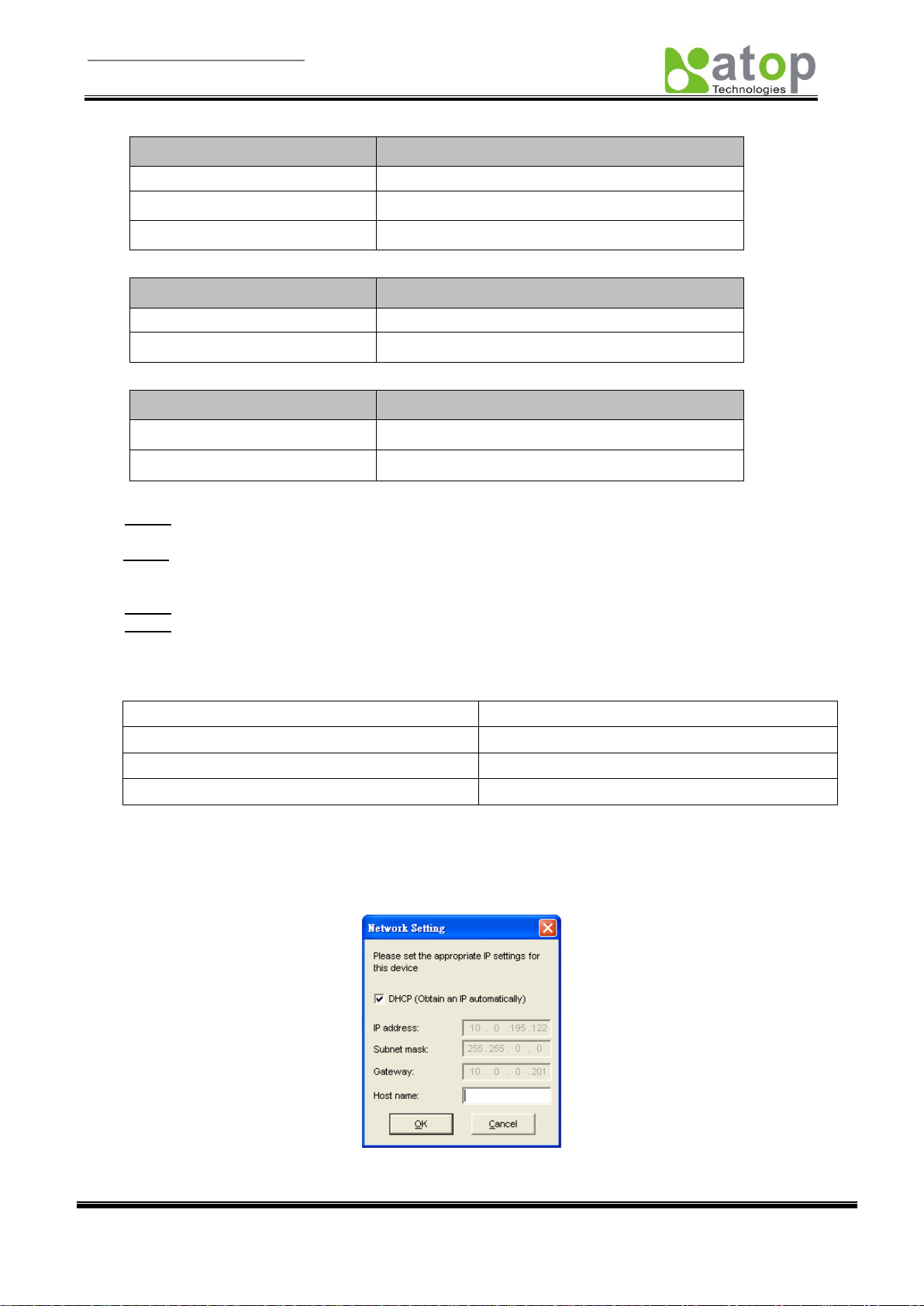

Figure 3.1. SerialManager utility Dialog Window

Quick Start Guide Version 1.5

SE5001 Ethernet Serial Server

Assign a Static IP address by:

A. Using Telnet

1. Make sure the PC is on the same network subnet as SE5001

2. Telnet to SE5001 using DOS command “Telnet IP_address”. Example: telnet 10.0.50.100

3. SE5001’s network, link mode and COM ports settings can be configured in the telnet window

B. Using SerialManager Utility

Use SerialManager which comes inside the Product CD to automatically search for all SE5001

connected to the LAN. Select the desired SE5001 to configure the network setting individually.

C. Using Web Browser

1. Make sure the PC is on the same network subnet as SE5001.

2. Open a web browser. Type in the IP address of SE5001 to be configured. Default user name is

admin and default password is null (leave it blank).

3. SE5001’s network, link mode and COM ports settings can be configured in different web pages.

4. Click “Save Configuration” to save settings.

5. Click ”Restart” button to make the change effective if necessary.

4. Pin Assignments

The pin assignments of DB9 connector is shown in the following table:

Pin#

RS-232

Full Duplex

2-Wire RS-485

Half Duplex

RS-422/4-Wire RS-485

Full Duplex

DCD

N/A

RXD

N/A (reserved)

TXD+

TXD

DATA+

RXD+

DTR

N/A

SG (Signal Ground)

DSR

N/A

RTS

DATA-

RXD-

CTS

N/A(reserved)

TXD-

N/A

The pin assignments of Terminal Block connector is shown in the following table:

Pin#

RS-422/4-Wire RS-485

Full Duplex

2-Wire RS-485

Half Duplex

T+

T-

R+

Data+

R-

Data-

SG (Signal Ground)

Customer Services and Supports

1. Contact your local dealers or Atop Technical Support Center at the following numbers.

+886-3-550-8137 (Atop Taiwan)

+86-21-6495-6232 (Atop China)

2. Report the errors via Atop’s Web site or E-mail account

www.atop.com.tw, service@atop.com.tw

www.atop.com.cn, service@atop.com.cn
