Atoll Electronique AV500 Manuel utilisateur

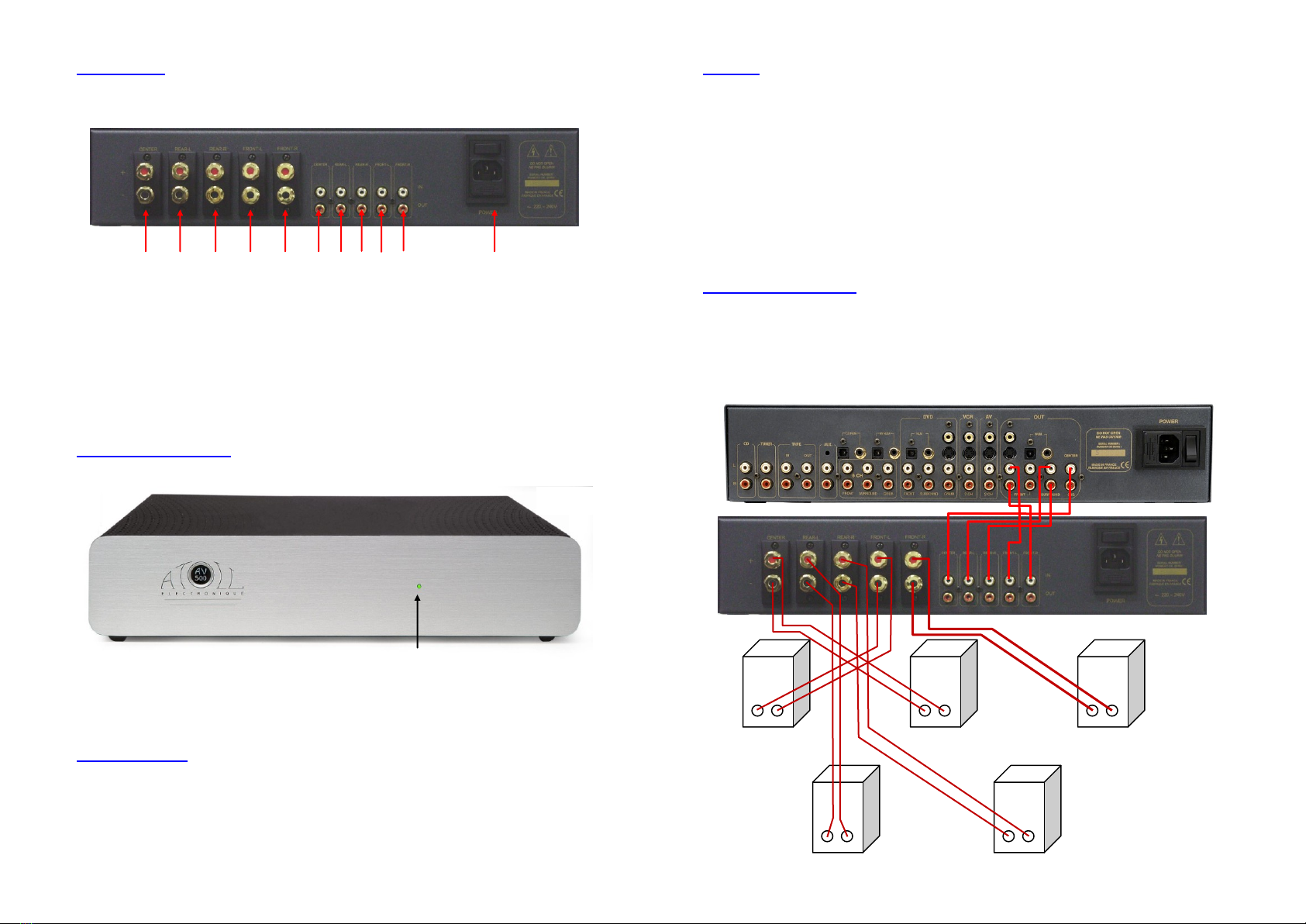

CONNECTING:

Rear of Amplifier:

1) Center output 6) Center In/Out

2) Rear Left output 7) Rear Left In/Out

3) Rear Right output 8) Rear Right In/Out

4) Front Left output 9) Front Left In/Out

5) Front Right output 10) Front Right In/Out

11) Power Plug (with fuse)

DETAILS OF FUNCTIONS:

Front of Amplifier:

7) Power indicator led

E.C. MARKING:

E.C. marking certified the conformity with low tension directive 73/23/CEE,

directive CEM 89/336/CEE and national transpositions.

ADVISES:

-To optimise the performances your amplifier, you should switch it on at least half

an hour before any listening, the time for power stage to reach their ideal working

temperature. Between two utilisation, it's better to use the stand-by position, so

that the power stages remains at their optimal temperatures.

-We advise you to use good wires to link with the other elements (Preamp.,

Loudspeakers…). Don't hesitate to take advises from your dealer.

-Your Amplifier is equipped with a temporised switch on. A relay protects

loudspeakers on output power stage from over-voltage.

GLOBAL CONNECTIONS:

Here is below an example of how to interconnect 1 multichannel preamp PR5.1, 1

AV500 and 5 loudspeakers. With 2 AV500 (1 AV500 for tweeters and 1 for bass), it

is always possible to make a biamplification. In that case, drive the 2nd AV500 from

outputs of the first one.

1 2 3 4 5 6 7 8 9 10 11

- +

Front Left

Center

Front Right

Rear Left

Rear Right

CLEANING:

Before any cleaning, switch off your amplifier (11). Use a soft and dry rag to clean

up the appliance. Never use acetone, white-spirit, ammoniac, or any kind of product

containing abrasive agent. Never try to clean up inside the appliance.

GUARANTEE:

The guarantee is two years long from date of purchase. We recommend you to ask

your dealer to fill the guarantee and to conserve it. The guarantee is only available

for appliance which have been use correctly.

TECHNICALS FACTS

AV500

Efficacy power Watts RMS / 8 ohms (230 V) :

Efficacy power Watts RMS / 4 ohms (230 V) :

Power supply :

Total of capacitors :

Number of Inputs :

Input impedance :

Sensitivity :

Signal/Noise :

Distorsion at 1kHz :

Frequency response :

Rise Time :

Dimensions :

Weight :

5x85 W / 2x100 W

5x100 W / 2x140 W

660 VA

73 000 µF

2x5

47 kOhms

from 1,58V to 1,77V

100 dB

0,005 %

5 Hz –200 kHz

1,3 µs

440 x 90 x270 mm

12 kg

ATOLL ELECTRONIQUE®is a French Company who conceive, manufacture and

commercialise all its products.

You have just bought an amplifier with exceptional audiophile

performance. We really thank you for your confidence in our products. To

get the best part of your amplifier, please read carefully this manual.

CAUTIONS :

- Put your amplifier in a dry and well ventilated place, far from source

of heat;

- Do not put something on your amplifier;

- Do not make any plug in when the amplifier is on;

- Avoid any short-cut;

- Respect polarity + & - and switch left & right;

- Do not plug in two speakers in parallel on the same output.

You will find enclosed:

- a 5 channel amplifier;

- one powerlead;

- this manual with the certificate of guarantee.



G U A R A N T E E

To present to your dealer with the invoice when returning back the

appliance:

Model AV500

ATOLL ELECTRONIQUE®

Boulevard des Merisiers

50370 BRECEY

FRANCE

Dealer Stamp

Date of purchase:

Place of purchase:

Buyer signature:

OWNER’S MANUAL

5 channel

Power Amplifier

AV500
