ATN OTS-17 Manuel utilisateur

THERMAL MULTI-PURPOSE SYSTEM

1341 San Mateo Ave,

South San Francisco, CA 94080.

Tel: 800-910-2862, 650-989-5100,

fax: 650-875-0129

www.atncorp.com

e-mail: [email protected], [email protected]

OTS-17

The OTS17 is a compact multi-purpose thermal

imaging system.

This OTS17 is built around state of the art uncooled

thermal imaging technology, highly integrated DSP-

based electronics and a compact, light weight system.

The OTS17 provides excellent image quality through

total darkness, fog, smoke and most visual obscurants.

Total darkness, camouflage or bright lights will not

affect the sensitivity of these units.

The included and optional accessories provide for

the versatility of the monocular. You can put it on

a headset or on a helmet, it can be connected to

another monocular to build a binocular system, used

as riflescope with a weapon mounting, etc.

The OTS17 is an ideal product for Border Patrol Officers,

Sport Shooting Enthusiasts, Private Protection, Police

SWAT and Special Operations.

High resolution digital thermal imaging

Compact, lightweight and durable housing

Head/helmet mountable for hands-free use

Weapon mountable

Video output

Video/Image polarity selection

Waterproof

One-Year Warranty

Basic Kit:

OTS-17

Hard Storage Case

Soft Carry Case

Weapon mount

RCA Video/power adapter

Batteries

Manual

Accessories:

Head mount

Universal Helmet Mount Kit

MICH Helmet Mount Kit

PAGST Helmet Mount Kit

2x lens for OTS

Dual Bridge

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of

either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

OTS17

ON THE WEAPON

HAND HELD

MONOCULAR

HEAD MOUNT

ASSEMBLY

OTS-17

WITH 2X LENS

Magnification 1,8X

Objective Focal Length 25 mm

FOV 11° x 8°

Focus Range from 1m to infinity

Focus Adjustment Manual

Exit Pupil 14mm

Eye Relief 25mm

Detector Type Uncooled Microbolometer

Spectral Response 7-14 μm

Pixels 160 x 120

Pixel Size 30 x 30 μm

Angular Resolution, mrad 1,2

Thermal Sensitivity < 0,1°C

Range to Detect a Human 475 m

Output Format Analog PAL / NTSC

Display OLED matrix

Display Format SVGA, 852 x 600 pxl

Color Monochrome

Digital ZOOM Fixed 2x (optional 5x)

Brightness Adjustment Manual

Contrast Adjustment Automatic

Available User Interfaces From outside PC through

USB interface

Power Supply 2 x 3V, 123Atype

Start-Up Time < 3 sec

Operating Time w/one battery pack 4 hrs

External Power Supply DC 6V, 500 mA

Operating Temperature Range from -20°C to +50°C

Waterproof Yes, up to 10 m submersion

Dimensions 195x81x105 mm (w/ weapon mount)

118x81x52 mm (w/o weapon mount)

Weight (w/batteries) 0.74 kg (w/ weapon mount)

0.34 kg (w/o weapon mount)

SPECIFICATIONS

THERMAL MULTI-PURPOSE SYSTEM

1341 San Mateo Ave,

South San Francisco, CA 94080.

Tel: 800-910-2862, 650-989-5100,

fax: 650-875-0129

www.atncorp.com

e-mail: [email protected], [email protected]

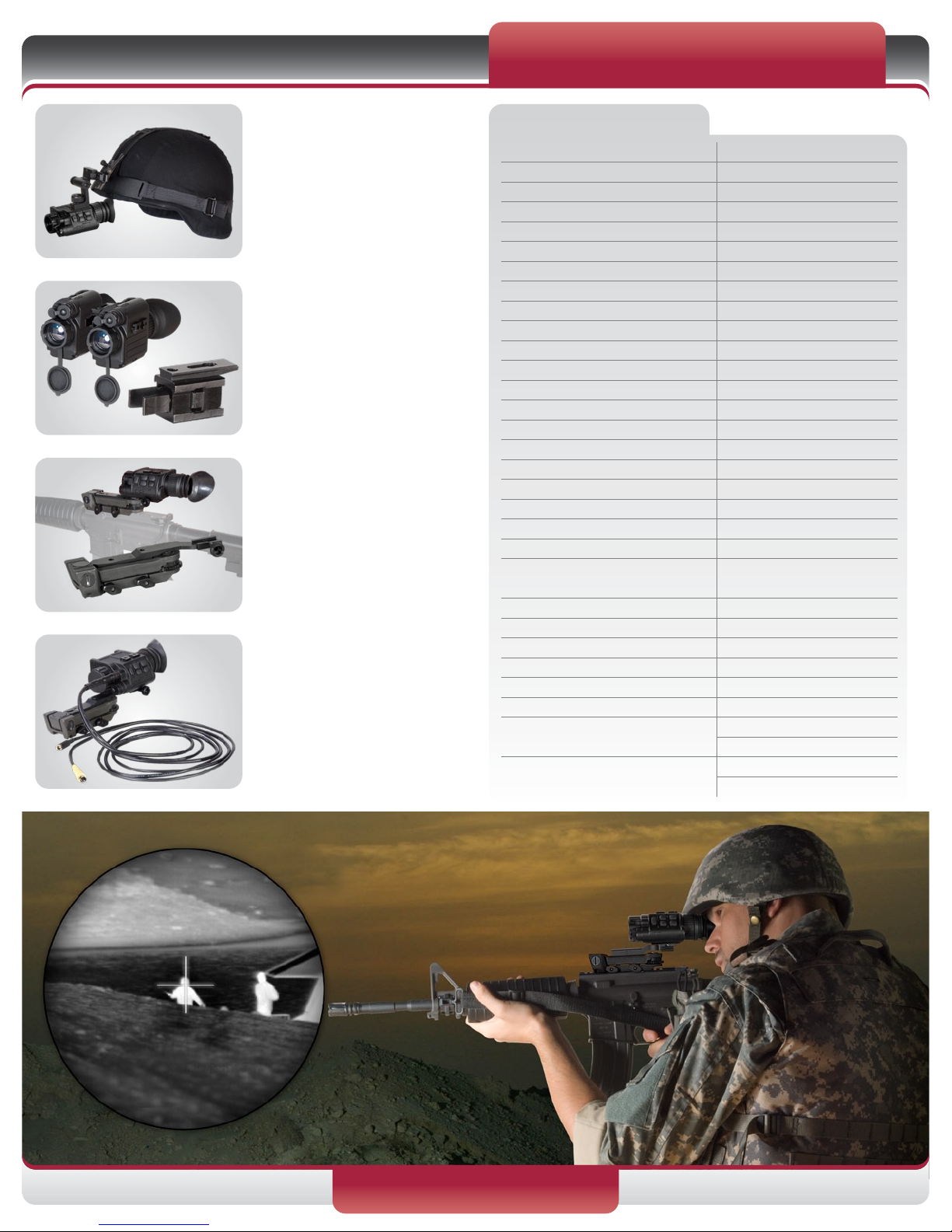

OTS-17

FLIP-UP HELMET MOUNT

Flip-Up helmet mount. Fits most

standard helmets. Mount kits for

MICH and PAGST helmet also

presents.

DUAL BRIDGE

Two units connected to each

other through a Dual Bridge

provide for a compact dual chan-

nel binocular. Also allows the

ATN OTS-17 to be attached to in

a binocular configuration to the

head- or helmet mount.

WEAPON MOUNT

The OTS-17 mount based on

ELCAN mounting assemblies and

attach directly to MIL-STD-1913

rails or receivers.

RCA Video/power Adapter

RCA Video/power adapter used

for video transmission and to

connect external power sources.
