Atmel WINC1500 Manuel utilisateur

Platform Getting Started Guide

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro

XX-XXX

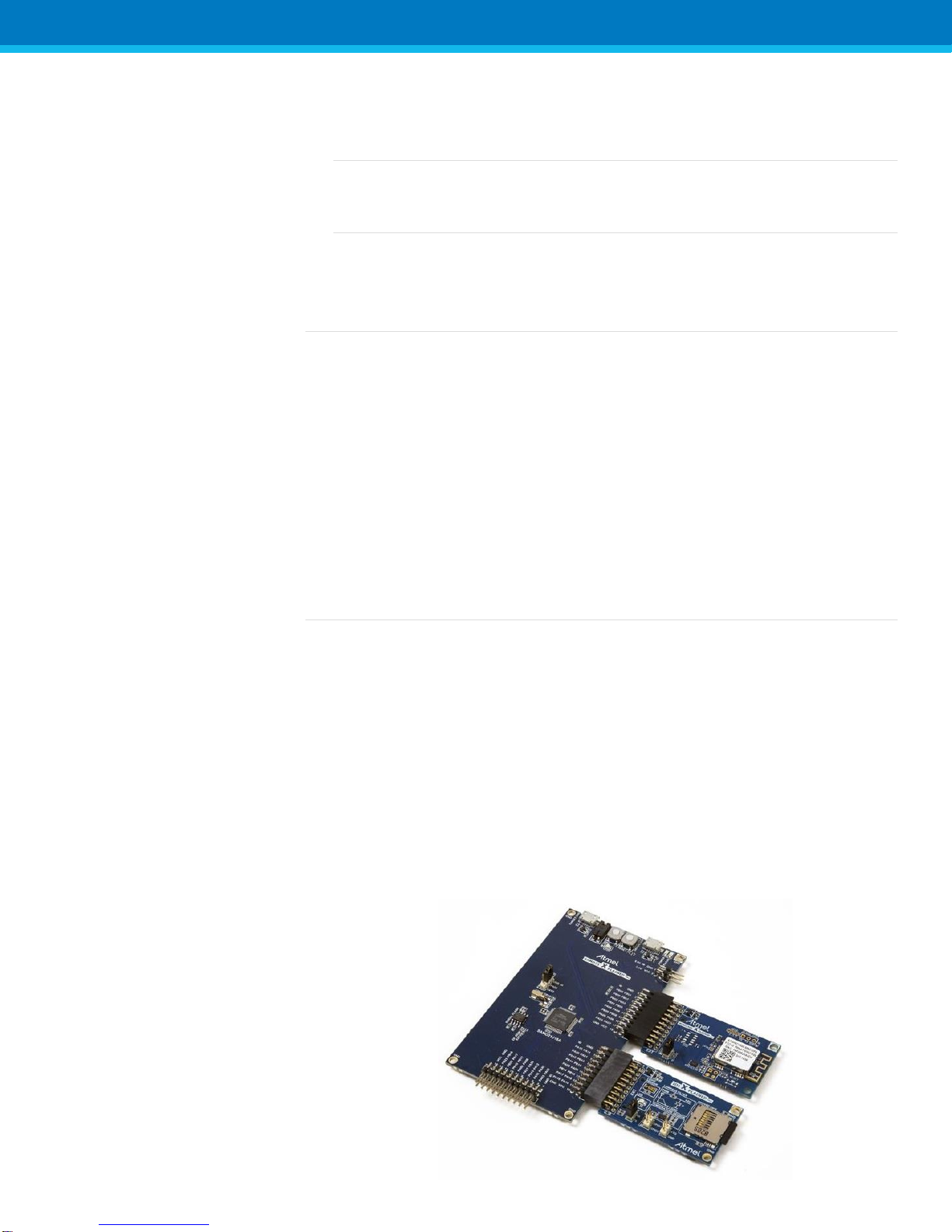

Prerequisites

Hardware Prerequisites

Atmel SAM D21 Xplained Pro Evaluation Kit

Atmel WINC1500 extension

Atmel IO1 extension

USB micro cable (TypeA / MicroB)

Software Prerequisites

Atmel Studio

Weather client example project source code

Introduction

This getting started guide describes the Atmel WINC1500 Wi-Fi Network Controller to

build state-of-the-art Internet of Things (IoT) applications. This guide explains

hardware information and how to install Atmel Studio(IDE), compile examples and

download WINC1500 Firmware.

The following topics will be covered:

How to get Atmel Studio(IDE) and install it.

Update new ASF package.

Target board information.

How to get weather client example project.

How to get log message.

How to download firmware and certificate.

XXXXA10/14

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 2 of 28

Table of Contents

Prerequisites.....................................................................................1

Introduction.......................................................................................1

Icon Key Identifiers...........................................................................3

1. Getting Started with Atmel Studio ..............................................4

1.1 Download and Install Atmel Studio6.2.................................................4

1.2 Download and Install the latest ASF....................................................4

1.3 Download and Install the latest WINC1500 Extension Package.........6

2. Getting Started with Atmel Hardware.........................................8

2.1 Atmel SMART SAMD21-XPRO Evaluation Kit....................................8

2.2 Atmel SmartConnect WINC1500-XPRO Wi-Fi Extension Board.........9

2.3 Atmel IO1-XPRO Sensor Extension Board........................................10

2.4 Atmel OLED1-XPRO Display Extension Board.................................10

3. Getting Started with WINC1500 IoT Examples ........................12

3.1 Organization of WINC1500 IoT Examples.........................................12

3.2 Connect the Board.............................................................................13

3.3 How to Get Weather Client Example Project.....................................14

3.4 How to Build & Execute .....................................................................16

3.5 Provisioning .......................................................................................18

4. How to Debug WINC1500 Wi-Fi Firmware...............................21

5. How to Download New WINC1500 Firmware ..........................22

5.1 Download Firmware...........................................................................22

5.2 Download Certificate File...................................................................25

6. Conclusion...............................................................................26

7. Revision History.......................................................................27

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 3 of 28

Icon Key Identifiers

Delivers Contextual Information About a Specific Topic

Highlights Useful Tips and Techniques

Highlights Objectives to be Completed

Highlights the Expected Result of an Assignment Step

Indicates Important Information

Highlights Actions to be Executed Out of the Target

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 4 of 28

1. Getting Started with Atmel Studio

1.1 Download and Install Atmel Studio6.2

Atmel® Studio 6 is the integrated development platform (IDP) for developing and debugging Atmel ARM®

Cortex® -M and Atmel AVR® microcontroller (MCU) based applications. The Atmel Studio 6 IDP gives you a

seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or

assembly code.

Atmel Studio 6.2 is now available, adding advanced debugging features such as Data and Interrupt Trace,

improved RTOS integration, and better ability to debug code that has been optimized.

With the introduction of Atmel Gallery and Atmel Spaces, Atmel Studio 6 further simplifies embedded MCU

designs to reduce development time and cost. Atmel Gallery is an online apps store for development tools

and embedded software. Atmel Spaces is a cloud-based collaborative development workspace allowing you

to host software and hardware projects targeting Atmel MCUs.

Download and install Atmel Studio 6.2 from http://www.atmel.com/microsite/atmel_studio6/

You can find the installed directory: C:\Program Files\Atmel\Atmel Studio 6.2

1.2 Download and Install the latest ASF

Atmel Studio 6 is free of charge and is integrated with the Atmel Software Framework (ASF)—a large library

of free source code with 1,600 ARM and AVR project examples. ASF strengthens the IDP by providing, in the

same environment, access to ready-to-use code that minimizes much of the low-level design required for

projects. Use the IDP for our wide variety of AVR and ARM Cortex-M processor-based MCUs, including our

broadened portfolio of Atmel SAM3 ARM Cortex-M3 and M4 Flash devices.

If the ASF version in your Atmel Studio is not the latest one you will be notified when Atmel Studio starts. The

following procedure demonstrates how to update the ASF to the latest version. You can install other

extensions in the list as well.

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 5 of 28

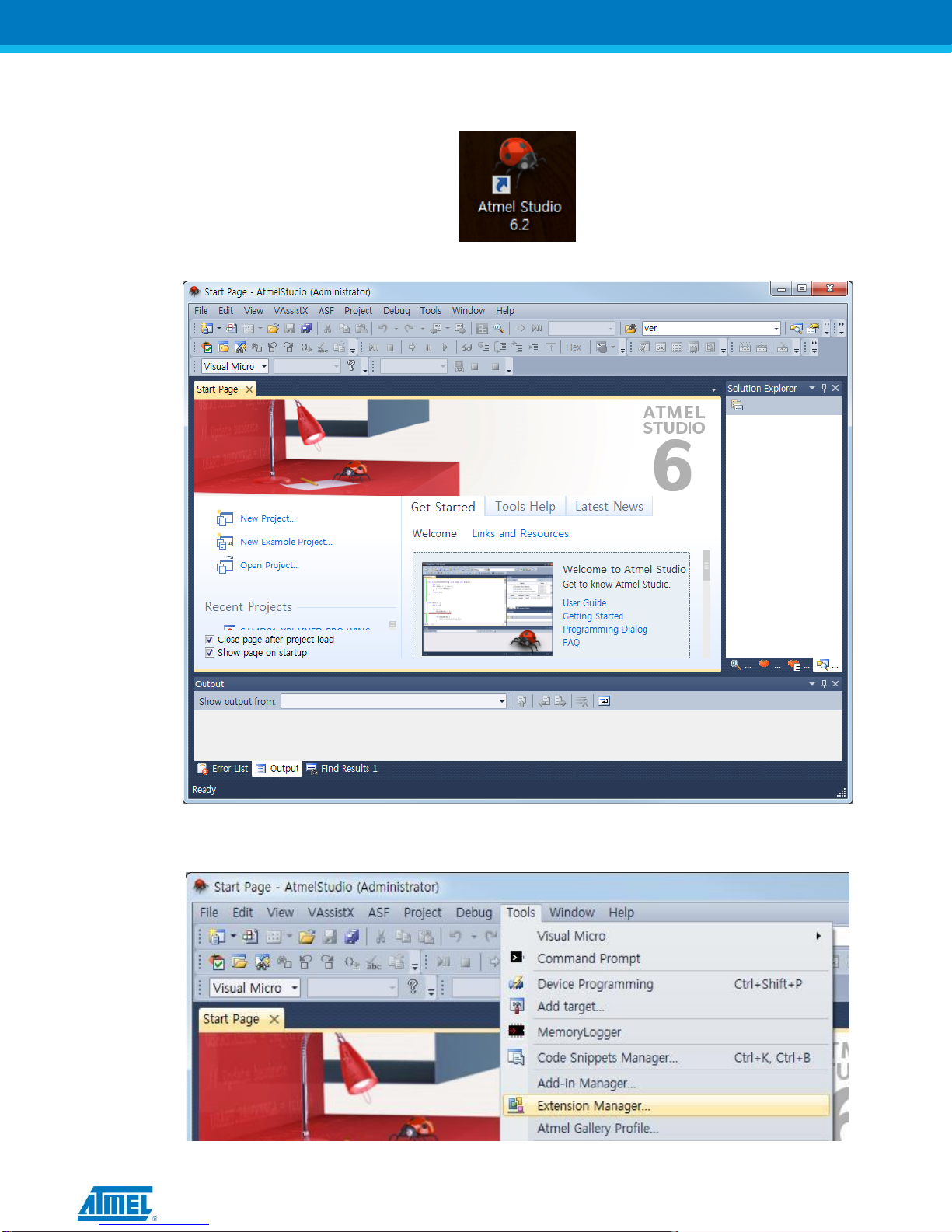

1) Run Atmel Studio 6.2.

2) You can see the start page of Atmel Studio 6.

3) Update ASF to the latest version.

Menu Tools Extension Manager

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 6 of 28

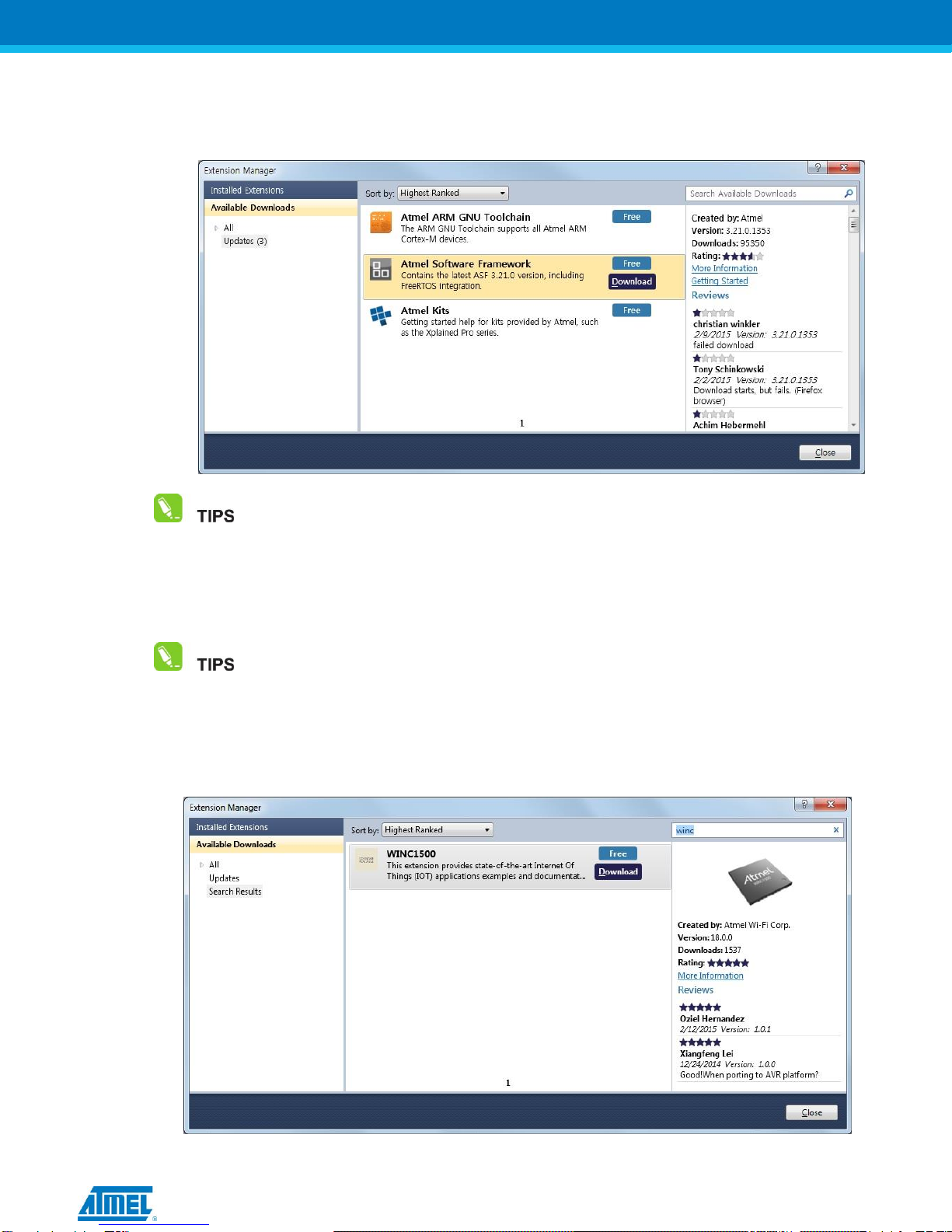

Available Downloads Updates Atmel Software Framework

Select an extension and proceed with download and installation.

Restart Atmel Studio to take effect of newly installed extension.

1.3 Download and Install the latest WINC1500 Extension Package

WINC1500 Extension package contains the WINC1500 software (latest firmware, Firmware update Tools and

Example projects).

As an Atmel Studio Extension (.vsix file), which can be found on the Atmel Gallery

web site (http://gallery.atmel.com/) or using the Atmel Studio Extension manager.

1) Atmel Studio Menu Tools Extension Manager.

2) Input “winc”in the search window then you can find the WINC1500 extension.

3) Select the extension and proceed with download and installation.

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 7 of 28

Restart Atmel Studio to take effect of newly installed extension.

4) Restart Atmel Studio.

5) Open the Tools and Document via File New Example Project (Ctrl + Shift + E).

6) Input “FIRMWARE”in the search window then you can find an example named like

“WINC1500_FIRMWARE_UPDATE_AND_DOCUMENTATION”.

This project contains documentation and tools to upgrade WINC1500 firmware to the specific version which is

matched up with the Wi-Fi driver in example projects. It also contains documentation on how to run example

projects in this extension.

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 8 of 28

2. Getting Started with Atmel Hardware

This chapter introduces Atmel Evaluation Kits for testing IoT applications. The SAMD21 and the WINC1500

are essential but the IO1 and the OLED1 extension boards are optional.

2.1 Atmel SMART SAMD21-XPRO Evaluation Kit

The Atmel® SAM D21 Xplained Pro evaluation kit is ideal for evaluating and prototyping with the Atmel SAM

D21 ARM® Cortex® -M0+ based microcontrollers. Extension boards to the SAM D21 Xplained Pro can be

purchased individually.

SAMD21J18A microcontroller

One mechanical reset button

One mechanical user pushbutton (wake-up, bootloader entry or general purpose)

One yellow user LED

32.768kHz crystal

USB interface, device and reduced host mode

8 Mbit Serial Flash

3 Xplained Pro extension headers

Embedded Debugger

Auto-ID for board identification in Atmel Studio 6.1

One yellow status LED

One green board power LED

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 9 of 28

Symbolic debug of complex data types including scope information

Programming and debugging

Data Gateway Interface: SPI, I²C, 4 GPIOs

Virtual COM port (CDC)

USB powered

Supported with application examples in Atmel Software Framework

Here is the link for more detailed information about SAM D21.

http://www.atmel.com/tools/atsamd21-xpro.aspx

2.2 Atmel SmartConnect WINC1500-XPRO Wi-Fi Extension Board

Atmel® SmartConnect-WINC1500 is an IEEE 802.11 b/g/n IOT network controller SoC. It is the ideal add-On

to existing MCU solutions bringing WiFi and Network capabilities through SPI-to-WiFi interface. The

WINC1500 connects to any Atmel AVR or SMART MCU with minimal resource requirements. The WINC1500

most advanced mode is a single stream 1x1 802.11n mode providing up to 72 Mbps PHY throughput.

WINC1500 features fully integrated Power Amplifier, LNA, Switch and Power Management. The WINC1500

provides internal Flash memory as well as multiple peripheral interfaces including UART, SPI, and I2C. The

only external clock source needed for the WINC1500 is a high-speed crystal or oscillator with a wide variety of

reference clock frequencies supported (between 12 –32 MHz). The WINC1500 is available in a QFN

package.

IEEE 802.11 b/g/n (1x1) for up to 72 Mbps

Integrated PA and T/R Switch

Superior Sensitivity and Range via advanced PHY signal processing

Wi-Fi Direct, station mode and Soft-AP support

Supports IEEE 802.11 WEP, WPA2 Security Enterprise

On-chip memory management engine to reduce host load

4 Mbit internal Flash memory with OTA firmware upgrade

SPI as host interfaces

TCP/IP protocol stack (client/server) sockets applications

Network protocols (DHCP/DNS)

Secure TLS stack

WSC (wireless simple configuration WPS)

On-Chip Network Stack to offload MCU

Getting Started Guide for WINC1500 Wi-Fi

using SAM D21 Xplained Pro: XXXXA10/145

Page 10 of 28

Integrated Network IP stack to minimize host MCU requirements

Network features: TCP, UDP, DHCP, ARP, HTTP, SSL, and DNS

Here is the link for more detailed information about ATWINC1500.

http://www.atmel.com/devices/ATWINC1500.aspx

2.3 Atmel IO1-XPRO Sensor Extension Board

Atmel IO1 Xplained Pro extension board is a generic extension board for the Xplained Pro platform. It

connects to any Xplained Pro standard extension header on any Xplained Pro MCU board. The extension

board utilizes all functions on the standard Xplained Pro extension header to further enhance the feature set

of Xplained Pro MCU boards.

microSD card connector

2GB microSD card included

Accessed with SPI interface

PWM

LED control

PWM → Low pass filter → ADC

ADC

PWM → Low pass filter → ADC

Light sensor

UART

Loopback interface via pin header

TWI

AT30TSE758 Temperature sensor with EEPROM

Xplained Pro hardware identification system

Here is the link for more detailed information about AT IO1.

http://www.atmel.com/images/atmel-42078-io1-xplained-pro_user-guide.pdf

2.4 Atmel OLED1-XPRO Display Extension Board

Atmel® OLED1 Xplained Pro is an extension board to the Atmel Xplained Pro evaluation platform. The board

enables the user to experiment with user interface applications with buttons, LEDs and a display.

Table des matières

Autres manuels Atmel Contrôleurs

Atmel

Atmel AT91SAM9 Instructions d'installation et d'utilisation

Atmel

Atmel AT91 ARM Thumb Instructions d'installation et d'utilisation

Atmel

Atmel AT91 ARM Series Instructions d'installation et d'utilisation

Atmel

Atmel AT43USB324 Manuel utilisateur

Atmel

Atmel AT91 ARM Thumb Instructions d'installation et d'utilisation

Atmel

Atmel AT91 ARM Thumb Instructions d'installation et d'utilisation

Atmel

Atmel AT91 ARM Thumb Instructions d'installation et d'utilisation

Atmel

Atmel AT91 ARM Thumb Instructions d'installation et d'utilisation

Atmel

Atmel ATMEGA256RFR2 Xplained Pro Manuel utilisateur

Atmel

Atmel AT43301 Manuel utilisateur

Atmel

Atmel ATMEGA256RFR2 Xplained Pro Manuel utilisateur

Atmel

Atmel ARM Thumb AT91 Instructions d'installation et d'utilisation

Atmel

Atmel AT43USB325 Manuel utilisateur

Atmel

Atmel ATREB212BSMA-EK Manuel utilisateur

Atmel

Atmel AT91SAM9G45 Instructions d'installation et d'utilisation

Atmel

Atmel XMEGA B Manuel utilisateur

Atmel

Atmel AT91CAP7A-STK Manuel utilisateur

Atmel

Atmel AVR STK500 Manuel utilisateur

Atmel

Atmel AT91 ARM Thumb Instructions d'installation et d'utilisation

Atmel

Atmel REB212BSMA-EK Manuel utilisateur

Atmel

Atmel AT89C51ED2 Manuel d'installation

Atmel

Atmel AT91CAP7E Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
