Atlona AT-VGA180AR Manuel utilisateur
AtlonA
Atlona Mini VGA Extender
with Audio
User Manual
AT-VGA180AR
AT-VGA180AS
TABLE OF CONTENTS
1. Package Contents .................................................. 1
2. Introduction .................................................. 1
3. Key Features .................................................. 1
4. Panel Description .................................................. 2
5. Installation and Operation .................................................. 2
6. Specication .................................................. 5
7. Safety Information .................................................. 6
8. Warranty .................................................. 7
9. Product registration .................................................. 8
Package Contents
Introduction
Key Features
1
1. AT-VGA180ASR x 1 ( sender AT-VGA180AS and receiver AT-VGA180AR units )
2. M-F VGA cable x 1
3. M-F VGA adapter x 1
4. Universal Power Adapter x 1
5. User manual x 1
AT-VGA180ASR is the smallest AV Extender in the industry; the main body is as big as a VGA connector and able
to transmit VGA + Audio by a single Cat5e cable up to 180m. With its simplied design, you can install the ex-
tender very easily and save space. You can use it to broadcast AV signal from PC, KVM switch, matrix AV switcher
and applied in the device extension of projector, plasma TV, LCD TV, LCD monitor, HDTV, and CRT. It can also be
integrated with splitter and selector to fulll different AV application.
1. This system can send VGA and Audio signal from Transmitter by Cat5/5e/6 cable, and broadcast to Receiver.
The standard maximum broadcasting distance is 180m
2. Compact design with VGA and Audio transmit function
3. Maximum supported distance and resolution: 2048x1536@180m
4. Use Cat5 Enhance UTP cable (350MHz bandwidth) for better quality
5. Software free, pure hardware design, support Plug & Play
6. Support VGA, SVGA, XGA, TFT_LCD, LCD TV, PDP, Projector with DDC2B function
7. Transmitter and Receiver build with LEDs to indicate system status
8. Transmitter takes DC5V power from USB port
9. Receiver build in EQ to adjust image quality
Panel Description
Installation and Operation
2
AT-VGA180AS
AT-VGA180AR
1. AT-VGA180AS Single-Port Transmitter Installation:
1) Connecting Transmitter: Take AT-VGA180AS and connect uvw to computer’s VGA, Audio and USB port. The
Transmitter will take the DC5V power from computer’s USB port and if your computer or VGA player doesn’t have
USB port, please prepare optional power adaptor with a USB power output to supply the power.
Installation Diagram of System Transmitter AT-VGA180AS
Optional Power Adaptor with a USB 5VDC
power output

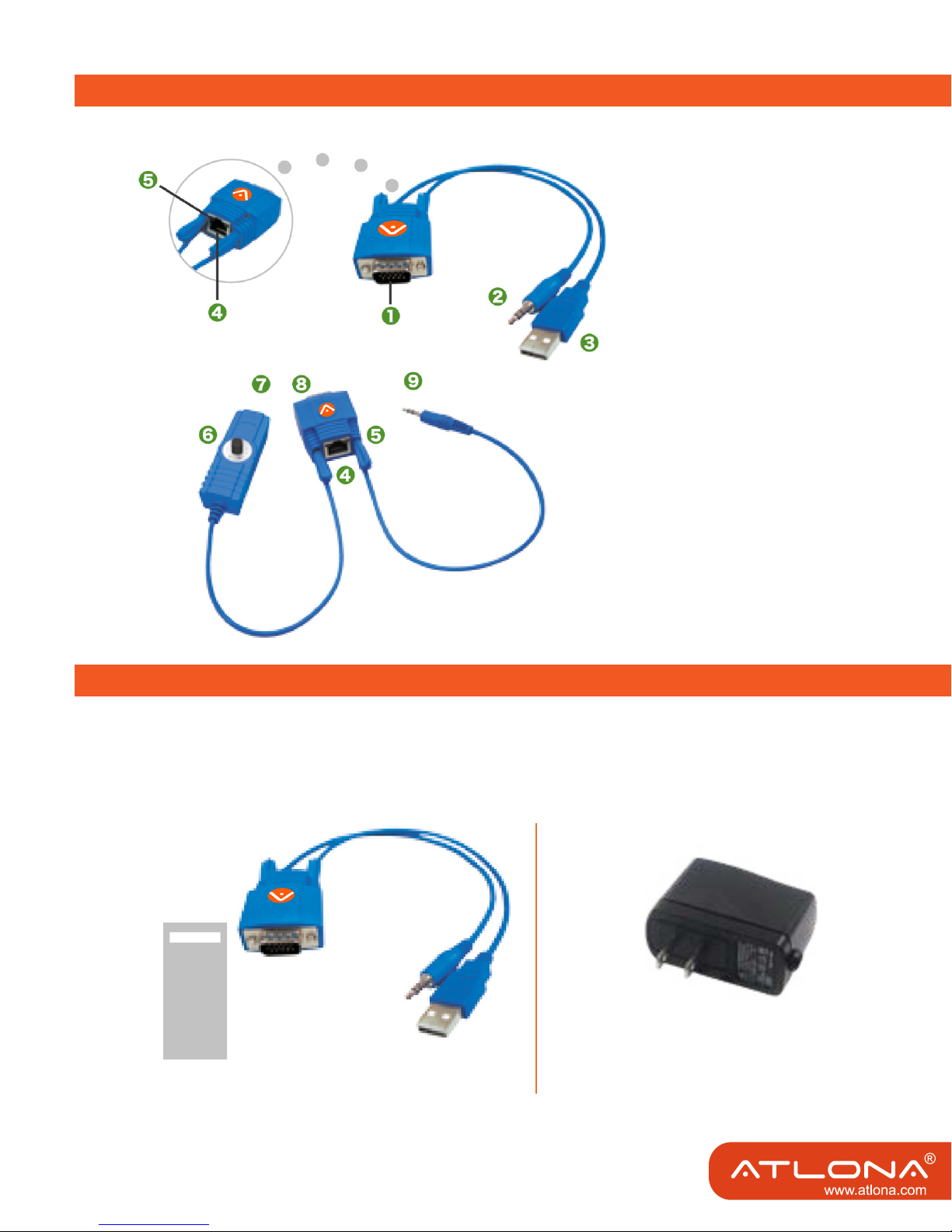

1. To VGA Output
2. To Audio Output
3. To USB Power(DC5V)
4. Rj-45 System Link
5. V&H Sync Activity
Blinking : No signal LED ON : Active
6. Video Focus
7. Power Jack
8. To Monitor
9. To Speaker
VGA
Audio
USB
32
2) Function Test: Turn on your PC or VGA player, the LED of Transmitter will blink before VGA signal is turned ON
and remain ON after VGA signal is turned ON.

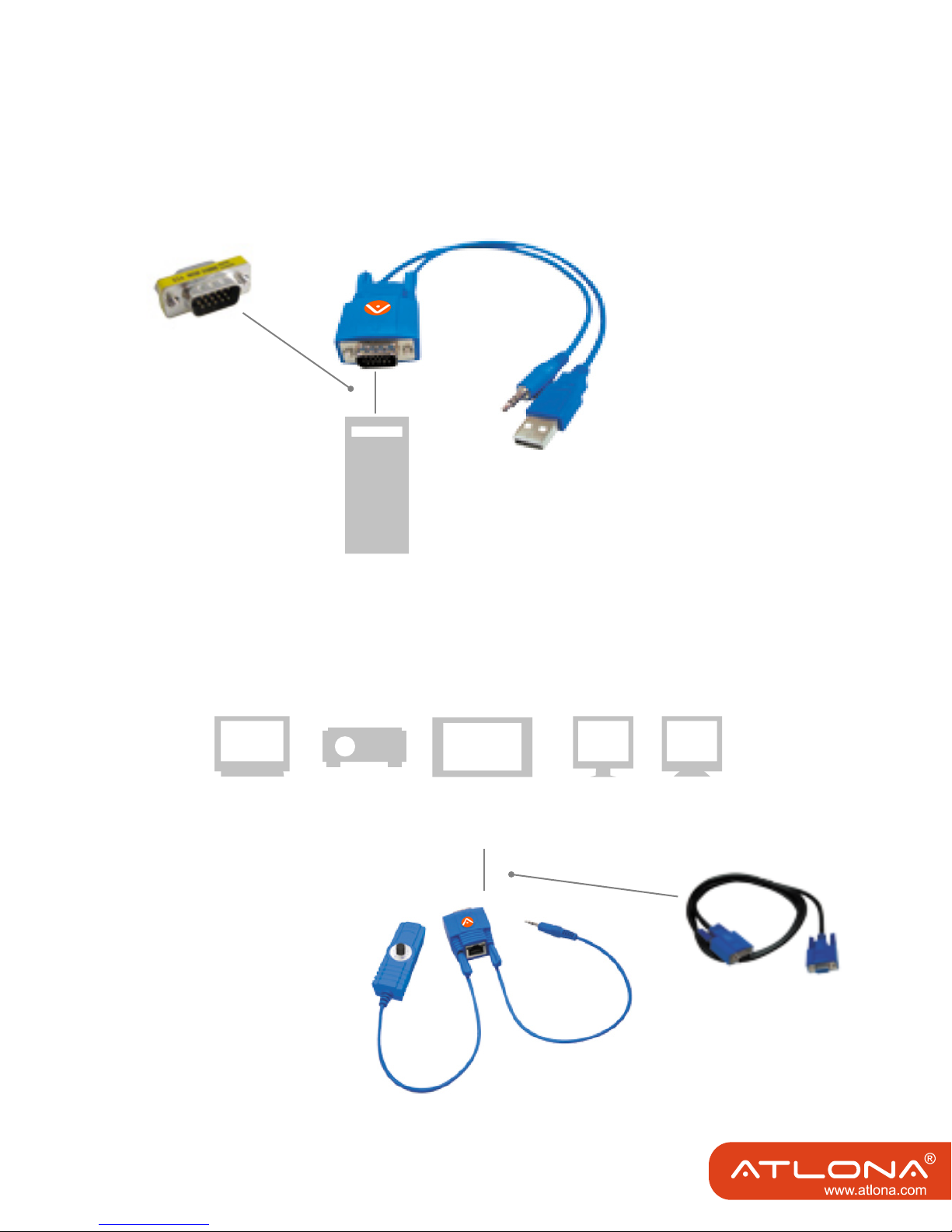

3) Some PC might have tight space to connect AT-VGA180AS to VGA port, you may take one short male-female
VGA connector to connect in between AT-VGA180AS and VGA output port.
2. Receiver AT-VGA180AR installation and UTP Connection
1) Power Up: Plug power adapter to the Receiver and connect to monitor and speaker. The LED above RJ-45 port
should blink to indicate the unconnected status of AV signal.
You can also use a short VGA cable (in the package) to connect in between Receiver and monitor and place the
receiver in other place.
Optional Power Adaptor with a USB 5VDC
power output
VGA
Audio
USB
M-F VGA Connector
Video Monitor & Speaker
Projector PDP LCD CRTTV
4
2) Selection of UTP Cable: For best VGA resolution, please use Cat5 Enhanced cable (350MHz bandwidth), the
maximum extended length of one section (one pair of Transmitter or Receiver) should not exceed 180 meters. The
connector must be made by 568B/568B type.

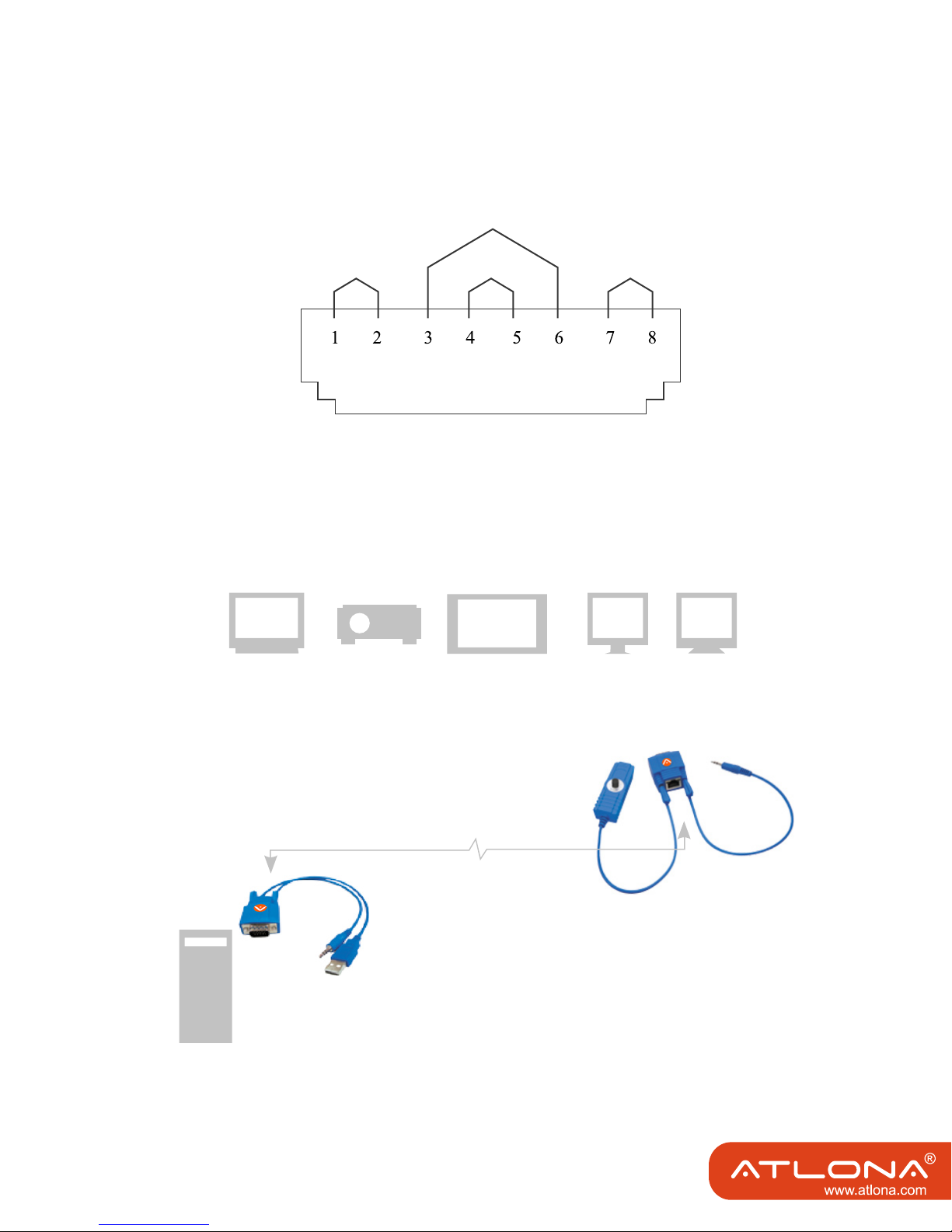

The EIA/TIA denation of 568B in the pin assignment is
(1) orange white, (2) orange, (3) green white, (4) blue, (5) blue white, (6) green, (7) brown white, and (8) brown
3) Connect UTP Cable: Plug two ends of UTP cable to Transmitter and Receiver’s RJ45 SYSTEM LINK ports, the
monitor and speaker connected to Receiver should work now and the LEDs above RJ-45 port should remain ON.
You can adjust the FOCUS control of Receiver to have the best VGA display.
JACK POSITION
PAIR 1PAIR 2 PAIR 4
PAIR 3
Projector PDP LCD CRTTV
Video Monitor & Speaker
Installation Diagram of Receiver AT-VGA180AR
One-Port miniTransmitter
Use Cat5e/5e/6
cable up to 180m One-Port
mini Receiver
VGA
Audio
USB
4 5
4) Function Test: After above installation, you will be able to broadcast the AV signal to Receiver’s connected moni-
tor and speaker.
5) Problem and Solving: If you nd unstable image or audio problems after installation, please conrm following list
or contact your direct vendor for further assistance:
a. Check if PC’s VGA resolution and frequency over the limit of monitor display, if so, please change the VGA
conguration from Windows Control panel.
b. Try to connect Monitor and speaker directly to a PC, and ensure the basic function of these devices.
c. When using LCD or same type monitor, there might have some image offset or blinking, please adjust the
position, clock or phase of the LCD monitor, or simply press Auto Adjust / Tune to have a better image solu-
tion.
3. Other Integration and Application:
Please contact your local dealer or distributor for further information.
Model AT-VGA180AS AT-VGA180AR
Description Super Mini AV Transmitter Super Mini AV Receiver
AV Input VGA x 1, Audio x 1 RJ45 x 1
AV Output RJ45 x 1 VGA x 1, Audio Mono x 1
Video CTRL - Video EQ
LED Power and Video Status
Video Quality Maximum VGA Resolution and Distance : 2048x1536@180m
Power Consumption USB DC5V Power, 200mA AC7.5V, 250mA
Environmental Condition * Operation Temp.: 0~50 * Storage Temp.: -20~60 degree C
* Humidity: 10~90%
Specication
6
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-VGA180ASR. Opening the product will
void the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.
6
WARRANTY
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the
accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be
free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event
applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of
receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation
may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-
gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet
this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited
Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-
uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLI-
ERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH
REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES
CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JU-
RISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLO-
GIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITA-
TION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS
OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA
TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA
TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT
SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JU-
RISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ATLONA
2151 O’toole Ave, Ste D
San Jose CA 95131
Toll Free: 1-877-536-3976
International: 408-954-8782
FAX: 408-954-8792
Website: www.atlona.com
E-MAIL: [email protected]
7
Atlona Product Registration
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership
record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rm-
ware updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely
secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited
warranty rights.
To register go to www.atlona.com/registration
8
