AtlonA

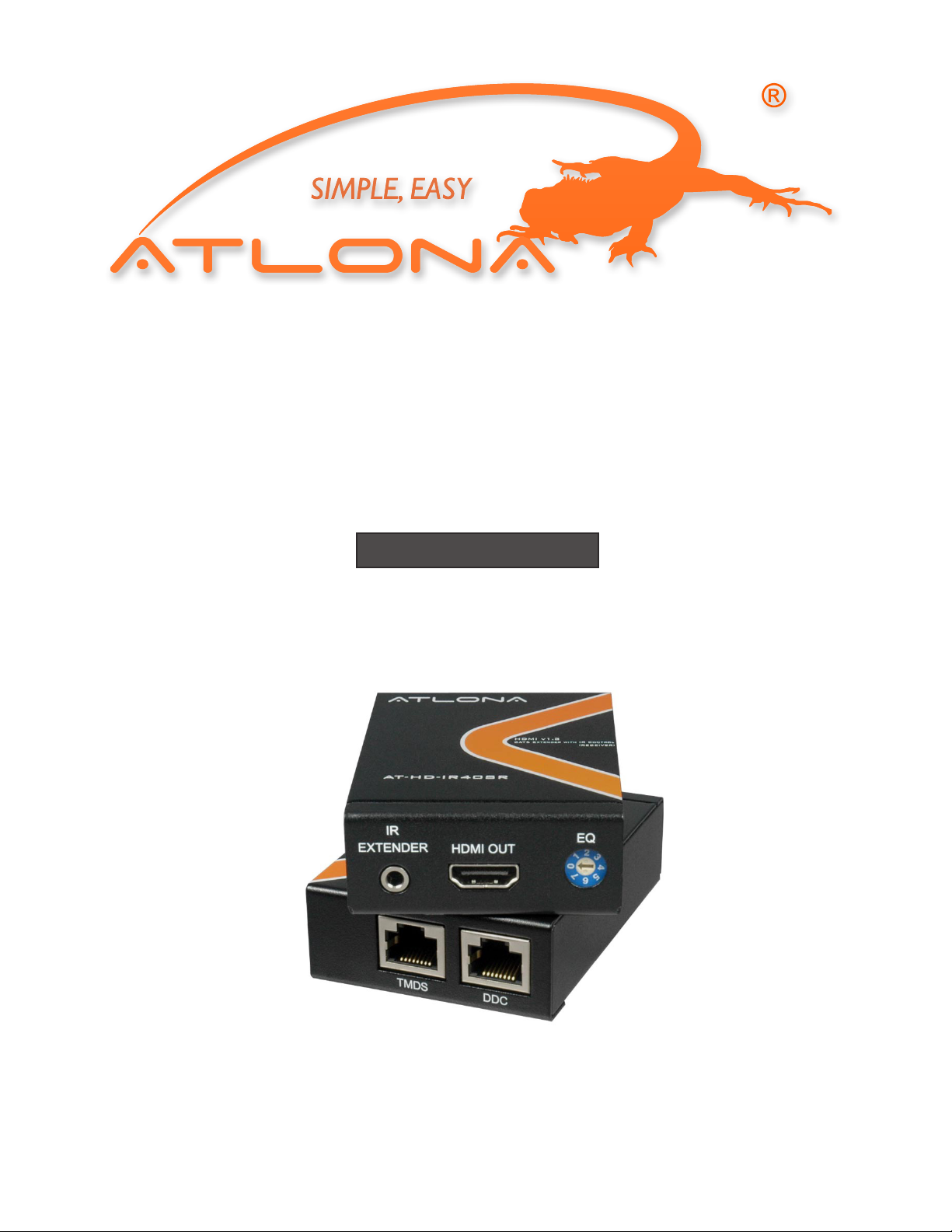

HDMI v1.3 Extender over 2 CAT5e

Cables with IR

AT-HD-IR40SR

User Manual

Introduction

Features

The Atlona AT-HD-IR40SR HDMI v1.3 Extender over 2 CAT5e Cables

with IR boosts up your video/audio transmission distance up to 60m / 200ft

in HDTV 720p / 1080i format. With two low cost CAT-5/5e/6 cables, users

can readily extend HDTV sources from DVD players, Blu-ray Disc Player,

PS3, PC, and any other kinds of sources compliant with TMDS to distant

display monitors including HDMI / DVI enabled TV sets or LCD PC moni-

tors. This cost effective exibility makes HDCP compliant DVD players or

PS3 transmit high quality video and audio to a greater distance at the mini-

mal cost, when integrating several components apart. In addition, with the

included infrared (IR) receiving and transmitting extension cables to facili-

tate the control path, users can enjoy high quality audio/video and control

the HDMI sources from the remote site instantly.

The AT-HD-IR40SR includes two units: AT-HD-IR40S as the transmitting

unit and AT-HD-IR40R as the receiving unit. The transmitting unit is used

to transfer the HDMI/DVI and IR signals input and carry the signals through

two RJ-45 connectors over two low cost CAT-5/5e/6 cables. The receiving

unit is responsible for equalizing transferred TMDS multimedia data and

re-sending IR signals. The transmission distance between the sending and

receiving units can be up to 60m / 200ft at 720p / 1080i and 40m / 130ft at

1080p. With equalization control on the receiving unit, users can adjust the

equalization scale to the received TMDS signals, and therefore optimize the

transmission distance between source and destination.

• HDMI 1.3a compliant

• Extends the transmission distance up to 60m / 200ft from the sources at 1080i or 720p

• Extends the transmission distance up to 40m / 130ft from the sources at 1080p

• Provides independent DDC channel, fully HDCP compliant

• Minimizes the cable skew by adjustable 8-level equalization control

• Embedded IR control path

1 2

Package Contents

Technical Specifications

• 1x HDMI transmitting unit (AT-HD-IR40S)

• 1x HDMI receiving unit (AT-HD-IR40R)

• 2x IR extension cable (IR sender & IR receiver)

• 1x 5V 4A power adapter

• 1x User Manual

• Video Bandwidth: 10.2 Gbps (HDMI 1.3a)

• Input connector:

Transmitter: 1x female HDMI connector (19 pin type)

Receiver: 2x RJ-45

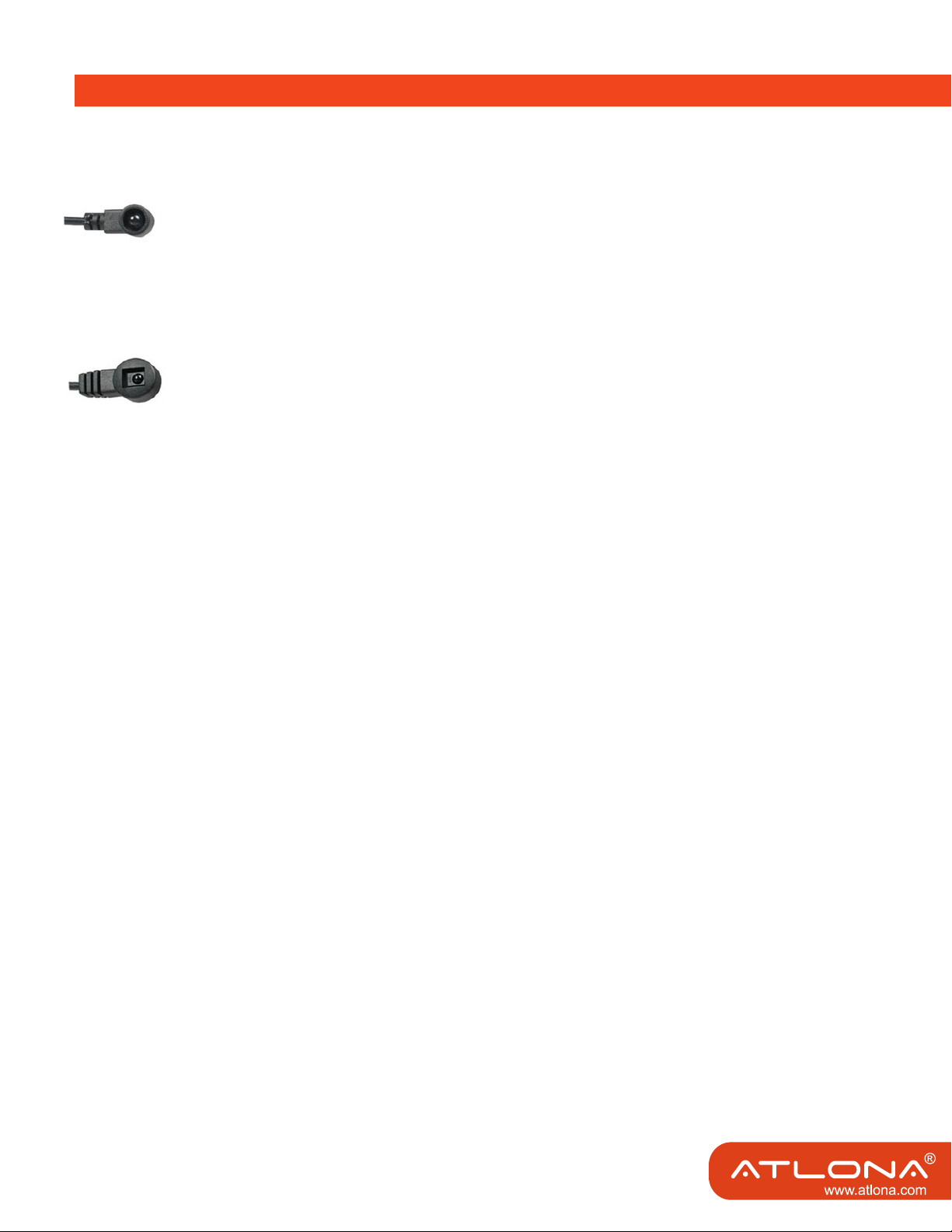

IR Socket: Electro-optical Characteristics: (Ta=25°C)

• Input TMDS signal: 1.2 volts (peak-to-peak)

• Input DDC signal: 5 volts (peak-to-peak)

• HDMI Connector: 19 pin type female connector

• Power Supply: 5V 4A DC

• Power Consumption: 6 Watts (max)

• Dimensions: 85mm x 60mm x 25mm / 3.3”x2.4”x1” (L x W x H)

• Weight: 240g / 8.5oz

• Output connector:

Transmitter: 2x RJ-45

Receiver: 1x female HDMI connector (19 pin type)

IR Socket: Electro-optical Characteristics: (Ta=25°C)

Parameter TYP. UNIT

B.P.F Center Frequency 38 KHz

Parameter TYP. UNIT

B.P.F Center Frequency 38 KHz

Panel Descriptions

HDMI IN: Connect a HDMI source with a HDMI M-M cable here

IR EXTENDER: Extendable IR sending socket

TMDS: Plug in a CAT-5/5e/6 cable that needs to be linked to the TMDS connector

of the receiving unit AT-HD-IR40R.

DDC: Plug in a CAT-5/5e/6 cable that needs to be linked to the DDC connector of

the receiving unit AT-HD-IR40R.

5V DC: Connect to 5V DC power supply.

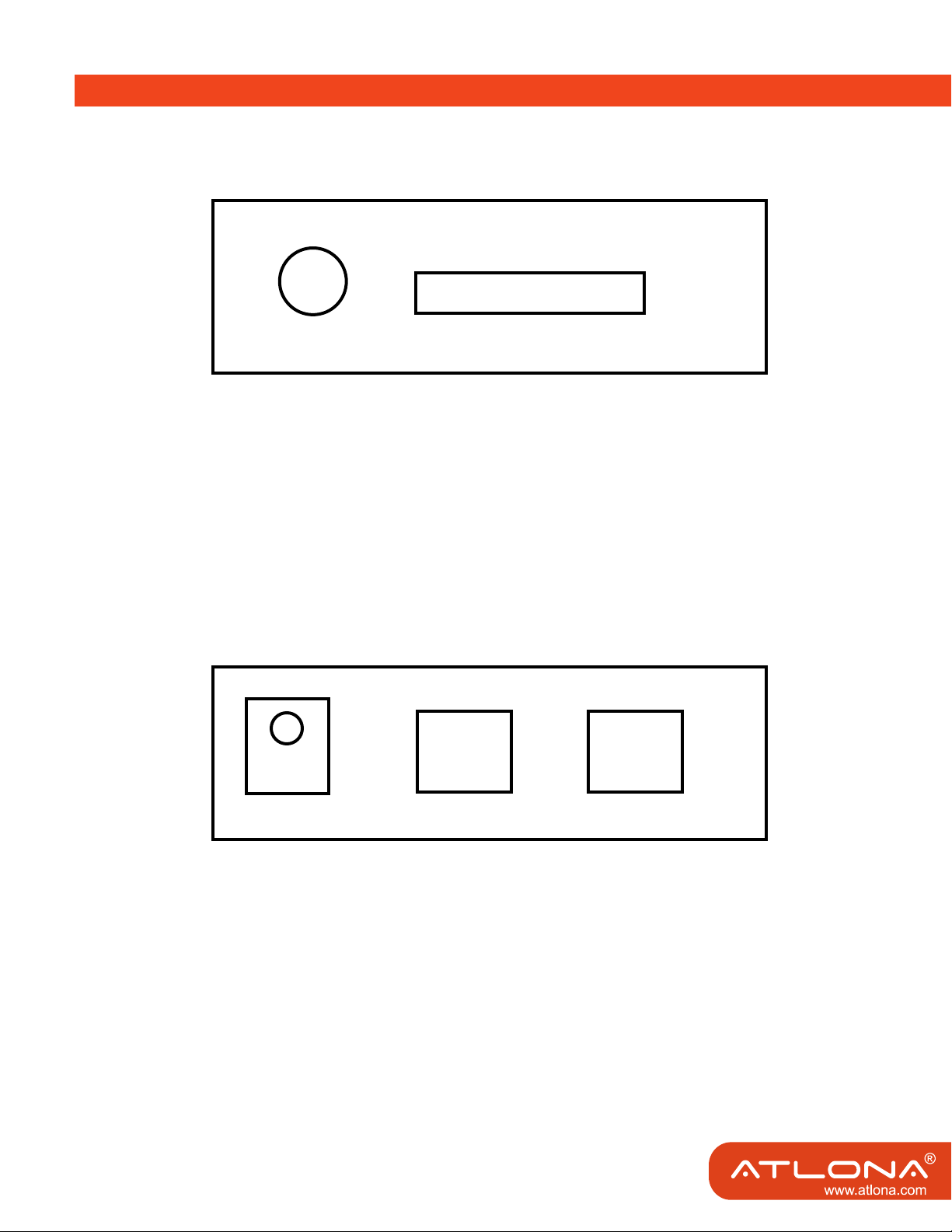

Front View – Transmitting Unit AT-HD-IR40S

Rear View – Transmitting Unit AT-HD-IR40S

IR EXTENDER

HDMI IN

5V DC TMDS DDC

3 4

HDMI OUT: Connect a HDMI display with a HDMI M-M cable here.

EQ: Adjust the equalization strength to the received TMDS signals.

0-to-7 = strongest–to-weakest.

IR EXTENDER: Extendable IR reception socket

TMDS: Plug in a CAT-5/5e/6 cable that needs to be linked to the TMDS

connector of the transmitting unit AT-HD-IR40S.

DDC: Plug in a CAT-5/5e/6 cable that needs to be linked to the DDC

connector of the transmitting unit AT-HD-IR40S.

5V DC: Connect to 5V DC power supply.

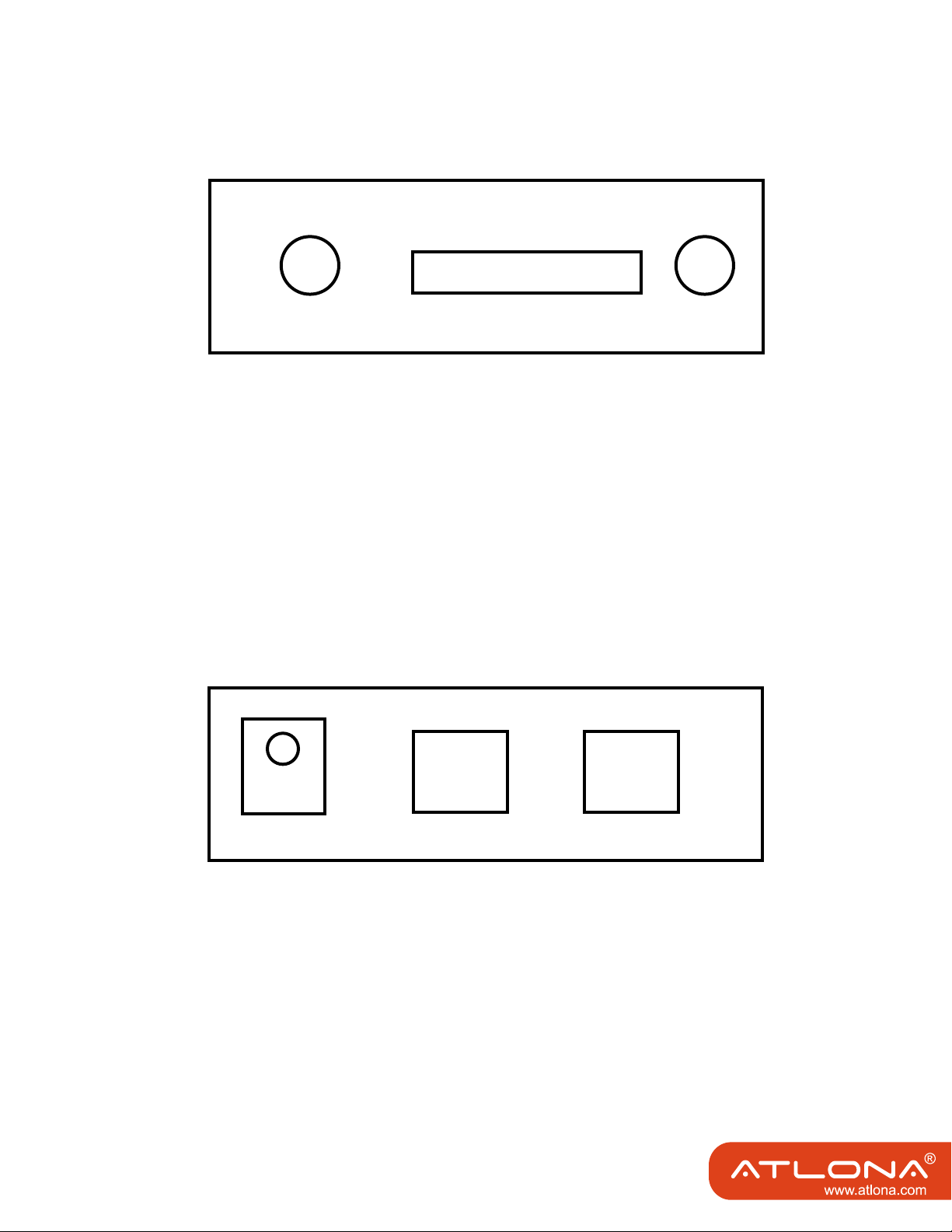

Front View - Receiving Unit AT-HD-IR40R

Rear View – Receiving Unit AT-HD-IR40R

IR EXTENDER EQ

HDMI OUT

5V DC TMDS DDC

Hardware Installation

1. Connect your HDMI / DVI source (such as a DVD player) to the transmit-

ting unit AT-HD-IR40S.

2. Connect the IR transmitting cable to the transmitting unit AT-HD-

IR40S, and make the IR transmitter directly point to the IR of HDMI

source.

3. Connect your HDMI / DVI display (such as an LCD TV or plasma TV) to

the receiving unit AT-HD-IR40R.

4. Connect the IR receiving cable to the receiving unit AT-HD-IR40R,

and make the IR receiver directly point to the user.

5. Connect your CAT-5/5e/6 cables between the transmitting and receiving

units.

6. Make sure your CAT-5/5e/6 cables are tightly connected and not loose.

7. Plug in 5V DC power cord to the power jack of the receiving unit AT-HD-

IR40R.

8. If a ickering or a blinking image is shown on the display, please try

to adjust the rotational EQ control to improve the cable skew. 0 stands

for the strongest EQ while 7 stands for the weakest. Try adjusting the

EQ from 7 to 0.

5 6

Hardware Installation

Contact Information

1. If your HDMI / DVI device requires an EDID at present, you can use an

EDID Reader/Writer to provide HDMI / DVI EDID information.

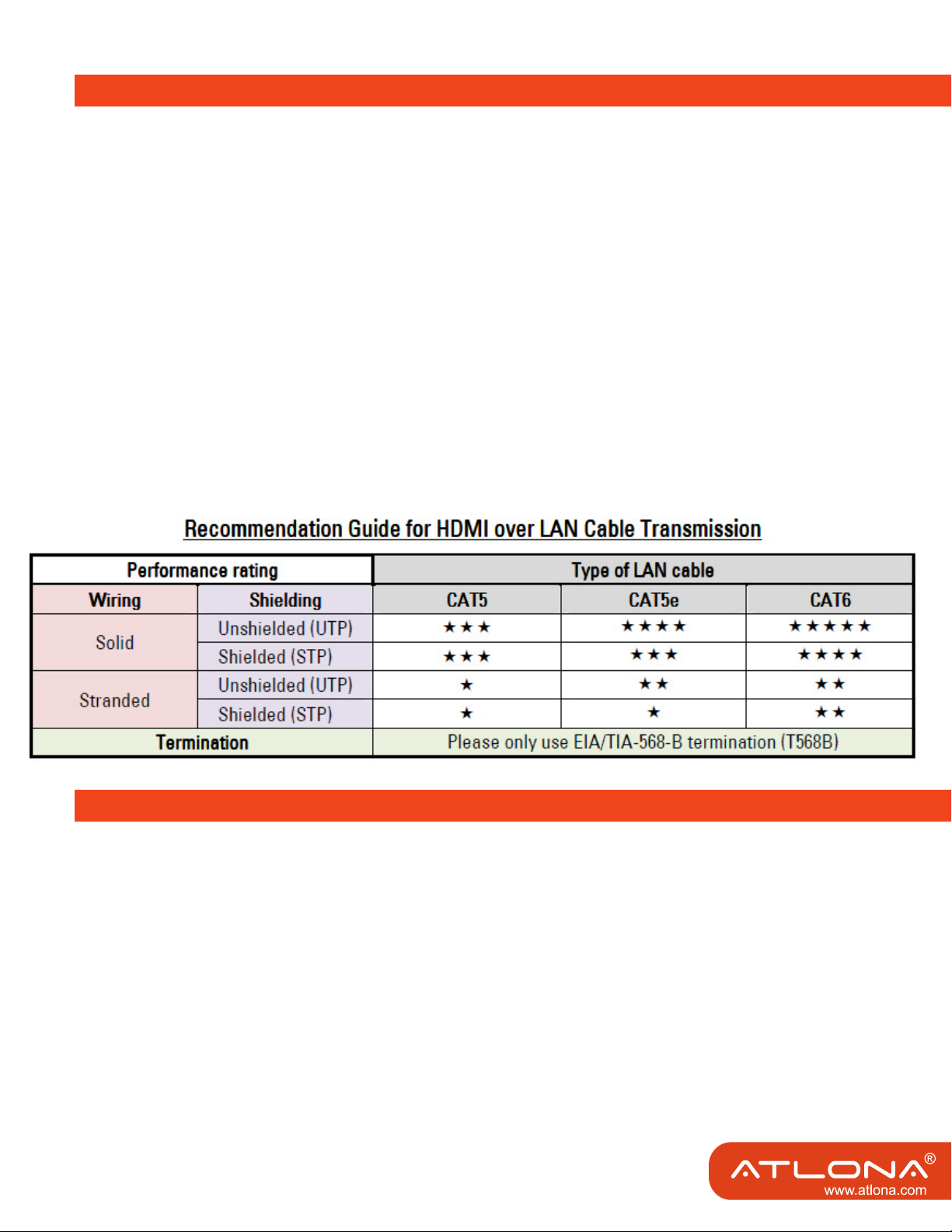

2. All the transmission distances are measured using Belden CAT-5e

125MHz.

3. To reduce the interference among the unshielded twisted pairs of wires in

CAT-5/5e/6 cable, you can use shielded CAT-5/5e/6 cables to improve EMI

problems, which is worsen in the long transmission.

4. Because the quality of the CAT-5/5e/6 cables has the major effects in

how long transmission distance will be made and how good is the received

display, the actual transmission length is subject to your CAT-5/5e/6 cables.

For resolution greater than 1080i or 1280x1024, a CAT-6 cable is recom-

mended.

Atlona

Address 2151 O’Toole Ave Unit D, San Jose, CA 95131

Phone

Toll Free (US & Canada only): 1-877-536-3976

Contact phone: 1-408-954-8782

Fax 1-408-954-8792

Email [email protected]

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not

expose this product to rain or moisture.

If the wall plug does not t into your local

power socket, hire an electrician to replace

your obsolete socket.

Do not modify the wall plug.

Doing so will void the warranty and safety

features.

This equipment should be installed near

the socket outlet and the device should

be easily accessible in case it requires

disconnection.

Precautions

FCC Regulations state that any

unauthorized changes or modications to

this equipment not expressly approved by

the manufacturer could void the

user’s authority to operate this

equipment.

Operate this product using only the

included external power supply. Use of

other power supplies could impair

performance, damage the product or cause

res.

In the event of an electrostatic discharge,

this device may automatically turn off. If this

occurs, unplug the device, and plug it back

in.

Protect and route power cords so they will

not be stepped on or pinched by anything

placed on or against them. Be especially

careful of plug-ins, or cord exit points from

this product.

Avoid excessive humidity, sudden

temperature changes or temperature

extremes.

Keep this product away from wet locations

such as bathtubs, sinks, laundries, wet

basements and swimming pools.

Use only accessories recommended by

ATLONA to avoid re, shock or other

hazards.

Unplug the product before cleaning. Use

a damp cloth for cleaning. Do not use

cleaning uid or aerosols, which could

enter the unit and cause damage, re or

electrical shock. Some substances may

also mar the nish of the product.

Never open or remove unit panels or make

any adjustments not described in this

manual. Attempting to do so could expose

you to dangerous electrical shock or other

hazards. It may also cause damage to your

AT-HD-IR40SR. Opening the product will

void the warranty.

Do not attempt to service the unit. Instead

disconnect it and contact your Authorized

ATLONA reseller or contact ATLONA

directly.

7 8

WARRANTY

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the

accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be

free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event

applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of

receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation

may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-

gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet

this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited

Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-

uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLI-

ERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH

REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES

CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JU-

RISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLO-

GIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITA-

TION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS

OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER

PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA

TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA

TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT

SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JU-

RISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

ATLONA

2151 O’toole Ave, Ste D

San Jose CA 95131

Toll Free: 1-877-536-3976

International: 408-954-8782

FAX: 408-954-8792

Website: www.atlona.com

E-MAIL: [email protected]

Autres manuels pour AT-HD-IR40SR

Table des matières

Autres manuels Atlona Extenseur

Atlona

Atlona AT-HD4-V40SRS Manuel utilisateur

Atlona

Atlona AT-COMP150SR Manuel utilisateur

Atlona

Atlona AT-HD4-SI40SR Manuel utilisateur

Atlona

Atlona AT-2VGA300SL Manuel utilisateur

Atlona

Atlona AT-UHD-EX-100CE-KIT Manuel utilisateur

Atlona

Atlona AT-RS232SRS Manuel utilisateur

Atlona

Atlona AT-HDTX-ROADNET Manuel utilisateur

Atlona

Atlona AT-VGA-RS300SRS Manuel utilisateur

Atlona

Atlona AT-HDVS-150-TX-WP Manuel utilisateur

Atlona

Atlona AT-COMP300SL Manuel utilisateur

Atlona

Atlona AT-HD4-V110SR Manuel utilisateur

Atlona

Atlona AT-SDI10SR-LC Manuel utilisateur

Atlona

Atlona AT-VBNC400SR Manuel utilisateur

Atlona

Atlona AT-HD-RG100SR Manuel utilisateur

Atlona

Atlona AT-UHD-EX-100CE-RX-PSE Manuel utilisateur

Atlona

Atlona AT-HD-V40SRS Manuel utilisateur

Atlona

Atlona AT-HD4-V40SRS Manuel utilisateur

Atlona

Atlona AT-HD-BIR40SR Manuel utilisateur

Atlona

Atlona AT-HDF30SR Manuel utilisateur

Atlona

Atlona AT-DVI4-100SR Manuel utilisateur

Atlona

Atlona AT-DVI40SRS Manuel utilisateur

Atlona

Atlona AT-IR300SRS Manuel utilisateur

Atlona

Atlona AT-VGA-RS300SRS Manuel utilisateur

Atlona

Atlona AT-DVITX-RSNET Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur

SECO-LARM

SECO-LARM ENFORCER EVT-PB1-V1TGQ Manuel utilisateur
