Atlas Copco G2422-1 Feuille d'instructions

G2422-1

Printed Matter No. 9839 0485 01 Die grinder

Valid from Serial No. A6720001

Valid to Serial No. A9810001

2017-11-25

Product Instructions

G2422-1

(20000 r/min)

(20000 rpm)

8423031247

WARNING

Read all safety warnings and instructions

Failure to follow the safety warnings and instructions may result in

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference

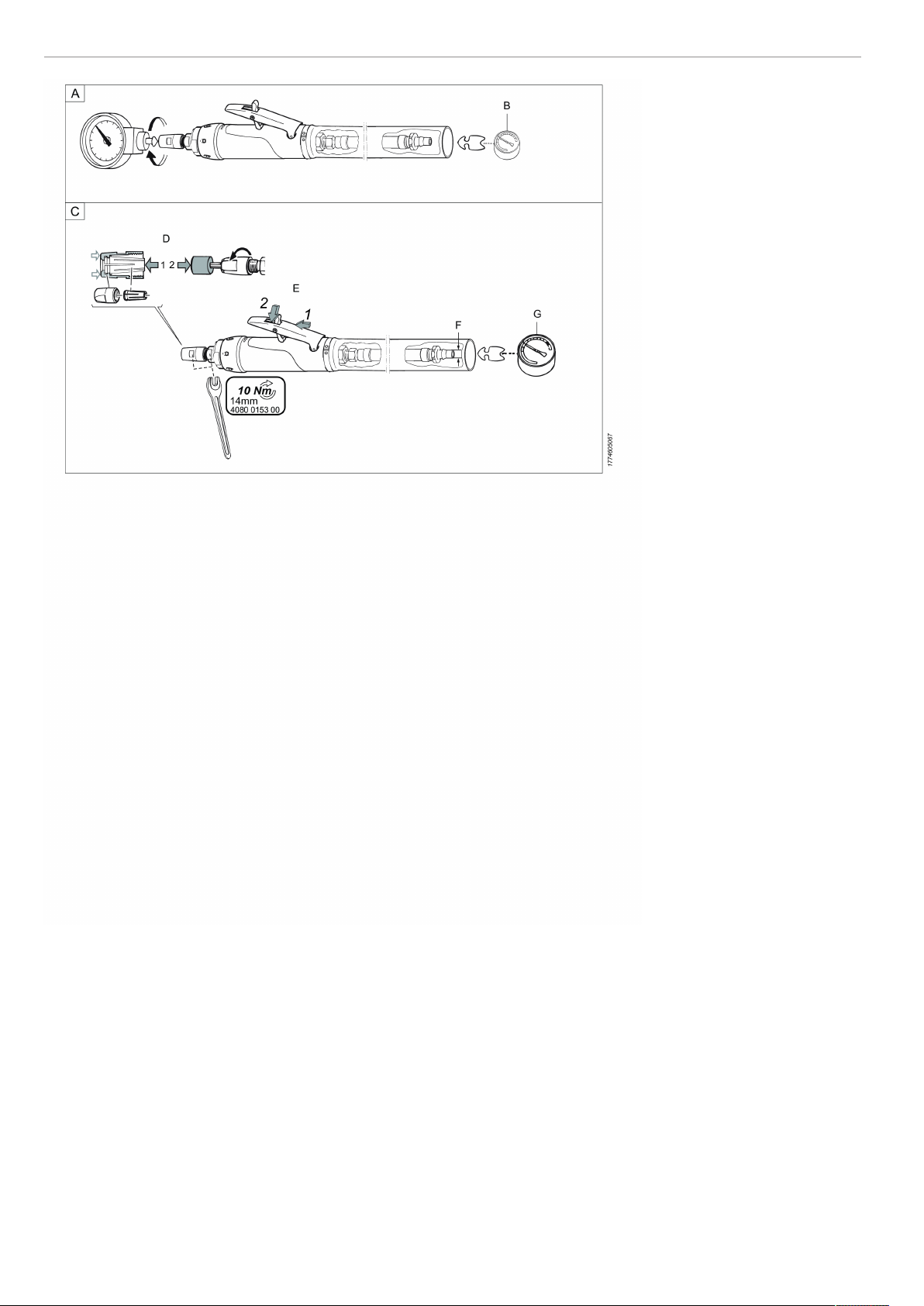

EN G2422-1

2© Atlas Copco Industrial Technique AB - 9839 0485 01

Table of Contents

Product information..................................................................... 5

General information................................................................. 5

Safety signal words........................................................ 5

Warranty ........................................................................ 5

ServAid .......................................................................... 6

Website .......................................................................... 6

Safety Data Sheets MSDS/SDS .................................... 6

Country of origin............................................................. 6

Dimensional drawings.................................................... 6

Overview ................................................................................. 6

Design and function ....................................................... 6

Technical data................................................................ 7

Service overview ..................................................................... 7

Maintenance and service instructions............................ 7

Replacement of vanes ................................................... 7

Service recommendations ............................................. 8

Installation .................................................................................... 9

Installation requirements ......................................................... 9

Air quality ....................................................................... 9

Air lubrication guide ....................................................... 9

Compressed air connection ........................................... 9

Installation instructions............................................................ 9

Installation of vibrating tools........................................... 9

Operation .................................................................................... 10

Ergonomic guidelines............................................................ 10

Setting-up instructions........................................................... 11

Operating instructions ........................................................... 11

Visual inspection .......................................................... 11

Operation instructions .................................................. 12

Mounted wheel and carbide burr ................................. 12

Service ........................................................................................ 14

Maintenance instructions....................................................... 14

Maintenance and service instructions.......................... 14

Service recommendations ........................................... 14

Replacement of vanes ................................................. 14

Lubrication instructions.......................................................... 14

Rust protection and cleaning ....................................... 14

Lubrication ................................................................... 15

4© Atlas Copco Industrial Technique AB - 9839 0485 01

Lubricating guide.......................................................... 15

Dismantling/Assembling instructions..................................... 15

Instructions for vane motor .......................................... 15

Testing................................................................................... 17

Recycling .................................................................................... 18

Recycling instruction ............................................................. 18

G2422-1 EN Product information

Product information

General information

WARNING Risk of Property Damage or Severe Injury

Ensure that you read, understand and follow all instructions before operating

the tool. Failure to follow all the instructions may result in electric shock,

fire, property damage and/or severe bodily injury.

►Read all safety Information delivered together with the different parts of

the system.

►Read all product Instructions for installation, operation and maintenance

of the different parts of the system.

►Read all locally legislated safety regulations with regard to the system

and parts thereof.

►Save all safety information and instructions for future reference.

Safety signal words

The safety signal words Danger, Warning, Caution, and Notice have the follow-

ing meanings:

DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or

serious injury.

WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death

or serious injury.

CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if

not avoided, could result in minor or moderate injury.

NOTICE NOTICE is used to address practices not related to personal injury.

Warranty

• Product warranty will expire 12 months after the product is first taken into

use, but will in any case expire at the latest 13 months after delivery.

• Normal wear and tear on parts is not included within the warranty.

• Normal wear and tear is that which requires a part change or other ad-

justment/overhaul during standard tools maintenance typical for that pe-

riod (expressed in time, operation hours or otherwise).

• The product warranty relies on the correct use, maintenance, and repair of

the tool and its component parts.

• Damage to parts that occurs as a result of inadequate maintenance or per-

formed by parties other than Atlas Copco or their Certified Service Partners

during the warranty period is not covered by the warranty.

• To avoid damage or destruction of tool parts, service the tool according to

the recommended maintenance schedules and follow the correct instruc-

tions.

• Warranty repairs are only performed in Atlas Copco workshops or by Certi-

fied Service Partners.

Atlas Copco offers extended warranty and state of the art preventive mainte-

nance through its ToolCover contracts. For further information contact your lo-

cal Service representative.

Product information EN G2422-1

6© Atlas Copco Industrial Technique AB - 9839 0485 01

For electrical motors:

• Warranty will only apply when the electric motor has not been opened.

ServAid

ServAid is a portal that contains the most up-to-date product information such

as:

- Safety Information

- Installation, Operation and Service Instructions

- Exploded views

It is also possible to order spare parts, service tools and accessories for the

product of your choice directly from ServAid. It is continuously updated with

information about new and redesigned products.

If translations exist, you can view content in the language of your choice. Ser-

vAid offers advanced search functionality of our entire product range and can

also be used to display information about obsolete products.

ServAid is available on DVD and on the website:

https://servaid.atlascopco.com

For further information contact your Atlas Copco sales representative or e-mail

us at:

[email protected]

Website

You can find information concerning our products, accessories, spare parts and

published matters on our website.

Safety Data Sheets MSDS/SDS

The safety data sheets describes chemical products sold by Atlas Copco.

For more information, consult the website:

www.atlascopco.com

Choose Products - Safety Data Sheets, and follow the instructions on the

page.

Country of origin

Please refer to the information on the product label.

Dimensional drawings

For information about the dimensions of a product, see the Dimensional draw-

ings archive:

http://webbox.atlascopco.com/webbox/dimdrw

Overview

Design and function

This die grinder is intended for mounted wheels and rotary burrs only. This

model is lubricated. The machine, its attachments and accessories must only be

used for the purpose for which they were designated, all other use is prohibited.

G2422-1 EN Product information

• Never use grinding wheels attached with an adapter as this machine is not

fitted with a wheel guard

• Never attach circular saw blades or other cutters than the abrasive wheels or

brushes specified for the tool

Technical data

Ordering No 8423031247

Model G2422-1

Max wheel diameter - mm (- in)

Max pad diameter - mm (- in)

Spindle thread -

Spindle length - mm (- in)

Air inlet thread 1/41/4 in

Air consumption at free speed 10.3 l/s (21.8 cfm)

Air consumption at max output 13.0 l/s (27.5 cfm)

Max working pressure 7 bar (102 psig)

Max free speed 20000 r/min (20000 rpm)

Max output 0.35 kW (0.47 hp)

Motor type Vane

Recommended hose size (d x l) 10 mm x 3 m (3/8 in x 10 ft)

Weight 0.7 kg (1.5 lb)

Service overview

Maintenance and service instructions

The service must only be done by authorized workshops or qualified ser-

vice technicians.

WARNING Polymer hazard

The vanes in this product contain PTFE (a synthetic fluoropolymer). Due to

wear, there might be PTFE particles inside the product. Heated PTFE can

produce fumes which may cause polymer fume fever with flu-like symp-

toms, especially when smoking contaminated tobacco.

Health and Safety recommendations for PTFE must be followed when han-

dling vanes and other components:

►Do not smoke when servicing this product

►PTFE-particles must not come in contact with open fire, glow or heat

►Motor components must be washed with cleaning fluid and not blown

clear with an air line

►Wash your hands before starting any other activity

Replacement of vanes

Replace the vanes in the motor when a power drop of the tool is experienced. If

the vanes are not replaced in time other motor parts may be damaged. For in-

creased life length of the vanes use an oil lubricator to dose oil into the air inlet.

Product information EN G2422-1

8© Atlas Copco Industrial Technique AB - 9839 0485 01

Service recommendations

Preventive maintenance is recommended at regular intervals. See the detailed

information on preventive maintenance. If the product is not working properly,

take it out of service and inspect it.

If no detailed information about preventive maintenance is included, follow

these general guidelines:

• Clean appropriate parts accurately

• Replace any defective or worn parts

G2422-1 EN Installation

Installation

Installation requirements

Air quality

• For optimum performance and maximum product life we recommend the

use of compressed air with a maximum dew point of +10°C (50°F). We also

recommend to install an Atlas Copco refrigeration type air dryer.

• Use a separate air filter which removes solid particles larger than 30 mi-

crons and more than 90% of liquid water. Install the filter as close as possi-

ble to the product and prior to any other air preparation units to avoid pres-

sure drop.

Make sure that the hose and couplings are clean and free from dust before

connecting to the tool.

Both lubricated and lubrication free products will benefit from a small

quantity of oil supplied from a lubricator.

Air lubrication guide

Brand Air lubrication

Atlas Copco Optimizer (1 liter) 9090 0000 04

Q8 Chopin 46

Shell Shell Air Tool Oil S2 A 320

Compressed air connection

WARNING Compressed air can cause serious injury

►Always shut off the air supply, drain hose of air pressure and disconnect

the tool from air supply; when not in use, before making any adjustments

to the product - for example changing accessories, or when making re-

pairs.

WARNING Whipping hoses can cause serious injury

►Always make sure that there are no damaged or loose hoses or fittings.

WARNING Compressed Air

High air pressure can cause severe damage and injury.

►Do not exceed maximum air pressure.

For correct air pressure and hose size, see section Technical data.

Make sure that the hose and couplings are clean and free from dust before

connecting to the tool.

Installation instructions

Installation of vibrating tools

It is recommended that a minimum length of 300 mm (12") of flexible hose for

compressed air is inserted between a vibrating tool and the quick-action cou-

pling.

Operation EN G2422-1

10 © Atlas Copco Industrial Technique AB - 9839 0485 01

Operation

Ergonomic guidelines

Consider your workstation as you read through this list of general ergonomic

guidelines and see if you can identify areas for improvement in posture, compo-

nent placement, or work environment.

• Take frequent breaks and change work positions frequently.

• Adapt the workstation area to your needs and the work task.

• Adjust for convenient reach range by determining where parts or tools

should be located to avoid static load.

• Use workstation equipment such as tables and chairs appropriate for the

work task.

• Avoid work positions above shoulder level or with static holding during as-

sembly operations.

• When working above shoulder level, reduce the load on the static mus-

cles by reducing the weight of the tool, using for example torque arms,

hose reels or weight balancers. You can also reduce the load on the static

muscles by holding the tool close to the body.

• Make sure to take frequent breaks.

• Avoid extreme arm or wrist postures, particularly for operations requir-

ing a degree of force.

• Adjust for convenient field of vision by minimizing movement of the eyes

and head during the work task.

• Use the appropriate lighting for the work task.

• Select the appropriate tool for the work task.

• Use ear protection equipment in noisy environments.

• Use high-quality inserted tools or consumables to minimize exposure to ex-

cessive levels of vibration.

• Minimize exposure to reaction forces.

• When cutting:

A cut-off wheel can get stuck if the wheel is either bent or if it is not

guided properly. Make sure to use the correct flanges for cut-off wheels

and avoid bending the wheel during cut-off operation.

• When drilling:

The drill might stall when the drill bit breaks through. Makes sure you

use support handles if the stall torque is too high. The safety standard

ISO11148 part 3 recommends using something to absorb the reaction

torque above 10 Nm for pistol grip tools and 4 Nm for straight tools.

• When using direct-driven screw or nutrunners:

Reaction forces depend on tool setting and joint characteristics. The abil-

ity to bear reaction forces depends on the operator’s strength and pos-

ture. Adapt the torque setting to the operator's strength and posture and

use a torque arm or reaction bar if the torque is too high.

• Use dust extraction system or mouth protection mask in dusty environments.

Table des matières

Autres manuels Atlas Copco Broyeur

Atlas Copco

Atlas Copco LSS 84 S060-23/C Manuel utilisateur

Atlas Copco

Atlas Copco G2451 Feuille d'instructions

Atlas Copco

Atlas Copco LSF38 S180 E/R Feuille d'instructions

Atlas Copco

Atlas Copco G2511-115 Feuille d'instructions

Atlas Copco

Atlas Copco PRO G2510-115 Feuille d'instructions

Atlas Copco

Atlas Copco LSF12 S400-2 Manuel utilisateur

Atlas Copco

Atlas Copco G2588-180-M14 Feuille d'instructions

Atlas Copco

Atlas Copco GTG25-F120-527 Feuille d'instructions

Atlas Copco

Atlas Copco GTG25 F120-5/8 Feuille d'instructions

Atlas Copco

Atlas Copco G2427 S180 Feuille d'instructions

Atlas Copco

Atlas Copco PRO G2414-S080 Feuille d'instructions

Atlas Copco

Atlas Copco G2424-S200 Feuille d'instructions

Atlas Copco

Atlas Copco GTG40 S060-727 Feuille d'instructions

Atlas Copco

Atlas Copco G2510-100 Manuel utilisateur

Atlas Copco

Atlas Copco G2424-S120 Feuille d'instructions

Atlas Copco

Atlas Copco G2417 S120 Feuille d'instructions

Atlas Copco

Atlas Copco G2510-115 Manuel utilisateur

Atlas Copco

Atlas Copco PRO G2424-S250 Feuille d'instructions

Atlas Copco

Atlas Copco G2511-125 Feuille d'instructions

Atlas Copco

Atlas Copco PRO G2510-100 Feuille d'instructions

Atlas Copco

Atlas Copco PRO G2424-S080 Feuille d'instructions

Atlas Copco

Atlas Copco PRO G2414-S120 Feuille d'instructions

Atlas Copco

Atlas Copco Secoroc GM RH Caractéristiques techniques

Atlas Copco

Atlas Copco PRO G2414-S150 Feuille d'instructions

Manuels Broyeur populaires d'autres marques

Parkside

Parkside PWS 230 C3 Manuel utilisateur

SUHNER ABRASIVE

SUHNER ABRASIVE ASC 9 Manuel technique

PTA

PTA P1322 Manuel utilisateur

Crown

Crown CT13313 Manuel utilisateur

Parkside

Parkside 280250 Manuel utilisateur

Climax

Climax VM2150 Series Manuel utilisateur

Jet

Jet JPSG-618M1 Manuel de service

Makita

Makita GA4030 Manuel utilisateur

DeWalt

DeWalt DWEN202 Manuel utilisateur

Grizzly

Grizzly G2790 Manuel utilisateur

Fein

Fein MSf843-1a Manuel utilisateur

Bosch

Bosch GWS 14,4 V PROFESSIONAL Manuel utilisateur

RAMSET

RAMSET CBAGR18 Manuel utilisateur

Bosch

Bosch 8-115 Z Manuel utilisateur

STEELE PRODUCTS

STEELE PRODUCTS SP-PB008 Manuel utilisateur

MW TOOLS

MW TOOLS ME15W Manuel utilisateur

Caravaggi

Caravaggi SP 20 Mode d'emploi

SUHNER ABRASIVE

SUHNER ABRASIVE UWK 10-R125 Manuel technique
