NetFly AP1-54

Wireless Multi-Function

Access Point

A02-AP1-W54

QUICK START GUIDE

A02-AP1-W54_GE01

Where solutions begin

ITALIANO

Questo prodotto è coperto da garanzia Atlantis Land Fast

Swap della durata di 3 anni. Per maggiori dettagli in merito o

per accedere alla documentazione completa in Italiano fare

riferimento al sito www.atlantis-land.com.

ENGLISH

This product is covered by Atlantis Land 3 years Fast Swap

warranty. For more detailed informations please refer to the web

site www.atlantis-land.com.

For more detailed instructions on configuring and using this

device, please refer to the online manual.

FRANCAIS

Ce produit est couvert par une garantie Atlantis Land Fast

Swap de 3 ans. Pour des informations plus détaillées, référez-

vous svp au site Web www.atlantis-land.com.

DEUTSCH

Dieses Produkt ist durch die Atlantis Land 3 Jahre Fast Swap

Garantie gedeckt. Für weitere Informationen, beziehen Sie sich

bitte auf Web Site www.atlantis-land.com.

ESPAÑOL

Este producto està cubierto de garantía Atlantis Land Fast Swap

por 3 años. Para una información más detallada, se refiera por

favor al Web site www.atlantis-land.com.

Where solutions begin

The award of the information is facultative, but its lack will

prevent ATLANTIS LAND® from starting the Guarantee process

requested.

The Atlantis Land logo is a registered trademark of Atlantis Land

SpA. All other names mentioned mat be trademarks or

registered trademarks of their respective owners. Subject to

change without notice. No liability for technical errors and/or

omissions.

-l

Registration on the web site

www.atlantis-land.com within 15 days

from the purchase of the product dismiss

the customer from showing a valid proof of

purchase (Sale Receipt or Invoice) in case

of the request of intervention. For further

information we invite you to look at our web

site at the section WARRANTY.

NetFly AP1-54

INDEX

1.1 Package contents ................................................ 5

1.2 The Front Panel LEDs ........................................ 5

1.3 The Rear Ports..................................................... 6

1.4 Cabling .................................................................. 7

1.5 Default Settings.................................................... 7

1.6 IE Configuration ................................................... 8

1.7 TCP/IP Configuration .......................................... 9

Configuring PC (Windows 95/98/ME) ......................9

Configuring PC (Windows NT4.0)..........................9

Configuring PC (Windows 2000)...........................10

Configuring PC (WindowsXP)..............................10

1.8 Browser configuration ....................................... 11

Quick Wizard Setup ...............................................11

A02-AP1-W54_GE01(V1.0 May 2006)

NetFly AP1-54

For more detailed instructions on configuring and using

the Wireless Multi-Function Access Point, please refer

to the online manual.

1.1 Package contents

Atlantis Land WirelessMulti-Function Access Point, CDRom

with manual, Quick Start Guide, External 2 dBi Antenna,

Power Adapter AC-DC (7.5V, 1A).

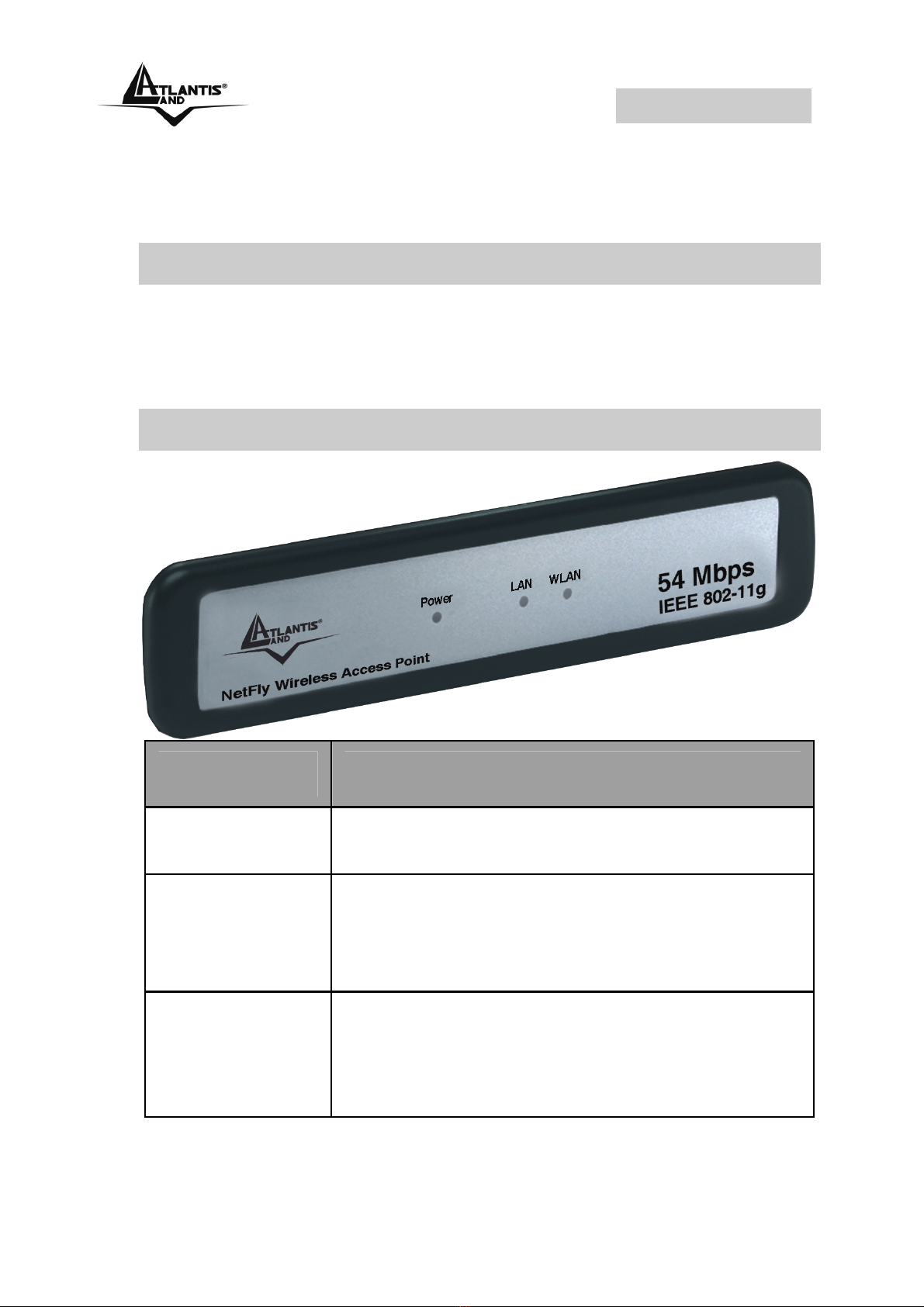

1.2 The Front Panel LEDs

LED MEANING

POWER This indicator lights green when the hub

is receives power, otherwise it is off.

WLAN

This indicator lights green when there

are wireless devices connected and

transmitting data to the Wireless Access

Point.

LAN

These indicators light green when the

LAN ports were connected successfully.

These indicators blink green while the

LAN ports were transmitting data.

NetFly AP1-54

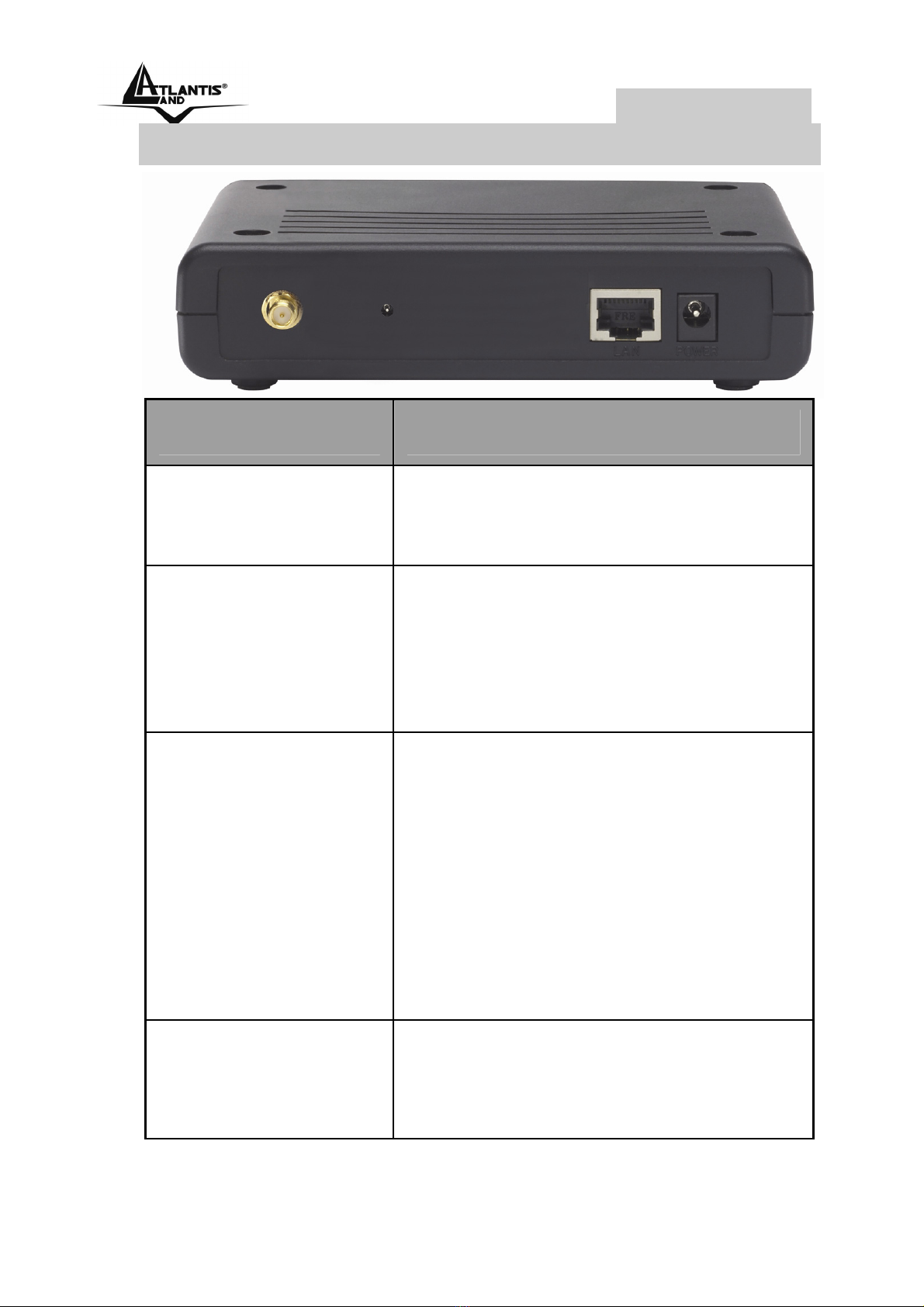

1.3 The Rear Ports

PORT MEANING

POWER Jack Connect the supplied power

adapter to this jack.

LAN Connect an UTP Ethernet cable to

one of the four LAN ports when

connecting to a PC or an

office/home network of 10Mbps or

100Mbps.

Reset After the device has turned on,

press it to reset the device or

restore to factory default settings.

Use a pin-shape item to push to

reset this device to factory default

settings. It will be useful too when

the manager forgot the password

to login, but the setting will be back

to default setting.

Reverse SMA There is one 2dBi Gain Antenna in

the rear panel for wireless

connection.

NetFly AP1-54

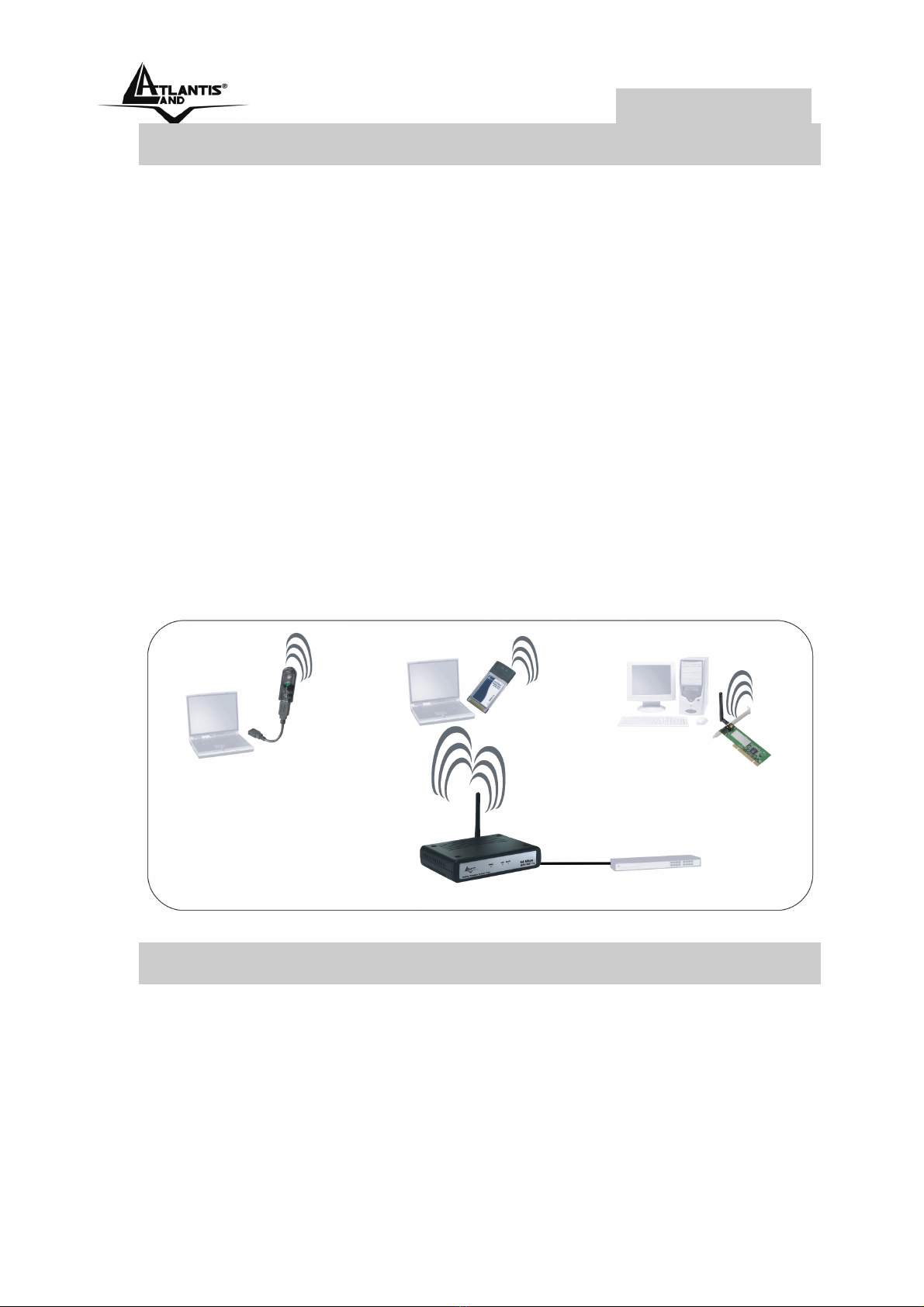

1.4 Cabling

Connect to the Switch/Hub

1. Plug in one end of the RJ45 network cable to the

Switch/Hub port,

2. Plug in the other end of the RJ45 network cable to

the Wireless Access Point.

Check the installation

The LEDs of the Access Point are clearly visible and the

status of the network link can be seen instantly:

•With the power source on, once the device is

connected, the Power, LAN and WLAN port LEDs

will light up indicating a normal status.

•If the LAN Port’s Link indicator does not light up then

check the RJ-45 cable if it is firmly feed to the RJ45

port, while the LAN is link up to the Switch/Hub, the

LAN port’s LED will light up.

1.5 Default Settings

The Wireless Multi-Function Access Point can be configured

with your Web browser. The web browser is included as a

standard application in following operation systems, UNIX,

Linux, Mac OS, Windows 95/98/NT/2000/Me, etc. The

product provides a very easy and user-friendly interface for

configuration.

NetFly AP1-54

Before Configuration

This section describes the configuration required by LAN-

attached PCs that communicate with the Wireless Multi-

Function Access Point, either to configure the device or for

network access. These PCs must have an Ethernet interface

(or wireless adapter) installed properly, be connected to the

Wireless Multi-Function Access Point either directly or

through an external repeater hub or by wireless, and have

TCP/IP installed and configured with a fixed IP address that

must be in the same subnet of the Wireless Multi-Function

Access Point. The default IP address of the Wireless Multi-

Function Access Point is 192.168.1.1 and subnet mask is

255.255.255.0. For example, when the default network

address of the default IP address of the AP is 192.168.1.1,

then the manager PC should be set at 192.168.1.x (where x

is a number between 2 and 254), and the default subnet

mask is 255.255.255.0.

Please follow the steps below for PC’s network environment

installation. First of all, please check your PC’s network

components. The TCP/IP protocol stack and Ethernet

network adapter must be installed. If not, please refer to MS

Windows related manuals.

Before you configure this Wireless Multi-Function Access

Point, you need to know the following default settings:

•Username:admin

•Password:admin

•IP LAN address: (192.168.1.1), Subnet Mask

(255.255.255.0)

•DHCP Server: disable

•SSSID= default, Channel=6, WEP/WAP=disable

1.6 IE Configuration

Now open IE, go to Instruments menu, select the

Connections tab and select one of the following options:

NetFly AP1-54

•Never use remote connection

•Use remote connection if another network

connection isn’t available

1.7 TCP/IP Configuration

Configuring PC (Windows 95/98/ME)

1. Go to Start / Settings / Control Panel. In the Control

Panel, double-click on Network and choose the

Configuration tab.

2. Select TCP / IP -> NIC Compatible, or the name of

any Network Interface Card (NIC) in your PC.

3. Click Properties.

4. Select the IP Address tab. In this page, click the

Specify an IP address radio button (EG

IP=192.168.1.2 and subnet Mask=255.255.255.0).

5. Then select the DNS Configuration tab.

6. Select the Enable DNS radio button and click OK to

finish the configuration.

Configuring PC (Windows NT4.0)

1. Go to Start / Settings / Control Panel. In the Control

Panel, double-click on Network and choose the

Protocols tab.

2. Select TCP/IP Protocol and click Properties.

3. Select the Obtain an IP address from a DHCP

server radio button and click OK.

NetFly AP1-54

4. Select the IP Address tab. In this page, click the

Specify an IP address radio button (EG

IP=192.168.1.2 and subnet Mask=255.255.255.0).

Configuring PC (Windows 2000)

1. Go to Start / Settings / Control Panel. In the Control

Panel, double-click on Network and Dial-up

Connections.

2. Double-click LAN Area Connection.

3. In the LAN Area Connection Status window, click

Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select Use the Following IP Address (EG

IP=192.168.1.2 and subnet Mask=255.255.255.0).

6. Click OK to finish the configuration.

Configuring PC (WindowsXP)

1. Go to Start / Control Panel (in Classic View). In the

Control Panel, double-click on Network Connections.

7. Double-click Local Area Connection.

2. In the LAN Area Connection Status window, click

Properties.
