Atlantic Technology Atlantic FS-4000 Manuel d'utilisation

3 high-performance

speakers in one for today’s

ﬂ at screen technologies

Home Theater could be the most enjoyable,

signiﬁ cant development in at-home

entertainment to come along in a generation.

Being able to literally “go to the movies”

in one’s own living room has completely

transformed the experience of watching

television.

Great sound is an integral, essential

component to the theater experience at home.

The downside for most people comes from

having to mount and wire speakers all over

their room. It’s inconvenient, confusing, and

unsightly.

Enter Atlantic’s innovative FS-4000 Front

Stage Loudspeaker. This sleek, 40”-long unit

contains all three front speakers—left, center,

and right—in a single enclosure. It’s perfect for

the growing number of customers who just

want a simple, attractive, one-piece speaker

solution under their ﬂ at-screen television, without all the visual clutter of separate left,

center, and right speakers surrounding their stylish, thin TV. The cabinet is internally

separated into three chambers, each with a 1” tweeter, a 4½” magnetically-shielded

woofer and a 4½” Bass Pressure Driver. Bass response extends down to 75Hz, for full-

bodied sound even without a subwoofer.

All three speakers in the FS-4000 have two rear-panel

controls—a 3-position HF Energy switch and a 2-position

Boundary Compensation switch—to optimize the speakers’

performance regardless of room acoustics or placement.

These controls allow the FS-4000 to always sound its best.

The FS-4000 uses the same drivers and crossover

technology as our highly-acclaimed 2200 and FS-3200

systems, so there is absolutely no compromise in

sound quality or tonal accuracy by having the three front channels in a

single enclosure. With the FS-4000, it’s now possible to enjoy the

legendary Atlantic sound from speakers that blend right into

the room.

The decorative side panels are ﬁ nished in a

choice of automotive-grade Metallic Silver

or a rich-looking Gloss Black paint.

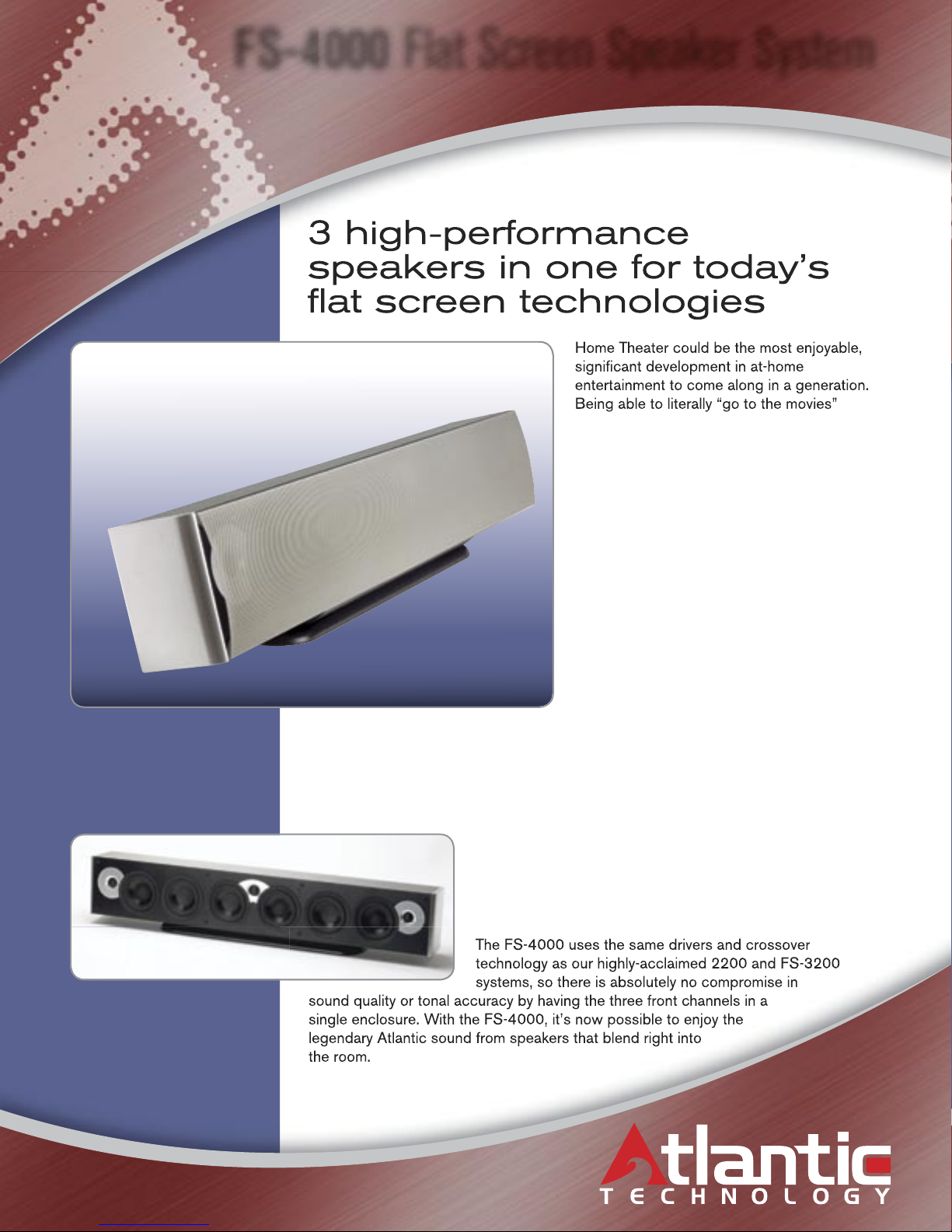

high-performance

speakers in one for today’s

ﬂ at screen technologies

Home Theater could be the most enjoyable,

signiﬁ cant development in at-home

entertainment to come along in a generation.

Being able to literally “go to the movies”

The FS-4000 uses the same drivers and crossover

technology as our highly-acclaimed 2200 and FS-3200

systems, so there is absolutely no compromise in

sound quality or tonal accuracy by having the three front channels in a

single enclosure. With the FS-4000, it’s now possible to enjoy the

legendary Atlantic sound from speakers that blend right into

the room.

Product Information Sheet

FS-4000 Flat Screen Speaker System

Norwood, MA 02062 • 781.762.6300

www.atlantictechnology.com 7.05

Atlantic Technology is a registered trademark of Atlantic Technology

International. Speciﬁ cations subject to change without notice.

Mounting Options

Five mounting options, included with speakers:

Notice that the FS-4000’s tweeters

are offset above the centerline of the

woofers. This is a perfect example

of the way that Atlantic pays close

attention to acoustic details. By moving

the tweeters up, we signiﬁ cantly

reduce the audibly-intrusive

interference patterns that result from

woofers and tweeters being mounted

side-by-side.

1. “Straight Ahead”

wall bracket holds

the speaker ½” off

the wall pointing

straight ahead.

Speciﬁ cations

Type 2-way with Bass Pressure Drivers

Drivers Woofer (3) 4½” (115mm) GLH§

(3) 4½” (115mm) Bass Pressure Drivers

Tweeter (3) 1” (25mm) soft dome

Frequency Response 75Hz – 20kHz ±3dB

Nominal Impedance 8 Ohms

Crossover Frequency 3.75kHz, 3rd order

2. “Angled” wall bracket—

angles the speaker up

or down, depending on

whether it’s mounted

above or below the

video display.

3. Keyhole mount (on the rear

of the speaker), for simple

ﬂ ush wall mounting.

5. Using Atlantic’s exclusive center channel rocker base, the FS-4000 can

be used as a freestanding speaker on a TV or on a shelf in addition to

wall mounting.

The decorative side panels are ﬁ nished

in a choice of automotive-grade

metallic silver or a rich-looking Gloss

Black paint.

4. Atlantic’s stud bracket can be used to anchor the FS-4000 from the wall studs to

either the regular keyhole mount (as shown in option 3) or to the straight or angled

brackets (as shown in options 1 and 2).

Sensitivity 89dB

Recommended Power 10 – 125 Watts RMS per channel

Magnetic Shielding Yes

Dimensions w/grille 40 x 6.5 x 5”*

(W x H x D) 1021 x 165 x 127mm

Weight 27lbs; 12.3kg

§Graphite Loaded Homopolymer

*Height without base. Add 1” height for base.

Mounting Options

Five mounting options, included with speakers:

1. “Straight Ahead”

wall bracket holds

the speaker ½” off

the wall pointing

straight ahead.

2. “Angled” wall bracket—

angles the speaker up

or down, depending on

whether it’s mounted

above or below the

FS-4000 Flat Screen Speaker System
