ATIM ACW/SF8-WL-I Manuel utilisateur

Versions concerned:

ACW/SF8-WL-I

ACW/LW8-WL-I

ACW/SF8-WL-O

ACW/LW8-WL-O

ACW/SF8-WLL-I

ACW/LW8-WLL-I

Atim Cloud Wireless®

Water Leak Detection

User guide

1
ATIM_ACW-WLL_UG_EN_V1.4
SUMMARY
Historic of this document..................................................................................................................................................3
Disclaimer..........................................................................................................................................................................3
Trademarks and copyright.................................................................................................................................................3
Declaration of compliance.................................................................................................................................................4
Environmental recommendations.....................................................................................................................................4
a. Explosive atmosphere 4
b. Environment 4
c. Radio 5
Technical specifications..................................................................................................................................................... 6
a. Features 6
b. Technical features 6
c. Water Leak Sensor 7
a. Mounting 7
b. Identification 7
Available versions..............................................................................................................................................................8
a. Electrodes only 8
b. Simple cable 8
c. Localisation and detection cable 9
d. Wiring accessories 9
e. Cables versions summary 10
Cable setup......................................................................................................................................................................11
Operation ........................................................................................................................................................................13
a. Operating modes 13
b. Product start-up 14
c. Emission of a test frame 15
d. Deep sleep 15
e. Radio module activity 15
f. Battery passivation 15
g. Exploitation Mode 15
h. Alert Frame 15
i. Keepalive Frame 16
j. Options 16
k. IP68 Waterproof version 16

2
ATIM_ACW-WLL_UG_EN_V1.4
ACW Configurator ...........................................................................................................................................................16
a. Compatible versions 16
Configuration...................................................................................................................................................................16
Frames format.................................................................................................................................................................18
a. Quick start 18
Test frame...............................................................................................................................................................18
Alert frames............................................................................................................................................................18
End of alert frames .................................................................................................................................................18
a. Full frames details 18
Classic frame...........................................................................................................................................................19
Alert frame..............................................................................................................................................................20
Keepalive frame......................................................................................................................................................21
Test frame...............................................................................................................................................................21
Error frame .............................................................................................................................................................22
Exemple de visualisation des modems sur la nouvelle plateforme ACW 24
Troubleshooting ..............................................................................................................................................................24
Technical support............................................................................................................................................................24



ATIM_ACW-WLL_UG_EN_V1.4

Historic of this document

Version

Date

Description

Author

Software

version

1.4

18/10/2021

Created from the FR Version.

1.3

20/09/2021

Update after first Mise à jour après retours clients

1.2

30/07/2021

Corrections

1.1

06/05/2021

Accessories addition

1.0

15/04/2021

1st version

0.2

07/04/2021

Corrections

0.1

06/04/2021

Document creation

Disclaimer

The information contained in this document is subject to change without warning and does not represent a

commitment on the part of ATIM radiocommunications. ATIM radiocommunications provides this document ‘as-is’

with no warranty of any kind, express or implied, including but not limited to implied warranties of merchantability or

fitness for a particular purpose. ATIM radiocommunications may make changes and/or improvements to this manual

or to the product(s) or program(s) described in this manual, at any time.

Trademarks and copyright

ATIM radiocommunications®, ACW ATIM Cloud Wireless® and ARM Advanced Radio Modem® are registered

trademarks of ATIM SARL in France. The other trademarks mentioned in this document are the property of their

respective owners.

ATIM_ACW-WLL_UG_EN_V1.4

Declaration of compliance

All ACW Atim Cloud Wireless® products comply with the regulatory requirements of the R&TTE Directive (1999/5/EC),

article 3:

1 SAFETY (Article 3.1a of the 1999/5/EC Directive)

NF EN60950-1 Ed. 2006/A1:2010/A11:2009/A12:2011 (health)

EN62479: 2010 (power <20mW) or EN62311:2008 (power > 20mW)

2 Electromagnetic compatibilities (Article 3.1b of the 1999/5/EC Directive)

EN 301489-3 v1.4.1, EN 301489-1 V1.9.2

3 Efficient use of the radio frequency spectrum (Art.3.2 of the 1999/5/EC Directive)

ETSI EN300 220-2 v2.4.1 and EN300 220-1 v2.4.1

Environmental recommendations

a. Explosive atmosphere

Except for the ACW-ATEX line specifically intended for this purpose, do not use ACW radio modems in the presence of

flammable gases or fumes. Using the equipment in such an environment constitutes a safety hazard.

b. Environment

Respect the temperature ranges for storage and operation of all products. Failing to respect these guidelines could

disrupt device operation or damage the equipment. ACW products in IP65 water- and dust-resistant housings may be

placed outdoors but must not be submerged under any circumstances.

Follow the instructions and warnings provided below to ensure your own safety and that of the environment and to

protect your device from any potential damage.

ATIM_ACW-WLL_UG_EN_V1.4

General hazard –Failure to follow the instructions presents a risk of equipment damage.

Electrical hazard –Failure to follow the instructions presents a risk of electrocution and

physical injury.

Direct-current symbol

WARNING: do not install this equipment near any source of heat or any source of humidity.

WARNING: for your safety, it is essential that this equipment be switched off and disconnected from

mains power before carrying out any technical operation on it.

WARNING: the safe operation of this product is ensured only when it is operated in accordance with

its intended use. Maintenance may only be performed by qualified personnel.

Waste disposal by users in private households within the European Union. This symbol appears on a

product or its packaging to indicate that the product may not be discarded with another household

waste. Rather, it is your responsibility to dispose of this product by bringing it to a designated

collection point for the recycling of electrical and electronic devices. Collection and recycling waste

separately at the time you dispose of it helps to conserve natural resources and ensure a recycling

process that respects human health and the environment. For more information on the recycling

centre closest to your home, contact your closest local government office, your local waste

management service, or the business from which you purchased the product.

c. Radio

Modems in the ACW line are radio-communication modems that use the ISM (industrial, scientific, and medical) bands,

which may be used freely (at no cost and with no authorization required) for industrial, scientific, and medical

applications.

ATIM_ACW-WLL_UG_EN_V1.4

Technical specifications

a. Features

INDOOR: ACW/xxx-WL(L)-I

OUTDOOR: ACW/xxx-WLL-O

Build-in alarm + Led + Buzzer (optional)

IP68 enclosure + LED (no buzzer)

Internal antenna

External antenna (+4m wire)

Leak detection using electrode or cable

Leak localization (+/- 1m) using specific cables

No leak localization

Long life (up to 5 to 10 years)

b. Technical features

Dimensions

80 x 80 x 35 mm (weight 100g)

Antenna

Integrated (¼ wave)

Temperature

-20°C to +55°C (operation)

-40°C to +70°C (storage)

Encore & Mounting

ABS - Wall

Power supply

1 battery pack Lithium 3,6V / 7,2Ah

Rate

Sigfox: 100bps / LoRa: 300 to 10kbps

Frequency

865 –870 MHz (Europe)

Power

25 mW (14 dBm)

Consumption

Sigfox

LoRa

Mode Tx

25 mA

50 mA

Mode Sleep

5 µA

1 µA

Mode Rx

17 mA

22 mA

ATIM_ACW-WLL_UG_EN_V1.4

c. Water Leak Sensor

Typical value

Localization precision

+/- 1m

(WLL Only !)

Response time

+/- 5s

Time needed for the water to get

through the cable (independent from

the product response time)

a. Mounting

ACW-WL(L) modems are fixed on a flat wall using the 4 fixing holes available at each

end of the case. For best results, it is recommended to install the case without

environmental obstruction and to place it at a minimum height of 2m. For

information, the antenna is integrated into the box. It must be mounted on a

vertical support or attached to a wall

b. Identification

The product identifier is visible on the outer label on the back of the product, on the inside of the electronic board and

in the status bar of the configuration software.

For LoRaWAN modems the communication keys are automatically given by the network ("Over The Air Activation", or

OTAA pairing).

Each product in the ATIM ACW range has a QR Code label visible either on the side or on the front of the product.

This QR code can be easily read with any 2D barcode reader application on a smartphone.

Reading this code indicates the following information:

ATIM|ACW/LW8-WLL|C.0|190114|1|3.0|5.11|70B3D59BA0008C0A

WL-O

ACW-WLL product label

Datamatrix:

ID Sigfox or DevEUI

LoRaWAN

Serial number product

Product reference:

Sigfox or LoRaWAN version

Sigfox or DevEUI

LoRaWAN ID

Revision number of the

product (hardware and

firmware)

ATIM_ACW-WLL_UG_EN_V1.4

Interpretation:

ATIM

ACW/LW8-

WL-O

C.0

190114

3.0

5.11

70B3D59BA0008C0A

Manufacturer

name

Product

reference

Revision

number

Date of

manufactu

Manufactu

ring site

Hardware

version

Application

firmware

version

Sigfox ID

DevEUI LoRaWAN

Available versions

a. Electrodes only

In this version, the sensor can detect a leak just under itself like in this

picture.

It must be placed to get the electrodes right above the floor

REF: ACW-WL-I

b. Simple cable

In this version, the product is using a water sensible cable and therefore can detect the

presence of water all long the cable.

It’s available in different lengths (3m / 5m / 7m / 15m).

ATIM_ACW-WLL_UG_EN_V1.4

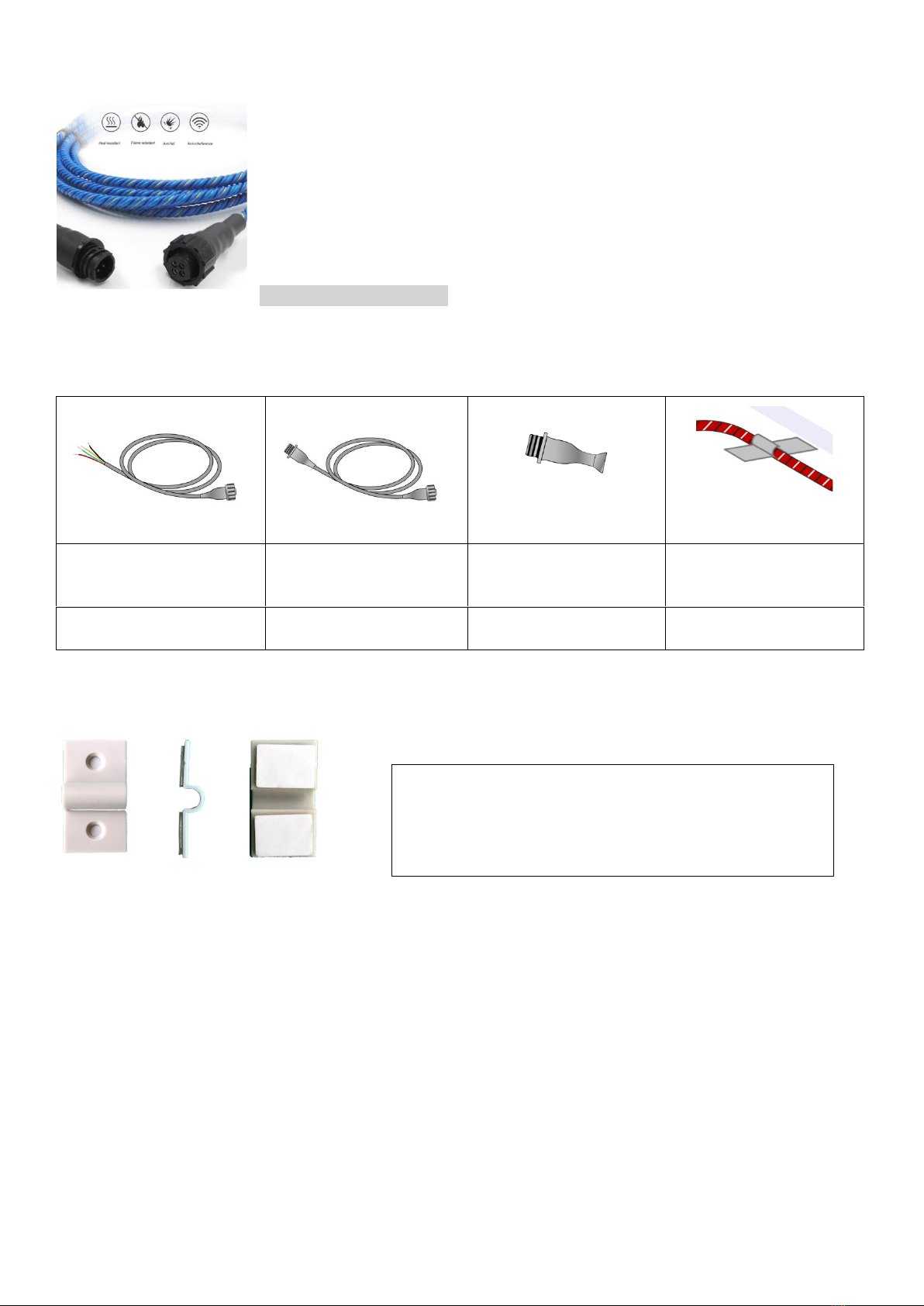

c. Localisation and detection cable

Using this cable, you can locate the leak by measuring the distance between the device

and the leak with a precision of +/- 1m.

This cable is available in different lengths: 5m / 7m / 10m / 15m and can be connected

to various accessories to monitor several rooms at the same time. Each segment features

a male and a female waterproof connector to be extended easily.

REF: CAB-WLL-3 / 5 / 7 / 15

d. Wiring accessories

Link cable (Device to WLL

cable)

Jumper cable (between

rooms)

End of line stub.

Fixation clips

CAB-WL-LEAD

CAB-WL-JUMP

CAB-WL-TERM

CAB-WL-CLIPS

Fixation clips

Dimensions: 37 x 21 x 8mm

Fix: bonded or screwed (2 holes 4mm, center distance 22mm)

Materials: flexible plastic + 2 stickers
