FireGL™ X1-256p

FireGL™

Z1-128p

User’s Guide

P/N: 137-50004-30

express written permission of ATI Technologies Inc. is strictly prohibited.

ATI and all ATI product and product feature names are trademarks and/or registered trademarks

of ATI Technologies Inc. All other company and/or product names are trademarks and/or

registered trademarks of their respective owners. Features, performance and specifications are

subject to change without notice. Product may not be exactly as shown in the diagrams.

FireGL, FIRE GL, HYDRAVISION – ATI Technologies Inc.; Athlon – Advanced Micro

Devices. Inc.; Fire Wire – Apple Computer Inc.; Direct3D, Windows 2000, Windows XP –

Microsoft Corp.; IEEE – The Institute of Electrical and Electronic Engineers, Inc.; AGP

(Accelerated Graphics Port), Celeron, Pentium Pro, Pentium II, Pentium III – Intel Corporation;

VGA – International Business Machines Corp.; OpenGL - Silicon Graphics Inc.; VESA – Video

Electronics Standards Association.

Adobe and Acrobat are trademarks of Adobe Systems Incorporated, which may be registered in

certain jurisdictions.

Disclaimer

While every precaution has been taken in the preparation of this

document, ATI Technologies Inc. assumes no liability with respect to

the operation or use of ATI hardware, software or other products and

documentation described herein, for any act or omission of ATI

concerning such products or this documentation, for any interruption of

service, loss or interruption of business, loss of anticipatory profits, or

for punitive, incidental or consequential damages in connection with

the furnishing, performance, or use of the ATI hardware, software, or

other products and documentation provided herein.

ATI Technologies Inc. reserves the right to make changes without

further notice to a product or system described herein to improve

reliability, function or design. With respect to ATI products which this

document relates, ATI disclaims all express or implied warranties

regarding such products, including but not limited to, the implied

warranties of merchantability, fitness for a particular purpose, and non-

infringement.

Documentation updates

ATI is constantly improving its product and associated documentation.

To maximize the value of your ATI product, you should ensure that you

have the latest documentation. ATI’s documentation contains helpful

installation/configuration tips and other valuable feature information.

iii

Contents

Getting Started............................................................... 1

Using this Guide ............................................................................................ 2

Viewing the User's Guide Online........................................................... 3

Do you Need a Printout of the Online User's Guide?............................. 3

FireGL Card Features ........................................................................... 4

System Requirements and Tools ................................................................... 6

Quick Installation .......................................................................................... 7

Installation Steps .................................................................................... 7

Installing the Hardware and Software ......................... 8

Installing the Hardware ................................................................................. 8

Preparing your Computer ....................................................................... 9

Installing the Card ................................................................................ 13

Connecting the Cables and Completing the Installation ...................... 18

Installing the Software................................................................................. 22

Before you Start: Information, Tips, and Hints.................................... 23

Software Installation for Windows 2000 and Windows XP ................ 24

Using Your FireGL Card.............................................. 26

Using Two Monitors.................................................................................... 28

Using the DualScreen Tab .................................................................. 29

Operating Stereo Glasses............................................................................. 30

Changing the Video Settings ....................................................................... 30

How to Switch to the Display Properties?............................................ 30

Setting Resolution, Color Depth and Refresh Rate............................. 31

Adjusting the Monitor Display............................................................. 33

Using Application Profiles and Advanced Functions.................................. 36

Configuring Application Profiles ......................................................... 36

Setting Advanced Functions................................................................. 39

See also

HYDRAVISION™ User’s Guide

Reference ..................................................................... 41

Removing the FireGL Drivers..................................................................... 41

Troubleshooting........................................................................................... 43

Technical Details ......................................................................................... 46

Product Specifications.......................................................................... 46

Pin Assignments................................................................................... 48

Video Modes ........................................................................................ 50

Customer Care and Warranty Service ......................................................... 52

Compliance Information.............................................................................. 55

CHAPTER 1

Getting Started

Your ATI FireGL card is an advanced workstation 3D graphics

accelerator based on a high-bandwidth, parallel pipeline

geometry and rendering architecture. The card delivers

workstation-class performance to designers, engineers and

animators, running the leading OpenGL and DirectX

applications

Features of your FireGL workstation graphics accelerator:

• Real-time photo-realistic rendering and animation

• Stable and reliable software support for Windows® and

Linux® platforms

• Optimized support for the leading workstation applications

• SMARTSHADER™ 2.0 technology for creating complex

visual effects

• SMOOTHVISION™ 2.0 technology for advanced full-scene

anti-aliasing

IN THIS CHAPTER...

■Using this Guide on page 2

■FireGL Card Features on page 4

■System Requirements and Tools on

page 6

■Quick Installation on page 7

2 Getting Started

Using this Guide

For your convenience, this online User's Guide comes in

Portable Document Format (PDF). You will need the latest

Adobe® Acrobat® Reader® software available from

www.adobe.com.

Many hyperlinks provide easy access to any information you

may want. To make it useful in a printed format, too, a -

hyperlinked - table of contents and page numbers are provided.

Since this guide was designed to be used online and printed, the

quality of some images on screen or in print may be affected.

The organization of this guide is as follows:

Installing the Hardware and Software on page 8 provides

instructions for installing your FireGL card, loading the driver

and connecting video output devices to your card.

Using Your FireGL Card on page 26 explains how you can

take advantage of the advanced features of your FireGL card.

Reference on page 41 provides troubleshooting tips and

regulatory compliance information for your card.

HYDRAVISION™ User’s Guide provides information on

using HYDRAVISION, a multi-monitor and desktop

management utility to control multiple display desktops.

Getting Started 3

Viewing the User's Guide Online

You can easily read the User's Guide online - important

hypertext links, such as Table of Contents entries, World Wide

Web, and E-mail addresses are active.

Place your mouse cursor over Table of Contents entries or main

headings. If the hand icon changes to a pointing index finger,

simply click and you will move to that place in the document.

Displaying the provided bookmark and thumbnail views may

help you with the orientation and navigation in the User's

Guide. Some E-mail or Web addresses inside this manual may

be active as well. Go directly to a Web, FTP site, or E-mail

program simply by clicking on an active link.

This manual might be displayed with slightly-reduced

magnification in your Reader. If you experience any difficulty

reading certain files online, use the Reader's Zoom To feature

from the View menu and increase the magnification to about

150%. To view details of some screenshot images you may need

to increase magnification.

Do you Need a Printout of the Online User's Guide?

You can also print this User's Guide to access it off-line. The

manual then will look like any standard document with a table

of contents and page numbers.

For printing the User's Guide, a print resolution of 600 dpi or

higher is recommended.

4 Getting Started

FireGL Card Features

• Video memory: DDR SDRAM

- unified frame buffer, Z-buffer, texture storage

- 128-bit floating point precision frame buffer for

photo-realistic renderings.

- 256-bit memory interface for fast 3D graphics

• Pixel pipeline architecture provides enhanced rendering

power.

FireGL VPU Video

Memory

Rendering

Pipelines

FireGL X1-256p FGL 9700 256 MB 8

FireGL Z1-128p FGL 9500 128 MB 4

VPU: Visual Processing Unit

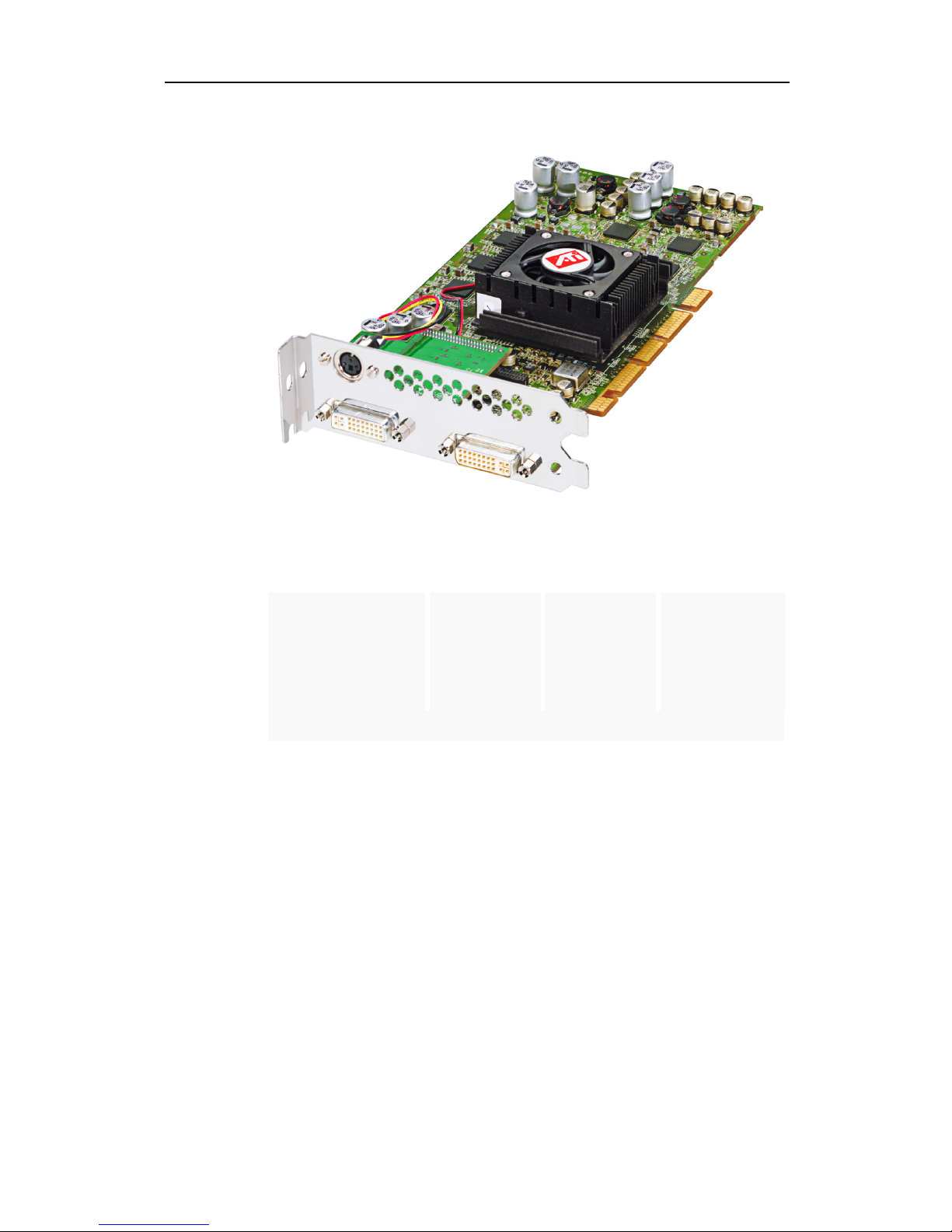

FireGL X1-256p pictured

Getting Started 5

• Supports AGP 3.0 standard (AGP 4X/8X), providing a two

way high-speed interface between the graphics subsystem

and the workstation

• OpenGL 1.3 with 1.4 extensions

DirectX® 9.0 functionality in OpenGL®

• Full DirectX® 9.0 support

• DDC1/2b/2b+ monitor support on all operating system

platforms

• Support for two analog or digital monitors

High resolutions up to 2048 x 1536, 32-bit

Independent resolutions and refresh rates for any two

connected monitors

9.1 Mpixel, 3840 x 240single-display support

• Quad buffer stereo support

• Application-specific display profile utilities for optimal

performance

• Intel Pentium® 4 Streaming SIMD and AMD Athlon

3Dnow!™ support for Windows 2000, Windows XP and

Linux operating systems.

For more detailed information on features and

performance please refer to the section Technical

Details on page 46.

6 Getting Started

System Requirements and Tools

Computer

system

• Intel® Pentium® 3, Pentium® 4, Xeon®

AMD® Athlon® XP/MP/Opteron

or compatible

• 128 MB of system memory

256 MB or more for best performance

• Motherboard with free AGP Pro slot and

correct AGP chipset-driver

Note: The bracket of the FireGL™ card also

covers the expansion slot next to the AGP Pro

slot.

• CD-ROM drive

Operating

system

• Windows®2000 with Service Pack 1

(or higher)

•Windows®XP

• Linux XFree86 4.X.0

Service Pack

Information for

Windows2000

You must be running Windows 2000, updated with

Service Pack 1 (or higher) prior to installing the

FireGL drivers.

Service Packs are available from Microsoft's web

page, www.microsoft.com.

Tools • A screwdriver to remove and reinstall the PC

cover screws and card mounting screws. See

your PC manual for specific requirements.

• ATI INSTALLATION CD-ROM for your FireGL

card

Monitor • High-resolution MultiSync or multi-frequency

monitors or other VGA monitors.

• Digital flat-panel (DFP) displays or digital CRT

displays

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ATI Technologies Carte vidéo

ATI Technologies

ATI Technologies 100-505103 - Firegl V5000 128MB Pcie 2PORT Dvi-i... Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 9200 MAC EDITION Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 7000 MAC EDITION Manuel utilisateur

ATI Technologies

ATI Technologies Radeon HD 3450 Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 7000 Manuel utilisateur

ATI Technologies

ATI Technologies 9550 - X Radeon 256MB Agp Manuel utilisateur

ATI Technologies

ATI Technologies 100 437807 - Radeon X1950 Pro HD PCI Express 256MB Video... Manuel utilisateur

ATI Technologies

ATI Technologies Workstation x1000 Manuel utilisateur

ATI Technologies

ATI Technologies ALL-IN-WONDER PRO Manuel

ATI Technologies

ATI Technologies All-In-Wonder Radeon 9000 Card Manuel utilisateur

ATI Technologies

ATI Technologies 3D XPRESSION Manuel utilisateur

ATI Technologies

ATI Technologies FIRE GL X1-256 Manuel utilisateur

ATI Technologies

ATI Technologies 100-714127 - HD-TV Wonder Manuel utilisateur

ATI Technologies

ATI Technologies Radeon Guide de configuration

ATI Technologies

ATI Technologies V7200 - Firegl 256 Mb Pcie Manuel utilisateur

ATI Technologies

ATI Technologies 100-505141 - Firemv 2200 128 MB PCIE Graphics... Manuel utilisateur

ATI Technologies

ATI Technologies ALL-IN-WONDER Manuel utilisateur

ATI Technologies

ATI Technologies RadeonX800 Series Manuel utilisateur

ATI Technologies

ATI Technologies Workstation x1000 Manuel utilisateur

ATI Technologies

ATI Technologies X1300 - Radeon 256 MB PCI Express Video Card Manuel utilisateur

ATI Technologies

ATI Technologies All-In-Wonder Radeon Manuel utilisateur

ATI Technologies

ATI Technologies 9800XT - 100-505076 FireGL 256MB DDR SDRAM AGP 8x Graphics... Manuel utilisateur

ATI Technologies

ATI Technologies All-In-Wonder X1800 Series Manuel utilisateur

ATI Technologies

ATI Technologies V7300 - Firegl 512MB Pcie Bulk Manuel utilisateur

Manuels Carte vidéo populaires d'autres marques

Gainward

Gainward GeForce GTX 690 4GB Manuel utilisateur

MSI

MSI N220GT series Manuel utilisateur

SIIG

SIIG aurora Manuel utilisateur

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Manuel utilisateur

MSI

MSI R7850 series Manuel utilisateur

DVS

DVS Atomix HDMI Manuel utilisateur

Aztech

Aztech VGS3D-AGP Manuel utilisateur

Advoli

Advoli TB4 Standard Manuel utilisateur

ELSA

ELSA ERAZOR III LT Manuel utilisateur

Gigabyte

Gigabyte GV-R7500L Manuel utilisateur

Themis

Themis TGA-7000 PMC Manuel utilisateur

EMS

EMS XtremeRGB-Ex1 Manuel utilisateur

Nvidia

Nvidia Quadro Workstation Manuel utilisateur

Pioneer

Pioneer PDA-5003 Manuel utilisateur

QDI

QDI N2 Manuel utilisateur

NEC

NEC N8116-48 Manuel utilisateur

MSI

MSI R7770 PoweR Edition Manuel utilisateur

Gigabyte

Gigabyte GV-N68T256D Manuel utilisateur
