USER´S MANUAL



® Urheberrecht ATH-Heinl GmbH & Co. KG, 2014, Alle Rechte vorbehalten. / Druckfehler und technische Änderungen vorbehalten / Stand: 05/2014
© Copyright by ATH-Heinl GmbH & Co. KG, 2014, All rights reserved. / Subject to misprints and technical changes / Version: 05/2014
2/ 24

CONTENT

Specifications..................................................................................................................................... 3
Function table ................................................................................................................................... 4
Part description ................................................................................................................................ 5
Operation preparations...................................................................................................................... 7
Flushing ............................................................................................................................................ 10
Exchange .......................................................................................................................................... 11
Filling level (refilling oil) .................................................................................................................. 12
Filling level (draining oil) ................................................................................................................. 13
Draining............................................................................................................................................. 14
System setting.................................................................................................................................. 15
Troubleshooting ............................................................................................................................... 17
Adaptor list ..................................................................................................................................... 18
Notes ................................................................................................................................................. 23


3/ 24

Specifications

Automatic detection of flow direction

Dimensions

635 x 585 x 1.075 mm

Power supply

AC220V 50Hz / 110V 60Hz

Output

200W

Length of maintenance tubes

3.000 mm

Draining tube

1.000 mm

Capacity of old / unused oil tank

25 L

Load cell measuring range

40 kg

Exchange accuracy

±100 ml

Detergent bottle capacity

500 ml

TFT / LCD full color display

105,5 x 67,2mm; 480 x 272 Dots; RGB

Pressure measuring range

0~150psi (1-10Bar)

4/ 24

Function table

Main functions

Flushing

Flushing/Cleaning of A/T gear system.

Flushing can also be made when A/T transmission is

deactivated.

Exchange

Exchange the used oil of the A/T system with unused oil.

Adjust filling level

Refilling or draining oil to the A/T system

Draining

Draining of used and unused oil tanks

Setting

Calibration

Calibration of load cells for used and unused oil tank

Language

Selection of language

Weight setting

Input of empty weight of the tanks for used and unused oil

Measuring unit

Selection of metric or imperial units (lb)

Diagnosis

Direct activating of solenoid valves and the internal oil pump

for testing the system.

5/ 24

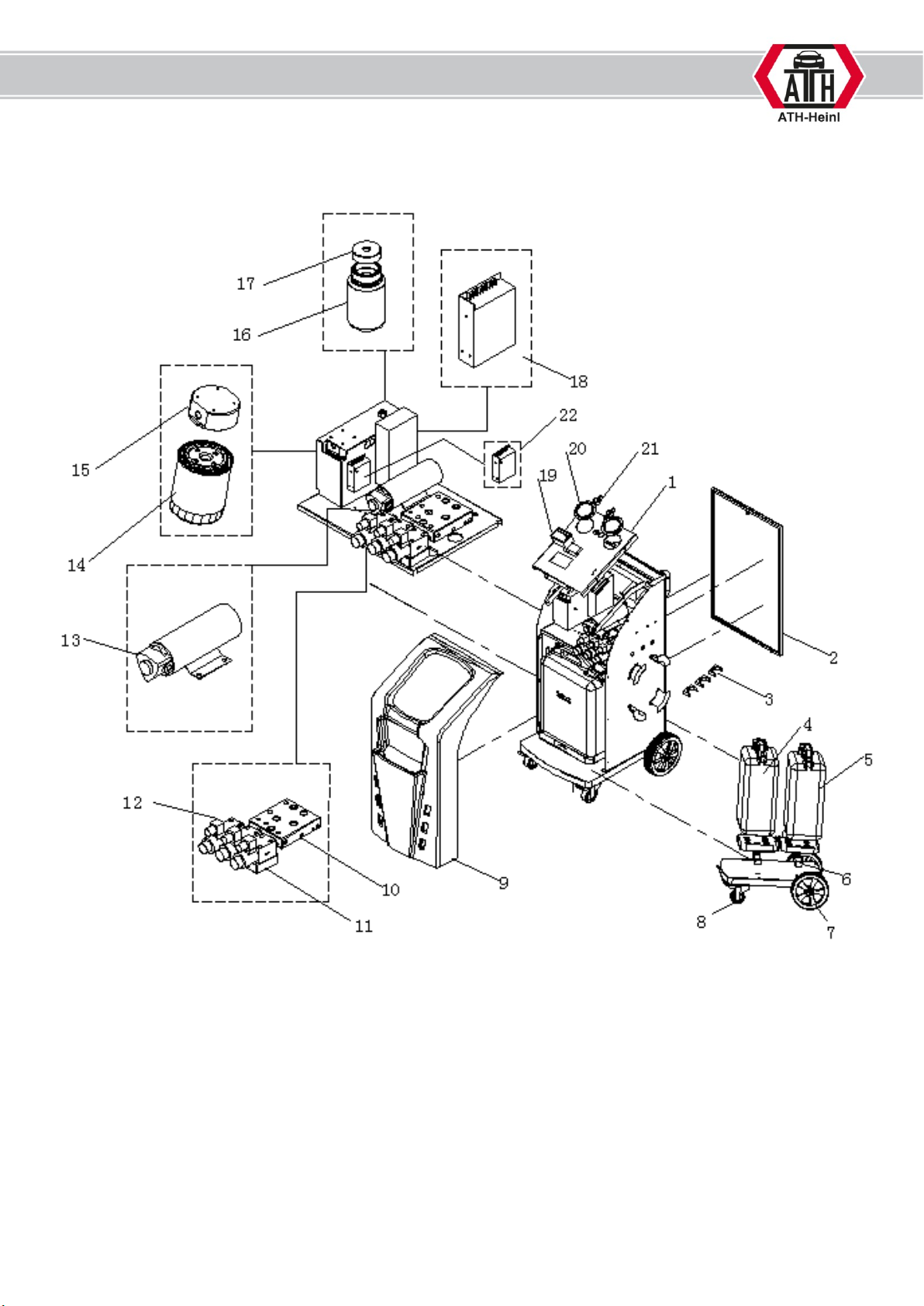

Part description

6/ 24

Operation panel

Back cover

Tube holder

Used oil tank

Unused oil tank

Load cell

Rear wheel

Front wheel

Front cover (plastic)

Control unit 2

Control unit 1

Solenoid valve

Oil pump

Filter

Filter flange

Detergent bottle

Detergent bottle support

Power unit 1

Printer

Pressure manometer

Inspection glass

Power unit 2

7/ 24

Operation preparations

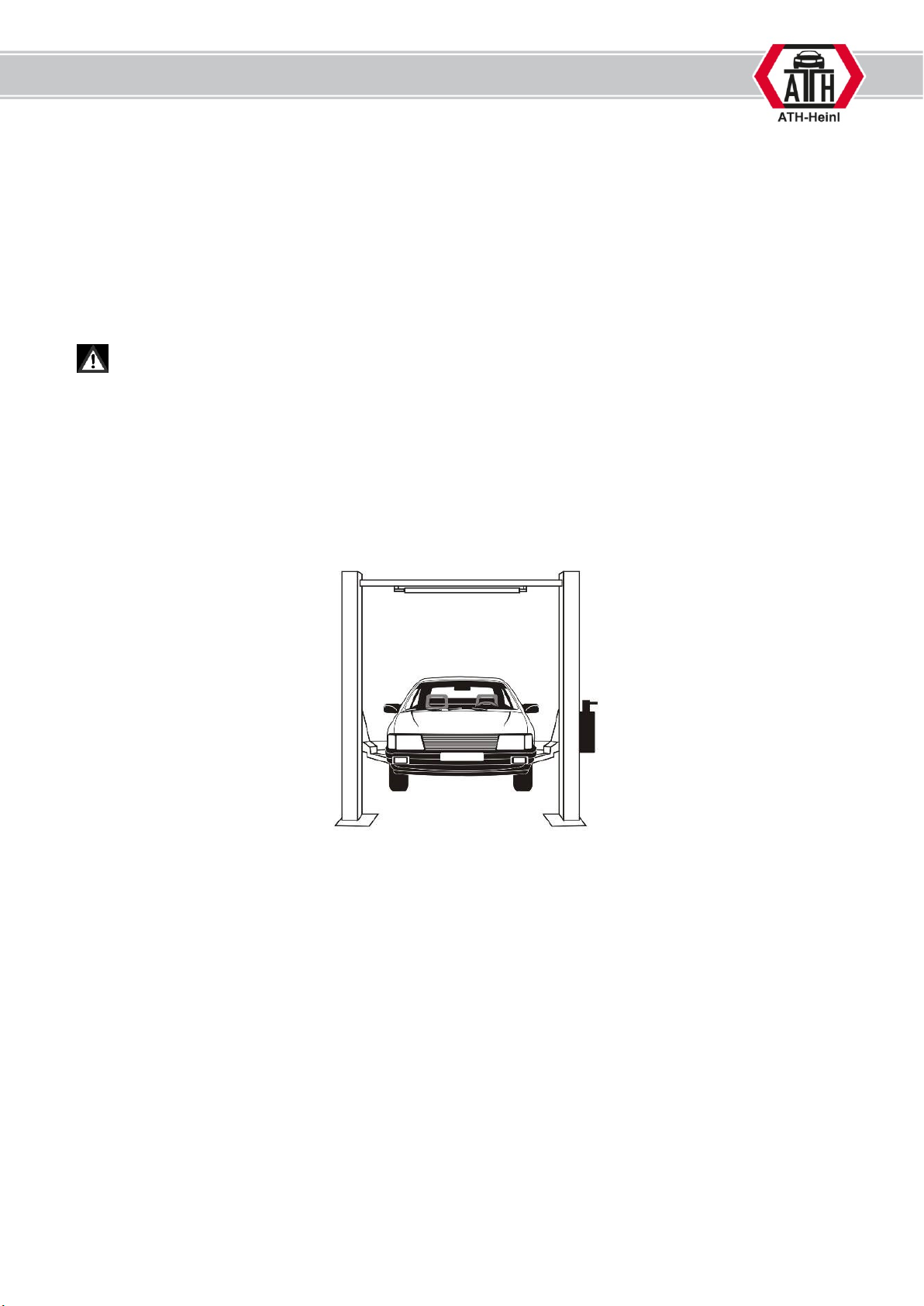

1. Raise the vehicle with the lift until the driving wheels are hanging completely free. (Pic.2)

Note: Driving wheels may not touch anything!

For avoiding damages and accidents the following have to be observed:

- Pay attention to the instructions of the vehicle manufacturer,

e.g. the vehicle is only allowed to be lifted at the indicated lifting points.

- Pay attention to the instructions of the lift manufacturer,

e.g. the operation of the lift is only allowed to be made by skilled personal

Pic. 2

8/ 24

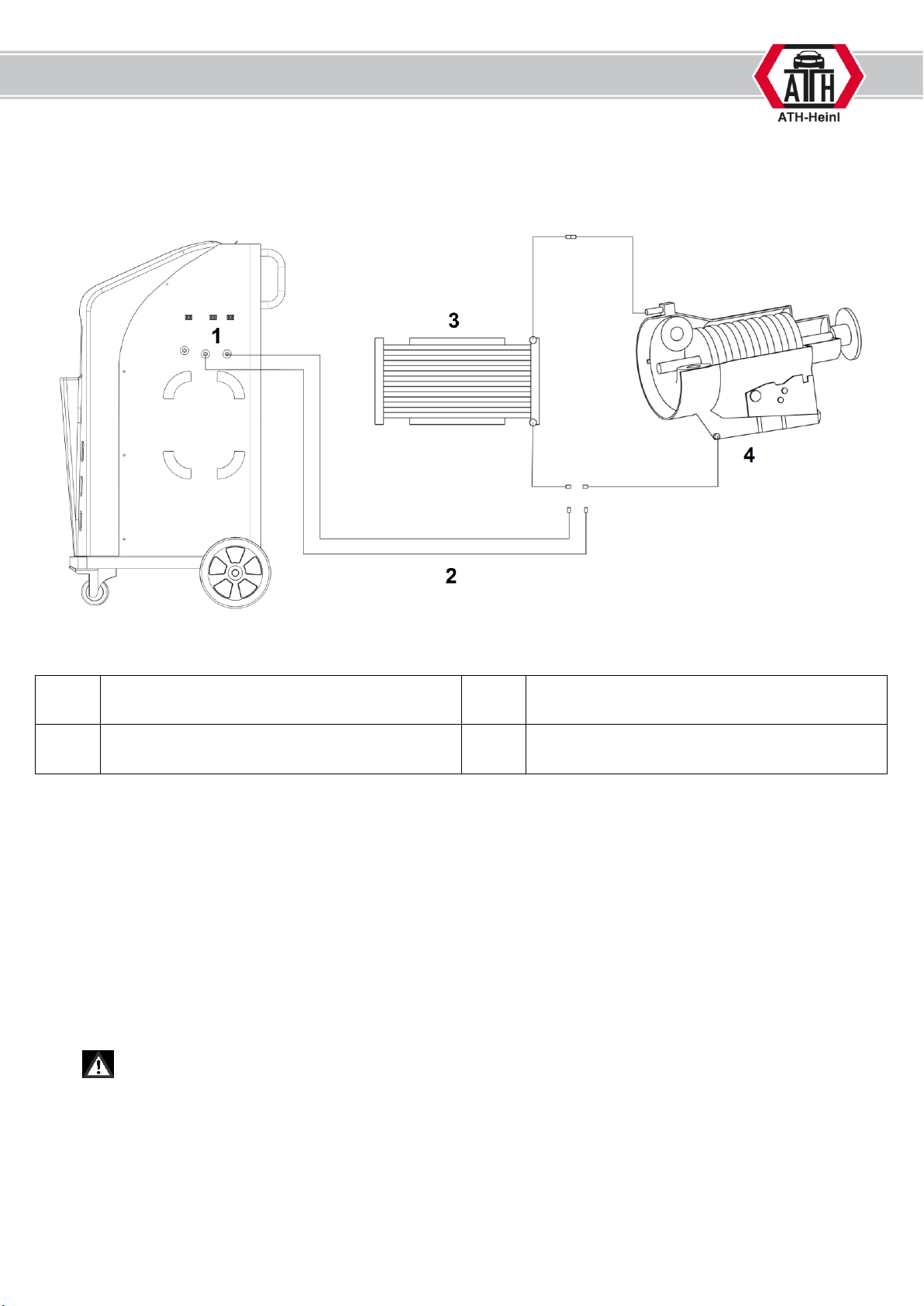

2. Connect the maintenance tubes to the A/T system with the corresponding adaptors of the vehicle

as shown in picture 3 (Pic.3) .

Pic.3

ATF-exchanger

Radiator

Tubes leading to transmission

Automatic transmission

3. Fill into the unused oil tank the A/T oil which is required by the vehicle manufacturer. Fill in thereby

1 –2 l more than required.

4. If necessary flush the A/T system. For this fill into the detergent bottle the needed detergent and

start the flushing process in the menue of the ATF exchanger

PAY ABSOLUTELY ATTENTION TO THE INSTRUCTIONS OF THE VEHICLE

MANUFACTURER AND OF THE PRODUCER OF THE DETERGENT!

9/ 24

5. Before starting the exchange function, check the used oil tank if there is enough capacity for the

quantity to exchange. If not it has to be drained with the draining function. In case of

non-observance the oil tank can overflow and the ATF exchanger can be damaged.

FOR A PROFESSIONAL EXCHANGE OF THE USED OIL IT HAS TO BE AVAILABLE

THE DOUBLE QUANTITY OF OIL + 1-2 LITER MORE AS INDICATED BY THE

VEHICLE MANUFACTURER.

E.G.. IF THE INDICATED OIL QUANTITY OF THE AT- SYSTEM IS 9 LITER THEN YOU

WILL NEED 9 LITER UNUSED OIL FOR REMOVING THE PARTICLES/DEPOSITS AND

RESIDUALS OF DETERGENTS COMPLETELY OUT OF THE AT-SYSTEM AND 9

LITER UNUSED OIL FOR THE REAL EXCHANGE AFTER THE OIL FILTER WAS

CHANGED IN THE AT-SYSTEM

THE OIL LEVEL HAS TO BE CHECKED ACCORDING TO THE INFORMATIONS OF

THE VEHICLE MANUFACTURER AFTER THE EXCHANGE!

10 / 24

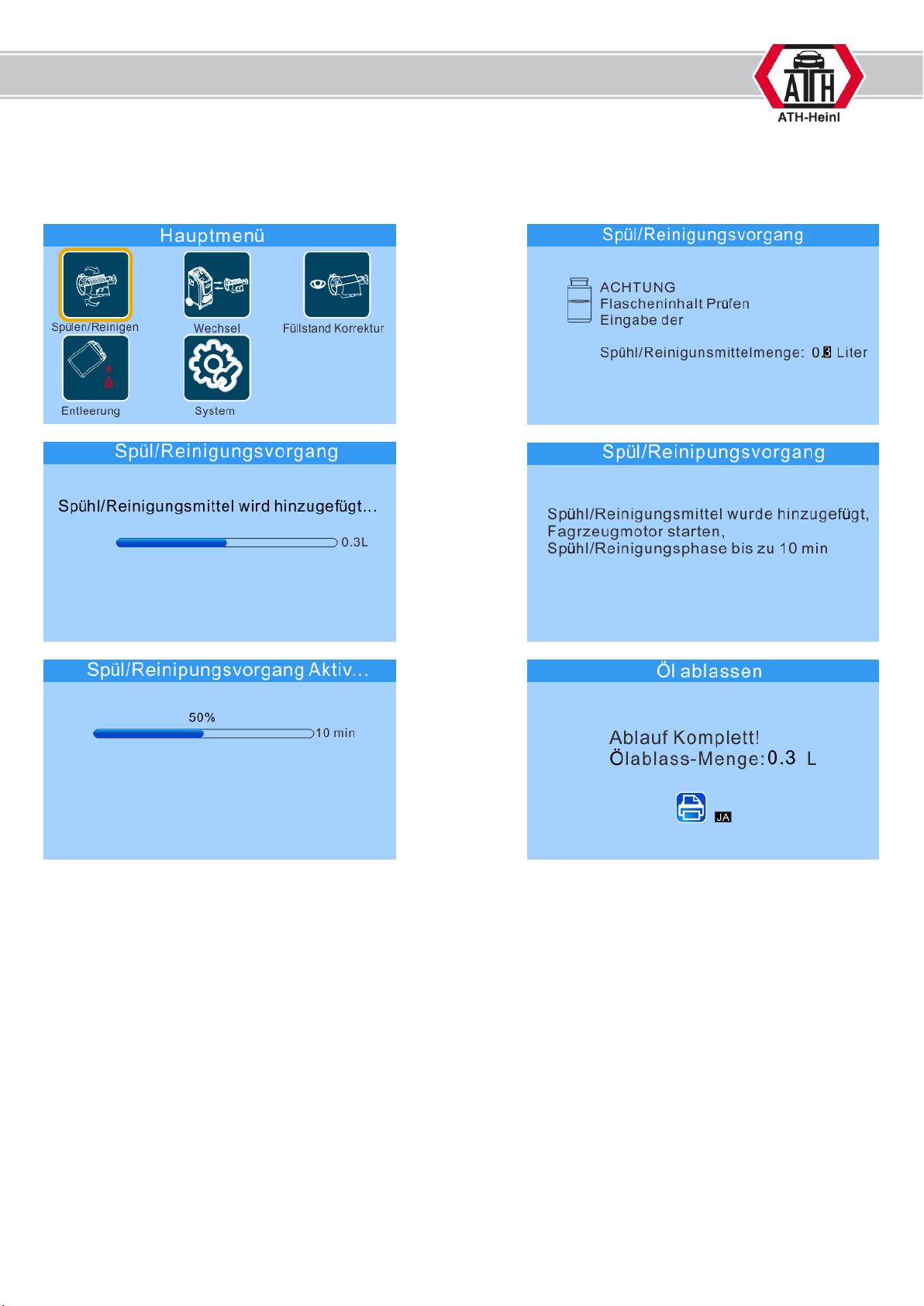

Flushing
