ATEN CE-250 Manuel utilisateur

CONSOLE

REMOTE I /O

AC 9V

CONSOLE

REMOTE I/O

AC 9V

User Manual

CE-250

Read this guide thoroughly and follow the installation and

operation procedures carefully in order to prevent any damage to

the units and/or any devices that connect to them.

This package contains:

1 CE-250L KVM Extender (Local Unit)

1 CE-250R KVM Extender (Remote Unit)

1 CS Custom KVM Cable

2 Power Adapters

1 User Manual

If anything is damaged or missing, contact your dealer.

Manual Part No. PAPE-1221-100

Printing Date: 03/2007

ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights

reserved. All other trademarks are the property of their respective owners.

CE250.fm Page 1 Thursday, March 29, 2007 1:43 PM

Note: This equipment has been tested and found to

complywiththelimitsforaClassBdigitaldevice,pursuant

to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy,

and if not installed and used in accordance with the

instruction manual, may cause interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or

television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna;

Increase the separation between the equipment and

receiver;

Connect the equipment into an outlet on a circuit

different from that which the receiver is connected;

Consult the dealer or an experienced radio/television

technician for help.

CE250.fm Page 2 Thursday, March 29, 2007 1:43 PM

- 3 -

Overview

Because the CE-250 KVM Extender System allows access to a

computer system from a remote console (keyboard, monitor, and

mouse), it is perfect for factory and construction sites, or any type

of installation where the console needs to be in a conveniently

accessible location, but you want thesystemequipment to reside

in a safe place - away from dust, dirt, and harsh environmental

influences.

The CE-250 System is also useful for control and security

purposes, where you can have the system unit in a secure area

at the same time that you put the console in a location that offers

convenient access.

The CE-250 KVM Extender provides the ideal means to access

the remote system box, since it improves on previous designs by

using inexpensive Category 5 cable - the kind commonly used in

Ethernet networks - instead of bulkier, more expensive, standard

cables. Category 5 cabling makes for a much neater, more

convenient, more reliable data transfer connection.

The CE-250 features a custom ASIC to ensure the utmost in

reliability and compatibility, and can also sense the distance to

the system and automatically adjust the gain to compensate.

Setup is as easy as can be - simply connect the computer system

box and local console to the Local CE-250 Module; run the Cat.

5 cable to the Remote CE-250 Module (up to 150 meters away);

and plug the remote console into the Remote Module.

Note: You can control numerous remote systems from a single

console by combining the CE-250 with a KVM switch.

CE250.fm Page 3 Thursday, March 29, 2007 1:43 PM

- 4 -

Features

Built-in ASIC for greater reliability and compatibility

Cat 5 cable to connect the local and remote units – up to 150

meters apart

Dual console operation – control your system from both the

local and remote PS/2 keyboard, monitor, and mouse

consoles

Push button selection – of the active console

High resolution video – up to 1280 x 1024

Supports VGA, SVGA, and multisync monitors

Local monitor supports DDC; DDC2; DDC2B

Automatic gain control – automatically adjusts signal strength

to compensate for distance

Easy to install – no software required – connecting cables to

the devices is all it takes

CE250.fm Page 4 Thursday, March 29, 2007 1:43 PM

- 5 -

System Requirements

Consoles

A VGA, SVGA, or Multisync monitor capable of the highest

resolution that you will be using on any computer in the

installation

A PS/2 style keyboard

A PS/2 style mouse

Note: 1. If you connect a DDC type monitor to the Local Unit, the

monitor that connects to the Remote Unit must be able

to support the highest video resolution that the DDC

monitor can provide.

2. You must use the same brand and model of mouse on

both the local and remote units.

Computers

Thefollowing equipmentmustbe installed oneach computerthat

is to be connected to the system:

A VGA, SVGA, or Multisync card

A 6-pin mini-DIN mouse port

A 6-pin mini-DIN Keyboard port

Cables

Although it is possible to use standard KVM cables to link

computers to the CE-250L, for optimal signal integrity, and to

simplify the layout, we strongly recommend that you use the

high quality CS Custom KVM Cable that is provided with this

package.

Category 5 cable is the minimum required to connect the local

and remote CE-250 units. Cable of a lesser standard will

result in degrading the video signal. For best performance, we

strongly recommend Category 5 cable.

CE250.fm Page 5 Thursday, March 29, 2007 1:43 PM

- 6 -

Components

The Local Unit (CE-250L)

Front View:

#Description Function

1 OperatingMode

Selection

Switch

Pressing this button toggles between the operating

mode choices:

Local: only the local console can control the

system(s)

Auto: both consoles can control the system(s).

2 LEDs The Local Unit has two LEDs to indicate the operating

status of the Local and Remote units (see CE-250L

(Local Unit), p. 11).

3 Mouse Port The local PS/2 mouse plugs into this connector.

4 Keyboard Port The local PS/2 keyboard plugs into this connector.

5 Monitor Port The local monitor plugs into this connector.

6 Remote I/O The Cat 5 twisted pair cable that connects to the

Remote Unit plugs into this connector.

7 Power Jack The cable from the AC Power Adapter plugs into this

jack.

CONSOLE

REMOTE I /O

AC 9V

CE250.fm Page 6 Thursday, March 29, 2007 1:43 PM

- 7 -

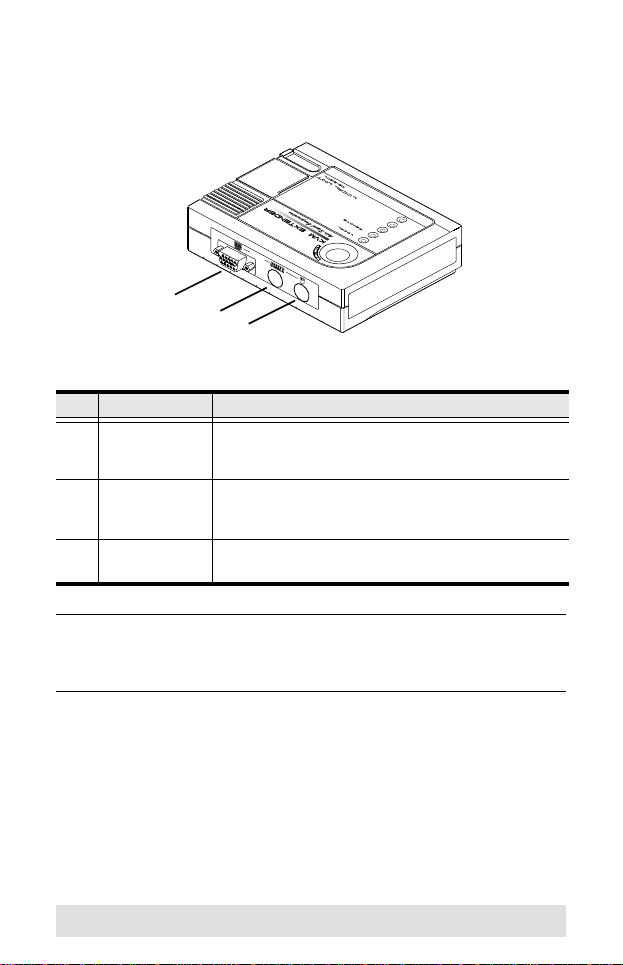

The Local Unit (CE-250L)

Rear View:

Note: If you are combining the CE-250 with a KVM switch, the

KVM cable connects back to the respective ports on the

Console section of the switch.

#Description Function

1 Monitor Port The HDB-15 Video connector of the KVM cable that

connects to the computer's Video port plugs into this

connector.

2 Keyboard Port The Keyboard connector of the KVM cable that

connects to the computer's Keyboard port plugs into this

connector.

3 Mouse Port The Mouse connector of the KVM cable that connects to

the computer's Mouse port plugs into this connector.

CPU

CE250.fm Page 7 Thursday, March 29, 2007 1:43 PM

- 8 -

The Remote Unit (CE-250R)

Front View:

#Description Function

1 LEDs The Remote Unit has two LEDs (Power and On Line) to

indicate the operating status of the Local and Remote

units (see CE-250R (Remote Unit), p. 11).

2 Mouse Port The remote PS/2 mouse plugs into this connector.

3 Keyboard Port The remote PS/2 keyboard plugs into this connector.

4 Monitor Port The remote monitor plugs into this connector.

5 Remote I/O The Cat 5 twisted pair cable that connects back to the

Local Unit plugs into this connector.

6 Power Jack The cable from the AC Power Adapter plugs into this

jack.

CONSOLE

REMOTE I /O

AC 9V

CE250.fm Page 8 Thursday, March 29, 2007 1:43 PM

- 9 -

Installation

Setting up the CE-250 KVM Extender system is simply a matter

of plugging in the cables. Refer to the installation diagram on the

following page and do the following:

1. Make sure that all the equipment to be connected up is

powered Off.

2. Plug the cables from the local console devices (mouse,

keyboard, monitor), into their ports on the Console side of the

Local Unit (CE-250L).

3. Plug the appropriate connectors on the KVM cable supplied

with this unit into the CPU side of the CE-250L. Each

connector is marked with an appropriate icon to indicate

which it is.

Note: The female monitor connector is the one that plugs into

the CE-250L.

4. Plug the connectors on the other end of the cable into the

appropriate ports on the computer (or Console section of the

KVM switch - if you are using one). Each connector is marked

with an appropriate icon to indicate which it is.

5. Plug either end of the Category 5 twisted pair cable into the

CE-250L's Remote I/O port.

6. Plug one of the power adapters (supplied with this package)

into an AC source; plug the adapter's power cable into the

CE-250L's Power Jack

7. Plug the other end of the Category 5 twisted pair cable into

the I/O port of the Remote Unit (CE-250R).

8. Plug the cables from the remote console devices (mouse,

keyboard, monitor), into their ports on the Console side of the

CE-250R.

9. Plug the second power adapter (supplied with this package)

into an AC source; plug the adapter's power cable into the

CE-250R's Power Jack.

CE250.fm Page 9 Thursday, March 29, 2007 1:43 PM

- 10 -

CE-250L

Rear View

CE-250L

FrontView

CE-250R

CONSOLE

REMOTE I /O

AC 9V

CPU

CONSOLE

REMOTE I /O

AC 9V

CE250.fm Page 10 Thursday, March 29, 2007 1:43 PM
