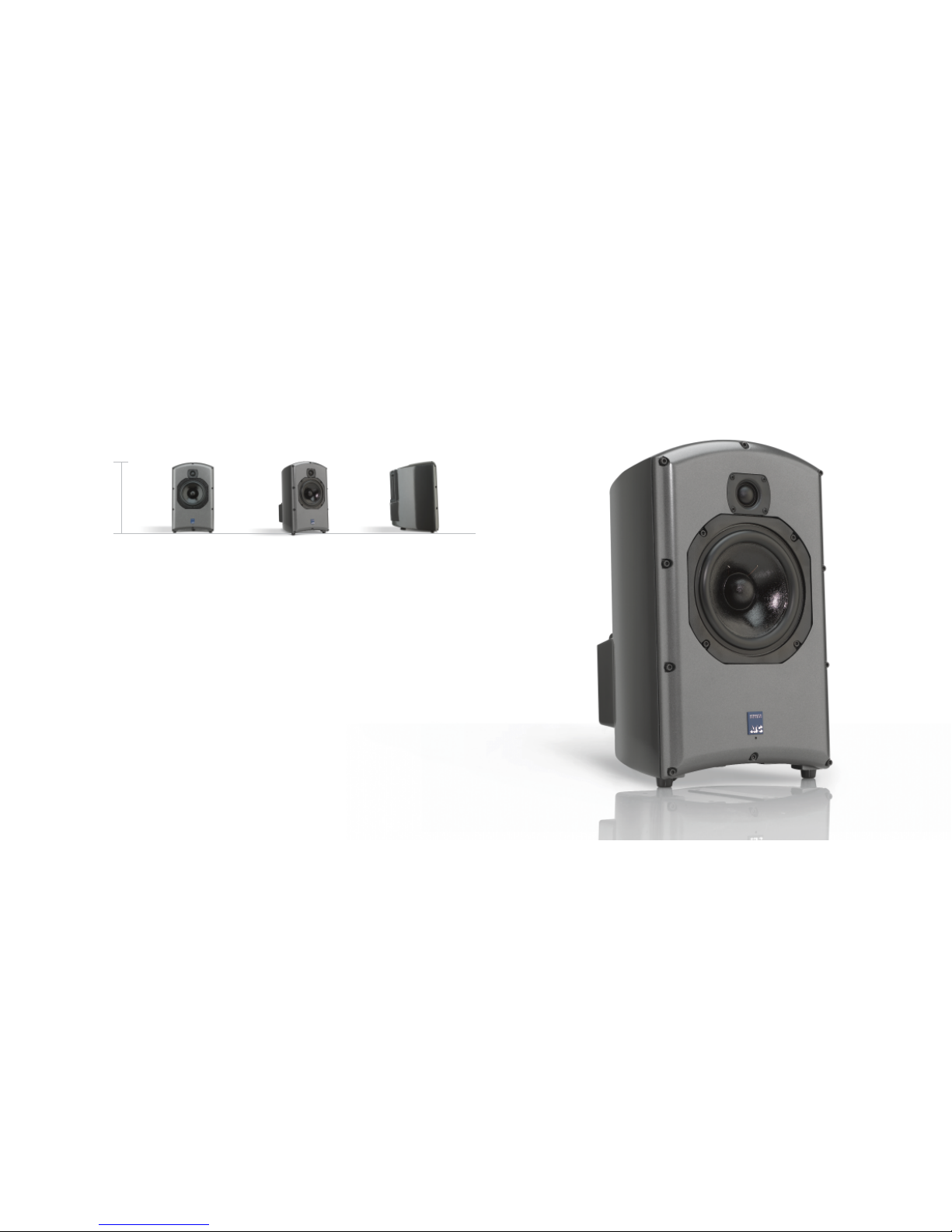

ATC SCM16A Manuel utilisateur
■New soft dome HF unit.
■New ATC “CLD” driver with 45mm integral soft dome.
■In-house, hand-wound precision flat wire coil.
■Precision undercut bass pole for symmetrical magnetic field.
■Massive optimised motor assembly.
■On board ATC built two-way 250W amplifier.
■Heavily damped Aluminium cabinet.
Drivers : HF 25mm, Mid/LF 150mm Amplitude Linearity (±2dB) :80Hz-17kHz Cut-off Frequencies (-6dB, free-standing) : 60Hz, 20kHz
Horizontal Dispersion : ±80°, Coherent Ve rtical Dispersion : ±10°, Coherent Max. Continuous SPL (1 metre) : 108dB Crossover Frequency : 2.8kHz
Input Connectors : Male XLR Input Sensitivity :Variable Input Sensitivity Trim : 20dB Input Impedance : Balanced > 10kΩ
Amplifier Output : Bass 200 W, High 50 W Filters : Even Order Critically Damped
Overload Protection : Active FET momentary gain reduction plus thermal tweeter protection Front Panel Indicators : Power on indicator LF EQ : +6dB @ 50Hz
Dimensions (HxWxD) : 448 x 270 x 330mm (17.6˝ x 10.6˝ x 12.2˝) Weight : 17.5kg / 38.5lbs
ATC reserves the right to vary products and specifications without prior notice.
SCM16A:2-way active
Specifications
448mm
Features
